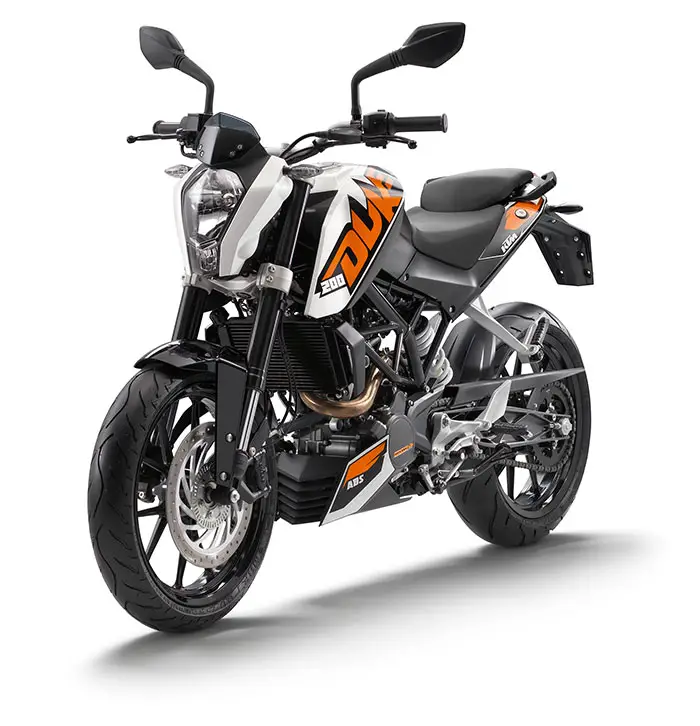

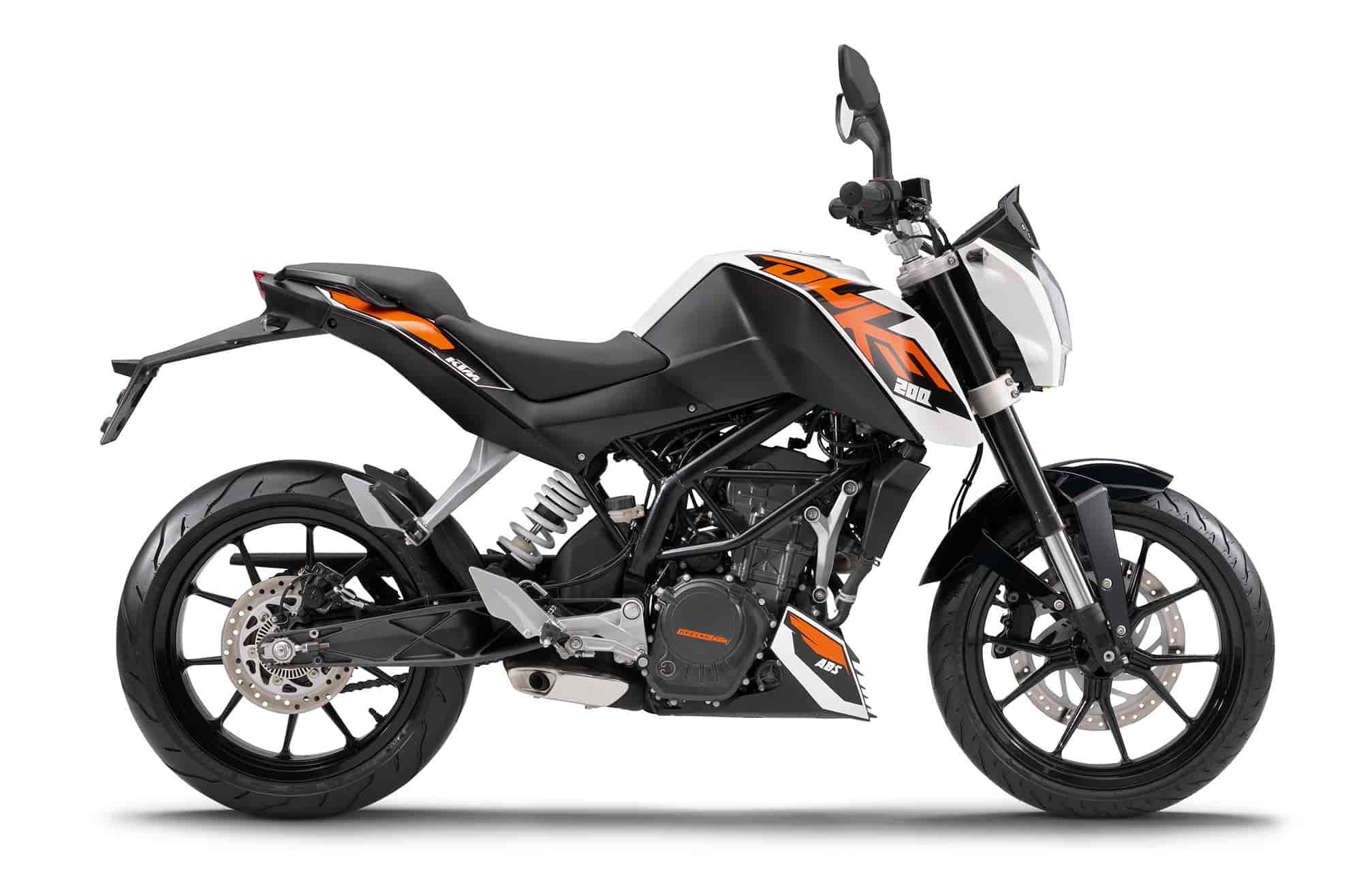

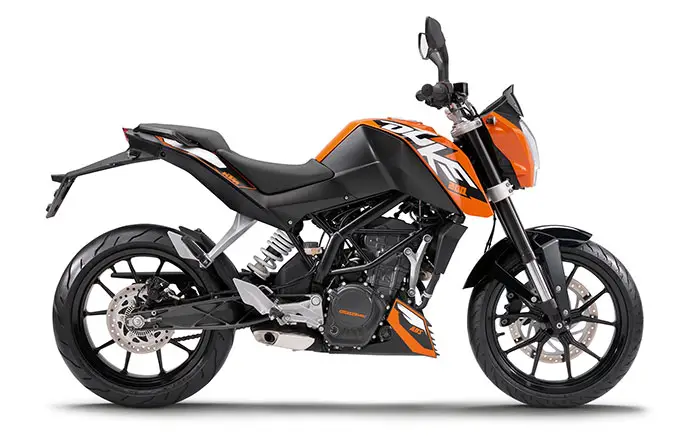

2014 KTM 200 Duke

2014 KTM 200 Duke

2014 KTM 200 Duke

2014 KTM 200 Duke

2014 KTM 200 Duke

2014 KTM 200 Duke Review

2014 KTM 200 Duke on Totalmotorcycle.com

A powerful appearance…

200 Duke: Lightness rediscovered – or the 125 Duke for grown-ups. Maximum riding fun, powerful propulsion and optimum user value thanks to thoroughbred motorcycle technology. Featherweight chassis with high-quality components and first-class brakes. And dynamic cornering fun guaranteed with the surprisingly full-bodied and lively power of the cultivated, new four-stroke single-cylinder with injection, six-speed transmission and low fuel consumption. Precisely what you’d expect from a genuine KTM.



2014 KTM 200 Duke Totalmotorcycle.com Key Features

Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled

Displacement 1,995 cm³

Performance 19 kW (25 hp)

Weight without fuel approx. 129.5 kg





2014 KTM 200 Duke Totalmotorcycle.com Features and Benefits

FUEL TANK

The shapely 11 l fuel tank on the 200 Duke not only provides the rider with perfect knee contact, but also guarantees a range of more than 300 kilometres even when ridden on the edge, thanks to the economical engine.

BRAKES

For 2013 a Bosch 9M-ABS makes the pleasure of the impressive Duke dynamics even safer and adds the finishing touch to what are unique chassis qualities in this segment. On the new 2013 200 Duke, the ABS – from Bosch as always with KTM – monitors the function of the powerful brake system with radially mounted four-piston calliper which gains even more braking power with the larger brake discs (increased from 280 to 300 mm diameter) – fun without risk, developed in close cooperation with the specialists from Bosch and Brembo. And for the stunt riders among us: the ABS is naturally disengageable

SEAT

For all its sportiness, the two-piece seat provides surprising long-distance comfort, perfect support and first-class ergonomics for rider and pillion. At 810 mm the seat height is low enough for a secure standing position, but also high enough for sports-oriented use and a genuine big-bike feeling.

ERGONOMICS

The 200 Duke is also a genuine motorcycle in terms of dimensions, providing plenty of space and freedom of movement. The gathered sitting position supports relaxed touring equally as well as committed cornering. Large contact surfaces ensure optimum control and perfect feedback.

BRAKES

For 2013 a Bosch 9M-ABS makes the pleasure of the impressive Duke dynamics even safer and adds the finishing touch to what are unique chassis qualities in this segment. On the new 2013 200 Duke, the ABS – from Bosch as always with KTM – monitors the function of the powerful brake system with radially mounted four-piston calliper which gains even more braking power with the larger brake discs (increased from 280 to 300 mm diameter) – fun without risk, developed in close cooperation with the specialists from Bosch and Brembo. And for the stunt riders among us: the ABS is naturally disengageable

SWINGARM

The KTM 200 Duke’s lightweight, high-quality, pin-jointed swingarm is designed and produced according to the same principle as the 690 Duke. The light alloy swingarm with directly linked WP shock absorber excels with extreme torsional stiffness and outstanding tracking stability.

TELESCOPIC FORK

The 200 Duke’s high-quality upside-down fork from WP Suspension has the same 43 mm outer tube diameter as the RC8 R – in other words, real racing equipment that guarantees highest levels of stability and precision.

WHEELS AND TYRES

Equally lightweight and delicate as they are stable, the 17 in cast light alloy wheels provide a 110 mm tyre width at the front and an impressive 150 mm at the rear. The tyres impress with tremendous grip in both wet and dry conditions, as well as providing supreme durability.

FRAME

19 kW (25 hp) Power and an unladen weight of only 129.5 kg guarantee tremendous, fleet-footed riding fun with the new 200 Duke 2013. The first-class chassis, with lightweight tubular space frame in the proven KTM design, turns it into a real surfer through the bends. Weight grouped close to the centre of gravity maximise manoeuvrability and precision.

INJECTION

The intricate engine design, state-of-the-art injection electronics and the close-ratio, six-speed transmission not only help the 200 Duke to achieve impressive performance, but also moderate fuel consumption. Thanks to the regulated catalytic converter, it produces only minimal emissions.

FUEL TANK

The shapely 11 l fuel tank on the 200 Duke not only provides the rider with perfect knee contact, but also with a range of more than 300 kilometres even when ridden on the edge, thanks to the economical engine.

SILENCER

The compact, three-chamber silencer is positioned close to the machine’s overall centre of gravity. This aids centralisation of masses and improves the easy handling of the KTM 200 Duke. Thanks to a regulated catalytic converter, the emissions are exemplary.

ENGINE

No minor development: Based on the state-of-the-art, liquid-cooled, single-cylinder four-stroke engine of the 125 Duke, the 2013 200 Duke’s power unit has been changed substantially to generate 60 % more displacement and correspondingly fully developed power. New camshafts, larger valves, a larger piston with a completely new crank drive, new airbox and new exhaust layout. It all results in 19 kW (25 hp) and incredibly punchy torque, even at lower revs – with irresistible smoothness.

CYLINDER HEAD

Just as on the RC8 R, the four valves in the cylinder head of the KTM 200 Duke are actuated by two overhead camshafts and cam levers. This design is not only extremely reliable, but also offers low friction thanks to the ultra-hard carbon coating of the cam levers – releasing even more power.

COCKPIT

The 2013 200 Duke has everything that distinguishes a genuine KTM – from the high-quality chassis components to the multi-function cockpit, which even keeps you up to date with fuel consumption and remaining range. The extensive KTM PowerParts range gives you the option of adding your own individual style.





---



2014 KTM 200 Duke – Totalmotorcycle.com Europe Specifications/Technical Details
European MSRP Price: £ See dealer for pricing in GBP/EUR

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 1,995 cm³
Bore 72 mm
Stroke 49 mm
Performance 19 kW (25 hp)
Starting aid Electric starter
Transmission 6-speed, claw shifted
Engine lubrication Forced oil lubrication with 1 rotor pump
Primary gear ratio 22:72
Secondary gear ratio 14:42
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Clutch in oil bath / mechanically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from steel tubes, powder-coated
Fork WP Suspension 4357
Shock absorber WP Suspension 4618 EM
Suspension travel Front 150 mm
Suspension travel Rear 150 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with one-pot brake caliper, floating brake discs
Brake discs – diameter front 300 mm
Brake discs – diameter rear 230 mm
Chain 5/8 x 1/4″ X Ring
Steering head angle 65°
Wheel base 1,367±15 mm
Ground clearance (unloaded) 170 mm
Seat height (unloaded) 800 mm
Total fuel tank capacity approx. 11 l
Unleaded premium fuel (95 RON)
Weight without fuel approx. 129.5 kg

* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.





---



2014 KTM 200 Duke – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $NA USD

Model not available at time of press.





---



2014 KTM 200 Duke – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $NA CDN

Model not available at time of press.



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
