2014 Kawasaki KLX110L

Back to 2014 Kawasaki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

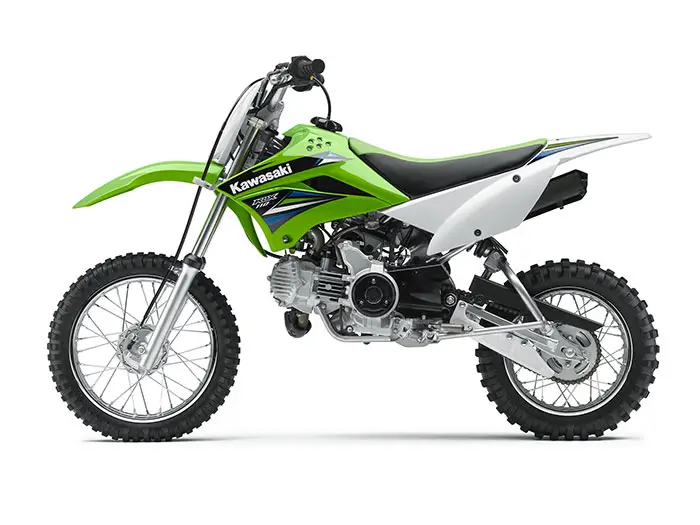

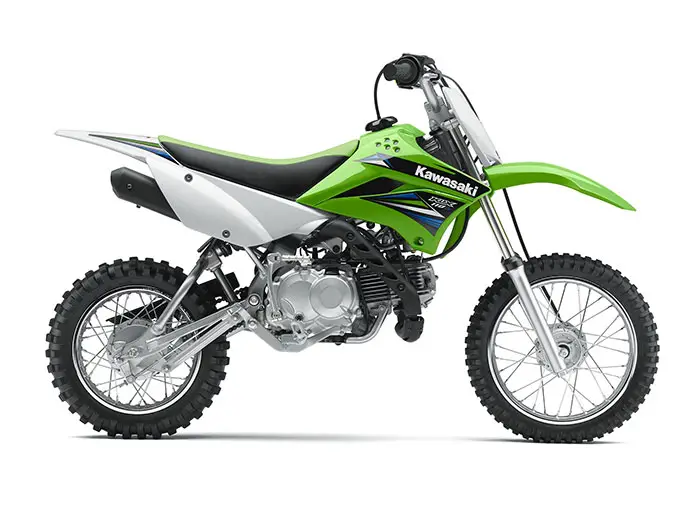

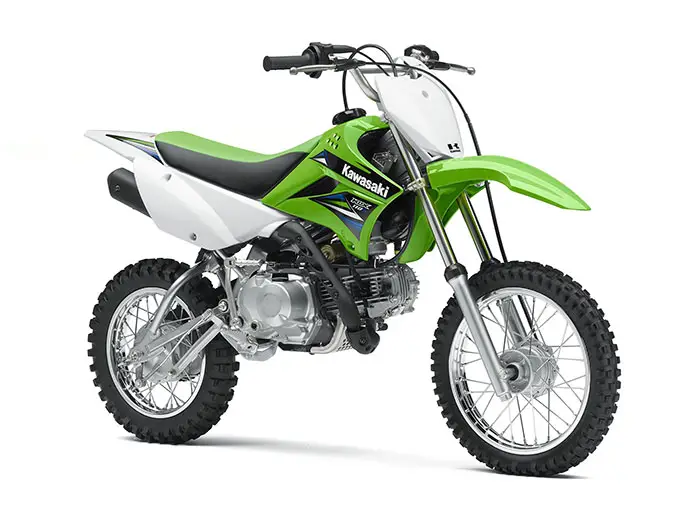

2014 Kawasaki KLX110L
2014 Kawasaki KLX110L

2014 Kawasaki KLX110L
2014 Kawasaki KLX110L

2014 Kawasaki KLX110L
2014 Kawasaki KLX110L

2014 Kawasaki KLX110L
2014 Kawasaki KLX110L



2014 Kawasaki KLX110L Review

2014 Kawasaki KLX110L

The biggest challenge in enjoying the KLX110 or KLX110L’s amazing off-road capabilities is figuring out who’s going to ride it first – because its compact dimensions, simple-to-use features, and choice of 2 models were designed for a wide range of beginning riders aged 13 and up…

Favorite Playbike with a Manual Clutch and Extra Seat Height

Where Kawasaki’s popular KLX®110 is the model of simplicity in off-road performance, the KLX110L capitalizes on those desirable attributes while expanding its horizons. All of the classic KLX110 ingredients are in place on the L-model, including its smooth and powerful 111cc four-stroke engine with convenient push-button electric starting and a traditional kick-start lever for backup. But several key features further enhance the KLX110L’s off-road prowess, making it the perfect off-road fun machine for larger and more experienced off-road riders of all ages.

In this case, bigger, or taller, is better, as the KLX110L’s seat height measures 28.7 inches – nearly 2 inches higher than that of the standard KLX110 – thanks to a 2.4-inch longer fork that delivers 5.5 inches of travel up front and a longer shock that offers 5.2 inches of wheel travel out back. Naturally, this taller suspension comes with optimized spring and damping settings, giving those slightly larger riders the ability to push the KLX110L as hard as they choose.

More experienced riders often demand the superior momentum control of a manual clutch, so the KLX110L gets one to complement its smooth-shifting four-speed gearbox. This combination lets more aggressive riders wring every drop of performance from the KLX110L’s torque-tuned, four-stroke engine.


Kawasaki’s design team outfitted the KLX110L with a fuel tank, seat, side panels, shrouds and fenders that mimic the championship-winning KX™450F’s bodywork. An MX-style seat is part of the package, along with a handlebar shape optimized to provide excellent comfort and control to a wide variety of riders. All the right steps have been taken to expand the KLX110L’s off-road horizons. It’s sure to expand yours.

The KLX110L can be customized with Authentic Kawasaki Accessories available at Kawasaki dealers.






2014 Kawasaki KLX110L Totalmotorcycle.com Key Features
At A Glance…

– Push-button electric starting

– Manual clutch

– Four-speed manual transmission

– Longer suspension than a standard KLX110

– 28.7-inch seat height is 1.9 inches taller than a standard KLX110









2014 Kawasaki KLX110L Totalmotorcycle.com Features and Benefits

– Powerful 111cc engine

– KX-inspired styling

– Roomy ergonomics

Air-cooled, Four-stroke 111cc Engine

– All KLX 110 and 110Ls feature valve timing, free-flowing muffler and ignition system for optimum power and torque

– Push-button electric starting makes it easy to get rolling, while a kickstarter is included as a back-up

– Starter button and kill switch are located on the left handlebar for easy access

– KACR (Kawasaki Automatic Compression Release) keeps one exhaust valve open for easy starting

– KLX110L’s compact, lay-down engine design is ideal for engine cooling and a low center of gravity

– An ignition timing inspection hole allows easy maintenance

– Choke knob on the 18mm carburetor is easy to operate with gloves on

Four-speed Manual Transmission

– Four ratios are intelligently spaced to help exploit engine power

– A manual clutch makes it easier to squeeze maximum performance out of the powerful little engine

– Shift drum cam groove and positioning spring result in optimal shift feel and positive gear engagement

Security Features and Parental Controls

– For added security, the KLX110L will only start in neutral

– The engine start/stop switch is within easy reach on the left handlebar

– A screw-type throttle limiter allows adult supervisors to control kids’ speed while they learn

Capable Chassis

– 30mm telescopic fork with 5.5 inches of travel is tuned for optimal wheel and chassis control

– Tapered roller bearings in the lower steering stem add durability

– The 110L’s handlebar shape suits a wide variety of rider sizes

– Stiffer spring and damping rates on the longer rear shock help control the rear wheel through 5.2 inches of more firmly damped travel, with greater resistance to bottoming compared to a standard KLX110

– 14-inch front and 12-inch rear knobby tires on strong, steel rims provide great off-road traction and durability, and keep seat height low

– Rigid rear brake rod allows excellent braking and pedal feel


Big KX™ Style, Built to Last

– The high-tensile steel backbone frame is strong, lightweight and built to take years of abuse

– Four strategically placed heat shields provide protection from the exhaust pipe

– A 28.7-inch seat height accommodates a broad range of riders

– KX450F-style fuel tank, seat, shrouds, side panels and fenders look fast even sitting still

– KX-style half-waffle grips provide better control and comfort

– A convenient side stand makes life easier

Additional Features

– A USFS-approved spark arrester comes as standard equipment

– The KLX110L meets California “Green Sticker” requirements for year-round riding fun










2014 Kawasaki KLX110L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2,499 USD


2014 Kawasaki KLX®110L Specifications*


Engine:

Four-stroke, SOHC, two-valve single

Displacement:

111cc

Bore x stroke:

53.0 x 50.6mm

Compression ratio:

9.5:1

Cooling:

Air

Carburetion:

Mikuni PB18

Ignition:

CDI

Transmission:

Four-speed

Final drive:

Chain

Frame:

Backbone frame, high-tensile steel

Rake / trail:

24.2 degrees / 1.9 in.

Front suspension / wheel travel:

30mm hydraulic telescopic fork / 5.5 in.

Rear suspension / wheel travel:

Swingarm with single hydraulic shock / 5.2 in.

Front tire:

2.50×14

Rear tire:

3.00×12

Front brake / rear brake:

Mechanical Drum / Mechanical Drum

Overall length:

61.4 in.

Overall width:

25.6 in.

Overall height:

39.0

Ground clearance:

10.4 in.

Seat height:

28.7 in.

Curb weight:

168 lbs.

Wheelbase:

42.3 in.

Fuel capacity:

1.0 gal.

Color:

Lime Green

MSRP:

$2499

Warranty:

6 Months

Good Times™ Protection Plan

12, 24, or 36 months








2014 Kawasaki KLX110L – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $2799 CDN


Engine


Type 4-stroke, Single
Displacement 112cc
Bore and stroke 53.0 x 50.6 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves
Fuel system Keihin PB18 carburetor
Ignition Digital DC-CDI
Starting Electric & Primary Kick
Lubrication Forced lubrication (wet sump)


Brakes


Front: type Drum (90 mm)
Rear: type Drum (110 mm)


Dimensions


Overall length 1,560 mm (61.4 in.)
Overall width 650 mm (25.6 in.)
Overall height 990 mm (39.0 in.)
Wheelbase 1,075 mm (42.3 in.)
Ground clearance 265 mm (10.4 in.)
Seat height 730 mm (28.7 in.)
Curb mass** 76 kg (167.6 lbs.)
Fuel capacity 3.8 litres (0.8 gal.)


Drivetrain


Transmission 4-speed, constant mesh, return shift
Final drive Chain
Primary reduction ratio 3.409 (75/22)
Gear ratio: 1st 3.000 (36/12)
Gear ratio: 2nd 1.938 (31/16)
Gear ratio: 3rd 1.350 (27/20)
Gear ratio: 4th 1.087 (25/23)
Final reduction ratio 2.923 (38/13)
Clutch Wet multi-disc


Frame


Type High-tensile steel backbone
Wheel travel: front 140 mm (5.5 in.)
Tire: front 2.50-14 4PR
Wheel travel: rear 132 mm (5.2 in.)
Tire: rear 3.00-12 4PR
Caster (rake) 24.2°
Trail 47 mm (1.9 in.)
Steering angle (left/right) 45° / 45°


Performance


Maximum Power‡ 5.4 kW {7.3 PS} @ 7,500 rpm
Maximum Torque‡ 8.0 N·m {0.82 kgƒ·m} @ 4,000 rpm


Suspension


Suspension, front 30 mm telescopic fork
Suspension, rear Single shock



* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
