2015 KTM 125 Duke

Back to 2015 KTM Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

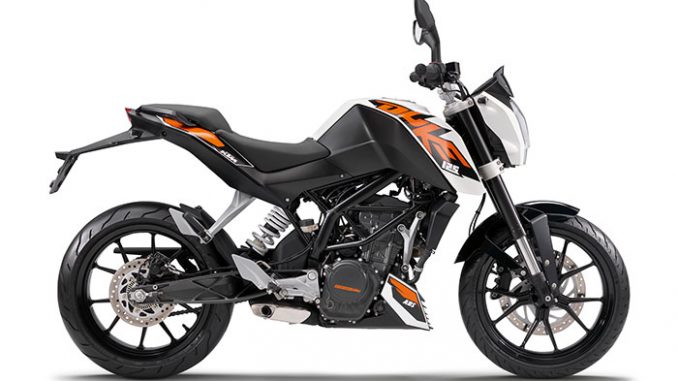

2015 KTM 125 Duke
2015 KTM 125 Duke

2015 KTM 125 Duke
2015 KTM 125 Duke



2015 KTM 125 Duke Review

2015 KTM 125 Duke on www.Totalmotorcycle.com

Safe Power…

Already since 2013 KTM is the first manufacturer to offer ABS as standard for a 125 motorcycle. This is not only showing KTM commitment for safety, but it remarks once again how the KTM 125 Duke is up to date with the finest motorcycle technologies, usually reserved for larger capacities. On top of that, the refined four-stroke single cylinder with fuel injection and six-speed transmission provides decent propulsion. And the low fuel consumption ensures a reasonable level of economy. Simply a genuine KTM – and setting new standards for 125s.



2015 KTM 125 Duke www.Totalmotorcycle.com Key Features

Everything under control

































Dynamic cornering fun

















































Lively, smooth-running four-stroke





































Low fuel consumption









2015 KTM 125 Duke www.Totalmotorcycle.com Features and Benefits

ENGINE

The state-of-the-art, liquid-cooled, single-cylinder, four-stroke engine with twin overhead camshafts, four valves and electronic fuel injection has been developed specifically for the 125 Duke. It effortlessly achieves its peak power of 11 kW (15 hp) and thanks to the balancer shaft, delivers the highest levels of smoothness.




CYLINDER HEAD

Just as on the RC8 R, the four valves in the cylinder head of the 125 Duke 2013 are actuated by two overhead camshafts and cam levers. This design is not only extremely reliable, but also offers low friction thanks to the ultra-hard carbon coating of the cam levers – releasing even more power.




SILENCER

The compact, three-chamber silencer is positioned close to the machine’s overall centre of gravity. This aids centralisation of masses and improves the playful handling of the 125 Duke. Thanks to a regulated catalytic converter, the emissions are exemplary.


INJECTIONThe intricate engine design, state-of-the-art injection electronics and the close-ratio, six-speed transmission not only help the KTM 125 Duke to achieve impressive performance, but also to moderate fuel consumption. Thanks to the regulated catalytic converter, it produces only minimal emissions.




FUEL TANK

The shapely 11 l fuel tank of the 125 Duke not only provides the rider with perfect knee contact, but also with a range of substantially more than 300 km even when ridden on the edge, thanks to the economic engine.


DASHBOARDThe 125 Duke has everything that distinguishes a genuine KTM from the high-quality chassis components to the multi-function cockpit, which even keeps you up to date with fuel consumption and remaining range. The extensive KTM PowerParts range gives you the option of adding your own individual style.




SEAT

For all its sportiness, the two-piece seat provides surprising long-distance comfort, perfect support and first-class ergonomics for rider and pillion. With 810 mm the seat height is low enough for a secure standing position, but also high enough for sports-oriented use and a genuine big-bike feeling.

ERGONOMICS

The 125 Duke is also a genuine motorcycle in terms of dimensions, providing plenty of space and freedom of movement. The gathered sitting position supports relaxed touring as well as committed cornering. Large contact surfaces ensure optimum control and perfect feedback.


WHEELS AND TYRESEqually lightweight and delicate as they are stable, the 17 in cast light alloy wheels developed by KTM specifically for the 125 Duke provide a 110 mm tyre width at the front and an impressive 150 mm at the rear. The tyres impress with tremendous grip in both wet and dry conditions, as well as providing supreme durability.




BRAKES

Since 2013, the 125 Duke has settled a new safety standard with the first ABS in the 125 cc class. A feature that makes the pleasure of the impressive Duke dynamics even safer for 16-year-olds and gives the finishing touch too what are unique chassis qualities in this segment. On the new KTM 125 Duke, the ABS – from Bosch as usual with KTM – monitors the function of the powerful brake system with a radially mounted four-piston calliper biting the 300mm diameter front disc – fun without risk, developed in close cooperation with the specialists from Bosch and Brembo. And for the stunt riders among us: the ABS is naturally disengageable.




FRAME

11 kW (15 hp) of power with a dry weight of only 127 kg guarantee plenty of riding fun with the 125 Duke. The first-class chassis, with lightweight tubular space frame in the proven KTM design, turns it into a real surfer through the bends. Weight grouped close to the centre of gravity maximise manoeuvrability and precision.




TELESCOPIC FORK

The 125 Duke’s high-quality upside-down fork from WP Suspension has the same 43 mm outer tube diameter as the RC8 R – in other words: real racing equipment that guarantees highest levels of stability and precision.

SWINGARM

The 125 Duke’s lightweight, high-quality, pin-jointed swingarm is designed and produced according to the same principle as the 690 Duke. The light alloy swingarm with directly linked WP shock absorber excels with extreme torsional stiffness and outstanding tracking stability.












2015 KTM 125 Duke – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $NA USD


















2015 KTM 125 Duke – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $NA CDN














2015 KTM 125 Duke – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 124.7 cm³
Bore 58 mm
Stroke 47.2 mm
Performance 11 kW (15 hp)
Starting aid Electric starter
Transmission 6 speed, claw shifted
Engine lubrication Wet sump
Primary gear ratio 22:72
Secondary gear ratio 14:45
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / mechanically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from steel tubes, powder-coated
Fork WP Suspension Up Side Down
Shock absorber WP Suspension Monoshock
Suspension travel Front 150 mm
Suspension travel Rear 150 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with one-pot brake caliper, floating brake discs
Brake discs – diameter front 300 mm
Brake discs – diameter rear 230 mm
Chain 5/8 x 1/4″ X Ring
Steering head angle 65°
Wheel base 1,367±15 mm
Ground clearance (unloaded) 170 mm
Seat height (unloaded) 800 mm
Total fuel tank capacity approx. 11 l
Unleaded premium fuel (95 RON)
Weight without fuel approx. 127 kg





* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
