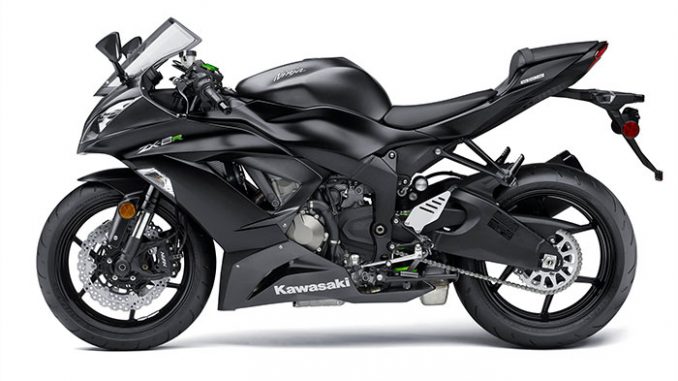

2015 Kawasaki Ninja ZX-6R Review
2015 Kawasaki Ninja ZX-6R on www.Totalmotorcycle.com
Long-Stroke 636cc Engine…
Thirty years ago, the Kawasaki 600 Ninja literally invented the 600cc supersport segment, which today remains one of the benchmark performance classes in the world. Now for 2015, Kawasaki celebrates three decades of racing wins and championships with a very special 30th Anniversary Ninja® ZX™-6R, the ultimate expression of the Ninja’s “Forever Fearless” attitude in the middleweight sportbike class. Building on the current ZX-6R platform, the 2015 edition features exclusive styling touches that uniquely identify it as the powerful descendent of the motorcycle that truly started it all.
What’s New For 2015
•The standard Ninja® ZX™-6R model is available in Metallic Matte Carbon Gray/Flat Ebony
Long-Stroke 636cc Engine
The 2015 Ninja ZX-6R story begins with the ultimate advantage over its 600-class competition – displacement. Offering 636cc vs. the 599cc of competing inline-four machines, the ZX-6R gives riders a significant 37cc increase in engine size resulting in much stronger low- and mid-range power, a premium asset for street riding, canyon carving and on-track authority. This performance advantage has been fully proven in the demanding arena of AMA Pro Road Racing, when the first revolutionary 636 blew away the competition’s 600s and won races against factory 750s on the track.
This category-shattering heritage, passed faithfully down through the ZX-6R’s most essential DNA, still resides in the latest model’s 16-valve, long-stroke DOHC 636cc inline-four. This engine provides the exact riding experience demanded by the most discerning middleweight sportbike pilots. Torque rich and rev happy, the supremely powerful engine easily makes the transition from everyday city streets to the wide-open racetrack, making its broad spectrum of performance available to every rider. In fact, the ZX-6R powerplant is as happy breezing through the morning commute as it is tagging the rev limiter on the back straight, proving that the power capable of dominating on the track can also be smooth enough for everyday use.
The key to this immense bandwidth is the ZX-6R’s unique long-stroke engine design. Its additional 37cc of displacement compared to competing inline-fours makes a significant impact on real-world riding. Increased performance throughout the rpm range is always welcome for vigorous sport riding or racing, but it also significantly enhances everyday usability. Thanks to the ZX-6R engine’s larger displacement, low- through mid- range torque is significantly stronger and the engine’s total “area under the power curve” grows substantially when compared to traditional 600cc bikes.
Intake and exhaust port shapes are optimized to suit the displacement, helping to provide increased performance as well as improved throttle response. In particular, the intake ports are wider near the throttle bodies and split farther upstream from the valves, while the exhaust ports are wider near the valves and taper on their way to the exhaust header. The camshafts are made of lightweight chromoly steel, with greater intake duration and more intake and exhaust lift to complement the extra engine displacement. Meticulously finished piston crowns increase piston strength and accommodate the extra valve lift, while a molybdenum coating on the piston skirts fights friction and helps with engine break-in. Finally, the connecting rods are built to suit the kinetic energy of the long-stroke engine, and high-rigidity piston pins help ensure high-rpm durability.
The airbox has a large internal volume tuned to help the engine produce maximum power with smooth delivery. Inside are four single-bore intake funnels that contribute to low- and mid-range torque production, with different inner and outer funnel pairs that further enhance engine character. The Digital Fuel Injection (DFI®) system’s ultra-fine atomizing injectors deliver a sub-60 micron fuel droplet size for optimum air-fuel mixing and maximum combustion efficiency, while precise DFI mapping enhances throttle response and reduces emissions.
The end result is a 636cc engine that delivers class-leading drive out of corners, offers superior flexibility and precise throttle control. These virtues pay big dividends when making mid-corner power adjustments or stringing a set of curves together on a racetrack or twisting backroad.
F.C.C. Clutch & Cassette Gearbox
The ZX-6R’s heroic power is delivered through a high-tech F.C.C. clutch with assist and slipper functions. This advanced clutch design allows quick, effortless downshifts when scrubbing-off speed for a corner, while also helping minimize rear-wheel hop caused by excess back-torque. The design uses two types of cams, including an assist cam and a slipper cam, that were developed based on racetrack testing and expert rider feedback. The “assist” cam acts like a servo mechanism to pull the clutch hub and operating plate together, and compress the clutch plates under load. This allows the total clutch spring count and tension to be reduced, resulting in up to a 25% overall reduction in effort at the clutch lever. The assist cam also increases the clutch’s maximum torque capacity to help it cope with the 636cc engine’s extra power without adding to the overall component mass. Whenever back-torque is present, such as during rapid braking and downshifting, the clutch’s “slipper” cam reduces clamping force on the hub and operating plate to help prevent rear-wheel hop and allow for smooth corner entry. The spring plate assembly likewise offers smooth engagement and helps minimize vibration and clutch judder.
In keeping with its racing DNA, the ZX-6R also employs a cassette-type six-speed transmission to simplify gearing changes at the track, help reduce the time needed for bike setup and allow more time for riding. Strong alloys and idealized gear thickness provide optimum gearbox durability, making it the perfect match for the torquey 636cc engine.
The Ninja ZX-6R features the most up-to-date sportbike and racetrack technology offered by Kawasaki. Its three-mode Kawasaki Traction Control (KTRC) system is similar to the KTRC unit found on the flagship Ninja ZX-14R, and features even more advanced programming than the S-KTRC system used on the ZX-10R superbike. And its selectable power modes offer numerous tuning options and maximum flexibility compared to the middleweight competition.
The KTRC traction control system on the Ninja ZX-6R combines the best elements of the S-KTRC and KTRC traction control systems on Kawasaki’s two flagship sportbikes. Three different KTRC modes are selectable via a switch on the left clip-on. Mode 1 offers maximum racetrack performance, Mode 2 offers sporty street performance, and Mode 3 virtually eliminates wheelspin and improves rider confidence on slippery surfaces. Riders may also turn the system completely off for total manual throttle control.
Just like the S-KTRC system on a ZX-10R superbike, the ZX-6R’s KTRC Mode 1 and Mode 2 prioritize maximum forward acceleration. To do so, sophisticated computer algorithms predict when available traction is about to be compromised, and then initiate KTRC intervention before slippage exceeds the optimum acceleration range. This minimizes how much power must be reduced to improve or restore rear-wheel traction, while also helping to provide maximum forward drive. Operating parameters are monitored and confirmed 200 times per second, with the system using only ignition timing to regulate the engine’s power output, allowing extremely quick response. KTRC Mode 3 features similar tuning to a Concours® 14 ABS sport tourer’s traction control system. During normal operation, Mode 3 uses the same logic and control method as Mode 1 and Mode 2, but immediately switches to three-way intervention – using ignition timing, fuel delivery and the intake tract’s sub-throttles – if excessive rear-wheel spin is detected. This allows Mode 3 to reduce engine output to a level that will allow the rear wheel to regain grip, even on very slippery surfaces.
The fine control provided by the dual throttle valves also results in a very natural throttle feel and smooth transitions no matter how quickly the rider opens the throttle. This highly effective system uses minimal hardware paired with very advanced software programming that monitors various parameters and rider inputs. The only additional hardware required by the KTRC system is a set of front and rear wheel-speed sensors so it can calculate rear-wheel slippage. In sum, the overall effects of Modes 1, 2 and 3 are easy to distinguish from each other and effectively cover a wide range of riding conditions.
Riders can select either “Full” or “Low” engine power modes via a switch on the left clip-on. The power modes allow quick adjustment the power delivery to help suit road or track conditions, or personal preference. Full mode unleashes the engine’s full performance potential. Low mode offers the same low-rpm power output, but begins to limit power as the rpm rises into the midrange and then offers only 80% of the engine’s maximum power. Low mode also delivers a softer throttle response, a handy feature when the rider wants to relax.
Combining the KTRC and Power Mode options, riders have a total of eight combinations from which to choose, and each system can be independently set to match rider skill/preference, riding location and surface conditions. An experienced rider on dry pavement might choose “Full Power” and “KTRC Mode 1” for a trackday or club race, but in wet and/or slippery conditions, that same rider might choose “Low Power” and “KTRC Mode 3.” As noted above, the various modes are easily selectable from a convenient switch on the left clip-on.
High-Performance Brake System
One-piece Nissin “monobloc” radial-mount brake calipers are highly rigid, offer excellent heat dissipation, and are 45 grams lighter than a comparable two-piece caliper. The monobloc calipers are paired with 310mm petal-type front rotors to help provide superb braking power, with great feel at the lever. Adopted from the ZX-10R superbike, the rear brake caliper helps offer good fade-resistance and optimum rear brake performance in conjunction with a 220mm petal-type rotor. The rear master cylinder reservoir mounts forward of the swingarm pivot to maximize free space around the footpeg. In addition, the rear brake pedal is coaxially mounted with the footpeg for excellent mid-stroke braking efficiency and optimum feel.
Suspension & Chassis
The Showa Separate Function Fork–Big Piston (SFF-BP) combines the innovative concepts of an SFF and a BPF to deliver next-generation suspension performance. The fork utilizes springs on both sides, with adjustable spring preload in the left tube and adjustable Big Piston compression and rebound damping in the right tube. All adjusters are located on the upper fork caps for convenient access. Smooth initial stroke action and excellent composure under braking are decisive BP strengths. True to its “Big Piston” name, the large-diameter damping piston in the right fork leg is much bigger than the dampers used in traditional “cartridge” forks with the same external dimensions. Since oil inside a BP fork leg acts against a much larger surface area, the damping pressure can be reduced without compromising the overall damping effectiveness. Reducing the damping pressure also allows the inner fork tube to move more smoothly, which is especially noticeable during the initial part of the stroke. The result is greater composure as the fork begins to compress, and a less severe change in chassis attitude (reduced dive) during hard braking. The SFF-BP is primarily tuned for use on twisty roads, with the tuning also allowing a high level of performance at the racetrack, and comfortable response in the city and on the highway.
Kawasaki’s patented bottom-link Uni-Trak® rear suspension offers 5.3 inches of travel and features a gas-charged shock with adjustability for spring preload, 25-position rebound damping and stepless compression damping. Linkage and lever ratios deliver impressive ride quality in both city and highway conditions.
Lightweight twin-spar aluminum frame engineering places the engine in the optimum position for superb handling and rider feedback. It features a 23.5-degree rake angle that helps quicken steering response, enhance maneuverability and promote clear communication to the rider from the front tire. It also uses low friction steering-stem seals for more precise steering inputs and lighter handling at low speeds.
Bodywork & Ergonomics
The 2015 ZX-6R bodywork features highly aggressive design elements for a characteristic and unique Ninja appearance. Large fairing openings provide increased airflow and enhanced heat dissipation, while the fairing lowers, rear cowl and assorted blacked-out body panels contribute to the bike’s compact and lightweight appearance. Projector-beam headlights are encased in a sharp-edged housing that features integrated position lamps, and a sleek one-piece front fender adds to the excellent aerodynamics. Semi-flush front turn signals are built into the bodywork, and compact rear turn signals complement the minimalist tail section. The ZX-6R’s compact LED taillight is lightweight, very bright and offers a modern high-tech appearance. And finally, a “hugger” fender above the swingarm helps reduce aerodynamic turbulence and keep the undertail area clean.
A critical feature for sportbikes, the ZX-6R’s seat, footpeg and handlebar relationship places the handlebars close to the rider and at an angle that promotes a highly intuitive and comfortable riding position. The fuel tank is flared around its top edge to provide a large leg and knee contact area, further contributing to the excellent chassis feedback. Together with a narrow lightweight aluminum rear sub-frame, the seat’s leading edge provides a slender and effective high-performance sportbike riding position, as well as a shorter reach to the pavement. This helps the Ninja appeal to an even wider range of riders.
Multi-Function Instrumentation Display
The crisp LCD instrument panel gives at-a-glance information to the rider, including an analog-style tachometer and a multi-function screen to enable the rider to select the combination of information displayed prominently. Primary functions on the LCD panel include KTRC, Power Mode and Economical Riding (ECO) indicators. Additional functions include a digital speedometer, odometer, dual trip meters, clock, instant and average fuel consumption, coolant temperature, as well as a shift indicator, traction control activity level, ABS indicator and low-fuel warning lights. A large gear-position indicator gives instant numerical gear confirmation. The mirror design offers increased rearward visibility without increasing overall vehicle width.
A complete line of Genuine Kawasaki Accessories, specifically designed and engineered for the Ninja ZX-6R motorcycle, is available through authorized Kawasaki dealers.
2015 Kawasaki Ninja ZX-6R Totalmotorcycle.com Key Features
• Class-leading Supersport performance and styling deliver an abundant dose of street potency
• 636cc inline-four offers racetrack-ready power yet extremely flexible delivery on the street
• Selectable engine power modes allow riders to adjust power delivery to riding conditions
• Three-mode KTRC traction control puts the power to the pavement whether it’s dry and grippy or rain-slick
• Showa Separate Function Fork – Big Piston (SFF-BP) offers light weight, easy adjustability and smoother initial suspension tracking
• Nissin one-piece “monobloc” radial-mount front brake calipers and radial-pump front brake master cylinder offer superb braking modulation with a direct feel at the lever
• F.C.C. clutch with assist function offers light clutch pull and strong clamping force for less clutch slippage under acceleration while slipper function minimizes wheel chatter caused by aggressive downshifting
• Aggressive styling and sharp, aerodynamic bodywork clearly shouts: “Performance Counts!”
• Lightweight twin-spar aluminum frame places the engine in the optimum position for superb handling and rider feedback and also features a 23.5-degree rake angle for quick steering response, maximum maneuverability and to deliver clear communication from the front tire
• Reduced friction steering stem seals for easy steering inputs and noticeably improved low speed handling
2015 Kawasaki Ninja ZX-6R Totalmotorcycle.com Features and Benefits
• 636cc displacement uses a long stroke to boost engine performance throughout the rev range. Low-mid range torque is especially impressive, and provides satisfying real world performance
• Digital Fuel Injection (DFI®) system features four 38mm Keihin throttle bodies with oval sub-throttles and dual throttle valves for smooth response and maximum power
• Chromoly steel camshafts are light, strong and durable
• Piston crown enhances strength and accommodates the high valve lift
• 12.9:1 compression ratio is optimum for this engine’s bore & stroke
• Molybdenum coating on piston skirts reduces friction and facilitates engine break-in
• Strong connecting rods suit the power delivery of this engine
• High-performance airbox design contributes to peak power and smooth power delivery
• Single-bore intake funnels improve low-mid range torque. Two different funnel shapes (outer are the same, inner are the same ) help deliver optimized throttle response
• Ultra-fine atomizing injectors help ensure complete air-fuel mixing and maximum combustion efficiency. Optimum tuning contributes to reduced emissions
• Balance tubes on all four header pipes to maximize low-end torque
• Exhaust pre-chamber makes efficient use of space, reduces exhaust noise and allows a smaller muffler to be used
• Triangular cross-section muffler provides sufficient internal volume while still offering good ground clearance and maximum lean angle, as well as a compact appearance
• Generator designed to produce less heat and reduce mechanical loss
• Zero-cross control voltage regulator significantly reduces the amount of electronic noise produced when it interrupts the generator’s output
• Cassette-type transmission helps simplify ratio-swaps and reduce set-up time at the track
• Lightweight EK 520 RMX/3D x-ring drive chain is very compact and uses lightening holes on the inner link plates to reduce weight.
Selectable Power Modes
• Power mode selector on the left clip-on gives ZX-6R riders the option to choose between “Full” and “Low” engine power delivery modes to suit their needs
• Output at low rpm is the same in both modes, but “Low” mode limits peak engine output to approximately 80% and gives a softer throttle response. “Full” mode allows the full performance potential of the engine to be unleashed
Three-Mode Kawasaki Traction Control (KTRC)
• Three-mode KTRC traction control combines the best high tech elements of the Ninja ZX-10R S-KTRC and ZX-14R/Concours® 14 KTRC systems.
• Three different modes are tuned to cover a wide-range of situations from advanced racetrack use, to normal street riding, to mixed/slippery conditions, for enhanced rider confidence
• Mode 1 is tuned to allow a degree of wheel slip to achieve maximize acceleration, like the ZX-10R S-KTRC system
• Mode 2 is tuned to help provide a balance of performance with minimal wheel slip
• Mode 3 prioritizes slip elimination, similar to the Concours14 ABS sport touring KTRC system, for enhanced rider confidence in mixed or slippery conditions
• The KTRC system may also be turned-off completely, at the rider’s discretion
• Handy mode selector on the left clip-on makes it easy for the rider to change KTRC settings
• Using complex programming algorithms, the KTRC system is able to predict impending wheelspin and act before slippage exceeds the optimum range, allowing reductions in power to be minimized for ultra-smooth operation
• In modes 1 and 2, conditions are analyzed 200 times per second and any necessary adjustments are made through ignition timing alone, for extremely quick response from the engine and KTRC system
• In Mode 3, the system functions like mode 2 under most conditions, but when excessive rear wheel spin is detected, Mode 3 switches to complete three-way control of ignition timing, fuel delivery and intake airflow to regulate engine output to a level that allows the rear wheel to regain grip. By controlling the sub-throttles in the intake tract for precise torque management, a smooth and natural feeling can be attained: Mode 3 intervention and on/off transitions are very smooth to help maintain stability
• The system uses minimal hardware supplemented by advanced software. In addition to the engine’s ECU, the system only requires front and rear wheel speed sensors, meaning minimal additional weight is required for traction control.
F.C.C. Clutch with Assist and Slipper Functions
• F.C.C. clutch with assist & slipper functions uses two types of cams, an assist cam and a slipper cam that were developed based on racetrack testing and rider feedback
• The F.C.C. clutch’s “assist” cam acts like a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates under load. This allows the total clutch spring count and pressure to be reduced, resulting in up to a 25% reduction in effort at the clutch lever
• The assist cam also increases the torque capacity of the clutch so it can cope with the extra torque produced by the 636cc engine, without gaining any weight
• The F.C.C. clutch’s “slipper” cam reduces the clamping force on the clutch hub and operating plate when back-torque conditions are present and helps prevent rear wheel hop on trailing-throttle and when down-shifting
• Spring plate assembly provides smoother engagement and helps minimize clutch judder
Separate Function Fork – Big Piston: (SFF-BP)
• SFF-BP fork combines the features of Showa’s big piston and separate function forks, featuring springs on both sides, with dedicated preload adjustability in the left tube and dedicated damping pistons and adjustability in the right tube
• Big Piston design provides smooth action during the initial part of the stroke and contributes to excellent feel during heavy braking. The large-diameter damper piston is much bigger than those used in traditional “cartridge” forks
• Big Piston design allows the fork oil to act on a much larger surface area, so the damping pressure can be reduced without compromising effectiveness. Reducing the damping pressure allows the slider to react more smoothly, which is especially noticeable during the initial part of the stroke. The result is greater control as the fork begins to compress and very calm response during braking-induced weight-transfer, for greater chassis stability on corner entry
• Fork settings were tuned for maximum effectiveness on twisty roads, allowing a high level of performance for the racetrack, with a comfortable ride in the city and on the highway
• SFF-BP design offers much easier adjustability, by locating all adjusters in the caps at the top of the two fork tubes: preload on the left; compression and rebound damping on the right.
Bottom-link Uni-Trak® Rear suspension
• Bottom-link Uni-Trak® rear suspension offers 5.3 inches of travel and features a gas-charged shock
• Rear spring features a softer rate to enhance ride comfort and compliance when the road isn’t racetrack-smooth
• Rear suspension linkage has a high leverage ratio for improved rear ride comfort
• Full adjustability includes: stepless compression and rebound damping adjustments and fully adjustable spring preload. The top of the shock is also threaded and captured between nuts to allow for adjustable ride height
• Lightweight twin-spar aluminum frame places the engine in the optimum position for superb handling and rider feedback
• A 23.5 degree rake angle helps quicken steering response, enhance maneuverability and delivers clear communication from the front tire
• Low friction steering stem seals for easy steering inputs and light low speed handling
• Intake resonator box and supports for the instrument panel and mirrors are unitized with the ram air duct, contributing to weight savings and increased rigidity
• Forward-tilted engine layout gives a steep intake angle and excellent center of gravity
• The sub-frame is a lightweight two-piece aluminum die-casting and is very narrow for a compact and slim rear profile
• Front fairing features a sharp design that communicates an aggressive image
• Large fairing openings provide increased airflow and enhanced heat dissipation
• Lower fairing, rear cowl, and assorted blacked-out panels contribute to the bike’s compact and lightweight appearance
• One-piece front fender offers excellent aerodynamics
• Projector beam headlights feature sharp looking housings with integrated position lamps
• Front turn signals are built into the bodywork and compact rear turn signals complement the minimalist tail section
• Compact LED taillight is lightweight, very bright and offers modern high-tech appearance
• Inner fender above the swingarm helps to reduce turbulence and helps keep the undertail clean
• Instrument panel gives at-a-glance information to the rider. An analog-style tachometer is complemented by a multi-function LCD screen
• LCD functions include KTRC, Power Mode and Economical Riding (ECO) indicators
• Additional LCD functions include a digital speedometer, odometer, dual trip meter, clock, instant and average fuel consumption, coolant temperature, and shift indicator, traction control activity and low-fuel warning lamps
• Large gear position indicator gives instant numerical gear confirmation
• Mirror design offers increased rearward visibility without increasing overall vehicle width
• Ergonomic seat-peg-bar layout places the handlebars close to the rider and the footpegs in a moderate rearset position for an intuitive high-performance riding position that is comfortable enough for everyday use
• Fuel tank is flared around its top, similar to the ZX-10R, providing a large contact patch for transmitting excellent feedback to the rider
• Slim-waisted fuel tank makes it easy for the rider to grip the tank with their knees, or to hang off in turns
• Front of seat is narrow and low for a slim riding position and a short reach to the pavement
Genuine Kawasaki Accessories
• An adjustable Ã–hlins twin-tube steering damper is available as an accessory, to help ensure stable damping performance and superb kickback absorption, even under race conditions.
• A taller, “bubble” windscreen is available to provide enhanced aerodynamic protection
• Frame sliders/engine guards are available to help protect the engine and chassis
• Axle sliders are available to help protect the fork legs and front brakes
• A stylish color-matched seat cowl is available and mounts in place of the rear seat to enhance the visual aggression of the Ninja ZX-6R
2015 Kawasaki Ninja ZX-6R – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,699 USD
Engine Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Bore x stroke 67.0 x 45.1mm
Compression ratio 12.9:1
Fuel injection DFI® with four 38mm Keihin throttle bodies and oval sub-throttles
Ignition TCBI with digital advance
Final drive 520 series sealed chain
Rake / trail 23.5 degrees / 4.0 in.
Frame type Aluminum perimeter
Front tire 120/70 ZR17
Rear tire 180/55 ZR17
Wheelbase 54.9 in.
Front suspension / wheel travel 41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping, adjustable spring preload / 4.7 in.
Rear suspension / wheel travel Bottom-link Uni-Trak® with gas-charged shock, stepless compression damping adjustment, 25-way adjustable rebound damping, fully adjustable spring preload / 5.3 in.
Front brakes Dual 310mm petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers
Rear brake Single 220mm petal rotor with single-piston caliper
Overall length 82.1 in.
Overall width 27.8 in.
Overall height 43.9 in.
Fuel capacity 4.5 gal.
Seat height 32.7 in.
Curb weight 423 lbs.
Color choices Metallic Matte Carbon Gray / Flat Ebony
Warranty 12 Months
Kawasaki Protection Plus 12, 24, 36 or 48 months
2015 Kawasaki Ninja ZX-6R – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $NA CDN
The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
