2015 Norton Commando 961 Sport

Back to 2015 Hyosung Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

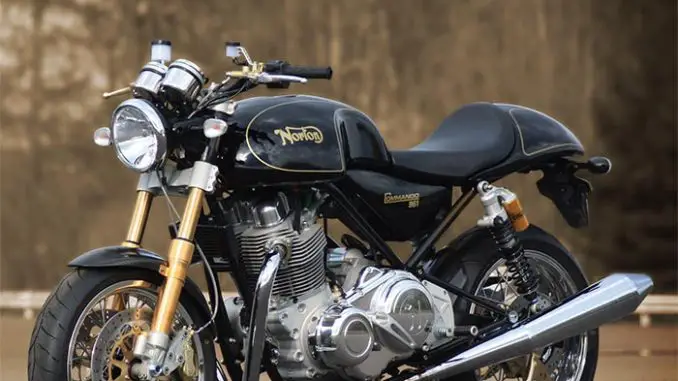

2015 Norton Commando 961 Sport
2015 Norton Commando 961 Sport

2015 Norton Commando 961 Sport
2015 Norton Commando 961 Sport

2015 Norton Commando 961 Sport
2015 Norton Commando 961 Sport

2015 Norton Commando 961 Sport
2015 Norton Commando 961 Sport



2015 Norton Commando 961 Sport Review

2015 Norton Commando 961 Sport on www.Totalmotorcycle.com

Your Norton motorcycle is built completely by British hands and it truly “British at Heart”…

The commando 961 Sport is based on the original design for the Commando with conventional forks to give a smooth, more comfortable ride.


2015 Norton Commando 961 Sport www.Totalmotorcycle.com Key Features

Conventional ohlins forks
Gold line axial front brake calipers
Conventional style handlebars
Integral brake and clutch master cylinders
Steel chain guard






2015 Norton Commando 961 Sport www.Totalmotorcycle.com Features and Benefits














2015 Norton Commando 961 Sport – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20995 USD


Engine

Engine Type: Parallel twin with dry sump Compression ratio: 10.1:1
Displacement: 961 cc Fuel system: Electronic fuel injection
Cooling System: Air Ignition: Euro 3 complient
Valve Actuation: Push rod, hydraulic lifter, 2 valves per cylinder Start: Electronic
Bore x stroke: 88mm x 79mm Exhaust: Multiple 3 way catalytic converter


Transmission
+
Gear box: Constant mesh 5-speed
Final drive: 525 “O” ring chain
Clutch: Wet multi-plate


Dimensions
+
Wheelbase: 1420mm (55.9 in) Front tyre: 120/70 x 17″
Rake: 24.5° Rear tyre: 180/55 x 17″
Trail: 99mm (3.9 in) Front wheel travel: 115mm (4.53 in)
Front wheel: 36 spoke 3.50 x 17″ Black Rim Rear wheel travel: 100mm (3.94 in)
Rear wheel: 40 spoke 5.5 x 17″ Black Rim Seat height: 813mm (32 in)


Suspension
+
Front suspension: 43mm Ohlins USD – adjustable preload, compression & rebound damping
Rear suspension: Ohlins twin shocks with remote reservoir – adjustable ride height, preload and compression


Brakes
+
Front brakes: Full Brembo system, twin Brembo 320mm fully-floating high carbon stainless steel discs & Brembo 4 piston “Gold Line” radially mounted callipers. Brembo “Gold Line” front brake master cylinder with integral reservoir
Rear brakes: Full Brembo system, single Brembo 220mm disc & Brembo 2 piston “Gold Line” calliper. Brembo rear brake master cylinder


Performance
+
Power: 80PS @ 6500RPM
Torque: 90Nm @ 5200RPM


Electronics & Controls
+
Charging system: 300 watt hi-output charging









2015 Norton Commando 961 Sport – www.Totalmotorcycle.com Canada Specifications/Technical Details
Canada MSRP Price: CDN

NA


* prices are exclusive of Freight, PDI, licensing fees or taxes. Dealers may charge an administration fee.











2015 Norton Commando 961 Sport – www.Totalmotorcycle.com International Specifications/Technical Details
European MSRP Price: £14495 *

Frame Dimensions
Frame Steel tubular with integral oil tank Fuel tank capacity 17 litres (4.5 US gallon)
Swing arm Twin-sided steel construction Dry weight 205kg (452 lbs)
Rake 24.5° Seat height 813mm (32 in)
Trail 99mm (3.9 in) Wheelbase 1423mm (56 in)
Front wheel Stainless steel spoke
3.5 x 17″ polished rim Engine
Rear wheel Stainless steel spoke Engine type Parallel twin with dry sump
5.5 x 17″ polished rim Displacement 961cc
Front tyre 120/70/ZR17 Cooling system Air
Rear tyre 180/55/ZR17 Valve actuation Push rod, 2 valves per cylinder
Front wheel travel 115mm (4.53 in) Bore x stroke 88mm x 79mm
Rear wheel travel 100mm (3.94 in) Compression ratio 10.1:1
Handlebars Tubular tapered alloy Fuel system Electronic fuel injection
Ignition Digital
Suspension Start Electric
Front suspension • 43mm Öhlins conventional forks Exhaust Multiple 3 way catalytic converter
• Adjustable preload, compression
and rebound damping Transmission
• Fully machined billet yokes Gear box Constant mesh 5-speed
Rear suspension • Öhlins reservoir-style twin shocks Final drive 525 “O” ring chain
• Adjustable ride height, preload, Clutch Wet multi-plate hydraulic with
compression and rebound Brembo hydraulic clutch
actuation cylinder
Brakes
Front brakes • Twin Brembo 320mm fully- Performance
floating high carbon stainless Power 80PS @ 7700RPM
steel discs Torque 80Nm @ 6000RPM
• Brembo 4 piston ‘goldline’ axially mounted calipers Electronics & Controls
• Stainless steel braided hoses Charging system 300 watt hi-output alternator
Rear brakes • Single Brembo 220mm disc Instrumentation Norton electronic analogue speedo
• Brembo 2 piston caliper and tachometer. Multi-function
• Brembo rear brake master cylinder display including mileage, trip,
• Stainless steel braided hose battery voltage & time

Colours
• Black
• Manx Silver
• Piper Red


Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
