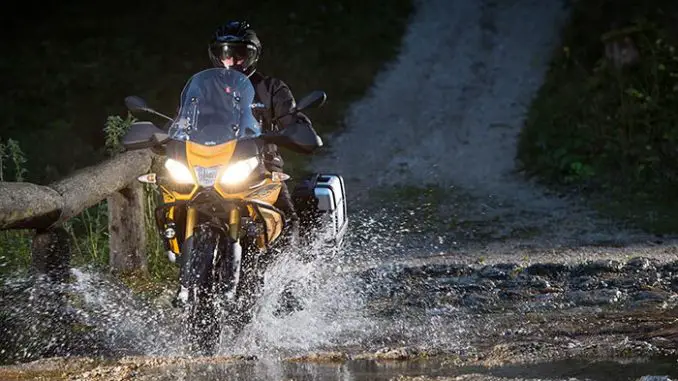

2016 Aprilia Caponord 1200 ABS Rally
2016 Aprilia Caponord 1200 ABS Rally

2016 Aprilia Caponord 1200 ABS Rally
2016 Aprilia Caponord 1200 ABS Rally

2016 Aprilia Caponord 1200 ABS Rally
2016 Aprilia Caponord 1200 ABS Rally

2016 Aprilia Caponord 1200 ABS Rally
2016 Aprilia Caponord 1200 ABS Rally

2016 Aprilia Caponord 1200 ABS Rally
2016 Aprilia Caponord 1200 ABS Rally



2016 Aprilia Caponord 1200 ABS Rally Review

2016 Aprilia Caponord 1200 ABS Rally on www.Totalmotorcycle.com

THE PERFECT BIKE FOR TRAVELLING…

Aprilia introduces the definitive bike, perfect for any occasion, the new point of reference for form and function, where the personality so typical of Italian design is combined with a sleek body. Like every Aprilia, its sportiness shines through clearly in the main stylistic traits, immediately noticeable in the triple headlight, by now the distinctive mark on all late model Aprilia bikes.

Aprilia’s motorcycle technology has laways been top shelf: the proverbial ability to build exceptional chassis is joined by exclusive expertise in electronics, thanks to the experience gained in top level racings, which has always been at the centre of research and development of Aprilia solutions which are then used in factory models. Ride-by-Wire, ABS, ATC, ACC and ADD are the active electronic control systems for safety and riding pleasure that Aprilia has fine tuned for the Caponord 1200 Rally, combined with a modern and technological V2 powerplant with top notch torque and power characteristics as well as a standard-setting chassis architecture.


APRILIA CAPONORD 1200 RALLY

APRILIA IS INTRODUCING A DIFFERENT VERSION OF THE ALREADY POPULAR, HIGH-TECH CAPONORD 1200 THAT BREAKS DOWN THE CONFINES OF PAVED ROADS TO BECOME EVEN MORE VERSATILE AND SUITABLE FOR ANY TRIP

CAPONORD RALLY WAS BORN OUT OF THE TECHNICAL EXPERTISE OF APRILIA, ONE OF THE MOST SUCCESSFUL MOTORCYCLE MANUFACTURERS, WITH 54 CHAMPIONSHIP TITLES TO ITS NAME

FEATURING SPOKED RIMS AND A 19″ FRONT WHEEL, HARD PANNIERS, ENGINE GUARDS, AND ADDITIONAL LED LIGHTS, THE APRILIA CAPONORD 1200 RALLY IS SUPER EQUIPPED AND MORE ECLECTIC, OFFERING BETTER PROTECTION AND COMFORT. THE HIGH PERFORMANCE OF THE TWIN-CYLINDER IS A PERFECT MATCH FOR THE EXCEPTIONAL CHASSIS FEATURES TYPICAL OF ALL APRILIA BIKES AS WELL AS THE TECHNOLOGICAL CONTENT SUCH AS APRILIA DYNAMIC DAMPING (ADD), THE PATENTED SEMI-ACTIVE SUSPENSION SYSTEM THAT AUTOMATICALLY ADAPTS CALIBRATION BASED ON ROAD SURFACE AND RIDING STYLE

INTERACTION BETWEEN THE RIDER AND HIS OR HER VEHICLE IS GUARANTEED BY THE APRILIA MULTIMEDIA PLATFORM (A-MP) WHICH INTERFACES WITH THE SMARTPHONE WORLD, AN AREA WHERE APRILIA AND THE PIAGGIO GROUP ARE ON THE ABSOLUTE CUTTING EDGE.


After introducing the Caponord 1200, the perfect crossover for any type of road use, at the top of its category for technical content and chassis quality, Aprilia offers a version capable of pushing beyond the confines of paved roads, where travel turns into adventure. Introducing the Aprilia Caponord 1200 Rally, a splendid representative of the global bike, just a suited for daily commutes as for fun and long range touring, not only on asphalt.
The names “Caponord” and “Rally” are evocative for Aprilia: the first was introduced in 2001 with the ETV 1000 Caponord, patriarch of an advanced interpretation of the street enduro concept, boasting distinctive elements such as the dual beam chassis in aluminium and the 998 cc 98 HP twin cylinder engine, both clearly sports derivations. Aprilia has historically associated the term “Rally” with the most adventurous and offroad models (including the 2002 ETV 1000 Caponord Rally Raid), bikes dedicated to travel in its purest and most savage connotation, ready to take on any type of terrain. Then, like now, Aprilia’s motorcycle technology was top shelf: the proverbial ability to build exceptional chassis is joined by exclusive expertise in electronics, thanks to the victories achieved in top level racings, which has always been at the centre of research and development of Aprilia solutions which are then used in factory models. Ride-by-Wire, ABS, ATC, ACC and ADD are the active electronic control systems for safety and riding pleasure that Aprilia has fine tuned for the Caponord 1200 Rally, combined with a modern and technological V2 powerplant with top notch torque and power characteristics as well as a standard-setting chassis architecture.

In launching the Caponord 1200 Rally, Aprilia’s main focus was to offer an exceptional package of standard equipment. The Aprilia Caponord 1200 Rally standard equipment includes:

” Electronic Ride-by-wire accelerator with triple maps (Sport, Touring and Rain) that can be selected by the rider
” Two-channel ABS (can be disabled)
” ATC (Aprilia Traction Control) adjustable to three levels (can be switched off)
” ADD (Aprilia Dynamic Damping), a system capable of “reading” the road, recognising the rider’s riding style and automatically adjusting the suspension set up
” ACC (Aprilia Cruise Control)
” Pair of aluminium-coated panniers
” Adjustable oversized windshield
” Hand guards
” Tubular side guards and engine guard
” Pair of supplementary LED lights
” Spoked wheels with 120/70R19 (front) and 170/60R17 (rear) tyres





2016 Aprilia Caponord 1200 ABS Rally www.Totalmotorcycle.com Key Features

ACCESSIBLE TECHNOLOGY

Technology, efficiency and reliability

Aprilia introduces a new version of the super technological Caponord 1200 that breaks down the confines of paved roads to become even more transversal and suitable for any trip.

Introducing the new Aprilia Caponord 1200 Rally: more eclectic, more protective, more comfortable, super equipped. The high performance of the twin-cylinder is a perfect match for the exceptional chassis features typical of all Aprilia bikes as well as the technological contents such as ADD, the semi-active suspension system that automatically adapts calibration based on road surface and riding style.



Engine
TWIN CYLINDER

The Aprilia Caponord 1200 Rally is powered by the latest evolution of the Aprilia V-twin already successfully installed in the Caponord 1200. The Italian V-twin cylinder boasts extremely advanced construction technology and a careful study of internal fluid dynamics aimed at improving combustion, decreasing friction, and maximising performance.

The 1200cc Caponord Rally engine benefits from a series of improvements and refinements in terms of settings, timing and electronic control. The natural developments of this twin which have taken place over time allow more progressive and responsive power output to be obtained even at low engine speeds (to the advantage of comfort) as well as enhancing riding pleasure thanks to high torque values, at the same time improving fuel economy.

The Ride by Wire system dialogues perfectly with the engine ECU, managing the power in the best possible way at each point of the power output arc in order to have jerk-free manageability at low RPM, extreme responsiveness at medium RPM and exemplary spurts at high RPM. An efficient engine also provides the indisputable advantage of optimising fuel economy.

The triple mapping (Rain, Touring and Sport) that the rider can even select while riding, lets you have a bike with three distinct personalities, capable of instantly adapting to any possible condition and preference. All the rider needs to do is close the throttle and press a button to choose the desired setting.

SPORT: maximum performance with responsive and direct power output, to satisfy a sporty riding style.

TOURING: the maximum power expressed is the same as the Sport mapping, but output becomes more fluid and suitable for daily riding or touring.

RAIN: power is limited to 100 HP in order to guarantee maximum control and safety in conditions of poor grip.



Chassis Architecture
HANDLING AND STABILITY


The layout of the frame is a mixed structure, made up of a trellis in high resistance steel tubes connected to a pair of die cast aluminum plates. This exclusive and well tested configuration allows a perfect balance of weights to be achieved, as well as optimum torsional and longitudinal rigidity values, characteristics that give the Aprilia Caponord 1200 Rally standard-setting qualities for handling and stability at high speed. The new steel rear subframe ensures extreme solidity for trips with a full load, while the lateral positioning of the shock absorber, which connects the frame to the aluminum swingarm, is useful for providing the right amount of space for the exhaust manifold, leaving the unit far from heat sources in a position which favours any adjustments that may be required. The new spoked tubeless wheels – with 19 inches on the front – shod with versatile tires suited for any terrain that bring any destination within reach, no matter what type of road surface you need to tackle.



aDD
MAXIMUM SOPHISTICATION AND RELIABILITY


ADD (Aprilia Dynamic Damping) is dynamic semi-active suspension system developed by Aprilia and protected by four patents, the reference point in motorcycling on a global level where technology, efficiency and reliability are concerned. Once again Aprilia has proven to be on the cutting edge of electronics applied to bikes thanks to a latest generation suspension system that manages to increase safety, comfort and riding pleasure.
The ADD system measures the energy transmitted by bumps on the road surface to the bike and adjusts the hydraulic fork calibration and shock absorber in real time to minimise accelerations on the frame and consequently optimise comfort. To achieve maximum performance at any fork and shock absorber operating frequency, ADD uses a patented “comfort oriented” algorithm which combines the principles of the well known skyhook and acceleration driven damping algorithms.
In addition to comfort, rideability is also enhanced and safety is increased thanks to further software strategies which are tied directly to the rider’s actions. In fact, the system recognises the riding phases (acceleration, throttle release, braking, constant gas) and adjusts the basic fork and shock absorber settings thanks to yet another patent which allows specific hydraulic calibration curves to be defined within the adjustment range.
The high precision of the system is entrusted to a selection of sensors which are derived from the automotive world and which, in addition to guaranteeing absolute reliability, allow the fork and shock absorber extension speed to be measured with maximum accuracy. In this field Aprilia has patented a unique solution for measuring the fork extension speed: using a pressure sensor.
In the electromechanical calibration suspension systems already available on the market, the rider presses a button on the handlebar to activate an electric motor which changes the suspension set-up. In the Aprilia ADD dynamic semi-active suspension system, on the other hand, all the rider has to do is ride without any concerns of selecting one setting or another.

At the rear a built in piggy back shock absorber is used, electrically adjustable in spring preload to 4 predefined positions, indicated by specific icons on the digital instrument panel: rider only, rider with passenger, only rider with panniers and rider and passenger with panniers. Aprilia system patented exclusive and then the automatic preload control mode for the spring. Once this option is selected the system is able to detect the bike’s load by itself (weight of the fuel, rider, passenger, luggage, etc.) and automatically adjust preload to the optimum value for correct balancing of the bike. The ability of ADD to perfectly copy even the smallest imperfection of the road surface, thereby guaranteeing the best possible tyre grip, also allows the Aprilia Caponord 1200 Rally to achieve exceptional braking distances, unheard of on the competition’s bikes.

ABS and traction control (ATC) (which can both be disabled) are included as standard equipment on the Caponord 1200 Rally. The two channel ABS system is specifically calibrated for the Aprilia Caponord 1200 Rally version. The particularly fine calibration allows the rider to make the most of chassis potential in sport riding, without ever being invasive, even in the most intense braking operations, whilst still guaranteeing maximum safety on slippery surfaces. ATC (Aprilia Traction Control) is the exclusive patented traction control system derived from the Aprilia Performance Ride Control (aPRC) system on the extraordinary RSV4, designed and fine tuned by Aprilia to get maximum grip out of any type of surface, able to provide the rider with great riding confidence, simultaneously increasing safety. The 3 control settings, specifically calibrated for the demands of the Aprilia Caponord 1200, can be adjusted based on different riding styles and asphalt conditions:

Level 1: for a pure sport riding experience, intended for good fun.
Level 2: suitable for the city and touring and in general to manage the engine’s performance on any route.
Level 3: ideal for safety taking on difficult situations such as low grip surfaces, staying in complete control.

Aprilia Cruise Control allows the desired speed to be set and maintained even on uphills and downhills, without touching the throttle control. The system disengages automatically if the rider touches any of the brake/clutch Cruise Control commands and is very useful on long motorway routes because it helps save fuel and makes the ride less tiring.

The instrument panel that equips the Caponord 1200 Rally is fully digital: The full LCD combines the speedometer, rev counter, total and two trip odometers, fuel level and coolant temperature. There is also a selected mapping indicator (S,T,R) as well as the shock absorber electric spring preload indicator. The engaged gear is also indicated, as well as the ATC level adjustment and heated hand grip operation (available as a separate option).
The range of indicator lights on the side includes the fuel reserve warning light and the ABS, ATC and ACC activation/deactivation indicators.



Caponord 1200 Rally
DISTINCTIVE DESIGN

The overall shapes were drafted during the numerous wind tunnel sessions which led to finding a perfect balance between a highly compact form, optimum aerodynamic penetration and excellent protection from the wind. Guaranteeing maximum comfort for rider and passenger are the new oversized windshield which can be easily adjusted in height, the hand guards and the particular profiles of the sides, designed for minimum protrusion but protective at the same time. The adventurous style of the Aprilia Caponord 1200 Rally is completed by the new metallic tubular side guards and the brand new guard under the engine. The pair of supplementary LED lights is also new, contributing to an increase in riding safety, especially in low visibility conditions.

One of the most important aspects for a bike dedicated to accompanying riders on the longest and most demanding trips is the riding position. Aprilia Caponord 1200 Rally provides riders of any height with an erect and relaxed position, the result of specific ergonomics studies in search of a dominant position that would not be tiring during long trips with perfect control over the bike and a sporty ride on road and in light offroad riding, even upright. The saddle has a particularly comfortable cushion and is just 840 mm off the ground, giving the rider total control over the vehicle when stopped. A lowered saddle is also available as an accessory to further reduce the distance from the ground. The passenger accommodations were also given particular attention: the portion of the saddle, large and flat, is separate from the rider’s seat and shaped in such a way that prevents sliding forward, guaranteeing optimum comfort in any riding situation, while the ergonomic grab handles provide a firm and comfortable grip. “Rotational” technology allowed a thin walled nylon tank to be realised with great freedom of shape, favouring a reduction in weight. This way the lateral dimensions were reduced to a minimum and cater to the perfect leg position for the rider. The 24 litre capacity guarantees long range travel with a full tank.






2016 Aprilia Caponord 1200 ABS Rally www.Totalmotorcycle.com Features and Benefits

The bike

Aprilia introduces the definitive bike, perfect for any occasion, the point of reference for form and function, where the personality so typical of Italian design is combined with a sleek body. Like every Aprilia, its sportiness shines through clearly in the main stylistic traits, immediately noticeable in the triple headlight, by now the distinctive mark on all later model Aprilia bikes. The overall shapes were drafted during the numerous wind tunnel sessions which led to finding a perfect balance between a highly compact form, optimum aerodynamic penetration and excellent protection from the wind. Guaranteeing maximum comfort for the rider and passenger are the oversized windshield which can be easily adjusted in height, the hand guards and the particular profiles of the sides, designed for minimum protrusion but protective at the same time. The adventurous style of the Aprilia Caponord 1200 Rally is completed by the metallic tubular side guards and the brand new guard under the engine. The pair of additional LED lights is also new, which helps to increase riding safety, especially in conditions where visibility is low.

One of the most important aspects for a bike dedicated to accompanying riders on the longest and most demanding trips is the riding position. Aprilia Caponord 1200 Rally provides riders of any height with an erect and relaxed position, the result of specific ergonomics studies in search of a dominant position that would not be tiring during long trips with perfect control over the bike and a sporty ride on road and in light offroad riding, even upright. The saddle has a particularly comfortable cushion and is just 840 mm off the ground, giving the rider total control over the vehicle when stopped. A lowered saddle is also available as an accessory to further reduce the distance from the ground. The passenger accommodations were also given particular attention: the portion of the saddle, large and flat, is separate from the rider’s seat and shaped in such a way that prevents sliding forward, guaranteeing optimum comfort in any riding situation, while the ergonomic grab handles provide a firm and comfortable grip. “Rotational” technology allowed a thin walled nylon tank to be realised with great freedom of shape, favouring a reduction in weight. This way the lateral dimensions were reduced to a minimum and cater to the perfect leg position for the rider. The 24 litre capacity guarantees long range travel with a full tank.

The design of the Caponord 1200 is completed by its side panniers, elegantly covered in aluminium and each with a 33-litre cargo capacity. Once mounted, the lateral dimensions are very contained; this result also contributes to the adoption of an exhaust system with a low mounted silencer. The panniers practically adhere to the profile of the tail fairing (total dimensions are only 920 mm) and do not create a nuisance for the passenger, making for an easy climb on board and a comfortable ride. If the panniers are not fitted, the silencer is height adjustable, giving the vehicle a more aggressive look and increasing ground clearance in turns.



Chassis architecture

The layout of the frame is a mixed structure, made up of a trellis in high resistance steel tubes connected to a pair of die cast aluminium plates. This exclusive and well tested configuration allows a perfect balance of weights to be achieved, as well as optimum torsional and longitudinal rigidity values, characteristics that give the Aprilia Caponord 1200 Rally standard-setting qualities for handling and stability at high speed. The steel rear subframe ensures extreme solidity for trips with a full load, while the lateral positioning of the shock absorber, which connects the frame to the aluminium swingarm, is useful for providing the right amount of space for the exhaust manifold, leaving the unit far from heat sources in a position which favours any adjustments that may be required. Aprilia Caponard 1200 Rally is equipped with spoked rims and a 19-inch front wheel – fitted with versatile tyres suited for any terrain that bring any destination within reach, no matter what type of road surface you need to tackle.

Making the Aprilia Caponord 1200 Rally even more versatile is the sophisticated ADD semi-active suspension system (covered by four patents), capable of detecting the rider’s riding style, the amount of cargo loaded and the road surface conditions to adapt the set up automatically and in real time. This is an exclusive patented by Aprilia and based on its extensive experience in the field of electronic solutions that the brand from Noale has gained by winning top level competitions like the Superbike championship where Aprilia has been crowned world champion seven times in six years.

On the front the Brembo braking system provides a pair of floating 320 mm steel discs and monoblock callipers with 4 pistons and radial connection. The rear mounts a single piston floating calliper that grips a 240 mm disc. An advanced two-channel ABS system which can be disengaged completes the standard equipment.

The use of a 19″ front wheel required a general revamping of the chassis with changes made to the offset and different suspension calibrations compared to the Aprilia Caponord 1200. This means that the new Aprilia is extremely precise in turns, holding the line perfectly, and extremely stable at high speeds.


Engine

The Aprilia Caponord 1200 Rally is powered by the latest evolution of the Aprilia V-twin already successfully installed in the Caponord 1200. The Italian V-twin cylinder boasts extremely advanced construction technology and a careful study of internal fluid dynamics aimed at improving combustion, decreasing friction and maximising performance.

The 1200 cc engine on the Caponord Rally benefits from a series of improvements and refinements in terms of settings, timing and electronic control. The natural developments of this twin which have taken place over time allow more progressive and responsive power output to be obtained even at low engine speeds (to the advantage of comfort) as well as enhancing riding pleasure thanks to high torque values, at the same time improving fuel economy.

The general specifications of the Caponord 1200 Rally engine are:

” Twin cylinder 90° V;
” Performance: max power 125 HP at 8,000 rpm; max torque 11.7 kgm at 6,800 rpm;
” Triple map Ride-by-Wire technology (Sport, Touring, Rain);
” Highly oversquare bore/stroke ratio which is highlighted by the sport attitude and increases the amount of power generated from a low RPM;
” Double overhead camshafts driven by a mixed chain/gear valve timing system and four valves per cylinder;
” Twin spark ignition for fluid and full power output;
” Speed density type electronic fuel injection with two throttle bodies and double multi-hole injectors for each throttle body;
” Stick-coils integrated in spark plug boots;
” Three-way catalytic converter with double oxygen sensor;
” Hydraulically operated clutch.
” Exhaust compensator to improve the torque curve, especially in the engine mid-range.

A product of the experience Aprilia has gained in competitions, the ultra-compact twin-cylinder engine from Noale is an Italian work of art even from an aesthetic point of view, thanks to the engineers’ commitment to conceiving an ultra-modern engine where the data transmission system takes place over a CAN line which has the advantage of reducing the number of electrical cables in the harness. The 690W current generator is capable of powering the various electrical accessories in the rich options catalogue without any problems.


Electronics

Aprilia was the first to believe in Ride-by-Wire, the electronic accelerator and the result of a sophisticated technology introduced for the first time in the sport motorcycle world in 2002 with RS Cube and on factory bikes as early as 2007 with the Shiver 750. The efficacy and reliability of this system have been taken to new heights on the Aprilia Caponord 1200 Rally. The RbW system dialogues perfectly with the engine ECU, managing the power in the best possible way at each point of the power output arc in order to have jerk-free manageability at low RPM, extreme responsiveness at medium RPM and exemplary spurts at high RPM. An efficient engine also provides the indisputable advantage of optimising fuel economy.

The triple mapping (Rain, Touring and Sport)that the rider can even select on the fly, lets you have a bike with three distinct personalities, capable of instantly adapting to any possible condition and preference. All the rider needs to do is close the throttle and press a button to choose the desired setting.

SPORT: maximum performance with responsive and direct power output, to satisfy a sporty riding style.

TOURING: the maximum power expressed is the same as the Sport mapping, but output becomes more fluid and suitable for daily riding or touring.

RAIN: power is limited to 100 HP in order to guarantee maximum control and safety in conditions of poor grip.

ABS and traction control (ATC) (which can both be disabled) are included as factory equipment on the Caponord 1200 Rally. The two channel ABS system is specifically calibrated for the Aprilia Caponord 1200 Rally version. The particularly fine calibration allows the rider to make the most of chassis potential in sport riding, without ever being invasive, even in the most intense braking operations, whilst still guaranteeing maximum safety on slippery surfaces. ATC (Aprilia Traction Control) is the exclusive patented traction control system derived from the Aprilia Performance Ride Control (APRC) system on the extraordinary RSV4, designed and fine tuned by Aprilia to get maximum grip out of any type of surface, able to provide the rider with great riding confidence, simultaneously increasing safety. The 3 control settings, specifically calibrated for the demands of the Aprilia Caponord 1200, can be adjusted based on different riding styles and asphalt conditions:
Level 1: for a pure sport riding experience, intended for good fun.
Level 2: suitable for the city and touring and in general to manage the engine’s performance on any route.
Level 3: ideal for safety taking on difficult situations such as low grip surfaces, staying in complete control.

ADD (Aprilia Dynamic Damping) is the dynamic semi-active suspension system developed by Aprilia and protected by four patents, the reference point where technology, efficiency and reliability are concerned. Once again Aprilia has proven to be on the cutting edge of electronics applied to bikes thanks to a latest generation suspension system that manages to increase safety, comfort and riding pleasure.

The ADD system measures the energy transmitted by bumps on the road surface to the bike and adjusts the hydraulic fork calibration and shock absorber in real time to minimise accelerations on the frame and consequently optimise comfort. To achieve maximum performance at any fork and shock absorber operating frequency, ADD uses a patented “comfort oriented” algorithm which combines the principles of the well known skyhook and acceleration driven damping algorithms.

In addition to comfort, rideability is also enhanced and safety is increased thanks to further software strategies which are tied directly to the rider’s actions. In fact, the system recognises the riding phases (acceleration, throttle release, braking, constant gas) and adjusts the basic fork and shock absorber settings thanks to yet another patent which allows specific hydraulic calibration curves to be defined within the adjustment range.

The high precision of the system is entrusted to a selection of sensors which are derived from the automotive world and which, in addition to guaranteeing absolute reliability, allow the fork and shock absorber extension speed to be measured with maximum accuracy. In this field Aprilia has patented a unique solution for measuring the fork extension speed: using a pressure sensor. In the electromechanical calibration suspension systems already available on the market, the rider presses a button on the handlebar to activate an electric motor which changes the suspension set-up. In the Aprilia ADD dynamic semi-active suspension system, on the other hand, all the rider has to do is ride without any concerns of selecting one setting or another.

At the rear a built in piggy back shock absorber is used, electrically adjustable in spring preload to 4 predefined positions, indicated by specific icons on the digital instrument panel: rider only, rider with passenger, only rider with panniers and rider and passenger with panniers. Aprilia system patented exclusive and then the automatic preload control mode for the spring. Once this option is selected the system is able to detect the bike’s load by itself (weight of the fuel, rider, passenger, luggage, etc.) and automatically adjust preload to the optimum value for correct balancing of the bike. The ability of ADD to perfectly copy even the smallest imperfection of the road surface, thereby guaranteeing the best possible tyre grip, also allows the Aprilia Caponord 1200 Rally to achieve exceptional braking distances, unheard of on the competition’s bikes.

Aprilia Cruise Control allows the desired speed to be set and maintained even on uphills and downhills, without touching the throttle control. The system disengages automatically if the rider touches any of the brake/clutch Cruise Control commands and is very useful on long motorway routes because it helps save fuel and makes the ride less tiring.

The instrument panel that equips the Caponord 1200 Rally is fully digital: The full LCD combines the speedometer, rev counter, total and two trip odometers, fuel level and coolant temperature. There is also a selected mapping indicator (S,T,R) as well as the shock absorber electric spring preload indicator. The engaged gear is also indicated, as well as the ATC level adjustment and heated hand grip operation (available as a separate option). The range of indicator lights on the side includes the fuel reserve warning light and the ABS, ATC and ACC activation/deactivation indicators.


Available colour schemes

The Aprilia Caponord 1200 Rally is available three matt colour variations: giallo Dune, grigio Safari and verde Army.


Aprilia Multimedia Platform connects your smartphone to your vehicle

In 2012 the Piaggio Group was the first manufacturer in the world to create a system which allowed the vehicle to be connected to a smartphone (and consequently to the web), thereby transforming it into an additional tool capable of providing an exceptional amount of added information compared to what is already provided by the factory instrumentation. This innovative application, currently the only one of its kind in the motorcycle world, is also available for any late model Aprilia bike. The link between the vehicle and the Internet is called A-MP, Aprilia Multimedia Platform, making travel safer and more convenient. This is a window to the future which lays the foundation for a new way of looking at communication on two wheels. Once the free app has been downloaded, the Bluetooth pairing of the smartphone to the vehicle allows the various options to be viewed and easily modified to the rider’s preference: speedometer, rev counter, but also instantaneous engine power and torque, lean angle, longitudinal acceleration, instant and average fuel consumption, average speed and battery voltage are just some of the features that can be accessed.
A-MP stores all the travel information and allows it to be studied in depth at a later time on your computer and it also contains the operating and service manual for your vehicle.


Accessories

The touring and adventure vocation of the Caponord 1200 Rally is emphasised by a full range of accessories which Aprilia has developed specifically for this model to enhance the technical characteristics, functionality, aesthetics and riding pleasure.

Approved Arrow Exhaust: titanium slip-on silencer with bottom in carbon; sporty look, impressive sound and maximum performance on the road.

52 litre top box kit with aluminium finish: this spacious top box can hold two flip up helmets. The body is made in fibreglass reinforced technopolymers; the cover is in aluminium.

Internal bag kit for top box and panniers: the internal bags are made to have the same shape as the panniers and the top box that hold them. They are fitted with handles and shoulder straps for easy carrying.

Comfort Gel Saddle, available for both rider and passenger seats (also in a version which is lowered by 3 cm, to enable the feet to touch the ground more easily) further enhancing the bike’s outstanding riding comfort over longer distances

Light luggage rack: in laser cut anodized black aluminium, this is the ideal base to secure small bags.

Offroad footpegs kit: the serrated surface of these pegs provides maximum grip even in offroad conditions.

Rear brake foot lever pedal: this is made up of a wider contact surface and is fitted with a clutch cover guard. Ideal for offroad use.

Oversize base for side stand: this guarantees a more stability for the side stand, especially on soft surfaces.

Engine oil cap: made in anodized black billet aluminium.
Frame/swingarm pin cover kit: this kit has two caps elegantly made in billet aluminium which cover the holes on the frame where the swingarm pin is.

Clutch cover guard: this is made in sturdy laser cut stainless steel.

LED turn indicators: these guarantee a higher brightness level and consume less energy.

Aluminium mirrors: these are approved for street use and made from billet aluminium with scratch-resistant finish.
Billet brake and clutch levers: made from a single block of aluminium, these allow the rider to adjust the distance from the handlebar, improving ergonomics.

Brake fluid, pump and clutch oil reservoir covers: made form billet aluminium, these add that technical and sophisticated style that is so popular among demanding bikers.

Heated hand grips: this is an extremely useful accessory for those who love riding even in the most extreme temperatures. They can be adjusted to three settings which are shown on the instrument panel display.

Saddlebag: this is positioned on the passenger portion of the saddle and uses a nylon base fitted with side pockets that the backpack hooks onto. o Once the backpack is removed, the base can be left mounted on the bike without compromising passenger comfort.

Tank bag: Extensible bag with practical pockets and a carry handle, fits onto the specific tank cover with quick release clips and an adjustable fastener. Includes rain hood.

Satellite antitheft kit: this is able to track the position of the bike so it can be found in case of theft.

A-MP installation kit: this is made up of the Bluetooth control unit and the relative connecting cables.

Bracket and holder for the most common smartphones.

Installation-ready bracket for a GPS navigator.
Electronic inertia antitheft kit: this can be easily installed on the vehicle as the dedicated wiring harness is installation-ready. Its features include: built-in engine lock and motion sensor.

Indoor vehicle cover: this is custom cut with painstaking attention to detail. It protects from dust, scratches and small bumps.
Tyre repair kit: specific spray to instantly repair and inflate tyres.









2016 Aprilia Caponord 1200 ABS Rally – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $15699 USD

ENGINE
Type Aprilia V90 four-stroke longitudinal 90° V-twin double overhead camshaft with mixed gear/chain timing system, four valves per cylinder. Ride By Wire with 3 engine mappings (Sport, Touring, Rain)
Capacity 1197 cc
Max power (at crankshaft) 125 HP (92 kW) at 8,000 rpm
Max torque (at crankshaft) (115 Nm) at 6,800 rpm
Fuel system Integrated engine management system. Injection with two injectors per cylinder and Ride by Wire throttle control with three maps: Sport (S), Touring (T), Rain (R)
Cooling Liquid
Alternator 690 W/6000 rpm

TRANSMISSION
Gearbox 6 speeds
Lubrication Wet sump
Clutch Multiplate wet clutch, hydraulically operated
Traction management Aprilia Traction Control (ATC)

CHASSIS / SUSPENSION / BRAKES
Frame Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable steel rear subframe
Front suspension Completely adjustable Sachs 43 mm upside-down fork. Hydraulic rebound and compression electronically managed with ADD (Aprilia Dynamic Damping)
Rear suspension Sachs dynamic single shock absorber. Adjustable or automatic setting for spring preload coupled with electronically controlled rebound and compression dampening via ADD (Aprilia Dynamic Damping)
Front brake 320 mm stainless steel floating discs. Brembo M432 monoblock four-piston radial calipers. Metal braided brake pipes.
Rear brake 240 mm stainless steel disc. Brembo 34 mm single piston caliper. Metal braided brake hose.
ABS Continental dual channel ABS system
Front wheel 3.00″” x 19″ spoked wheel. Tire 170/60-R17″
Rear tire 4.50″” x 17″ spoked wheel. Tire 170/60-R17″

DIMENSIONS
Seat height 33 in (840 mm)
Dry weight 502 lb. (228kg)
Fuel tank capacity 6.3 gal. (24 liters)
Standard Equipment ABS, aprilia Traction Control (aTC), Aprilia Dynamic Damping (aDD), (semi-active suspension)

WARRANTY / ROADSIDE ASSISTANCE / APPROVAL
Warranty All 2014 and newer Aprilia Motorcycles include a 2-year unlimited-mileage warranty. *Limits are outlined in the warranty booklet. See dealer for details
Roadside Assistance 1 Free Year of Road Side Assistance provided by Road America.
Approval EPA and CARB.









2016 Aprilia Caponord 1200 ABS Rally – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ NA CDN

See 2016 Aprilia Caponord 1200 ABS Travel Pack






2016 Aprilia Caponord 1200 ABS Rally – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £14135 GBP (On The Road)

Engine type

Aprilia V90 four-stroke longitudinal 90° V-twin engine, liquid cooled, double overhead camshaft with mixed gear/chain timing system, four valves per cylinder
Bore and stroke 106 x 67.8 mm
Total engine capacity 1197 cc
Compression ratio 12.0 ± 0.5: 1
Maximum power at crankshaft 125 HP (92 kW) at 8,000 rpm.
Maximum torque at crankshaft 11.7 kgm (115 Nm) at 6,800 rpm.
Fuel system Integrated engine management system. Injection with two injectors per cylinder and Ride-by-Wire throttle control with three maps: Sport (S), Touring (T), Rain (R)
Ignition Magneti Marelli 7SM twin spark electronic ignition integrated with injection system
Starter Electric
Exhaust 100% stainless steel 2-in-1 exhaust system with dual catalytic converters and double oxygen sensor
Alternator 690 W/6000 rpm.
Lubrication Wet sump
Transmission 6 speeds, drive ratio: 14/36, 17/32, 20/30, 22/28, 23/26, 24/25
Clutch Multiplate wet clutch, hydraulically operated
Primary drive Straight cut gears, drive ratio: 40/69
Secondary drive Chain. Drive ratio: 17/42

Chassis

Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable steel rear subframe
Front suspension Fully adjustable Sachs Ø 43 mm upside-down fork. Hydraulic brake in rebound and compression electronically managed with ADD (Aprilia Dynamic Damping)
Rear suspension Aluminium alloy swingarm
Sachs dynamic monoshock absorber. Spring preload and hydraulic brake in rebound and compression electronically managed with ADD (Aprilia Dynamic Damping)

Brakes

Front: dual 320 mm stainless steel floating discs. Four-piston (Ø32 mm) Brembo M432 monoblock radial callipers. Metal braided brake hoses
Rear: stainless steel disc 240 mm. Single piston (Ø34 mm) Brembo calliper. Metal braided brake hose. Continental two channel ABS system and Aprilia Traction Control (ATC)
Wheel rims Spoked; front: 3.00 X 19″; rear: 4.50 x 17″
Tyres Radial tubeless tyres; front: 120/70-R19; rear: 170/60-R17
Dimensions Max. length: 2,280 mm
Max. height: 1,475 mm
Saddle height: 840 mm
Wheelbase: 1,575 mm
Trail: 118 mm
Steering angle 27.4°
Dry weight: 238kg
Tank 24 litres (including 5 litre reserve)



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 1856 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.

Be the first to comment

Leave a Reply
