2017 Harley-Davidson Low Rider S Review

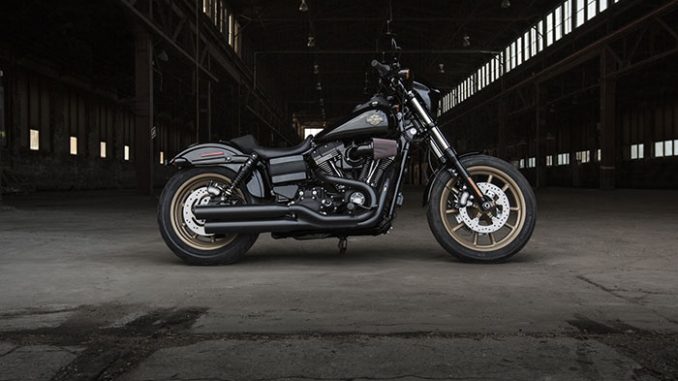

2017 Harley-Davidson Low Rider S

2017 Harley-Davidson Low Rider S

2017 Harley-Davidson Low Rider S

2017 Harley-Davidson Low Rider S Review

2017 Harley-Davidson Low Rider S on www.Totalmotorcycle.com

The Low Rider® S takes the factory custom genre to a raw and powerful new edge. Get behind the fixed speed screen and hang on…

Back Alley Brawler

Minimalist style. Maximum impact. The Low Rider® S is a fusion of Dark Custom® style and incredible performance. Screamin’ Eagle® Twin Cam 110™ engine with a heavy breather intake mounted in a nimble Dyna chassis. Premium front and rear suspension. And tall bars, scooped seat and mid-mount controls for an aggressive riding position. Get behind the fixed speed screen and hang on.

The Low Rider S joined the Fat Boy® S and Softail Slim® S as the third model in the Harley-Davidson S Series of cruiser motorcycles, bikes designed to deliver maximum performance with styling inspired by global custom motorcycle culture. Powered by the Screamin’ Eagle® Twin Cam 110™ engine with upgraded suspension and brakes, the Low Rider S is stripped down and ready for action.

DYNA®Built with the rawest styling of all of the Harley Big Twin motorcycles, Dyna models are an affordable platform from which to build the ultimate personalised motorcycle.

Family features:

High Output Twin Cam 103 engine (except Low Rider S models)
6-speed Cruise Drive transmission
ABS available on all models

2017 Harley-Davidson Low Rider S www.Totalmotorcycle.com Key Features

NEW IN 2017

Battery tender harness

MODEL UNIQUE FEATURES

Style
• Magnum Gold, Split 5-Spoke Cast Aluminum wheels
• Blacked-out Screamin’ Eagle® engine finish
• Wrinkle Black console featuring speedometer and tachometer with Black trim rings
• Gloss Black headlamp with speed screen
• Gloss Black Heavy Breather Performance air cleaner
• Blacked-out “Tommy Gun” exhaust with dual mufflers
• Premium Blacked-out finishes: Handlebar and riser, Mirrors, Headlamp trim ring, Fork lowers, Battery box cover, Timer cover
• Chopped rear fender
• Side-mounted license plate (U.S. configuration)

Fit
• Solo seat for an aggressive riding position
• Narrow diameter hand grips

Function
• Premium ride 49 mm single cartridge front suspension
• Premium ride emulsion rear shocks with enhanced compression and rebound damping control
• Dual-disc front brakes with ABS1
• Console-mounted speedometer and tachometer
• Combined ignition switch and coil
• Electronic throttle control featuring electronic cruise control with set, resume, accelerate and decelerate
• Michelin® Scorcher® “31” tires
• H-D® Factory Security System2 with siren

Performance
• 1801 cc, Screamin’ Eagle® Air-cooled, Twin Cam 110™ engine
• Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors
• 6-Speed Cruise Drive® transmission with Isolated Drive System (IDS) for smooth power delivery
• Heavy Breather Performance air cleaner
• Rider-initiated Engine Idle Temperature Management Strategy (EITMS)

2017 Harley-Davidson Low Rider S www.Totalmotorcycle.com Features and Benefits

Back Alley Brawler

In 1977, when the first Harley-Davidson® Low Rider® rolled off the line, it pushed the limits of factory custom design to a place they’d never been. Now, the Low Rider® S is taking the genre to a raw and powerful new edge. We mounted our Screamin’ Eagle Twin Cam 110™ engine in a nimble Dyna chassis and installed a heavy breather intake. We added tall bars, mid-mount controls and a new seat that position arms up and out and feet square, along with premium front and rear suspension, giving the rider everything required to put the massive power to good use. We stripped down and blacked-out the rest with gold accents like the tank badge and pinstripe and matching split five-spoke cast aluminum wheels. Get behind the fixed speed screen and hang on.

Authentic Styling

Factory custom is about pushing the limits. And the Low Rider® S pushes them to a new edge. From the fixed speed screen in the front to the chopped fender in the rear, it’s raw custom style turned into dark metal. The star of the show is a blacked-out Screamin’ Eagle® Air-Cooled Twin Cam 110™ engine. Give it a good look. You’ll get the picture.

Iconic Engine

We mounted the biggest engine we make in a nimble Dyna frame and gave it a heavy breather air intake. When you get on the Low Rider® S, your throttle hand is directly connected to a Screamin’ Eagle® Twin Cam 110™ engine set up to breathe free. You get big horsepower and loads of low end torque delivered to the pavement through our smooth shifting, durable six speed Cruise Drive® transmission. Because big power means a bigger rush.

Comfort

Long miles are easy on the Low Rider® S. The low-profile seat has new foam to keep you comfortable and riding hard, instead of looking for the next place to stop and rest. There’s a premium ride cartridge front suspension to give you a smooth ride and confidence in the corners. And the rear suspension features premium emulsion type shocks that are also smooth over the bumps and solid in the corners. If you like big miles, you’ll like this ride.

STYLING

Blacked-Out Styling

The Low Rider® S has blacked-out finishes in spades. Check out the engine, the pipes, the paint on the tank and fenders. There are black mirrors, a black fixed speed screen, a wrinkle black tank console. You get a black handlebar riser and black triple clamps. The brake and clutch levers are black. The instrument trim rings are black. Every Harley® has some darkness. With this one, it lives on the surface.

Fixed Speed Screen

The fixed speed screen on the new Low Rider® S leaves no question as to the attitude of this motorcycle. Can you get behind it?

Vivid Black Paint and New Tank Emblem

No one does black like Harley-Davidson® does black. The Vivid Black paint on the Low Rider® S is a rock-solid example of that, deep and rich with a liquid finish. It’s a fitting stage for the classic metal bar and shield tank emblem designed and finished in gold specifically for this motorcycle. We go the extra mile on details.

New Wrinkle Black Console

All the shades of darkness come to light on the Low Rider® S. Notice the new wrinkle black console set against the liquid gloss of the vivid black tank paint. Inside it, you get a speedometer and tach finished, of course, with black trim rings.

New Split 5-Spoke Cast Aluminum Wheels

The Low Rider® S gives you the classic, muscular look of split 5-spoke cast aluminum wheels. They’re finished in a new denim gold color that matches the color of the tank emblem. This is the art of factory customization rolling forward.

Blacked-Out 2-1-2 Shotgun Exhaust

The Low Rider® S feeds its sound to the street via blacked-out, shotgun-style 2-1-2 Collector exhaust with dual mufflers. When you get up close, you’ll notice slots in the exhaust shields adding to the aggressive look.

Chopped Rear Fender

The early custom bikes were called choppers for a reason: namely, all the metal that was chopped off the bikes to up the power to weight ratio. The Low Rider® S motorcycle keeps the tradition rolling with a chopped rear fender of its own.

Side Mount License Plate

The chopped rear fender and custom look of the Low Rider® S are highlighted by the side mount license plate.

ENGINE

Screamin’ Eagle® Air-Cooled, Twin Cam110™Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created this Twin Cam 110™ engine. We sweat bullets pushing design and technology forward, without compromising any of Harley-Davidson’s unique styling.Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution™ and Twin Cam engines that came before. The performance and durability are a direct result of untold miles logged on the V-Twin since 1909 and the proud heritage that comes from a century’s commitment to life on two wheels.

Screamin’ Eagle® Air-Cooled, Twin Cam 110™Engine Power

The Screamin’ Eagle® Air-Cooled Twin Cam110™engine in the Low Rider® S isbuilt to deliver big power on the low end and plenty to keep you happy on the high end.There’s a reason we’re called The Motor Company. And once you send some fuel to this one, you’ll know what it is.

Screamin’ Eagle® Air-Cooled, Twin Cam 110™ Engine Innovation

Fire upthe Twin Cam 110™ engine and feel the low-end torque unleashed. The colossal 110 cubic inches provide seemingly endless torque with adrenalin pumping pull through all six gears. Six speeds, a strong driveline and a low cruising RPM couldn’t feel better.

Gloss Black Heavy Breather Performance Air Intake

The Low Rider® S gives you the awesome power of a Screamin’ Eagle® TwinCam 110™ enginefed by a heavy breather performance air Intake finished in gloss black. Fire it up. You’re going to like what happens when the spark meets the fuel/air mixture inside the massive combustion chambers.

COMFORT

Premium Ride Cartridge Front Suspension

The premium ride cartridge front suspension on the Low Rider® S keeps the tire in contact with the road to give you confidence in the corners and lets you cover long miles in comfort. Riding hard is easy on this machine.

New Solo Seat

The new seat on the Low Rider® S is low-profile, but there’s new foam that keeps you comfortable on long rides. There’s also a nice, deep scoop that lets you tuck yourself tightly into the bike and keeps you planted.

Premium Emulsion Type Shocks

The tall suspension on the Low Rider® S features premium emulsion type shocks for a smooth ride and rock-solid performance. Make no mistake. We built this one for those who like to ride long, hard and often.

2017 Harley-Davidson Low Rider S – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17499 USD

PRICING 6
Vivid Black $17,499
ABS Option Standard
Security Option Standard
California Emissions $200
Freight $390
DIMENSIONS
Length 89.9 in.
Seat Height, Laden 7 26.6 in.
Ground Clearance 4.9 in.
Rake (steering head) (deg) 30.5
Trail 5.1 in.
Wheelbase 64.2 in.
Tires, Front Specification 100/90B19 57H
Tires, Rear Specification 160/70B17 73V
Fuel Capacity 4.7 gal.
Oil Capacity (w/filter) 3 qt.
Weight, As Shipped 646 lb.
Weight, In Running Order 672 lb.
ENGINE
Engine 1 Screamin’ Eagle® Air-cooled, Twin Cam 110™
Bore 4 in.
Stroke 4.374 in.
Displacement 110 cu in
Compression Ratio 9.2:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type Magnum Gold, Split 5-Spoke Cast Aluminum
Wheels, Rear Type 9 Magnum Gold, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 113.6 ft-lb
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5 44 mpg
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2017 Harley-Davidson Low Rider S – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $20699 CDN

PRICING 6
Vivid Black $ 20,699
ABS Option Standard
Security Option Standard
Freight $ 250
DIMENSIONS
Length 2390 mm
Seat Height, Unladen 685 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 30.5
Trail 128 mm
Wheelbase 1630 mm
Tires, Front Specification 100/90B19 57H
Tires, Rear Specification 160/70B17 73V
Fuel Capacity 17.8 l
Oil Capacity (w/filter) 2.8 l
Weight, As Shipped 293 kg
Weight, In Running Order 305 kg
ENGINE
Engine 1 Screamin’ Eagle® Air-Cooled, Twin Cam 110™
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,801 cc
Compression Ratio 9.2:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type Magnum Gold, Split 5-Spoke Cast Aluminum
Wheels, Rear Type Magnum Gold, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type 8 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 154 Nm
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5 5.1 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2017 Harley-Davidson Low Rider S – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £15795 GBP (On The Road inc 20% Vat)

PRICING 5
Vivid Black £ 15,795
DIMENSIONS
Length 2,390 mm
Seat Height, Unladen 685 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 30.5
Trail 128.3 mm
Wheelbase 1,630 mm
Tyres, Front Specification 100/90B19 57H
Tyres, Rear Specification 160/70B17 73V
Fuel Capacity 17.8 l
Oil Capacity (w/filter) 2.8 l
Weight, As Shipped 293 kg
Weight, In Running Order 305 kg
ENGINE
Engine Air-cooled, Screamin’ Eagle® Twin Cam 110™
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,801 cc
Compression Ratio 9.2:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type Magnum Gold, Split 5-Spoke Cast Aluminium
Wheels, Rear Type Magnum Gold, Split 5-Spoke Cast Aluminium
Brakes, Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 156 Nm
Engine Torque (rpm) 3,500
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5.1 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
