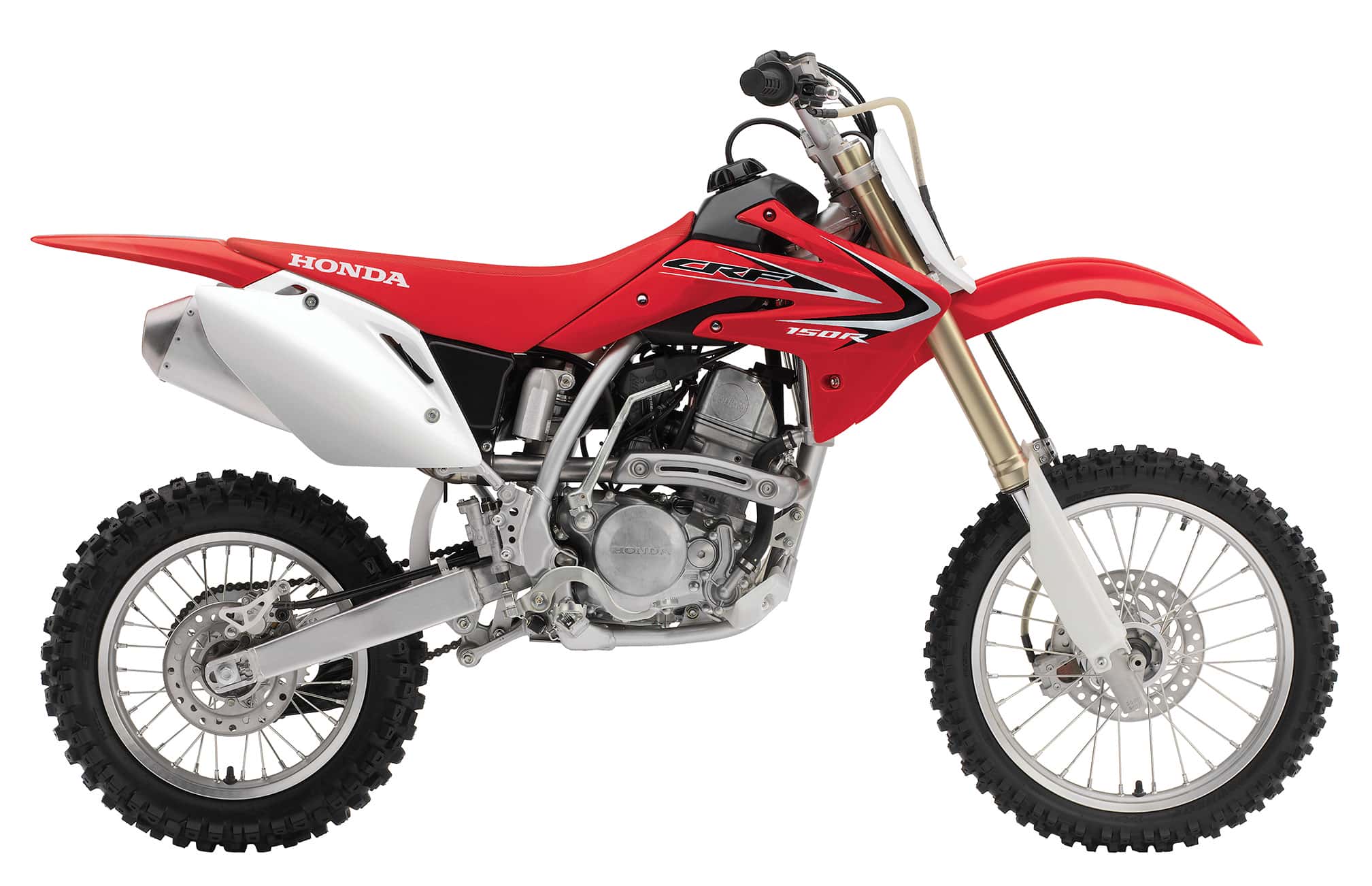

2017 Honda CRF150R Expert

2017 Honda CRF150R Expert

2017 Honda CRF150R Expert Review

2017 Honda CRF150R Expert on www.Totalmotorcycle.com

Bigger wheels, a higher seat and longer swingarm…

Younger racers may be smaller in stature, but that doesn’t mean they can’t have a giant-sized heart for racing—and winning. So for these younger racers, Honda designed the CRF150R as an integral part of the CRF racing lineup. This is the full-on racing machine, with a high-output 149cc liquid-cooled four-valve four-stroke engine with exceptional torque and drivability throughout the powerband. The championship-caliber chassis includes race-tuned suspension components with plenty of travel front and rear, all set to take on the toughest tracks around. Over the years and all around the country, the CRF150R has won tons of championships at the highest levels of amateur racing. And that makes it the proven choice for younger competitors who are ready to take their racing up to the next level. Available in two versions: the standard CRF150R and the CRF150RB, with bigger wheels, a higher seat and a longer swingarm.

If you’re lucky, your parents used sports or other competitive activities to teach you a lot about life. How to focus. How to set long-term goals. How to train. And how to bring your best every time. At Honda, we get it. And that’s why we build the CRF150R, a machine that’s designed to give smaller-stature racers every advantage they need to succeed. Designed around a four-stroke powerplant that showcases plenty of Honda technology, it’s also graced with the performance that will keep you up at the front of the pack and on the podium. And to fit a wider variety of riders, the CRF150R is also available in a second version: the CRF150R Expert, featuring bigger wheels, a higher seat and longer swingarm.

Competitive performance for juniors.

Big wheels, a sturdy chassis, a powerful, liquid-cooled 4-stroke engine – Packed full of high performance technology, the CRF150R is the best place for future champions to hone their skills.

Step up

The journey goes on.

When things start to get more competitive you need a bike that can step up with you. This is it – the CRF150R. Armed with a powerful 4-stroke Unicam® engine, that’s smooth and easy to control, a light twist-grip action gives accurate throttle response while its wide rev-range leaves other riders trailing in the roost. Now, you’re ready.

Starting advantage

The CRF150R uses performance technology based on our championship winning CRF450R and CRF250R.

And this bike handles. Only one step below its bigger brothers, the CRF150R carves corners, rides ruts and catches air like only a CRF-R can. The strong, slim and lightweight steel tube frame mounts a low-friction, long-travel, fully adjustable inverted front fork – just like its big brothers. With performance DNA this strong, you’ll be winning races in no time.

Get airborne

Strong, light and agile.

With strong, lightweight frame, large wheels and revised suspension settings for the 37mm inverted Showa front fork and Pro-Link rear suspension system, the CRF150R offers the rider the confidence needed to get ‘airborne’. Once you find higher levels of expertise, manoeuvres on the ground, and in the air will start to come naturally to you.

Fine-Tuned Suspension.

Showa® front and rear gives you unrivaled suspension action, especially over smaller, faster bumps that unsettle a bike’s chassis.

High Tech = High Performance.

Thanks to the Unicam® cylinder head, this four-stroke engine is more powerful yet more compact, improving handling, power and efficiency.

Winning is Everything.

Check out all of the action in our racing section.



---

2017 Honda CRF150R Expert www.Totalmotorcycle.com Key Features

Excellent mass centralization

Ultra-high rpm, 149 cc engine is one of the most advanced in the sport, its unique 4-valve, Unicam design gives it very compact dimensions and excellent mass centralization for effortless direction changes on the ground or altitude changes in the air. Rail it or whip it with confidence.

Power when you want it

Short-skirted piston and light flywheel mean the CRF’s willing engine builds revs very quickly – no waiting for the power to “hit”.

Consistent engine operating temperature

Liquid cooling and a Nikasil cylinder liner help to extend engine life. The cooling system’s lightweight aluminum radiator helps to reduce weight and ensure consistent engine operating temperature no matter how hard you push.

More immediate throttle

Flat-slide, FCR 32 mm carburetor is fitted with an accelerator pump for more immediate throttle response. Go ahead, use the 4-stroke advantage to grab the holeshot.

Less shifting more enjoyment

Broad 4-stroke power characteristics allow the CRF150RB to use a five-speed gearbox for less shifting so you can concentrate on your riding.

Easy start from hot or cold

Although the 4-stroke engine is hard to stall, it’s nice to know that an automatic decompression system makes starting easy, hot or cold.

Maximum power output

Maintenance-free digital CD ignition system includes a throttle angle sensor so it can tailor the ignition curve to provide maximum power output whenever you grab that throttle.

Increased durability & maximum control

Heavy-duty clutch is fitted with tough friction plates for increased durability but retains a light pull at the lever giving you maximum control.

Excellent performance

Lightweight high-tensile steel frame with large-diameter tubing provides excellent turning performance and keeps you tracking straight through the whoops.

Riding comfort & traction

37 mm, inverted, Showa cartridge front fork features adjustable compression and rebound settings. The fork’s low-friction design will be especially appreciated when it’s helping the front wheel to follow small surface irregularities without breaking traction.

Improved turning precision

Wide-section aluminum top and bottom triple-clamps hold the inverted forks rigidly and position the fork tubes far apart giving you improved turning precision and control.

Comfort on any terrain

Pro-Link rear suspension system features a fully adjustable Showa shock that effectively soaks up whatever the track or trail can throw at it.

Precise control over any terrain

Lightweight wheels and hubs help to reduce un-sprung weight allowing the wheels to effectively follow uneven terrain. The strong and rigid, but lightweight, box-section aluminum swingarm further enhances rear wheel tracking offering precise control whether you’re braking over stutter bumps or root infested trails.

Easy braking in any condition

Lightweight front and rear disc brakes with high-performance pads offer powerful, easy to modulate braking even when you’re riding in the worst conditions.

Consistent power

Large-capacity airbox and reusable two-stage foam air filter means power won’t drop off during long, dusty rides.

Stay comfortable & stay put

Slim, well-padded seat is comfortable and allows maximum movement. Non-slip seat cover gives you excellent control.

Personalized comfort

Fully adjustable, high-quality controls include comfortable grips, dogleg levers, side-pull throttle and a folding shift lever. Cleated, folding, self-cleaning footpegs offering excellent grip complete the impressive collection of thoughtful touches.





2017 Honda CRF150R Expert www.Totalmotorcycle.com Features and Benefits

Engine/Drivetrain
•High-performance Unicam® cylinder head design.
•Compact, lightweight engine assembly weighs only 43.6 pounds.
•Twin-sump lubrication system separates the oil supply for the crankshaft, piston and valve train from the clutch and transmission. This ensures a cool supply of oil to the clutch, eliminates potential clutch and transmission material contamination of the engine oil, reduces the amount of circulating oil and permits the use of a smaller oil pump.
•Cylinder head, piston, camshaft and carburetor provide power, torque and rideability throughout the powerband.
•Lightweight, compact, internal auto decompression and handlebar-mounted hot-start system provide easy starting, hot or cold.
•32mm Keihin FCR carburetor with an accelerator-pump circuit provides accurate fuel metering, resulting in crisp throttle response and god rideability throughout the powerband.
•Suspension settings provide good action through even the toughest of track conditions.
•Exhaust system uses a lightweight stainless-steel exhaust header and repackable aluminum muffler.
•Durable close-ratio five-speed transmission.

Chassis/Suspension
•Front and rear suspension settings unique to the CRF150R deliver ideal bump-absorption characteristics.
•Lightweight, high-tensile steel frame with large-diameter frame tubing and cross-member provides excellent turning performance and straight-line tracking.
•37mm leading-axle inverted Showa cartridge fork features friction-reducing design to improve compression and rebound control.
•Pro-Link® rear suspension.
•Strong, lightweight wheels are durable and minimize unsprung weight.
•Lightweight front and rear disc brakes with high-performance pads offer powerful, precise braking.
•Stout 15mm front and 17mm rear axles incorporate a surface-treatment for added strength and durability.
•Large-capacity airbox and reusable two-stage foam air filter.
•Lightweight plastic body components (radiator shroud, side covers, rear fender, seat base, fuel tank, front fender and front number plate) offer a slim, aggressive style.
•High-quality Dunlop tires.
•HRC works-type rear-brake system integrates the rear master cylinder and fluid reservoir, eliminating the separate rear master-cylinder reservoir and hose.
•Consult owner’s manual for optional racing parts

---



2017 Honda CRF150R Expert – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5140 USD

ENGINE
Engine Type 149cc liquid-cooled single-cylinder single cylinder four stroke
Bore And Stroke 66mm x 43.7mm
Compression Ratio 11.7:1
Valve Train Unicam®, four-valve; 26mm intake, steel; 22.5mm exhaust, steel
Induction Keihin® 32mm flat slide with Throttle Position Sensor (TPS)
Ignition Solid-state CD with electronic advance
DRIVE TRAIN
Transmission Close-ratio five speed
Final Drive #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension 37mm fully adjustable leading-axle inverted Showa® cartridge fork; 10.8 inches
travel
Rear Suspension Pro-Link® fully adjustable Showa single shock; 10.7 inches travel
Front Brake Single 220mm disc
Rear Brake Single 190mm disc
Front Tire 70/100-19 Dunlop MX51
Rear Tire 90/100-16
DIMENSIONS
Rake 27°48′ (Caster Angle)
Trail 96mm (3.78 inches)
Wheelbase 50.6 inches
Seat Height 34.1 inches
Ground Clearance 11.9 inches
Curb Weight 187 pounds (Includes all standard equipment, required fluids and full tank of
fuel–ready to ride.)
Fuel Capacity 1.11 gallons
OTHER
Emissions Consult owners manual for optional racing parts.
Available Colors Red
Model ID CRF150R



---



2017 Honda CRF150R Expert – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer CDN

Engine & Drivetrain
Engine type
Liquid-cooled single-cylinder 4-stroke
Displacement
149 cc
Bore & stroke
66 mm x 43.7 mm
Compression ratio
11.7:1
Valve train
Unicam, four valves
Fuel delivery
Keihin 32 mm flat-slide carb with throttle position sensor
Transmission
Close-ratio five-speed
Final drive
#420 chain, 15T/56T
Chassis & Suspension
Front suspension
37 mm fully adjustable inverted Showa cartridge fork; 275 mm (10.8 in.) travel
Rear suspension
Pro-Link fully adjustable Showa single shock; 283 mm (11.1 in.) travel
Dimensions & Additional Information
Tires
Front: 70/100 – 19; Rear: 90/100 – 16
Brakes
Front: 220 mm disc with dual-piston caliper; Rear: 190 mm disc
Ground clearance
336 mm (13.2 in.)
Seat height
866 mm (34.1 in.)
Wheelbase
1,285 mm (50.6 in.)
Curb weight
85 kg (187 lbs.) including required fluids and full tank of gas – ready to ride
Fuel capacity
4.3 litres
Colour
Extreme Red

---



2017 Honda CRF150R Expert – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Model may not be available.
