CHAMPIONSHIP CALIBER.

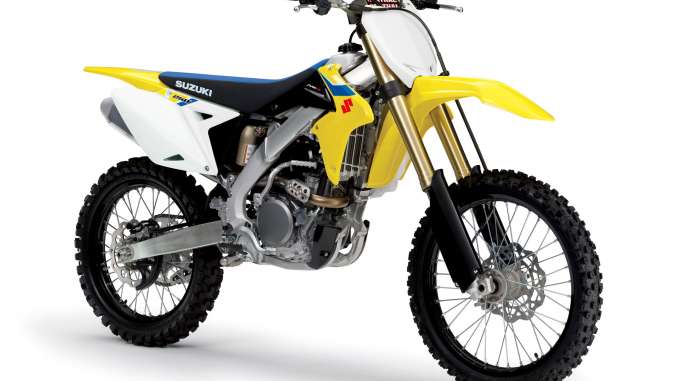

The championship-caliber 2018 Suzuki RM-Z250 has been carefully developed to deliver a high level of performance by incorporating a variety of features originally created for Suzuki’s factory race bikes. The competition-proven Suzuki Holeshot Assist Control (S-HAC) gives riders the best shot at grabbing the holeshot on a wide variety of track conditions, and the specialized KYB PSF2 Pneumatic Spring fork provides both easy adjustability and outstanding action to give the RM-Z250 more precise handling than ever. The remarkable KYB rear shock and the well-sorted aluminum twin-spar frame ensure the razor-sharp handling Suzuki’s are famous for.

Enlist in the RM ARMY and enjoy Suzuki Amateur Racing Support! Suzuki’s RM Army and Amateur Racing Support is top notch, offering over $3.8 million in contingency, trackside support, and the opportunity to train with Ricky Carmichael at Suzuki’s exclusive Camp Carmichael. Want to see why champions choose Suzuki? Visit racesuzuki.com for more information on Suzuki’s Amateur Support Program and enlist in the RM ARMY!

2018 Suzuki RM-Z250 Totalmotorcycle.com Key Features

Mount up. Because 1st place doesn’t come without a fight. Razor-sharp handling. Beastly torque. Quick-response braking. They’re not features, they’re the difference between podium and parking lot. Our legendary RM-Zs put the track—and the competition—at your mercy.

2018 Suzuki RM-Z250 Totalmotorcycle.com Features and Benefits

New Features
New, competition inspired body panel colors, graphics and seat color align perfectly with the all-new RM-Z450

Engine Features
249cc 4-stroke liquid-cooled DOHC 4-valve fuel-injected engine delivers remarkably smooth and controlled idle-to-redline performance

The RM-Z250’s engine has heightened mid-range power and torque while maximum power is maintained. Power delivery is smoother and linear for easier control thanks to the following

Crankshaft and magneto mass are balanced to reduce engine braking losses, while the camshafts and intake valves design widens engine performance. Slippery cam chain tensioner and precise adjuster reduce valve train friction

Crankcase passages are designed for increased lubrication. The clutch cover with oil level window eases maintenance checks

The compact aluminum cylinder is finished with Suzuki Composite Electrochemical Material (SCEM) coating for durability, light weight and efficient heat transfer. Specially designed piston, piston pin & rings improve durability and ring-sealingpump

Cooling performance is efficient with balanced flow between the left and right radiators, and a high capacity coolant pump

The exhaust’s long head pipe enhances low-to-mid range power while the lightweight muffler meets AMA sound standards

Specially designed kick drive gear, breather gear & kick idle gear ratios with an effective decompression system improves starting. Unlike some competitor’s motorcycles, a hot-start lever system is not required

Advanced Electronics
Designed for motocross-use, the lightweight, battery-less, electronic fuel injection system with progressive throttle linkage delivers efficient power. A 12-hole fuel injector sprays a fine fuel/air mist for efficient combustion while the throttle valve angle also reduces engine braking losses

Easy-to-use Fuel Couplers are included to simplify EFI tuning.

– For quick fuel adjustments to suit riding conditions, two couplers are provided. One is for rich and another for lean fuel setting compared to stock setting. Riders can change fuel settings in seconds by simply connecting either coupler to the wire harness.

Suzuki Holeshot Assist Control (S-HAC) is a selectable launch mode system derived straight from factory race bike. S-HAC helps the rider’s takeoff from the starting gate for an early lead. There are three modes riders can choose for the best option per their skill level and starting conditions.
Transmission Features
Well-designed 5-speed transmission enables precise gear shift operation. The gear selection feel and accuracy is the result of a refined shift cam and shift lever. Specialized machining processes ensure the precision of the matching gears

Chassis Features
Slim chassis design creates a trim riding position, allowing the rider to actively take control of the machine

Advanced design KYB PSF2 Pneumatic Spring front fork uses air chambers in place of steel springs for light weight, easy adjustability, improved damper performance and smooth action from low friction. Riders can adjust both air forks with one balanced air pressure setting from a hand-pump. Compression damping is adjustable while rebound damping force is both high- and low-speed adjustable

Front upper and lower fork clamps are anodized black, complementing the gold fork leg finish

Innovative KYB rear shock absorber is connected link style to the swingarm via re-shaped cushion rods and spacers. The nitrogen-charged, piggyback style shock features a new top-mounted integral adjuster system for easy adjustment of the high- and low-speed rebound, and high- and low-speed compression damping force adjusters. Spring preload can be precisely tuned via a threaded collar on the main shock body

Light weight front brake caliper has low mass while still providing outstanding stopping force

Dunlop MX52 series tires are used featuring CTCS (Carcass Tension Control System) technology for superb rigidity and high level of grip

Race-inspired waved disc rotors are mounted to black-anodized EXCEL aluminum rims with stainless steel spokes

Aluminum fuel tank provides sound foundation and cooling for the internal EFI fuel pump. Fuel capacity is 6.5L (1.7 US gal.)

The standard Renthal Fatbar is stronger and reduces vibration more than conventional aluminum handlebars

Champion Yellow bodywork (including new yellow rear fender) with race team-inspired graphics package

New color gripper seat, with projected cross-shaped patterns on the yellow top surface, aids rider control

2018 Suzuki RM-Z250 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7749 USD

Engine
Engine 249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke 77.0mm (3.0 in) x 53.6mm (2.1 in)
Compression Ratio 13.75:1
Fuel System Fuel Injection, 44mm throttle body
Starter Primary kick starter
Lubrication Semi-dry sump
Drive Train
Transmission 5-speed constant mesh
Clutch Wet multi-plate
Final Drive Chain, DID520DMA4, 114 links
Chassis
Suspension Front Inverted telescopic, pneumatic spring, oil damped, adjustable damping force
Suspension Rear Link type, coil spring, oil damped, adjustable spring preload & damping force
Brakes Front Disc brake, single rotor
Brakes Rear Disc brake, single rotor
Tires Front 80/100-21 M/C 51M, tube type
Tires Rear 100/90-19 M/C 57M, tube type
Fuel Tank Capacity 6.5 L (1.7 US gallons)
Color Championship Yellow with black/blue accents
Electrical
Ignition Electronic Ignition (CDI)
Ignition NGK CR8EIB-10
Dimensions
Overall Length 2170 mm (85.4 in)
Overall Width 830 mm (32.7 in)
Overall Height 1270 mm (50.0 in)
Wheelbase 1475 mm (58.1 in)
Ground Clearance 345 mm (13.6 in)
Seat Height 955 mm (37.6 in)
Curb Weight 106.0 kg (234 lbs)
Warranty
Warranty Not applicable

2018 Suzuki RM-Z250 – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for Pricing in CDN

To Be Announced

2018 Suzuki RM-Z250 – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
