2020 BMW R1250GS Adventure Guide

2020 BMW R1250GS Adventure

2020 BMW R1250GS Adventure 2020 BMW R1250GS Adventure 2020 BMW R1250GS Adventure 2020 BMW R1250GS Adventure

2020 BMW R1250GS Adventure : YOUR JOURNEY IS THE DESTINATION.

2020 BMW R1250GS Adventure Guide.

The BMW R 1250 GS Adventure is built for your challenges. Rough routes, adverse conditions and the most remote destinations are no problem for the queen of travel enduros. With 1,254 cc and 136 hp, you have more than enough power for wilderness, desert or country road. In addition to the performance, the engine also gives you the endurance you need in order to reach the next stage finish. The variable camshaft control BMW ShiftCam offers you power in every engine speed range and gives the Boxer engine an unprecedented culture. No matter what adventure drives you, the BMW R 1250 GS Adventure is ready to go with you.

For decades, the boxer engine in the BMW Motorrad R, RS and GS Adventure models has stood for distinctive, powerful and reliable propulsion when it comes to dynamic riding along country roads, sporty touring or enjoying long-distance trips and motorcycling adventures to the full. For more than 25 years, BMW Motorrad has used 4-valve technology in this connection, combined with electronic fuel injection and closed-loop catalytic converter technology in order to achieve the best possible power and torque delivery, efficiency and environmental compatibility.

Further advanced boxer engine with BMW ShiftCam Technology for an additional increase in power across the entire engine speed range, reduced emission and fuel consumption levels, optimised running smoothness and refinement.
With the extensively further advanced boxer engine, the new R 1250 R, R 1250 GS and R 1250 GS Adventure not only achieve a whole new level of power and torque. It was also possible to significantly optimise refinement and running smoothness – especially within the lower engine speed range. What is more, the new engine offers improved emission and fuel consumption levels as well as a particularly satisfying sound. For this purpose, BMW ShiftCam Technology has been used for the first time in the serial production of BMW Motorrad engines: this enables variation of the valve timings and valve stroke on the intake side. In addition, the intake camshafts are designed for asynchronous opening of the two intake valves, resulting in enhanced swirl of the fresh, incoming mixture and therefore more effective combustion. Other technical changes to the engine relate to the camshaft drive – now taken care of by a toothed chain (previously a roller chain) – an optimised oil supply, twin-jet injection valves and a new exhaust system.

Two riding modes, ASC and Hill Start Control as standard.
There are two riding modes available as standard in order to be able to adapt the motorcycle to individual rider preferences. The standard Automatic Stability Control ASC ensures a high level of riding safety due to the best possible traction. The set-off assistant Hill Start Control is likewise a standard feature in all three models, enabling convenient set-off on slopes.

Riding Modes Pro, featuring additional riding modes, Dynamic Traction Control DTC, ABS Pro, Hill Start Control Pro and Dynamic Brake Assistant DBC, available as an optional equipment ex works.
“Riding Modes Pro” is now available as an optional equipment item, featuring the additional riding mode “Dynamic” and “Dynamic Pro” (configurable), Dynamic Traction Control DTC, and in the R 1250 GS Adventurre also the riding modes “Enduro” and “Enduro Pro” (configurable). DTC enables even more efficient and safe acceleration, especially when banking. ABS Pro offers even greater safety when braking, even in banking position. The new Dynamic Brake Control DBC provides additional safety when braking, also in difficult situations, by avoiding unintentional accelerator activation. By means of intervention in the engine control, drive torque is reduced during braking so as to make full use of the braking power at the rear wheel. This keeps the motorcycle stable and shortens the braking distance.

LED headlamp for the R 1250 RS and R 1250 GS Adventure as standard and LED daytime riding light for all three models as an ex works optional equipment item.
The new R 1250 RS and R 1250 GS Adventure now feature a LED headlamp as standard. In addition to this, the LED daytime riding light is available as an optional equipment item for the R 1250 RS and the R 1250 GS Adventure as well as for the R 1250 R, which has halogen headlamps.

Electronic suspension Dynamic ESA “Next Generation” with fully automatic load compensation as an option.
With the optional equipment item BMW Motorrad Dynamic ESA “Next Generation”, damping automatically adapts to the situation according to riding state and manoeuvres, and there is also automatic compensation in all load states. This allows finely tuned adaptation of the motorcycle to riding states, achieving optimum damping comfort and a very stable ride response.

Connectivity: Multifunctional instrument cluster with 6.5 inch full-colour TFT display offering many features as standard.
The three new boxer models now have the equipment feature Connectivity as standard including a 6.5-inch full-colour TFT screen. In conjunction with the standard BMW Motorrad Multi-Controller, this means the rider can access vehicle and connectivity functions particularly swiftly and conveniently.

Intelligent Emergency Call as an ex works option.
Ensuring the fastest possible assistance in the event of an accident or in situations of emergency and danger can save people’s lives. The optional equipment item Intelligent Emergency Call summons assistance to the scene as quickly as possible.
As before, this feature can be ordered for all three models.

BMW Motorrad Spezial – high-quality customisation features as optional equipment items ex works.
BMW Motorrad Spezial is range of iconic customisation features that enhance both performance and value, available as optional equipment items ex works. The focus is on harmonious integration in the vehicle as a whole, use of the very highest-quality materials, elaborate manual workmanship and characteristic attention to detail.

The billet packs Option 719 Classic and HP are available for the new boxer models, for example.

The new R 1250 R and R 1250 RS can also be equipped with the Option 719 Classic or Sport Wheels as well as the exclusive paintwork and the Option 719 seat.

An HP sports silencer is likewise available ex works for all three new boxer models.

New attractive colours and style variants.
The new boxer models feature one basic finish each as well as two striking style variants. The Option 718 Special Paint Finish is also available for the new R 1250 R and R 1240 RS.







2020 BMW R1250GS Adventure Totalmotorcycle.com Key Features

The highlights of the new BMW R 1250 R, BMW R 1250 RS and BMW R 1250 GS Adventure:

  • Further developed boxer engine with BMW ShiftCam Technology for variation of the valve timings and valve stroke on the intake side.
  • Even more power across the entire engine speed range, optimised fuel consumption and emission levels, increased running smoothness and refinement.
  • Increased output and torque: 100 kW (136 hp) at 7 750 rpm and 143 Nm at 6 250 rpm (previously:92 kW (125 hp) / 125 Nm at 6 750 rpm and 125 Nm at 6 500 rpm.
  • Capacity increased to 1 254 cc (previously: 1 170 cc).
  • Asynchronous valve opening on the intake side for optimised swirl and therefore more effective combustion.
  • Camshaft drive now via toothed chain (previously roller chain)
  • Optimised oil supply and piston base cooling.
  • Knock sensor system for optimised travel suitability.
  • Latest generation of BMS-O engine control and use of twin-jet injection valves for even more effective carburetion.
  • New exhaust system for optimum performance characteristics.
  • Two riding modes, ASC and Hill Start Control as standard.
  • Riding Modes Pro, featuring additional riding modes, Dynamic Traction Control DTC, ABS Pro, Hill Start Control Pro and Dynamic Brake Assistant DBC, available as an optional equipment item ex works.
  • Electronic suspension Dynamic ESA “Next Generation” with fully automatic load compensation.
  • Standard adjustability of the seat height on the R 1250 GS Adventure (exception Style HP) as well as a wide range of seat height variants ex works.
  • New optional Sports Handlebars for R 1250 R for a more dynamic riding position.
  • In addition to standard adjustability of seat height (exception: HP style for the R 1250 GS Adventure), wide range of seat height variants ex works.
  • LED headlamp for the R 1250 RS (completely new design) and
    R 1250 GS Adventure as standard; LED daytime riding light for all  models as an ex works optional equipment item.
  • Connectivity: Multifunctional instrument cluster with 6.5 inch full-colour TFT display offering many features as standard.
  • Intelligent Emergency Call as an ex works option.
  • BMW Motorrad Spezial – customisation features as optional equipment items ex works.
  • Extended range of optional equipment items and original BMW Motorrad Accessories.
  • The new R 1250 R:
  • Dynamic naked bike character in one basic colour, two style variants and Option 719 Spezial finishes.
  • The new R 1250 RS: Sport and touring character in one basic colour, two style variants and Option 719 Spezial finishes.
  • New front spoiler and cockpit cover (R 1250 R and R 1250 RS).
  • Newly designed upper trim (R 1250 RS).
  • The new F 1250 GS Adventure: Off-road and adventure prowess in two modern basic finishes and two striking style variants.
  • R 1250 GS Adventure with new body features such as black-grained lid for storage compartment with embossed GS logo, trim for the intake snorkel, radiator trim with electroplated look, tank bracket and engine protection bars adapted to the design of the body frame.









2020 BMW R1250GS Adventure Totalmotorcycle.com Features and Benefits

Technology.

Further developed boxer engine with new top levels for output, torque, ridability and refinement.

While the previous boxer power unit itself provided supreme forward thrust in all situations, the boxer engine in the new BMW R 1250 R, R 1250 GS and R 1250 GS Adventure takes this a significant step further. In the latest generation it has a capacity of 1 254 cc (previously: 1 170 cc). The ratio between bore and stroke is now 102.5 to 76 mm (previously: 101 to 73 mm). It has an output of 100 kW (136 hp) at 7 750 rpm and develops a maximum torque of 143 Nm at 6 250 rpm (previously: 92 kW (125 hp) at 7 750 rpm and 125 Nm at 6 500 rpm). With a 7 % capacity increase, the new boxer engine offers 14 % more torque and 9 % more output than its predecessor.

At its latest stage of development too, the boxer engine uses the well-established system of air/liquid cooling. So-called precision cooling means that the cooling fluid flows through the engine elements that are more heavily exposed to heat – namely the two cylinder heads and parts of the cylinders. Heat is dissipated via two radiators positioned at the left and right of the front vehicle section.

BMW ShiftCam Technology for increased power across the entire engine speed range, enhanced running smoothness and refinement as well as further optimised fuel consumption and emission levels.

Optimised fuel consumption and emissions values.

The objectives in developing the new boxer engine in the R 1250 R, R 1250 RS and R 1250 GS Adventure were to further enhance the already impressive output and torque figures of the predecessor model. This also involves a significant increase in refinement and running smoothness as well as optimised emission and fuel consumption levels.

It was possible to achieve these enhancements by means of BMW ShiftCam Technology. This is a technology that is completely new to BMW motorcycles: its function is to vary the valve timings and valve stroke on the intake side. The core of the technology is a single-unit shift camshaft with two cams per valve to be activated: one partial-load cam and one full-load cam, each featuring cam geometry in optimised design. While the partial-load cam has been configured to ensure optimised fuel consumption and refinement, the full-load cam is designed for optimised output.

Axial shift of the intake camshaft means the intake valves are activated by either the partial-load or the full-load cam, depending on load and engine speed. The axial shift of the intake camshaft and the use of the partial-load or full-load cam are effected by means of a shifting gate on the camshaft and an electronic actuator which intervenes at this point.

Variation of the intake valve stroke and asynchronous valve opening. The varied configuration of the cam geometry also enables variation of the intake valve stroke. While the full-load cam provides maximum valve stroke, the partial-load cam delivers reduced valve stroke. There is also a difference between the intake cams for the left and right-hand intake valve in stroke and angular position. This phase shift means that the two intake valves are opened to different degrees and on a time-staggered basis.

The effect of this phase shift is to create a swirl and therefore greater agitation of the fuel-air mixture flowing into the combustion chamber. This results in particularly effective combustion and better utilisation of the fuel as a result. Given the appropriate riding style, BMW ShiftCam Technology enables a reduction of fuel consumption by up to 4 % as compared to the already economical predecessor model.



The benefits of BMW ShiftCam Technology:

  • Increased torque and pulling power across the entire engine speed range.
  • Enhanced refinement and more even engine running when travelling at a constant speed due to optimum configuration of the partial-load cam geometry for the lower load range and engine speed range.
  • Significant increase in peak output to 100 kW (136 hp) (previously: 92 kW (125 hp)).
  • Reduction of load change loss in the partial load range.
  • Reduction of idling engine speed by 100 rpm.
  • Reduction of exhaust emissions and optimised sound.
  • Reduction of fuel consumption by 4 % as compared to the predecessor model.



Even more supreme ridability due to increased torque as well as tangibly improved running smoothness and refinement.

In practical terms, BMW ShiftCam Technology results in an even further significant improvement in ridability for the new R 1250 R, R 1250 RS and R 1250 GS Adventure in comparison to the predecessor model. In addition to the considerable boost in peak output from the previous figure of 92 kW (125 hp) to the current level of 100 kW (136 hp), it is the drastic increase in torque and therefore pulling power that is particularly noticeable.

In the range from 2 000 to 8 250 rpm, for example, the level of torque now available is 110 Nm. Within the range that is especially relevant in terms of riding dynamics, namely 3 500 to 7 750 rpm, the impressive level of over 120 Nm is now available. This gives the new R 1250 R, R 1250 RS and R 1250 GS Adventure even greater supremacy and pulling power than before, combining absolutely superior power delivery with remarkable top performance – whether riding alone or with a passenger, on winding country roads or covering long stages of a journey at a high average speed. In short: never before has a boxer engine provided this level of riding fun and refinement.

Cylinder head with vertical flow and camshaft drive now by means of toothed chain. Optimised oil supply and piston base cooling.

The engine of the new BMW R 1250 R, R 1250 RS and R 1250 GS Adventure also features vertical flow. The advantage here is that the configuration of the intake channel no longer depends on the camshaft control, so it was possible to realise identical intake lengths for both cylinder sides. What is more, the fuel injector is now arranged so that the fuel is injected as directly as possible in front of the intake valves for optimum carburetion.

As before, the two camshafts per cylinder side are powered by a chain running in the shaft behind the cylinders (on the right-hand side of the engine via the counterbalance shaft and to the left via the crankshaft). The timing chain drives an intermediate shaft between the intake and exhaust camshaft and it is from here that power is transmitted to the camshafts via spur gear pairs. The control chain is now a toothed chain (previously: roller chain) with the aim of further reducing running noise. As before, the four valves are arranged at close angles to one another in order to achieve an optimum combustion chamber shape. The valve angle is 8 degrees on the intake side and 10 degrees on the exhaust side, while the disc diameters of the valves are 40 mm on the intake side and 34 mm on the exhaust side.

The valve shaft diameter is 5.5 mm. As before, the valves are operated via light, speed-resistant rocker arms, the design of which was derived from the high-performance 4-cylinder engine of the BMW S 1000 RR. The valve clearance settings are made by means of replaceable shims.

The increase in output and torque and therefore riding dynamics as a whole also involves two back-up measures to ensure maximum operating reliability: the two pistons have base cooling using splash oil and the lubrication system has been fitted with variable oil intake. By means of a shifting piston in the intake area of the oil sump, the latter ensures optimum oil supply in all riding states.

Knock sensor system for optimised travel suitability. BMS-O engine control and twin-jet injection valves for even more effective carburetion.

Unlike their predecessor models, the new R 1250 R, R 1250 RS and R 1250 GS Adventure have a knock sensor system in the form of two knock sensors. This allows the use of fuels with a rating of less than RON 95 – a particular advantage when travelling in the more remote corners of the planet. The new R 1250 R, R 1250 RS and R 1250 GS Adventure are also fitted with a new digital engine control, the so-called BMS-O. Its main features are fully sequential injection, a compact layout and low weight. Carburetion is carried out by an electronic fuel injection system via throttle bodies with an opening width of 52 mm. Injection is via new twin-jet injection valves that support even greater refinement and further improved emission levels.

Counterbalance shaft for perfect mechanical running smoothness.

As in the previous models, the new engine also has a counterbalance shaft which runs at crankshaft rotation speed so as to eliminate unwanted vibrations. The counterbalance shaft is configured as a hollow intermediate shaft, inside which the clutch shaft runs at the same time. This ensures that the new engine in the R 1250 R, R 1250 RS and R 1250 GS Adventure likewise runs comfortably and with low levels of vibration across the entire engine speed range. Nonetheless, the essential earthy boxer characteristics are still preserved.

Gearbox integrated in engine housing, including wet clutch with anti-hopping function.

The gearbox and clutch are integrated in the engine housing in the new boxer engine, too. This provides benefits in particular in terms of overall weight due to the omission of numerous bolt connections and sealing surfaces, but also in terms of the torsional response of the unit as a whole. In addition to a design that saves both space and weight, this concept means that no additional gearbox volume is required.

Power transmission to the 6-speed gearbox, which has been further optimised in terms of gear shifting, is via a multi-plate wet clutch with eight friction discs. The clutch system is fitted with an anti-hopping mechanism. With this new drive generation, BMW Motorrad has thus especially addressed the wishes of riders with sporty ambitions who prefer country roads. The brake torque of the engine is now passed to the rear wheel at a reduced level during coasting. This prevents brief blocking or hopping of the rear wheel due to the dynamic wheel load distribution when applying the brakes heavily and changing down at the same time. In this way, the motorcycle remains stable and safely controllable during the braking phase.

New exhaust system for optimum performance characteristics.

Made completely out of stainless steel, the exhaust system of the new R 1250 R, R 1250 RS and R 1250 GS Adventure is designed entirely for optimum output and torque in conjunction with BMW ShiftCam Technology and works according to the 2-in-1 principle. In this development area, a homogeneous output and torque curve and thus excellent ridability were once again regarded as requirements for supreme performance on country roads, off-road riding and extended touring activity.

The two manifold tubes and the interference pipe were redesigned in terms of shaping, length and diameter. Exhaust gas purification is taken care of by a closed-loop catalytic converter controlled by an oxygen sensor. In this way, the new R 1250 R, R 1250 RS and R 1250 GS Adventure meet current exhaust standards and are excellently equipped for future requirements.



Two riding modes, ASC and Hill Start Control as standard.

Even in standard trim, the new R 1250 R, R 1250 RS and R 1250 GS Adventure offer two riding modes for adaptation to individual rider preferences. Here, the standard Automatic Stability Control ASC ensures a high level of riding safety due to excellent traction. What is more, the riding modes “Rain” and “Road” allow adaptation of the bike’s properties to most road surface conditions. The set-off assistant Hill Start Control is likewise a standard feature in all three models, enabling convenient set-off on slopes.

Riding Modes Pro, featuring additional riding modes, Dynamic Traction Control DTC, ABS Pro, Hill Start Control Pro and Dynamic Brake Assistant DBC, available as an optional equipment item ex works.

As an optional equipment item ex works, the new R 1250 R, R 1250 RS and R 1250 GS Adventure can also be equipped the “Riding Modes Pro”option, which include the additional ride modes “Dynamic” and “Dynamic Pro” (configurable) and the dynamic traction control DTC. On the R 1250 GS Adventure this also features the riding modes “Enduro” and “Enduro Pro” (configurable). DTC enables even more efficient and safe acceleration, especially in banking position.

ABS Pro (part of the optional equipment item Riding Modes Proalso offers even greater safety when braking, especially in banking position, while Dynamic Brake Control DBC provides the rider with extra support on brake manoeuvres. DBC increases safety when braking, even in difficult situations, by avoiding unintentional accelerator activation. By means of intervention in the engine control, the drive torque is reduced during braking, making full use of the braking power at the rear wheel. This keeps the motorcycle stable and shortens the braking distance. With the dynamic brake light (part of the optional equipment item “Riding Modes Pro”), vehicles to the rear are made more aware of the fact that the motorcycle is decelerating.

The new optional equipment item Hill Start Control Pro goes beyond the functions of a comfort system such as Hill Start Control to facilitate stopping and setting off on a slope. Hill Start Control Pro offers the new additional function Auto HSC. The settings menu allows this additional function to be individualised in such a way that the parking brake is automatically activated on a gradient (greater than +/- 5 %) when the hand or foot brake lever has been activated, shortly after the motorcycle comes to a standstill.



Electronic suspension Dynamic ESA “Next Generation” with fully automatic load compensation as an option.

A whole new dimension of riding safety, performance and comfort is harnessed with the optional ex works BMW Motorrad Dynamic ESA “Next Generation” (Electronic Suspension Adjustment): here, the damping automatically adapts to the situation depending on riding condition and manoeuvres, and there is also an automatic self-levelling function to compensate all load states. In terms of the technical background, signals from the rotational speed sensor and the two travel sensors at the front and rear enable comprehensive data collection and therefore finely tuned adaptation of the motorcycle to riding states. Based on additional parameters, riding states are detected such as compression, acceleration and deceleration, and these are incorporated in the adaptation of damping forces, both at the rear spring strut and Telelever front wheel control. This adaptation is applied by means of electrically actuated regulation valves within the millisecond range. As a result, optimum damping comfort and a very stable ride response is ensured even in banking position.

Dynamic ESA “Next Generation” is pre-set to the “Road” damping characteristics in the standard set-up of the riding modes “Rain”, “Road” and “Dynamic”. At the press of a button – conveniently positioned on the handlebars so it can even be operated during travel – the rider can switch to the damping characteristics “Dynamic” in the riding modes “Rain” and “Road”, thereby selecting a tighter damping set-up. The tighter damping variant “Dynamic” is pre-set in the riding modes “Dynamic” and “Dynamic Pro”. Meanwhile the riding mode “Enduro” and “Enduro Pro” – additionally available for the R 1250 GS Adventure – are configured to include the damper setting “Enduro”, which is geared towards the loose surfaces to be anticipated.



Wide range of seat height variants.

In the case of the R 1250 R and R 1250 RS the customer can choose from a variety of seat height variants as part of the optional and special equipment range. The 820 mm seat is the standard version. The 790 mm “low” version is also available as well as the 760 mm “extra low” and 840 mm “sport” version. As such, a total spectrum covering a height difference of 80 mm is offered between the lowest and highest seat variant ex works.

For the new R 1250 GS Adventure there are numerous seat height variants are also available – from the low-slung version with low seat (820 mm) through to HP Style with Rallye seat (910 mm).

See and be seen even more effectively – LED headlamp for the R 1250 RS and R 120 GS Adventure as standard and LED daytime riding light for all three models as an optional equipment item ex works.

For decades now, BMW Motorrad has been regarded as a frontrunner when it comes to safety in connection with motorcycling. One shining example in the truest sense of the word is the LED headlamp which is now offered as a standard feature of the R 1250 RS and R 1250 GS Adenture. Both for the R 1250 RS and R 1250 GS Adventure as for the R 1250 R, which is equipped with a halogen headlamp, LED daytime riding light is available as an option. The LED headlamp of the R 1250 RS and R 1250 GS Adventure illuminates the road with a hitherto unrivalled clarity, thereby ensuring additional perception in traffic. The light unit consists of two LED units for low and high beam and, in connection with LED daytime riding light as an optional equipment item, four additional LED units for daytime riding light and side light.



Connectivity: Multifunctional instrument cluster with 6.5 inch full-colour TFT display offering many features as standard.

Even in its standard version the new R 1250 R, R 1250 RS and R 1250 GS Adventure feature the equipment item Connectivity, which now shows the existing instrument cluster in the form of a 6.5-inch full-colour TFT screen. In conjunction with the standard BMW Motorrad Multi-Controller with integrated operation, it gives the rider fast access to vehicle and connectivity functions.

This means it is possible to enjoy the convenience of making a phone call or listening to music during travel. If a smartphone and a helmet with the BMW Motorrad Communication System are connected via Bluetooth to the TFT screen, for example, the rider can conveniently access media playback and telephone functions. These functions can also be used without the need to install an app. With an active Bluetooth connection to any standard smartphone, the rider can enjoy the pleasures of listening to music during travel. In addition, the freely available BMW Motorrad Connected App offers handy arrow-based navigation suitable for day-to-day use directly via the TFT screen.



The BMW Motorrad Connected App is available for free from the Google and Apple app stores. It also comprises attractive additional functions such as route logging and the display of other travel statistics and information. In this way, logged routes can also be shared directly with other motorcyclists via the REVER community. The basic navigation system will be of particular interest to motorcyclists since it enables convenient organisation of day-to-day travel and short trips without the need for additional equipment.



Intelligent Emergency Call as an ex works optional equipment item for further increased safety.

Ensuring the fastest possible assistance in the event of an accident or in situations of emergency and danger can save people’s lives. For this reason, BMW Motorrad has developed an eCall system – “Intelligent Emergency Call” – which aims to get help to the scene of the incident as quickly as possible. This system is available as optional equipment ex works for the three new BMW Motorrad boxer models.



Unrivalled scope of ex works optional equipment items and Original BMW Motorrad Accessories.

BMW Motorrad offers an unprecedented program of optional equipment items and accessories for the R 1250 R, R 1250 RS and R 1250 GS Adventure. The range is virtually endless – from the preparation of the navigation unit for operation via Multicontroller through to various ergonomics options and extensive storage concepts.



Design and colour concept.

The new R 1250 R: travel expertise and dynamic performance in a timeless basic paint finish and two attractive style variants.

The new BMW R 1250 R conveys its honed character as a dynamic naked bike for effortless riding pleasure on country roads by means of altered body elements and a timeless paint finish in Black Storm metallic in the basic version as well as the style variants Exclusive and HP. In the new style variants, the new radiator trim is finished in black grain or stainless steel. In addition, the new R 1250 R is now fitted with a front spoiler. Meanwhile the 6.5-inch TFT screen has also resulted in a new cockpit cover. The presence of a new power unit is demonstrated by means of newly designed cylinder head covers bearing the inscription “ShiftCam” and the pipe ducting of the new exhaust manifold system.

Basic version in Black Storm metallic: The paint finish Black Storm metallic gives the new R 1250 R a look that is both modern and timeless, combining the standard cast wheels in Asphalt Grey metallic matt with black brake calipers, a main and rear frame in black and cylinder head covers in Agate Grey metallic. Upside-down fork slider tubes anodised in silver (without Dynamic ESA) or gold (with Dynamic ESA) and a spring strut finished in black perfectly match the overall impression of the new roadster. The body finish is to be found on the fuel tank side trim, the rear side trim sections, the front wheel cover and the front spoiler. Contrasting elements here are the central fuel tank cover in Night Black matt and the black grain radiator trim elements on the left and right. A touch of high-end flair is provided by new model inscriptions as well as the black seat with embossment on the passenger seat.

R 1250 R HP: In the HP style variant the new R 1250 R emphasises its sporty ambitions, dynamically showcasing its qualities as a sporty roadster with the colour combination Lightwhite/Racing Blue metallic/Racing Red. Lightwhite is to be found on the main frame as well as in combination with graphics on the trim elements at the sides of the fuel tank and rear as well as on the front wheel cover. A powerful contrast is provided by the main frame in black matt and the cast wheels coated in Night Black. The sporty, dynamic aspirations of the new R 1250 R are underscored by accentuations that highlight the technology – silver or gold anodised fork slider tubes, gold brake calipers and an engine spoiler designed in stainless steel.



BMW R 1250 R HP

R 1250 R Exclusive: In the style variant Exclusive and the paint finish Pollux metallic matt, the new R 1250 R highlights the all-round qualities and classic elegance of a roadster for active riding. The powertrain coated in black matt with cylinder head covers in Agate Grey metallic is set within a main frame that is likewise finished in Agate Grey metallic. The black matt coated main frame in conjunction with the black embossed seat in the rear section gives the R 1250 R a particularly homogeneous, integrated look. What is more, cast wheels in Asphalt Grey metallic matt and silver or gold anodised slider tubes on the upside-down fork provide a refined yet discreet contrast. The body finish Pollux metallic matt is also to be found on the left and right-hand side of the fuel tank side trim and rear trim, on the front wheel cover and on the front spoiler. Finally, gold brake calipers and stainless steel radiator trim elements highlight the refined, exclusive character of the R 1250 R.

The new R 1250 RS: exclusive touring character in three attractive paint finishes and two style variants.

Even more so than its predecessor, the new BMW R 1250 RS visually conveys its character as the perfect solution when it comes to combining sporty dynamic performance with supreme touring qualities. In addition to the timeless colouring in Black Storm metallic in the basic version, the new R 1250 RS also demonstrates its powerful character in the style variants Exclusive and Sport. The new sports touring bike also benefits from a newly designed front section with a newly developed full LED headlamp and adapted cockpit cover. The presence of a new power unit is demonstrated by means of newly designed cylinder head covers bearing the inscription “ShiftCam” and the pipe ducting of the new exhaust system.

Basic version in Black Storm metallic: This traditional BMW Motorrad colour gives the R 1250 RS a supreme and at the same time dynamic look. As in all other versions, a newly designed model inscription is applied here. Cylinder head covers with the lettering “ShiftCam”– a reference to the new engine generation – set it apart from the predecessor model at first sight. The body finish is to be found on the fuel tank cover, the rear side sections on the left and right, the upper trim section, the front wheel cover and the radiator trim elements. The contrast here is provided by the central fuel tank cover in Night Black, the main and rear frame finished in black matt and black brake calipers as well as wheels and front spoiler in Asphalt Grey metallic matt. Upside-down fork slider tubes anodised in silver (without Dynamic ESA) or gold (with Dynamic ESA) add a powerful technological accentuation, underscoring the sporty, active riding qualities of the new R 1250 RS.



R 1250 RS Exclusive: This style variant emphasises the elegant side of the new R 1250 RS by means of a body finish in Imperial Blue metallic. The cylinder head covers in Agate Grey metallic matt provide a refined, discreet contrast, as does the main frame finished in the same colour. As an additional contrasting colour Asphalt Grey metallic matt on the front spoiler and cast wheels underscores the exclusive character of the new R 1250 RS. In conjunction with the black embossed seat in the rear section, the main frame coated in black matt gives the new R 1250 RS a pleasantly homogeneous, harmonious look. The body finish Imperial Blue metallic is to be found on the fuel tank cover, the rear side sections on the left and right, the upper trim section, the front wheel cover and the radiator trim elements. Meanwhile, gold brake calipers and slider tubes in silver or gold emphasise the motorcycle’s elegant appearance.



R 1250 RS Sport: In this style variant featuring the colour Austin Yellow metallic, the new R 1250 RS fully demonstrates its athletic side. Here again, the new engine is indicated by means of cylinder head covers in Agate Grey metallic matt with ShiftCam inscriptions. The wheels in Night Black, the powertrain coated in black and the black main frame give the R 1250 RS a particularly powerful appearance. Meanwhile the main frame coated in Lightwhite suggests an athletic lightness. Striking Austin Yellow metallic is the dominant colour, appearing on the fuel tank cover, the rear side sections on the left and right, the upper trim section, the front wheel cover and the radiator trim elements. The sporty, dynamic qualities of the new R 1250 RS are highlighted by means of silver anodised slider tubes, gold brake calipers and a high-end stainless steel engine spoiler.



Option 719 Spezial finish Stardust metallic for the R 1250 R and R 1250 RS. The exceptionally high-quality paint finish Stardust metallic with intensive metallic effect gives the new R 1250 R and R 1250 RS a particularly exclusive touch. It is applied with enormous attention to detail by means of an elaborate painting process that involves gold and glass flakes being mixed into the brown-bronze base colour so as to provide fascinating effects when the finish is later exposed to the light. The body finish is to be found on the fuel tank trim elements, the side sections and the top of the front wheel cover – in the R 1250 RS also on the upper trim section. Painted graphic accentuations in gold round off the overall impression. The main frame and cylinder head covers are finished in Agate Grey metallic matt, giving the new R 1250 R and R 1250 RS a pronounced look of refinement in conjunction with the powertrain finished in black and the rear frame. Cast wheels in Night Black and gold brake calipers additionally emphasise the motorcycle’s high-end character. Further exclusive accentuations are provided by a high-end stainless steel engine spoiler with radiator trim elements (R 1250 R only) and a central fuel tank cover. A perfect supplement to Option 719 Spezial paint finish is the separately available seat in black/brown with contrasting seams and Option 719 Signet.



The new R 1250 GS Adventure: motorcycle adventure expertise in a modern basic finish and distinctive style variants.

The new BMW R 1250 GS Adventure not only offers impressively honed adventure expertise, riding dynamics, off-road capability and all-round qualities. It also visually conveys these properties through newly designed body elements as well as highly distinctive colour schemes in the form of a new basic paint finish and the style variants Exclusive and HP.

The lid of the storage compartment now comes in black grain with an embossed GS logo, for example. Other new features include the intake snorkel cover as well as the radiator trim elements in Galvano look. The fuel tank protection bracket and engine guard have also been newly designed. Once again, the presence of a new power unit is demonstrated by means of newly designed cylinder head covers bearing the inscription “ShiftCam” and the pipe ducting of the new exhaust manifold system.

Basic version in Ice Grey: In Ice Grey the new R 1250 GS Adventure takes on a pronounced technical, modern appearance. It combines the standard cross-spoke wheels in black with black brake calipers and a black main frame: together with the black coated powertrain this creates a very homogeneous appearance. A powerful contrast here is provided by the main frame in Aluminium Silver metallic matt and the silver-coloured handlebars. The body finish is to be found on the central fuel tank cover and on the top of the front wheel cover. A fascinating contrast is provided in this case by the fuel tank sides in White Aluminium 3 metallic matt and the front carrier in Nürburg Silver metallic. The radiator trim in galvanised plastic adds a high-quality accentuation, as does the new model inscription. The driving dynamics and off-road qualities of the adventure enduro are highlighted by hand protectors in black along with the red and black seat.



R 1250 GS Exclusive: In the style variant Exclusive and the body finish Kalamata metallic matt, the new R 1250 GS Adventure has a particularly powerful, masculine and innovative look. The powertrain coated in black matt provides the perfect counterpart to the main frame in Agate Grey metallic matt as well as the black rear frame and the black anodised tube handlebars. In addition, the trim holder at the front is finished in black matt, harmoniously matching the colour scheme along with the black hand protectors. The homogeneous masculine colour scheme is enhanced by means of spoke wheels in black. The body finish Kalamata metallic is to be found on the central fuel tank cover and on the top of the front wheel cover. A powerful contrast is provided by the fuel tank side trim elements in Magellan Grey metallic matt combined with a graphic. The hands-on character of the new R 1250 GS Adventure is underscored by gold brake calipers, while the radiator trim element in galvanised plastic and the new model inscription add a touch of exclusivity.

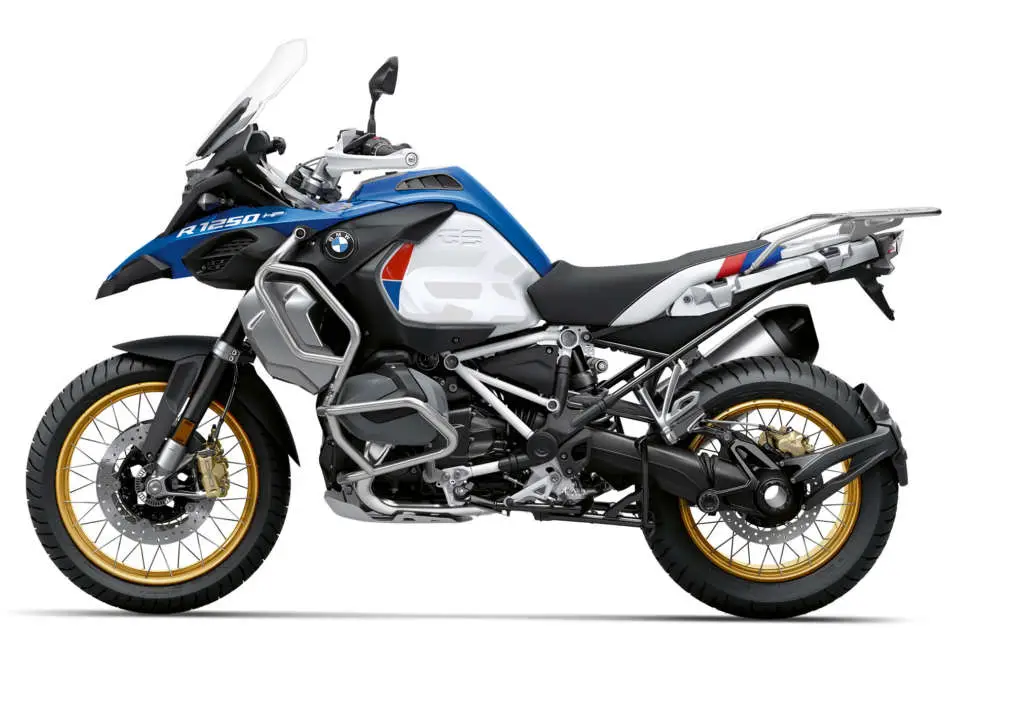

R 1250 GS Adventure HP: In the style variant HP, the new R 1250 GS Adventure showcases its athletic capabilities. Here the colour combination Lightwhite / Racing Blue metallic / Racing Red particularly highlights the innovative enduro bike’s off-road and adventure qualities. While the main frame in Lightwhite provides a sporting contrast to the black matt coated powertrain, the black rear frame lends a marked sense of lightness to the adventure enduro’s rear section. Meanwhile, Racing Blue metallic is to be found on the top of the front wheel cover and on the central fuel tank cover. Dynamic performance and robust off-road expertise are reflected in the fuel tank sides in Lightwhite matt as well as the Rallye seat in HP colour scheme. Black tube handlebars, a front carrier in black matt and the shorter Sport windshield likewise highlight the rally character of the new R 1250 GS Adventure. Meanwhile gold cross-spoke wheels and brake calipers lend emphasis to the technical qualities of the new adventure enduro bike, with the new radiator guard highlighting its robust, hands-on character.









2020 BMW R1250GS Adventure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $20,195 USD
Canada MSRP Price: from $25,250 CDN
Europe/UK MSRP Price: from £14,870 GBP (On The Road inc 20% Vat)

Engine

Type

Air/liquid-cooled 4-stroke flat twin engine, double overhead camshaft, one balance shaft and variable engine timing system BMW ShiftCam

Bore x stroke

102.5 mm x 76 mm

Capacity

1,254 cc

Rated output

136 hp (100 kW) at 7,750 rpm

Max. torque

105 lb-ft (143 Nm) at 6,250 rpm

Compression ratio

12.5 : 1

Mixture control / engine management

Electronic fuel injection with ride-by-wire throttle system

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4

Performance / fuel consumption

Maximum speed

Over 125 mph

Fuel consumption

50 mpg (WMTC)

Fuel type

Premium Unleaded

Electrical system

Alternator

Three-phase 510 W generator

Battery

12 V / 11.8 Ah, maintenance-free

Power transmission

Clutch

Multiplate wet clutch, hydraulically operated

Gearbox

Constant-mesh 6-speed gearbox with helical cut gears

Drive

Shaft drive

Chassis / brakes

Frame

Two section frame, front – and bolted on rear frame, load bearing engine

Front wheel location / suspension

BMW Telelever, Ø 37 mm, central spring strut

Rear wheel location / suspension

Cast aluminum single-sided swing arm with BMW Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) via handwheel, rebound damping adjustable via handwheel

Suspension travel, front / rear

8.3″ / 8.7″ (210 mm / 220 mm)

Wheelbase

59.7″ (1,517 mm)

Castor

4.1″ (104 mm)

Steering head angle

63.7°

Wheels

Cross spoke wheels

Rim, front

3.00 x 19″

Rim, rear

4.50 x 17″

Tires, front

120/70 R 19

Tires, rear

170/60 R 17

Brake, front

Dual floating disc brakes, 4-piston fixed calipers, diameter 305 mm

Brake, rear

Single disc brake, diameter 276 mm, dual-piston floating caliper

ABS

BMW Motorrad Integral ABS (part-integral, can be switched off)

Dimensions / weights

Length

89.4″ (2,270 mm)

Width (incl. mirrors)

38.6″ (980 mm)

Height (excl. mirrors)

57.5″ (1,460 mm)

Seat height, unladen weight

35″/35.8″

Inner leg curve, unladen weight

76.8″/78.3″

Unladen weight, road ready, fully fueled

591 lbs (268 kg)

1)

Permitted total weight

1,069 lbs (485 kg)

Payload (with standard equipment)

479 lbs (217 kg)

Usable tank volume

7.9 gal (30 L)

Reserve

Approx. 1 gal (4 L)

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fueled with at least 90% of usable tank volume.









2020 BMW R1250GS Adventure – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Type

Air/liquid-cooled four stroke flat twin engine, double overhead camshaft, one balance shaft and variable engine timing system BMW ShiftCam

Bore / stroke

102.5 mm x 76 mm

Hubraum

1.254 ccm

Rated output

100 kW (136 hp) at 7,750 rpm

Max. torque

143 Nm at 6,250 rpm

Compression ratio

12.5 : 1

Mixture control

Electronic intake pipe injection

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4

Performance / fuel consumption

Maximum speed

Over 200 km/h

Fuel consumption per 100 km based on WMTC

4.75 l

CO2 emission based on WMTC

110 g/km

Fuel type

Unleaded super, octane number 95 (RON), adaptive fuel quality regulation (91 to 98 RON)

Electrical system

Alternator

Three-phase alternator (510 watts nominal power)

Battery

12 V / 11.8 Ah, maintenance-free

Power transmission

Clutch

Oil lubricated clutch, hydraulically operated

Gearbox

Constant mesh 6-speed gearbox with helical gear teeth

Drive

Shaft drive

Chassis / brakes

Frame

Two-section frame, front- and bolted on rear frame, load-bearing engine

Front wheel location / suspension

BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut

Rear wheel location / suspension

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel

Suspension travel, front / rear

210 mm / 220 mm

Wheelbase

1,504 mm

Castor

95.4 mm

Steering head angle

65.1°

Wheels

Cross spoke wheels

Rim, front

3.00 x 19″

Rim, rear

4,50 x 17″

Tire, front

120/70 R 19

Tire, rear

170/60 R 17

Brake, front

Dual disc brake, floating brake discs, diameter 305 mm, 4-piston radial calipers

Brake, rear

Single disc brake, diameter 276 mm, double-piston floating caliper

ABS

BMW Motorrad Integral ABS (part-integral), disengageable

Dimensions / weights

Seat height

890 / 910 mm

Inner leg curve

1,950 / 1,990 mm

Usable tank volume

30 l

Reserve

  1. 4 l

Length (over mud guard)

2,270 mm

Height (over windshield)

1,460 mm

Wide (over mirror)

980 mm

Unladen weight, road ready, fully fuelled

268 kg

1)

Permitted total weight

485 kg

Payload (with standard equipment)

217 kg

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume.









2020 BMW R1250GS Adventure – Totalmotorcycle.com European Specifications/Technical Details

Engine

Type

Air/liquid-cooled four stroke flat twin engine, double overhead camshaft, one balance shaft and variable engine timing system BMW ShiftCam

Bore / stroke

102.5 mm x 76 mm

Hubraum

1.254 ccm

Rated output

100 kW (136 PS) at 7,750 U/min

Max. torque

143 Nm at 6,250 U/min

Compression ratio

12.5 : 1

Mixture control

Electronic intake pipe injection

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4

Performance / fuel consumption

Maximum speed

Over 200 km/h

Fuel consumption per 100 km based on WMTC

4.75 l

CO2 emission based on WMTC

110 g/km

Fuel type

Unleaded super, octane number 95 (RON), adaptive fuel quality regulation (91 to 98 RON)

Electrical system

Alternator

Three-phase alternator (510 watts nominal power)

Battery

12 V / 11.8 Ah, maintenance-free

Power transmission

Clutch

Oil lubricated clutch, hydraulically operated

Gearbox

Constant mesh 6-speed gearbox with helical gear teeth

Drive

Shaft drive

Chassis / brakes

Frame

Two-section frame, front- and bolted on rear frame, load-bearing engine

Front wheel location / suspension

BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut

Rear wheel location / suspension

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel

Suspension travel, front / rear

210 mm / 220 mm

Wheelbase

1,504 mm

Castor

95.4 mm

Steering head angle

65.1°

Wheels

Cross spoke wheels

Rim, front

3.00 x 19″

Rim, rear

4,50 x 17″

Tyre, front

120/70 R 19

Tyre, rear

170/60 R 17

Brake, front

Dual disc brake, floating brake discs, diameter 305 mm, 4-piston radial calipers

Brake, rear

Single disc brake, diameter 276 mm, double-piston floating caliper

ABS

BMW Motorrad Integral ABS (part-integral), disengageable

Dimensions / weights

Seat height

890 / 910 mm

Inner leg curve

1,950 / 1,990 mm

Usable tank volume

30 l

Reserve

  1. 4 l

Length (over mud guard)

2,270 mm

Height (over windshield)

1,460 mm

Wide (over mirror)

980 mm

Unladen weight, road ready, fully fuelled

268 kg

1)

Permitted total weight

485 kg

Payload (with standard equipment)

217 kg

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume.









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10138 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
