2021 KTM 150 SX Guide

2021 KTM 150 SX

2021 KTM 150 SX

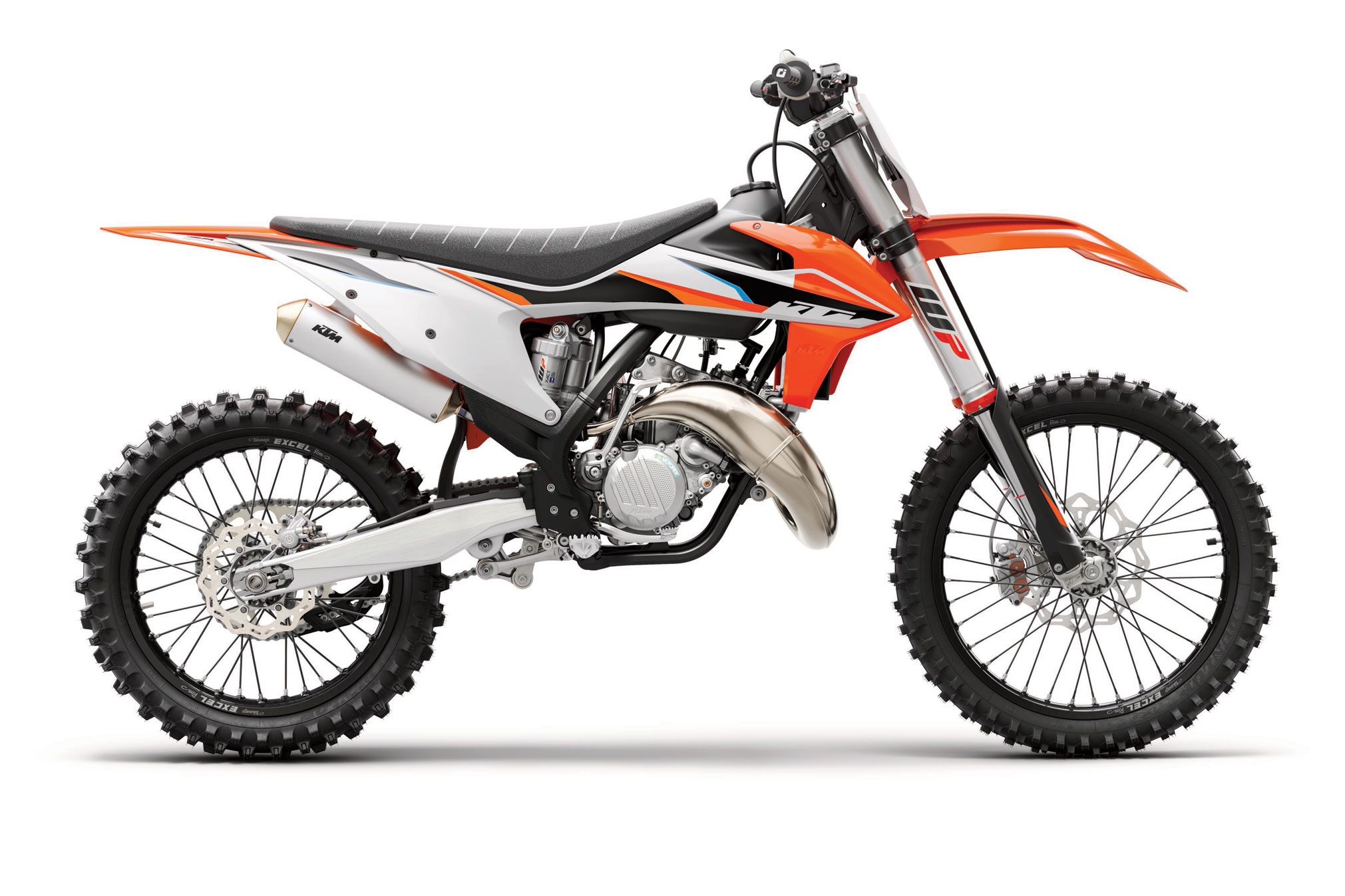

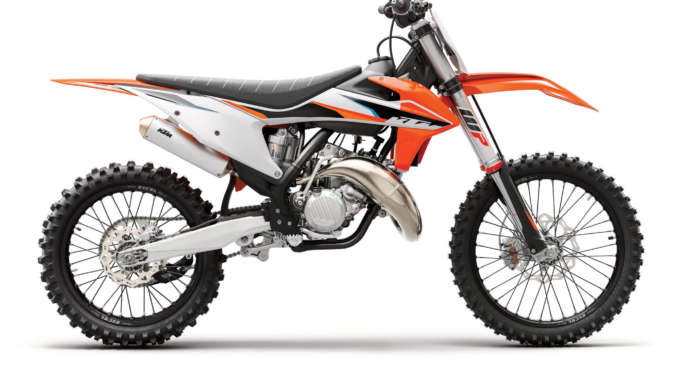

2021 KTM 150 SX : WIDE OPEN TRACK ATTACK.

Introducing the 2021 KTM 150 SX…

With the agility of a 125 and a healthy dose of extra power, the KTM 150 SX is a lively package ready to take on the 250 cc 4-strokes. From within its dynamic lightweight chassis, the compact engine produces class-leading torque and power. Everything about this motorcycle screams high-performance fun and it goes into battle as the ultimate on-track competitor.







2021 KTM 150 SX Totalmotorcycle.com Key Features







2021 KTM 150 SX Totalmotorcycle.com Features and Benefits

Exhaust

When it comes to power delivery and performance, the exhaust developed specifically for this bike plays a key role and packs a punch that is hard to beat. In addition, its special shape provides slimmer ergonomics while still operating safely within the noise limits for racing.

Engine

The pure exhilaration that this bike’s engine delivers warranted continued production. As it shares many of its key components with the class-leading 125, the cylinder, cylinder head and piston unit can now also be fitted on a 125 cc engine base, converting it to a 150 SX without having to replace the crankshaft. Compact and powerful, this innovative 2-stroke engine is a lightweight powerhouse that just makes perfect sense.

Airbox

The airbox on the KTM 150 SX ensures optimal flow dynamics, and together with its intake snorkels, leads to maximum power and quick throttle response. Despite the obvious performance advantages, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.

Frame

The frame is professionally crafted from hydro-formed chromium molybdenum steel tubes that are robot welded, ensuring the highest levels of consistent quality. The stiffness has been precisely tailored for the most dynamic handling, and works in perfect harmony with the suspension to provide nimble agility without losing high-speed stability. The frame also features “no dirt” footpegs, which have a simple but effective self-cleaning system that ensures the footpegs return to their original position, providing complete control in all conditions. All SX frames feature the same highly durable powder coating as the KTM Factory machines and come with standard frame protectors. The subframe is made from lightweight aluminum, providing rear fender stability and strong support for the rider at little extra weight.

Footpegs

Sophisticated ´no-dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the 2019 EXC models, which are 6 mm higher than the SX versions.

Seat

All KTM SX models feature a seat that perfectly matches the range’s dynamic performance-oriented ergonomics. The seat cover features silicone strips that provide better feel and grip for the rider. The seat is conveniently fixed to the bike using one long, lateral screw, making it secure and easy to handle.





2021 KTM 150 SX – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $7599 USD
Canada MSRP Price: $ 8999 CDN
Europe/UK MSRP Price: £ 7249 (On The Road inc 20% Vat)

ENGINE

  • TRANSMISSION6-speed
  • STARTERKickstarter
  • STROKE54.5 mm
  • BORE58 mm
  • CLUTCHMulti-plate clutch, Brembo hydraulics
  • DISPLACEMENT143.99 cm³
  • EMSKokusan

CHASSIS

  • WEIGHT (WITHOUT FUEL)87.5 kg
  • TANK CAPACITY (APPROX.)7.5 l
  • FRONT BRAKE DISC DIAMETER260 mm
  • REAR BRAKE DISC DIAMETER220 mm
  • FRONT BRAKEDisc brake
  • REAR BRAKEDisc brake
  • CHAIN5/8 x 1/4″
  • FRAME DESIGNCentral double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSIONWP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE375 mm
  • REAR SUSPENSIONWP XACT Monoshock with linkage
  • SEAT HEIGHT850 mm
  • STEERING HEAD ANGLE63.9 °
  • SUSPENSION TRAVEL (FRONT)310 mm
  • SUSPENSION TRAVEL (REAR)300 mm





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
