2022 KTM 450 XC-F Guide

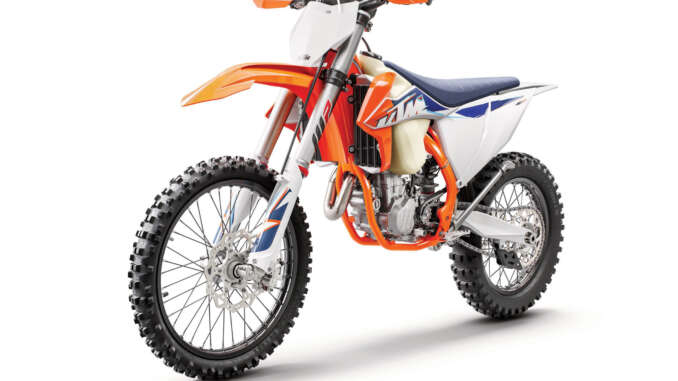

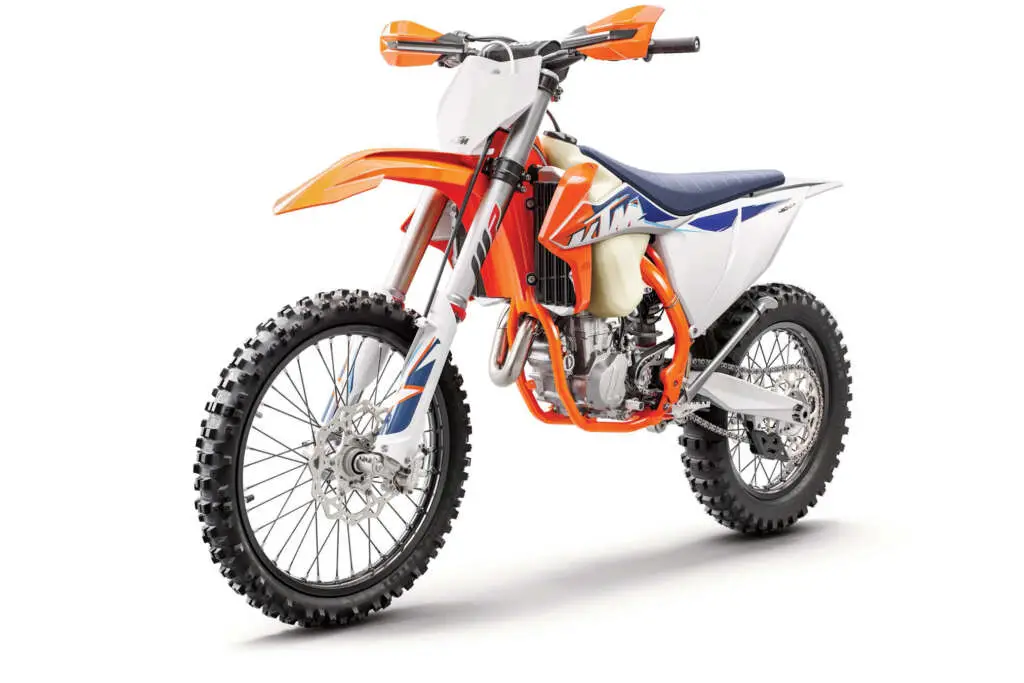

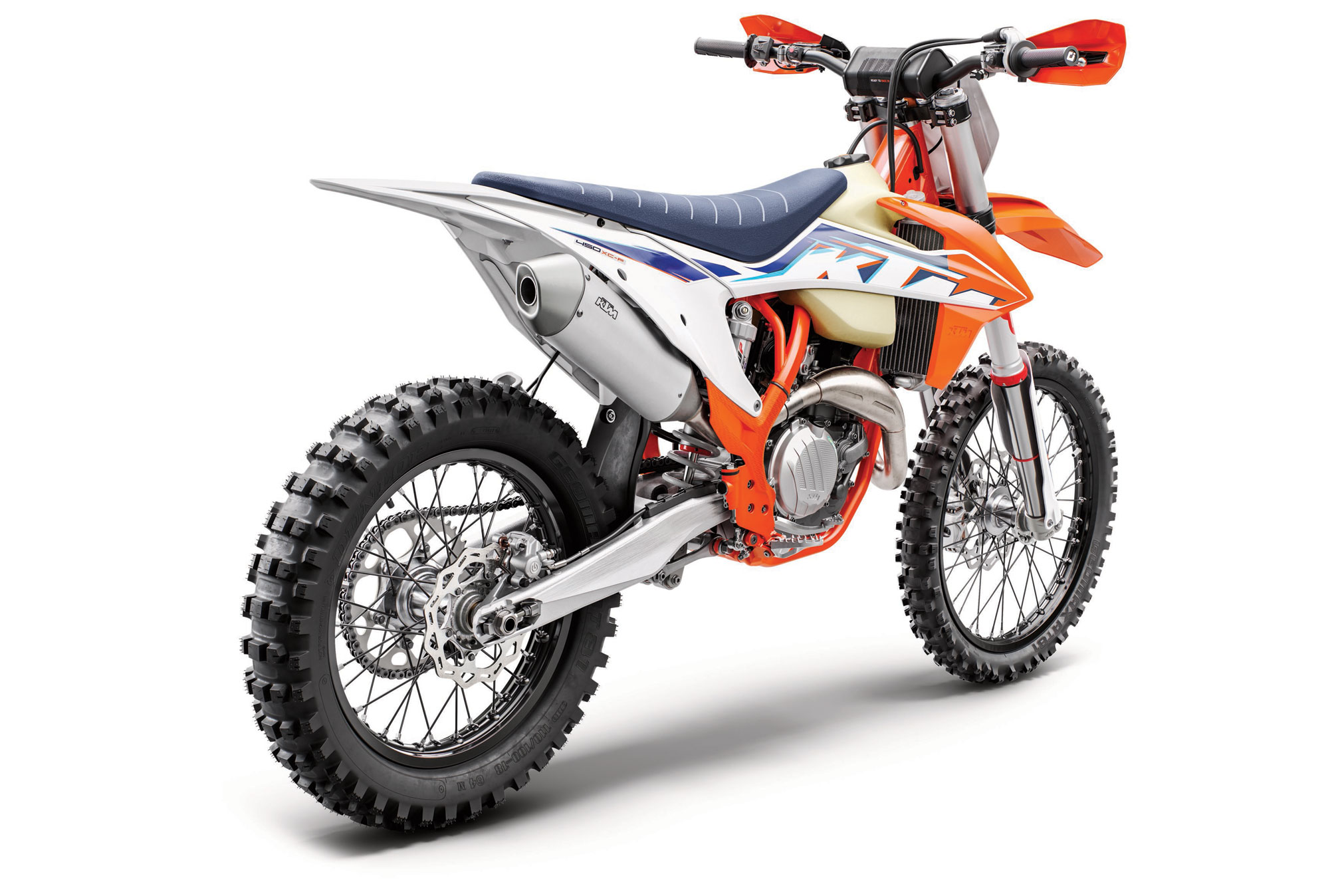

2022 KTM 450 XC-F

2022 KTM 450 XC-F 2022 KTM 450 XC-F 2022 KTM 450 XC-F

2022 KTM 450 XC-F : MAXIMUM ATTACK.

Introducing the 2022 KTM 450 XC-F…

The 2022 KTM 450 XC-F is nothing less than an offroad weapon. Capable of tearing through just about any landscape at breakneck speed. This is thanks to a compact SOHC engine, delivering explosive power in a smooth, usable delivery that suits both weekend riders and seasoned racers alike, no to mention sharing 95% of its parts with the championship-winning KTM 450 SX-F motocross bike.



2022 KTM 450 XC-F Totalmotorcycle.com Key Features

THE COMPLETE PACKAGE – CLASS LEADING 2-STROKE MACHINES
KTM’s 2021 EXC range includes the most potent and capable 2-stroke enduro weapons available on the market. Refined through years of valuable KTM factory rider feedback, these extreme machines are a result of KTM’s unwavering commitment to constant progression. Apart from a dynamic handling chassis, all 2-strokes feature revolutionary TPI (Transfer Port Injection) technology, delivering unrivaled power throughout the entire rev range no matter what the conditions.

OFFROAD POWERHOUSE – CUTTING-EDGE 4-STROKES
KTM refuse to knock down a gear in its mission to make the EXC-F models the most competitive 4-stroke machines on the market today. Low weight, unbeatable torque, efficient engine management, sensitive delivery and even more reliability have been KTM development priorities over the last years. Developed for riders of any skill range, the 2021 KTM EXC-F models are highly-capable race-winning machines across all offroad racing disciplines.

CONQUER THE TRAIL
There has never been a better time to get onto a 2021 KTM ENDURO motorcycle. With a range of models to cater to every experience level, as well as proven pre- and after-sales products, your journey to new extremes starts here.



2022 KTM 450 XC-F Totalmotorcycle.com Features and Benefits

Engine & Exhaust

Exhaust

When it comes to power delivery and performance, the exhaust on all 4-stroke models plays a key role and packs a punch that is hard to beat. It features a model-specific header pipe with an advanced resonator called FDH (Flow Design Header), which is a small chamber around the pipe. The design allows the exhaust to be disassembled without removing the shock absorber and also provides better access to the shock. The aluminum sleeve, end cap and internal design of the silencer allow for slimmer ergonomics, making the bike feel narrower, without compromise to regulatory noise limits.

Power and torque

Engine

The 450 XC-F features the same compact 450 cc powerhouse as in the ripper 450 SX-F. KTM’s engineers worked tirelessly to increase the READY TO RACE ability of this machine by including the latest engine management technology and refining the SOHC cylinder head and the latest electronic fuel injection. This means the 450 XC-F pumps out unrivaled horsepower with one simple goal in mind – to win races!



Cylinder head

Inside the SOHC cylinder head, an overhead camshaft controls four ultra-lightweight titanium valves via extremely rigid rocker arms, which are DLC-coated on the intake side. A configuration like this allows engine speeds of up to 11,500 RPM; a baffling figure for a large displacement thumper. Lateral brackets made of aluminum allow an efficient fixation of the engine to the frame and contribute to the bike’s featherweight feel.



Crankshaft

The KTM 450 XC-F’s crankshaft utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine’s pressurized lubrication. This design is a decisive benefit in terms of the crankshaft service interval, which can be lengthened due to the plain bearing. So just pin it, all day long.



Crankcases and engine covers

The design of the die-cast crankcases allows for minimal weight and a very centralized shaft configuration. This makes the engine short and compact, while contributing to an efficient centralization of masses. The engine covers also feature a solid surface structure, which reduces the wear caused by the rider’s boots. This way, your XC-F will keep looking better longer.



Transmission

The KTM 450 XC-F uses a lightweight 5-speed transmission with gear ratios that are perfectly matched to the power delivery of its large displacement engine. The 1st and 3rd gears are treated with a special surface coating for better reliability. An advanced ´No Dirt´ gear shift lever design prevents mud and sand from blocking the joint of the lever and guarantees trouble-free shifting. All 4-stroke engines are fitted with a gear position sensor, giving the option of different engine characteristics for each gear.



Engine management system

The state-of-the-art Keihin engine management system with electronic fuel injection features a 44 mm throttle body. Thanks to its unique injector position, the engine’s response is instantaneous. And to make life even easier, separate systems for cold starts and idle adjustment await you. The lightweight control unit features a unique traction and launch control system for lightning-quick response when the gate drops and maximum grip thanks to different maps that sync with the gear you’re in. It’s also possible to unleash an even more powerful mapping via the handlebar map select switch.



Cylinder and piston

Inside the short cylinder, with a bore of 95 mm, thumps a new box-type piston made by CP with a reworked shape for improved performance. Its crown geometry is adapted perfectly to the high-compression combustion chamber, where its rigid structure and low weight shine. Thanks to the low oscillating masses, the engine is as snappy as it is strong.



Balancer shaft

The side-mounted balancer shaft does double duty also driving the water pump. Thanks to its perfect balance and low oscillating masses, engine vibration is kept to a minimum.



Clutch

The KTM 450 XC-F employs the KTM-developed DDS clutch (damped diaphragm steel) with a robust steel basket, extremely heat resistant clutch plates and nitrated steel liners reducing the wear. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction but durability is as well. Light operation and telepathic amounts of control are standard with this hydraulic Brembo actuated clutch.



E-Starter

Like all KTM 4-stroke motorcycles, the KTM 450 XC-F is started at the push of a button – a priceless advantage when you’re on the clock.



Cooling

KTM’s proven cooling system routes the coolant from the cylinder head through the frame triangle, directly to aluminum radiators. Thanks to flow optimized internal circulation and CFD-calculated ventilation, the system is superbly efficient. In addition, radiator protections improve heat dissipation. Especially in the mud. They are also integrated into the front part of the shrouds to protect the radiators from impact.



Exhaust

When it comes to power delivery and performance, the exhaust on all 4-stroke models plays a key role and packs a punch that is hard to beat. It features a model-specific header pipe with an advanced resonator called FDH (Flow Design Header), which is a small chamber around the pipe. The design allows the exhaust to be disassembled without removing the shock absorber and also provides better access to the shock. The aluminum sleeve, end cap and internal design of the silencer allow for slimmer ergonomics, making the bike feel narrower, without compromise to regulatory noise limits.



Engine

The 450 XC-F features the same compact 450 cc powerhouse as in the ripper 450 SX-F. KTM’s engineers worked tirelessly to increase the READY TO RACE ability of this machine by including the latest engine management technology and refining the SOHC cylinder head and the latest electronic fuel injection. This means the 450 XC-F pumps out unrivaled horsepower with one simple goal in mind – to win races!



Chassis

Airbox

The airbox on the KTM 450 XC-F ensures optimal flow dynamics, and together with the intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.



Frame

The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on precisely calculated stiffness of the frame. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to more precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tips the scales at less than 2 pounds.



Swingarm

The cast aluminum design offers low weight and a perfect flex behavior. The single-component casting process eliminates any inconsistencies and inherent weak points created by welding. It’s better looking too.



Wheels

The KTM 450 XC-F is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.



Front suspension

The lightweight WP XACT front fork with AER technology, a 48 mm USD air-sprung fork developed by WP in close collaboration with KTM, is a split fork with separate functions for each leg. That means damping functions are on the right side, whereas the air spring is in the left. This left leg features a 2-chamber system with a capsuled air cartridge to prevent loss of air pressure. Should the outer seal start to leak, the internal cartridge pressure will keep the bike in position. The air spring is easy to adjust to any rider weight via a single air valve. No extra special tools are required; the fork air pump is supplied with the bike. The right fork leg integrates a damping cartridge that tailors to all your damping needs. It can be adjusted to the track conditions and the rider’s preferences with a twist of a dial (compression from the top, rebound from the bottom, 30 clicks each). Right off the dealer floor, this fork (with reworked damping characteristics and new piston) is more comfortable and more sensitive than ever. But you can still hammer the hell out of it.



Rear suspension

The WP XACT shock absorber has been developed with the entire frame and swingarm architecture in mind, including the linkage system and the WP XACT front forks. It features machined and anodized components and is a valuable, high-end product compared to roughcast reservoirs. A new, confidence inspiring setting with improved damping characteristics perfectly matches the front-end set-up and its WP color scheme lets everyone know you have excellent taste in suspension.



Triple clamp

Top quality, CNC machined triple clamps have been a KTM trademark for years to ensure precise handling. The rubber damped handlebar fixation allows for two positions and an hourmeter is fitted in order to let the rider know it’s time for a service.



Brakes

These high-tech Brembo brakes are combined with lightweight Wave brake discs. You couldn’t brake any harder, better, faster or stronger



Fuel tank

All XC-F models have lightweight polyethylene tanks fitted with an integrated fuel pump system and capacity of 2.25 gallons. Inside threads on the filler cap make for an easy and reliable closure. Manufactured using see‐through plastic, you will always be able to see how much fuel remains at a glance.



Airbox

The airbox on the KTM 450 XC-F ensures optimal flow dynamics, and together with the intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.



Frame

The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on precisely calculated stiffness of the frame. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to more precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tips the scales at less than 2 pounds.



Seat

Ergonomically perfect, the seat has a high foam volume, which offers great comfort and durability, while keeping the weight low.



Handlebar

All KTM XC models are equipped with the same high-strength aluminum tapered NEKEN handlebar. The handlebar allows for four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Additionally, the bike is fitted with a map-select switch on the handlebar for selecting alternative engine maps. The rider also has the option to activate TRACTION CONTROL from this switch; a unique feature which guarantees more efficient traction, especially in slippery conditions, and can be activated with the push of a button during riding.



Footpegs

Sophisticated ´No Dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the EXC models, which are 6 mm higher than the XC versions.



Decals

Simply riding a KTM 450 XC-F attracts the attention of onlookers, but the new inlay graphics definitely make them turn for a second look.



Software & Electronics

HANDLEBAR MAP SELECT SWITCH

With one touch of a button, the map switch gives the rider the chance to select between a standard map setting and a more aggressive map for loamy, high grip dirt conditions. This is particularly useful for changing track conditions or for a rider that is looking for more control as he begins to get tired.



Battery & wiring harness

A strong lithium ion battery breathes life into the engine and contributes to low vehicle weight. The lightweight battery and wiring harness are centralized in a compartment above the air filter box, allowing the mechanic to remove the subframe without moving the electronics. A happy mechanic is a good mechanic.



TRACTION CONTROL

TRACTION CONTROL is a highly beneficial feature that guarantees more efficient traction and better control of the bike when accelerating on wet or slippery hard pack surfaces. It can be activated by the handlebar map switch during riding.



HANDLEBAR MAP SELECT SWITCH

With one touch of a button, the map switch gives the rider the chance to select between a standard map setting and a more aggressive map for loamy, high grip dirt conditions. This is particularly useful for changing track conditions or for a rider that is looking for more control as he begins to get tired.



Battery & wiring harness

A strong lithium ion battery breathes life into the engine and contributes to low vehicle weight. The lightweight battery and wiring harness are centralized in a compartment above the air filter box, allowing the mechanic to remove the subframe without moving the electronics. A happy mechanic is a good mechanic.







2022 KTM 450 XC-F – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $10,999 USD
Canada MSRP Price: $12,149 CDN
Europe/UK MSRP Price: £9149 (On The Road inc 20% Vat)

ENGINE
TRANSMISSION 5-speed
STARTER Electric starter
STROKE 63.4 mm
BORE 95 mm
CLUTCH Wet, DDS multi-disc clutch, Brembo hydraulics
DISPLACEMENT 449.9 cm³
EMS Keihin EMS
DESIGN 1-cylinder, 4-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 101 kg
TANK CAPACITY (APPROX.) 8.5 l
FRONT BRAKE DISC DIAMETER 260 mm
REAR BRAKE DISC DIAMETER 220 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 5/8 x 1/4″
FRAME DESIGN Central double-cradle-type 25CrMo4 steel
FRONT SUSPENSION WP XACT-USD, Ø 48 mm
GROUND CLEARANCE 370 mm
REAR SUSPENSION WP XACT Monoshock with linkage
SEAT HEIGHT 950 mm
STEERING HEAD ANGLE 63.9 °
SUSPENSION TRAVEL (FRONT) 310 mm
SUSPENSION TRAVEL (REAR) 300 mm





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
