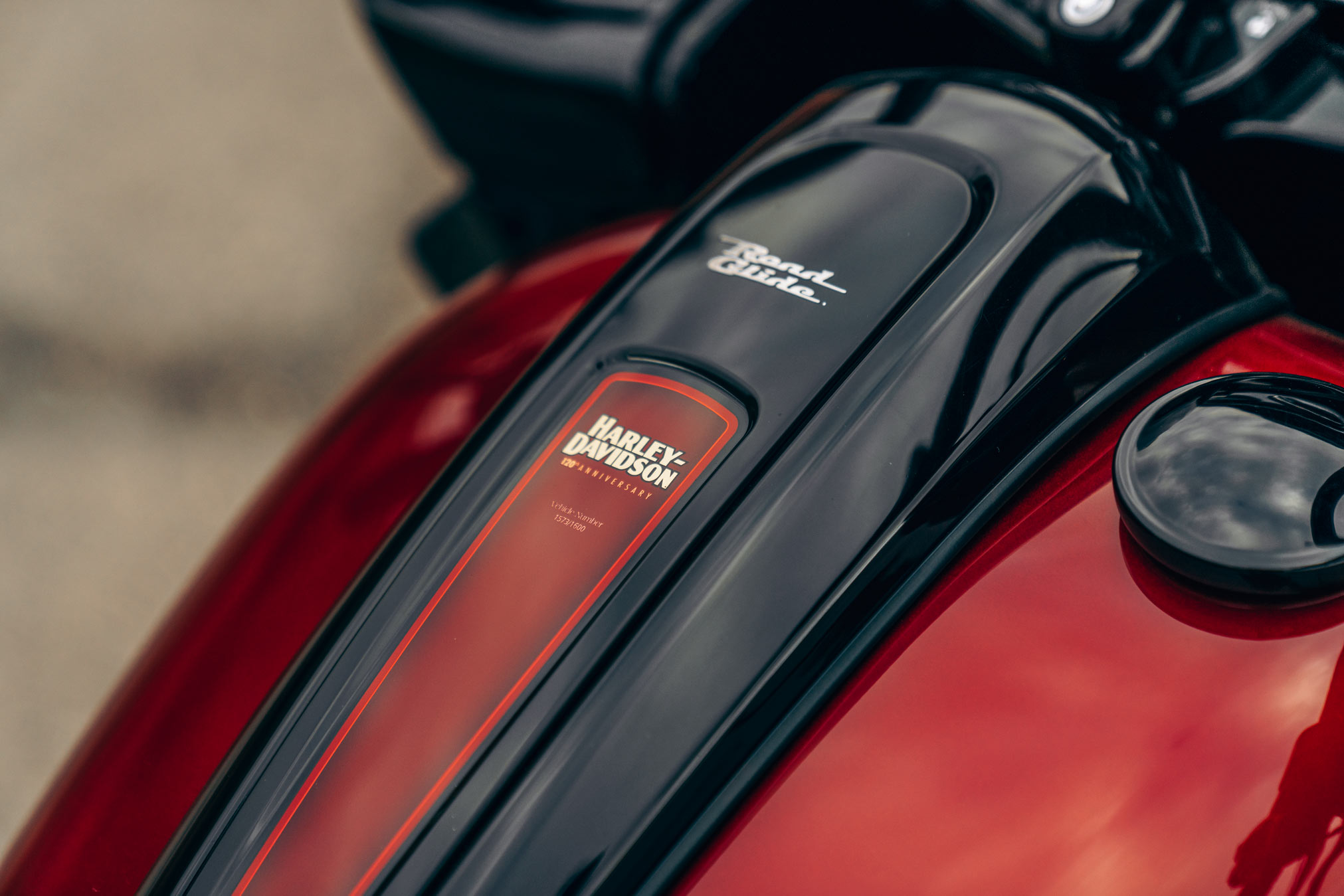

2023 Harley-Davidson Road Glide Special Anniversary 2023 Harley-Davidson Tri Glide Ultra Anniversary 2023 Harley-Davidson Tri Glide Ultra Anniversary 2023 Harley-Davidson Tri Glide Ultra Anniversary

Contents: ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 Harley-Davidson Tri Glide Ultra Anniversary: PLUS PLUS PLUS.

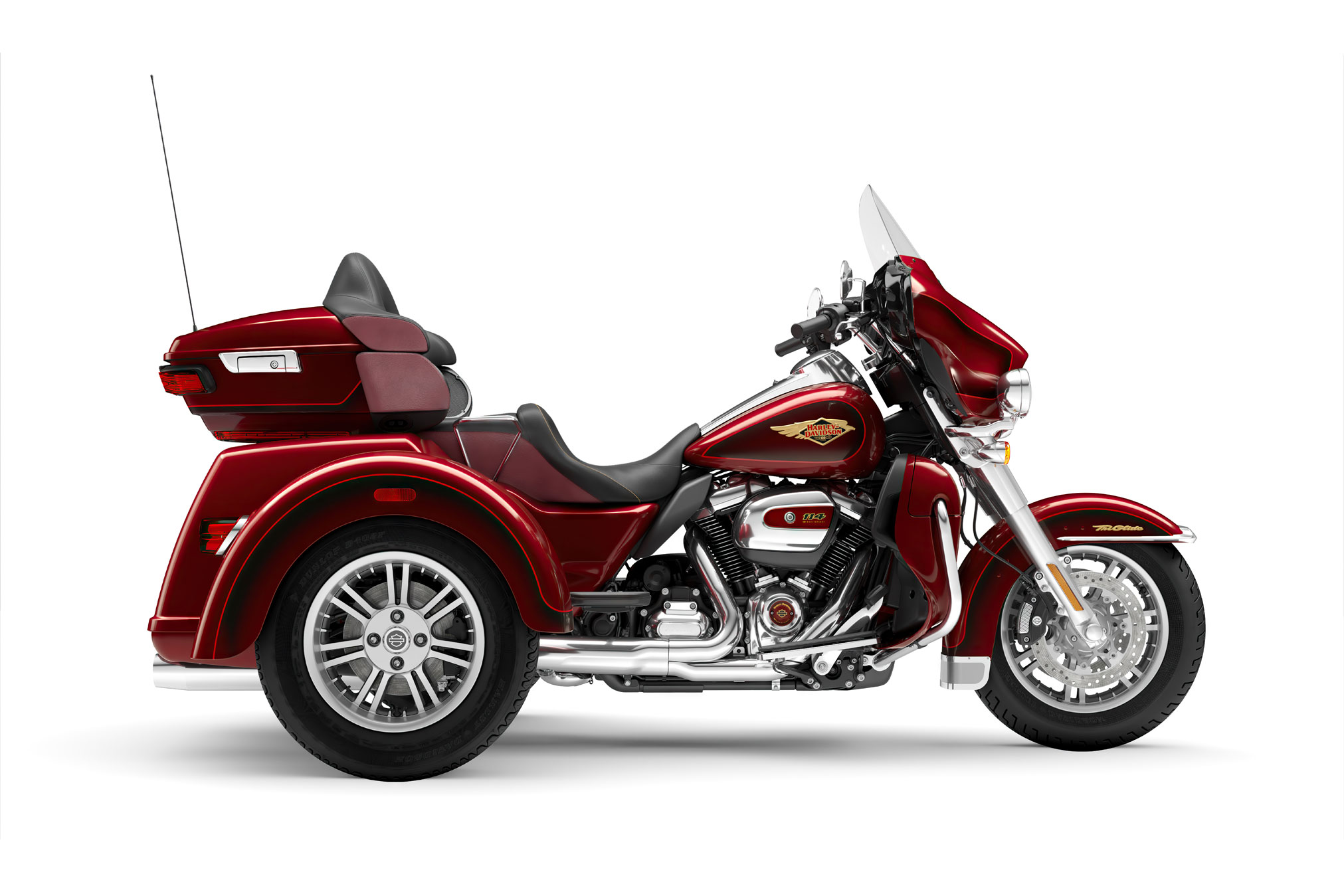

Introducing the 2023 Harley-Davidson Tri Glide Ultra Anniversary…

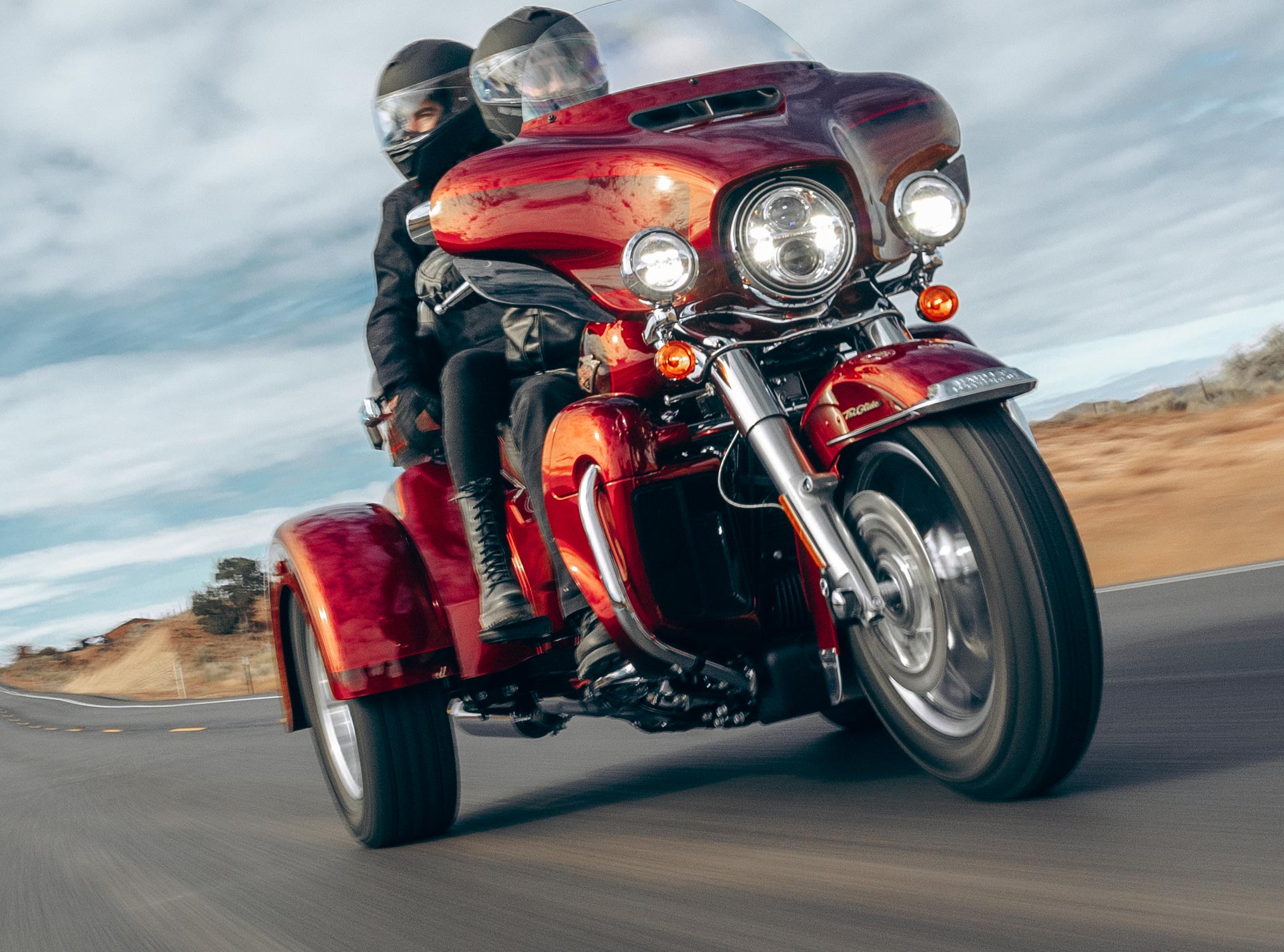

A complete package of comfort, performance and confidence on three wheels is plussed-up in this limited-edition release with commemorative paint and finishes, and premium features.

Now riders have the confidence that comes from all-new traction control on the Tri Glide Ultra. It sends power where riders need it to help maintain control. It also has Milwaukee-Eight 114 power, Reflex linked brakes with ABS, an all-new 4-speaker BOOM! GTS infotainment system, electronic cruise control and 6.8 cubic feet of storage space.

Fully loaded and uninhibited. Electric reverse puts complete control at your fingertips. Redefine your idea of touring power and long-haul riding comfort.

A long-haul touring trike with all the torque, style, premium infotainment and cargo space three wheels can hold.







2023 Harley-Davidson Tri Glide Ultra Anniversary Totalmotorcycle.com Key Features

A momentous occasion deserves something truly unique. The Anniversary Collection is that and more. Six limited-edition, serialized motorcycle models featuring commemorative paint, finishes and premium features that celebrate 120 years of Harley-Davidson pride and craftsmanship. They are perfect for riding to the Harley-Davidson Homecoming event.

  • Bold 120th anniversary themed paint
  • Upright riding position
  • Floorboards
  • Passenger seat with backrest
  • Trunk
  • Fork mounted fairing
  • Infotainment
  • Rider safety enhancements available
  • Riders seeking a one-of-a-kind 3-wheel touring experience
  • Bold styling with premium paint and Tomahawk wheels
  • Twin-Cooled Milwaukee-Eight 114 engine and premium tech



2023 Harley-Davidson Tri Glide Ultra Anniversary Totalmotorcycle.com Features and Benefits

Trike: Roll with confidence, comfort, and head-turning custom style on three wheels.

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

TWIN-COOLED MILWAUKEE-EIGHT 114
120 ft. lbs. of torque and 42 mpg for passing power and endless horizons.

6-SPEED CRUISE DRIVE TRANSMISSION
Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.

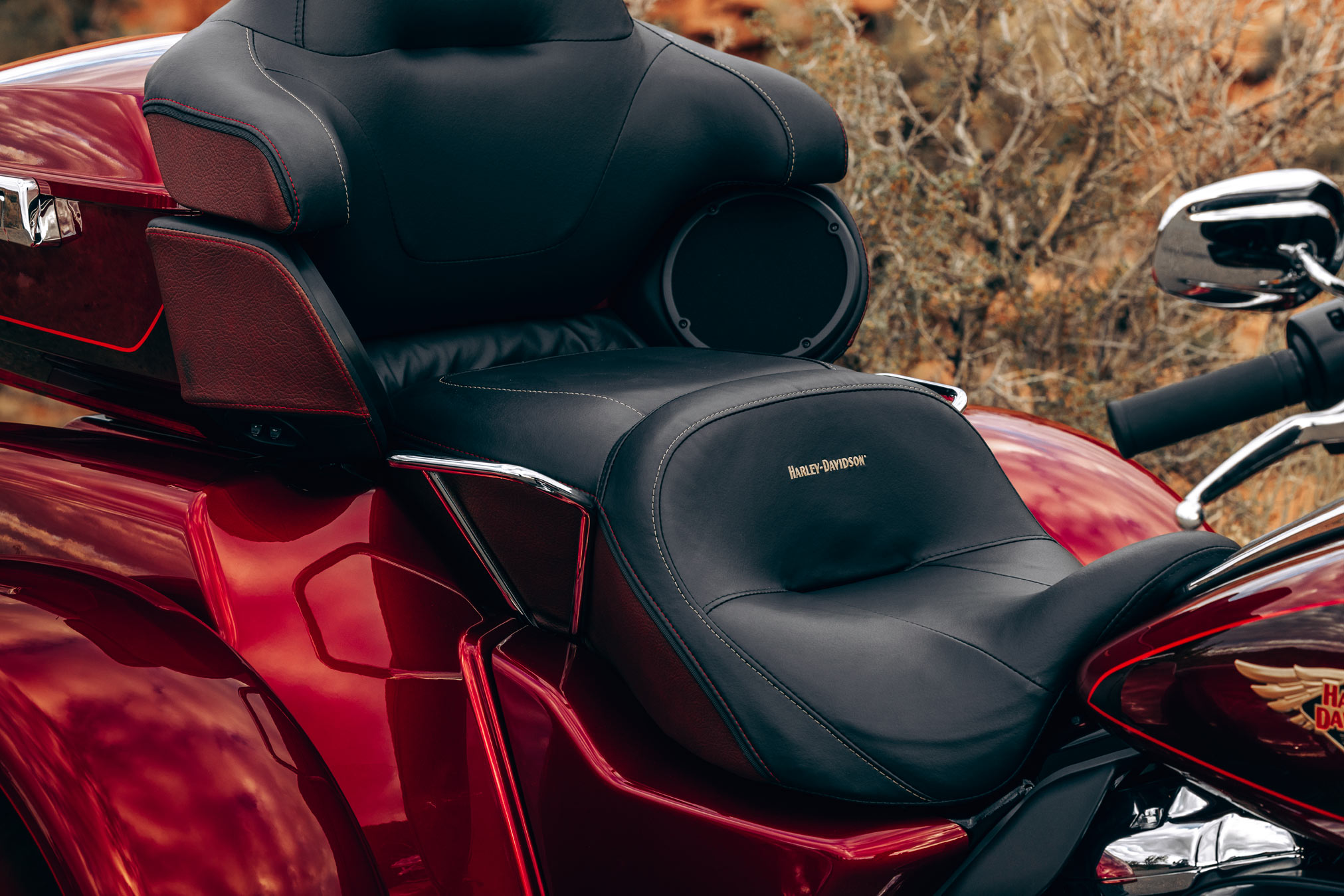

SADDLE UP IN COMFORT
The ultimate in two-up comfort for riders and passengers looking to log miles and experience new adventures.

BATWING FAIRING & SPLITSTEAM AIR VENT
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front.

TRUNK AND KING TOUR-PAK STORAGE
Turn any ride into a weekend trip. The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak luggage carrier adds an additional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.









2023 Harley-Davidson Tri Glide Ultra Anniversary – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $41,299 USD
Canada MSRP Price: $52,499 CDN
Europe/UK MSRP Price: £51,495 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

105.1 in.

SEAT HEIGHT, LADEN 7

27.1 in.

GROUND CLEARANCE

4.9 in.

RAKE

26

TRAIL

3.94 in.

WHEELBASE

65.7 in.

TIRES, FRONT SPECIFICATION

MT90B16 72H

TIRES, REAR SPECIFICATION

P205/65R15 92T

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

6 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

1,204 lb.

WEIGHT, IN RUNNING ORDER

1,243 lb.

LUGGAGE CAPACITY -VOLUME

6.8 cu ft

ENGINE

ENGINE 1

Twin-Cooled Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 2

121 ft-lb

ENGINE TORQUE (RPM)

3250

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 5

42 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE 9

Black, 7-spoke Cast Aluminum

WHEELS, REAR TYPE 9

Black, 7-spoke Cast Aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8

All LED, low beam, high beam and signature position lamp, Incandescent tail/stop, front signal lights and rear turn signals

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

6.5 in.

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch/6.5 inch P&A Upgrade

HEADSET SPECIFICATIONS (IF EQUIPPED)

16 – 64 ohms

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included



  1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  2. Values shown are nominal. Performance may vary by country and region.
  3. Standard and optional fuel systems may vary by country.
  4. See motorcycle owner’s manual for complete details.
  5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
  6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
  7. Measurement reflects 180 lb. (81.7 kg) operator weight.
  8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
  9. Standard and optional wheels may vary by country and region.





2023 Harley-Davidson Tri Glide Ultra Anniversary – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,670 mm

SEAT HEIGHT, UNLADEN

735 mm

GROUND CLEARANCE

125 mm

RAKE

26

TRAIL

100 mm

WHEELBASE

1,670 mm

TIRES, FRONT SPECIFICATION

MT90B16 72H

TIRES, REAR SPECIFICATION

P205/65R15 92T

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

544 kg

WEIGHT, IN RUNNING ORDER

561 kg

LUGGAGE CAPACITY -VOLUME

0.19 m3

ENGINE

ENGINE 2

Twin-Cooled Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 3

163 Nm

ENGINE TORQUE (RPM)

2500

HORSEPOWER

93 HP / 69 kW @ 5020 rpm

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 7

5.6 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE 4

Black, 7-spoke Cast Aluminum

WHEELS, REAR TYPE 4

Black, 7-spoke Cast Aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, Incandescent

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch/6.5 inch P&A Upgrade

HEADSET SPECIFICATIONS (IF EQUIPPED)

16 – 64 ohms

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – Parts & Accessories upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included



  1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
  6. As measured using the MIC City and MIC Combined (115 km/h) tests.
  7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.





2023 Harley-Davidson Tri Glide Ultra Anniversary – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,670 mm

SEAT HEIGHT, UNLADEN

735 mm

GROUND CLEARANCE

125 mm

RAKE

26

TRAIL

100 mm

WHEELBASE

1,670 mm

TYRES, FRONT SPECIFICATION

MT90B16 72H

TYRES, REAR SPECIFICATION

P205/65R15 92T

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

544 kg

WEIGHT, IN RUNNING ORDER

561 kg

LUGGAGE CAPACITY -VOLUME

0.19 m3

ENGINE

ENGINE 2

Twin-Cooled Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE 3

159 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

87 HP / 65 kW @ 5020 rpm

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

6.8 l/100 km

CO2 EMISSIONS TESTING METHOD

EU 134/2014

CO2 EMISSIONS

158 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE 4

Black, 7-spoke Cast Aluminum

WHEELS, REAR TYPE 4

Black, 7-spoke Cast Aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, low beam, high beam and signature position lamp, Incandescent tail/stop, front signal lights and rear turn signals

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch/6.5 inch P&A Upgrade

HEADSET SPECIFICATIONS (IF EQUIPPED)

16 – 64 ohms

AM

Standard

FM

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included



  1. All prices shown are suggested retail prices only.

    Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

    Please speak with the dealership team for further details and to obtain a final on the road price.

  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10046 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
