2023 Yamaha YZF-R7 Guide

2023 Yamaha YZF-R7

2023 Yamaha YZF-R7 2023 Yamaha YZF-R7 2023 Yamaha YZF-R7 2023 Yamaha YZF-R7 2023 Yamaha YZF-R7 2023 Yamaha YZF-R7

2023 Yamaha YZF-R7: WHERE R WORLD MEETS YOURS.

Introducing the new 2023 Yamaha YZF-R7…

A new generation supersport with Yamaha’s legendary styling combines an advanced CP2 engine with an ultra‑thin and lightweight chassis to provide torquey performance on both the track and the street.

Bridging the gap between the entry-level YZF-R3 and the prestigious YZF-R1, the 2023 YZF-R7 offers a unique package of performance and sporty styling that is true to its R-Series DNA and the lineup’s aspirational history of racing success. From its adjustable Monocross single-shock striking a balance between ride comfort and sporty performance to its proven engine and potent braking power, the R7 is designed to deliver the pinnacle of performance on and off the track.

R7
Yamaha R-Series models have been thrilling thousands of riders for over 20 years. Now there’s a sharp-looking addition to the range that’s ready to welcome a new generation of riders into R/World. Fast, agile and handsome, the R7 offers sports performance with everyday fun.

Where R/World Meets Yours
The lively 689cc CP2 engine with A&S clutch provides torque-rich acceleration for a truly exciting riding experience on the track and road. The super narrow and aerodynamic bodywork features an aggressive twin-eye face with a powerful central LED headlight – and the sharp tail and deeply sculpted tank are shaped by pure R-Series DNA. The R7’s high specification brakes and suspension give optimum controllability when cornering and braking.

The frontal area of the R7 is the smallest of the R-Series models, and ensures the highest levels of aerodynamic efficiency – while clip-on handlebars, rear sets and a bump-stop seat give you an adaptable and sporty riding position. This outstanding next generation Supersport makes R/World a reality for thrill-seeking riders like you – whether you’re riding on the track or out on the road.



TORQUEY CP2 POWERPLANT

Yamaha’s proven 689cc liquid-cooled, inline 2-cylinder DOHC fuel-injected CP2 engine delivers excellent power and performance throughout the rpm range for an exhilarating ride and a true supersport experience. Its 270-degree crankshaft delivers a tactile experience of pulse and acceleration with limited vibration. The CP2 engine provides the rider a linear-feeling connection from the throttle to the rear wheel.



PERFORMANCE BUILT CHASSIS

The YZF-R7 boasts the slimmest proportions of the entire R-Series family, aiding in confident cornering performance on the track and quick, agile direction changes on twisty roads. The slim design also reduces wind resistance for optimal aerodynamics, while the bodywork incorporates the rider’s body to improve the flow of air around the bike.



SPORTY SUSPENSION

The YZF-R7 features an inverted 41mm front fork with optimized spring rate and damping settings for an excellent front-end feel during cornering and braking. An all-new linked-type Monocross single-shock with adjustable spring preload and rebound damping strikes an ideal balance between ride comfort and supersport performance, for capability across a wide range of uses from urban commuting to track days.





2023 Yamaha YZF-R7 Totalmotorcycle.com Key Features
  • Torquey CP2 Powerplant
    Yamaha’s proven 689cc liquid-cooled, inline 2-cylinder DOHC fuel-injected CP2 engine delivers excellent power and performance throughout the rpm range for an exhilarating ride and a true supersport experience. Its 270-degree crankshaft delivers linear torque for exciting acceleration and limited vibration.
  • All-New A&S Clutch
    A first for Yamaha’s CP2 platform, the all-new Assist and Slipper clutch reduces clutch lever force while providing seamless downshifts and a controlled feeling over the bike’s engine braking. This helps make the supersport riding experience more accessible to more riders. For fast and smooth upshifts, an optional Quick Shift System (QSS) is also available on the YZF-R7.
  • Thin Proportions for Perfect Control
    All-new dimensions give the YZF-R7 the slimmest proportions of the entire R-Series family, aiding in confident cornering performance on the track and quick, agile direction changes on twisty roads. The slim design also reduces wind resistance for optimal aerodynamics, while new bodywork incorporates the rider’s body to improve the flow of air around the bike.
  • Sporty New Suspension
    The YZF-R7 features an inverted 41mm front fork with optimized spring rate and damping settings for an excellent front-end feel during cornering and braking. An all-new linked-type Monocross single-shock with adjustable spring preload and rebound damping strikes an ideal balance between ride comfort and supersport performance, for capability across a wide range of uses from urban commuting to track days.
  • Adaptive Bi-Functional LED Headlight
    The iconic R-Series M-shaped intake duct and twin-eye look compliments the all-new YZF-R7 along with an adaptive bi-functional LED headlight.
  • High-torque 689cc CP2 engine
  • Athletic design with R-Series DNA
  • Aerodynamic cowling and twin-eye face
  • A&S clutch for increased controllability
  • Lightweight frame fine-tune for chassis rigidity
  • Adjustable link-type rear shock
  • Fully-adjustable inverted 41 mm front forks
  • Sports, tucked-in riding position gives optimum agility
  • Radial-mount front brake calipers
  • Lightweight 10-spoke wheels
  • Optional Quick Shift System for seamless upshifts
  • Next generation colours
  • Pure R-Series style











2023 Yamaha YZF-R7 Totalmotorcycle.com Features and Benefits

ENGINE

  • Torquey CP2 Powerplant
    Yamaha’s proven 689cc liquid-cooled, inline 2-cylinder DOHC fuel-injected CP2 engine delivers excellent power and performance throughout the rpm range for an exhilarating ride and a true supersport experience. Its 270-degree crankshaft delivers linear torque for exciting acceleration and limited vibration.
  • Linear Torque with Smooth Acceleration
    The all-new YZF-R7 boasts a 270-degree crankshaft that delivers a tactile experience of pulse and acceleration with limited vibration. The CP2 engine provides the rider a linear-feeling, direct connection from the throttle to the rear wheel.
  • All-New A&S Clutch
    A first for Yamaha’s CP2 platform, the all-new Assist and Slipper clutch reduces clutch lever force while providing seamless downshifts and a controlled feeling over the bike’s engine braking. This helps make the supersport riding experience more accessible to more riders. For fast and smooth upshifts, an optional Quick Shift System (QSS) is also available on the YZF-R7.
  • Quick Shift System for Smooth Upshifts
    An optional Quick Shift System (QSS) can be paired with the YZF-R7 to help provide speedy, smooth upshifts. When the sensor on the shift rod detects movement in the gearshift lever, adjustments are made in the engine output according to ECU calculations to instantly cancel out the drive torque of the engaged gear to promote swifter gear changes.
  • Strong, Lightweight Pistons
    Forged aluminum pistons with direct-plated cylinders integrated with the crank case make for lighter weight and excellent strength at extreme temperatures, ensuring reliability at higher rpm.



CHASSIS/SUSPENSION

  • Supersport Riding Position
    The YZF-R7’s carefully developed rider’s triangle and racing-inspired cockpit puts you in a comfortable, confidence-inspiring riding position. A new seat combined with new tank covers featuring deep knee pockets, provide optimal hip and knee positioning. Riders get the freedom to adjust positions while also maintaining a firmly planted feel in corners and sturdy body hold under braking. Separate clip-on handlebars are set in relation to rider hip and footpeg placement for a commanding riding position.
  • Inverted Front Fork
    The YZF-R7 features a preload, rebound and compression adjustable inverted KYB 41mm front fork offering optimized spring rates and damping settings for an excellent front-end feel during cornering and braking.
  • Lightweight Frame Tuned for Rigidity Balance
    A high-strength steel frame with a rigid-mount aluminum center brace provides an optimized balance of rigidity for linear and nimble responsiveness to rider input.
  • Monocross Rear Shock
    The all-new linked-type Monocross single-shock design reduces weight and further centralizes mass. Its adjustable spring preload and rebound damping are tuned to strike an ideal balance between ride comfort and sporty performance, for capability across a wide range of uses from urban commuting to track days.
  • Potent Braking
    A newly-designed radial brake master cylinder from Brembo combines with radial-mounted front brake calipers on dual 298mm front brake rotors to optimize braking pressure for linear delivery with excellent performance and controllability.
  • Thin Proportions for Perfect Control
    All-new dimensions give the YZF-R7 the slimmest proportions of the entire R-Series family, aiding in confident cornering performance on the track and quick, agile direction changes on twisty roads. The slim design also reduces wind resistance for optimal aerodynamics, while new bodywork incorporates the rider’s body to improve the flow of air around the bike.
  • Sporty New Suspension
    The YZF-R7 features an inverted 41mm front fork with optimized spring rate and damping settings for an excellent front-end feel during cornering and braking. An all-new linked-type Monocross single-shock with adjustable spring preload and rebound damping strikes an ideal balance between ride comfort and supersport performance, for capability across a wide range of uses from urban commuting to track days.



ADDITIONAL FEATURES

  • Adaptive Bi-Functional LED Headlight
    The iconic R-Series M-shaped intake duct and twin-eye look compliments the all-new YZF-R7 along with an adaptive bi-functional LED headlight.
  • LED Lighting

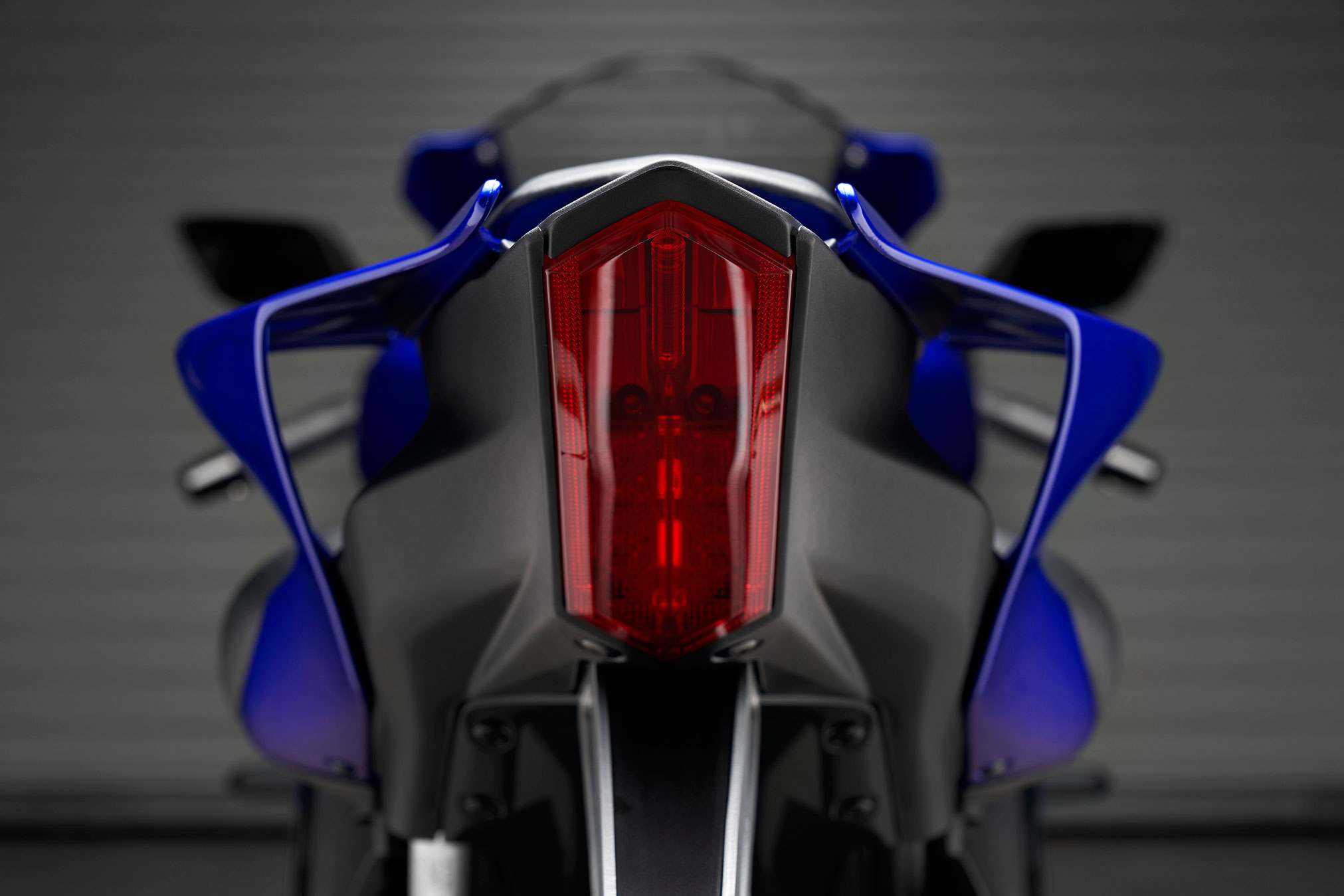

    Light Emitted Diode (LED) elements are used for the front and rear turn signals, the tail light unit and the headlights. Not only do LEDs offer long life with minimal power draw, they provide brilliant illumination for confidence and visibility day or night.
  • Refined Sportbike Ergonomics
    Thanks to the low-profile fuel tank design and compact clip-on handlebar position, the rider is able to naturally grip the machine for confidence, especially when tucking aggressively behind the windscreen on the racetrack.
  • Sleek R-Series Styling
    The YZF-R7’s aggressive new design is next generation R-Series styling, with the slimmest bodywork in the supersport lineup for optimal aerodynamics, handling and agility. The glaring face of the YZF-R7 features a compact LED headlight housed in the iconic M-shaped intake duct, while its sharp tail is reminiscent of the YZF-R1.



ELECTRONICS

  • Digital LCD Instrumentation
    A new full-LCD instrument panel informs the rider of gear position, fuel capacity, real time and average fuel economy, water temp, clock, and more—all presented in a high-contrast display.



High-torque 689cc CP2 engine
Delivering 73.4 PS @ 8750 rpm, the 689cc CP2 engine of the R7 o ers thrilling acceleration and instant throttle response. Its 270 degree crank gives an uneven ring interval that ensures a lively and exciting feel as the revs rise – and its linear torque output enables you to lay down the power efficiently for faster corner exits.

Athletic design with R-Series DNA
A key factor in achieving optimum performance is by having the smallest frontal area possible – and thanks to the compact dimensions of the CP2 engine, Yamaha’s designers have been able to develop an athletic bodywork that is slimmer than any other R-Series model. And with its sporty tucked-in riding position, the R7 slices through air smoothly and efficiently.

Aerodynamic cowling and twin eye face
You don’t need to see the Yamaha logo to know that this stunning new Supersport is part of the legendary R-Series family. The lightweight full fairing with aluminium lower panels has been shaped by pure R Series DNA, and features an aggressive twin-eye face with its M-shaped air duct and a powerful central LED headlight.

A&S clutch for increased controllability
The R7 is the rst CP2-engined Yamaha to be equipped with an Assist & Slipper (A&S) clutch that delivers smoother gear shifting and prevents engine over-rev and rear wheel hop during hard braking, resulting in more predictable and controllable handling when approaching corners. And this A&S clutch also o ers a much lighter feel at the lever.

Lightweight frame ne-tuned for chassis rigidity
With a wet weight of only 188 kg, the R7 features a compact frame that makes it the slimmest bike in the R-Series family. Its balance of rigidity has been ne-tuned with an aluminium centre brace as well as by using tubing with varying tensile strengths – and these key features contribute towards the bike’s outstandingly agile and responsive handling characteristics.

Fully-adjustable inverted 41 mm front forks
The KYB 41 mm Inverted front forks give a planted and con dent feeling on racetracks and twisty roads. Featuring full adjustability for preload as well as rebound and compression damping – and equipped with a gravity cast upper triple clamp and forged aluminium lower triple clamp – this highspecification front end gives excellent controllability and precision.





2023 Yamaha YZF-R7 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9199 USD
Canada MSRP Price: $11299 CDN
Europe/UK MSRP Price: £8400 GBP (On The Road inc 20% Vat)

Engine Type 689cc liquid-cooled, 4-stroke, DOHC inline twin- cylinder; 4-valves per cylinder
Bore x Stroke 80.0mm x 68.6mm
Compression Ratio 11.5:1
Fuel Delivery Fuel injection
Transmission 6-speed; multiplate wet clutch; with Assist &
Slipper clutch
Final Drive Chain
Suspension / Front Telescopic fork; 5.1-in travel, adjustable for
preload, rebound and compression
Suspension / Rear Linked-type Monocross shock, adjustable preload
and rebound; 5.1-in travel
Brakes / Front Dual 298mm hydraulic disc
Brakes / Rear 245mm hydraulic disc
Tires / Front 120/70ZR17 Bridgestone® BATTLAX
HYPERSPORT S22F
Tires / Rear 180/55ZR17 Bridgestone® BATTLAX
HYPERSPORT S22R
L x W x H 81.5 in x 27.8 in x 45.7 in
Seat Height 32.9 in
Wheelbase 54.9 in
Rake (Caster Angle) 23.7°
Trail 3.5 in
Minimum Ground
Clearance
5.3 in
Fuel Capacity 3.4 gal
Fuel Economy 58 MPG
Wet Weight 414 lb
Warranty 1 Year (Limited Factory Warranty)
Color Team Yamaha Blue; Performance Black; Intensity
White





2023 Yamaha YZF-R7 – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
ENGINE Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder
DISPLACEMENT 689cc
BORE AND STROKE 80 x 68.6 mm
COMPRESSION RATIO 11.5:1
MAXIMUM TORQUE 6.9 kg-m (50 ft-lbs.) @ 6,500 rpm
FUEL DELIVERY Fuel injection
ESTIMATED FUEL CONSUMPTION± 4.6 L/100km (58 mpg)
LUBRICATION Wet sump
IGNITION / STARTING TCI / Electric
TRANSMISSION 6-speed; multiplate wet clutch; with Assist & Slipper clutch
FINAL DRIVE “O”-ring chain

CHASSIS
SUSPENSION (FRONT) Telescopic fork; 5.1-in travel, adjustable for preload, rebound and compression
SUSPENSION (REAR) Linked-type Monocross shock, adjustable preload and rebound; 5.1-in travel
BRAKES (FRONT) Dual 298mm hydraulic discs / 4-piston calipers / ABS equipped
BRAKES (REAR) 245mm hydraulic disc / single piston caliper / ABS equipped
TIRES (FRONT) 120/70ZR17
TIRES (REAR) 180/55ZR17

CRITICAL DATA
LENGTH 2,070 mm (81.5″)
WIDTH 706 mm (27.8″)
HEIGHT 1,161 mm (45.7″)
WHEELBASE 1,394 mm (54.9″)
RAKE / TRAIL 23° / 1016 mm
GROUND CLEARANCE 135 mm (5.3″)
SEAT HEIGHT 836mm (32.9″)
FUEL CAPACITY 13 litres
WET WEIGHT 188 kg (414 lb.)
COLOUR(S) World GP 60th Anniversary Edition
Yamaha Racing Blue
Performance Black





2023 Yamaha YZF-R7 – Totalmotorcycle.com European Specifications/Technical Details

Engine
Engine type 2-cylinder;Liquid-cooled;EURO5;4-stroke;4-
valves;DOHC
Displacement 689cc
Bore x stroke 80.0 x 68.6 mm
Compression ratio 11,5:1
Maximum power 54,0 kW (73,4 PS) @ 8.750 rpm
Limited power version 35,0 kW (47,6 PS) @ 7.750 rpm
Maximum torque 67,0 Nm (6.8 kg-m) @ 6.500 rpm
Lubrication system Wet sump
Clutch type Wet;Multiple Disc
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh;6-speed
Final transmission Chain
Fuel consumption 4.2 L/100 km
CO2 emission 98 g/km
Fuel system Electronic Fuel Injection
Chassis
Frame Diamond
Caster angle 23°40
Trail 90 mm
Front suspension system Upside-Down fork
Rear suspension system Swingarm;link suspension
Front travel 130 mm
Rear travel 130 mm
Front brake Hydraulic dual disc brake, Ø298 mm
Rear brake Hydraulic single disc brake, Ø245 mm
Front tyre 120/70ZR17M/C (58W) Tubeless
Rear tyre 180/55ZR17M/C (73W) Tubeless
Dimensions
Overall length 2.070 mm
Overall width 705 mm
Overall height 1.160 mm
Seat height 835 mm
Wheel base 1.395 mm
Minimum ground clearance 135 mm
Wet weight (including full oil and fuel tank) 188 kg
Fuel tank capacity 13,0 l
Oil tank capacity 3,0 l







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
