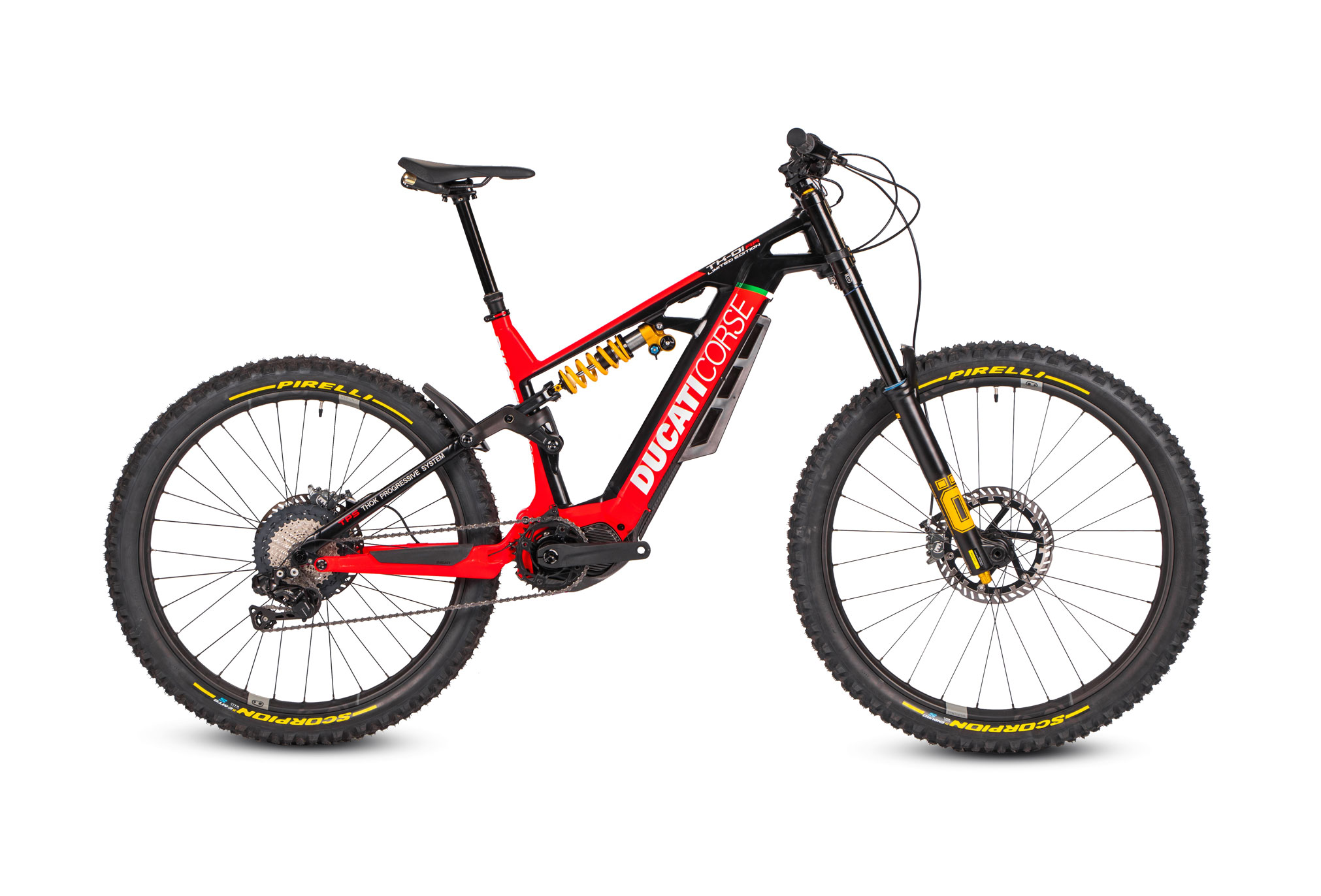

2024 Ducati TK-01RR Limited Edition Guide

2022 Ducati TK-01RR Limited Edition
ReviewKey FeaturesFeatures & BenefitsSpecifications

2022 Ducati TK-01RR Limited Edition 2022 Ducati TK-01RR Limited Edition

2024 Ducati TK-01RR Limited Edition: FULL BORE CLIMATE CHANGER.

Introducing the new 2024 Ducati TK-01RR Limited Edition…

Off road. At top speeds.

The TK-01RR is also in a limited edition: a concentrate of technology that confirms the main features and attitude of the TK-01RR version, but enriched with more advanced components, with the aim of further improving performance, in particular in the downhill sections.







2024 Ducati TK-01RR Limited Edition Totalmotorcycle.com Key Features

In a nutshell pure adrenaline: the best of Downhill but always efficient on the stretches to be pedaled.









2024 Ducati TK-01RR Limited Edition Totalmotorcycle.com Features and Benefits

Double plate fork and Öhlins spring shock absorber
Same technology as the RXF38 but stiffer to ensure incredible wheel control on the ground in the most extreme conditions. The Öhlins DH38 180mm travel fork, developed in racing, is the benchmark in its category for its ability to absorb both small and large bumps while always maintaining a fluid, fast and controlled ride.

Wheels with carbon rims
Crankbrothers Synthesis always in differentiated format (29″ x 31 mm front, 27.5″ x 35 mm rear) with variable thickness carbon rims are smoother than the aluminum version supplied with the TK-01RR and help to improve further riding precision, guaranteeing an exceptional weight / strength ratio.

Magura MT7 brakes
4-piston aluminum monobloc with 220mm discs at the front and 203mm at the rear, they are of motorcycle origin and are among the most powerful on the market. The shape of the levers favour the ergonomics and are interchangeable.

Shimano electronic gearshift
The 11-speed Shimano Di2 XT rear derailleur (11-46T) ensures precise and instant stable shifting on all types of terrain and reliable over time. The gear cage is equipped with Shadow RD+ technology, that is a clutch that minimizes chain slap. Through Shimano’s E-Tube program, gearshifting can be programmed and customized.

Fizik saddle with Alpaca Tool Carrier
With an innovative multitool system, characterized by a minimal design and where objects remain almost invisible under the saddle, but always ready in case of repair. The Crankbrothers Highline 7 dropper post with handlebar control always has a smooth and long-lasting operation.

Carbon components
The Renthal Fatbar handlebar, the battery cover and the carbon fiber engine guard, as well as being light and resistant, give further prestige to the model.









2024 Ducati TK-01RR Limited Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $10,995 USD
Canada MSRP Price: $14,495 CDN
Europe/UK MSRP Price: from £10,890 GBP (On The Road inc 20% Vat)

Frame

Thok 6061 aluminum, forged and CNC machined, headtube tapared 1.8”

Battery

Shimano – 630 Wh integrated. Carbon fiber battery cover

Fork

Öhlins – RXF DH38 Air, Boost – 29″, 180 mm of tr avel, HS/LS compression and rebound adjust

Rear shock

Öhlins – TTX22M Coil- 170 mm travel, custom tuned Ducati, metric 230 x 65 mm

Brakes

MAGURA- MT7, 4 pistons caliper with MDR-P rotor : 220 front and 203 mm rear

Crank

FSA – 165 mm with chainring 34T

Stem

Ducati – CNC Alloy 35 mm, 45 mm length

Handlebar

Renthal Carbon 35 mm, rise 20 mm, 800 mm width

Wheels

Crankbrothers – Synthesis – Carbon 29″ x 31 mm, 27.5″ x 35 mm

Tires

Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29″ x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6

Seatpost

Crankbrothers Highline 7 Dropper post micro height adjustable with remote control (S-125, M-150, L/XL-170 mm)

Saddle

FIZIK – Alpaca Tool Carrier (integrated multitool & Co2 )

Pedals

Alloy pedals

Engine

Shimano Steps EP8 (250 Watt – 62.7 lb-ft – 5.7 lb). Carbon fiber skidplate

Display

Shimano – Display SC-EM800 LCD display with remote control

Rear derailleur

Shimano – Deore XT Di2 11 S 11-46T

Shift lever

Shimano – Deore XT Di2 11 S

Size

S – M – L – XL







2024 Ducati TK-01RR Limited Edition – Totalmotorcycle.com Canada Specifications/Technical Details

Frame

Thok 6061 aluminum, forged and CNC machined, headtube tapared 1.8”

Battery

Shimano – 630 Wh integrated. Carbon fiber battery cover

Fork

Öhlins – RXF DH38 Air, Boost – 29″, 180 mm of tr avel, HS/LS compression and rebound adjust

Rear shock

Öhlins – TTX22M Coil- 170 mm travel, custom tuned Ducati, metric 230 x 65 mm

Brakes

MAGURA- MT7, 4 pistons caliper with MDR-P rotor : 220 front and 203 mm rear

Crank

FSA – 165 mm with chainring 34T

Stem

Ducati – CNC Alloy 35 mm, 45 mm length

Handlebar

Renthal Carbon 35 mm, rise 20 mm, 800 mm width

Wheels

Crankbrothers – Synthesis – Carbon 29″ x 31 mm, 27.5″ x 35 mm

Tires

Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29″ x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6

Seatpost

Crankbrothers Highline 7 Dropper post micro height adjustable with remote control (S-125, M-150, L/XL-170 mm)

Saddle

FIZIK – Alpaca Tool Carrier (integrated multitool & Co2 )

Pedals

Alloy pedals

Engine

Shimano Steps EP8 (250 Watt – 62.7 lb-ft – 5.7 lb). Carbon fiber skidplate

Display

Shimano – Display SC-EM800 LCD display with remote control

Rear derailleur

Shimano – Deore XT Di2 11 S 11-46T

Shift lever

Shimano – Deore XT Di2 11 S

Size

S – M – L – XL







2024 Ducati TK-01RR Limited Edition – Totalmotorcycle.com European Specifications/Technical Details

Frame

Thok 6061 aluminum, forged and CNC machined, headtube tapared 1.8”

Battery

Shimano – 630 Wh integrated. Carbon fiber battery cover

Fork

Öhlins – RXF DH38 Air, Boost – 29″, 180 mm of tr avel, HS/LS compression and rebound adjust

Rear shock

Öhlins – TTX22M Coil- 170 mm travel, custom tuned Ducati, metric 230 x 65 mm

Brakes

MAGURA- MT7, 4 pistons caliper with MDR-P rotor : 220 front and 203 mm rear

Crank

FSA – 165 mm with chainring 34T

Stem

Ducati – CNC Alloy 35 mm, 45 mm length

Handlebar

Renthal Carbon 35 mm, rise 20 mm, 800 mm width

Wheels

Crankbrothers – Synthesis – Carbon 29″ x 31 mm, 27.5″ x 35 mm

Tires

Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29″ x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6

Seatpost

Crankbrothers Highline 7 Dropper post micro height adjustable with remote control (S-125, M-150, L/XL-170 mm)

Saddle

FIZIK – Alpaca Tool Carrier (integrated multitool & Co2 )

Pedals

Alloy pedals

Engine

Shimano Steps EP8 (250 Watt – 62.7 lb-ft – 5.7 lb). Carbon fiber skidplate

Display

Shimano – Display SC-EM800 LCD display with remote control

Rear derailleur

Shimano – Deore XT Di2 11 S 11-46T

Shift lever

Shimano – Deore XT Di2 11 S

Size

S – M – L – XL







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
