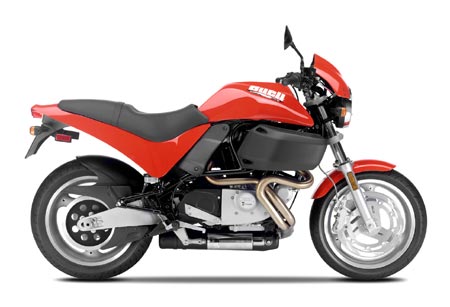

2001 Buell Cyclone M2
2001 Buell Cyclone M2



– 2001 Buell Cyclone M2

Specifications:

Engine Type: 1203 cc, 4-Stroke, Air Cooled, V-Twin
Engine Bore and Stroke: 88.8 mm x 96.8 mm
Valves 2 valves/cylinder
Claimed Horsepower: 86 hp (64.1 kW) @ 6100 rpm
Maximum Torque: 103 Nm (76 ft. lbs) @ 5700 rpm

Transmission type: 5 speed
Final Drive: Belt


Tire – Front: 120/70-17
Tire – Rear: 170/60-17
Brakes – Front: single 340 mm disc with 6-piston calipers
Brakes – Rear: single 230 mm disc with 1-piston calipers


Seat Height: 820 mm (32.3 inches)
Wheelbase 1410 mm (55.5 inches)
Fuel Capacity: 19 l
Dry Weight (without fluids): 222 kg (489.4 pounds)

Specifications are subject to change without notice, in accordance with national regulation and legislations
