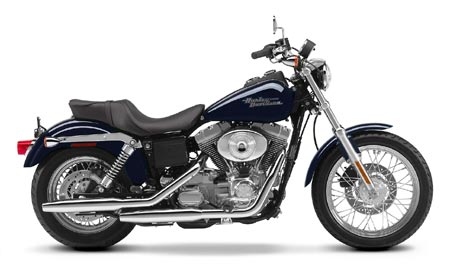

Click photo to enlarge.
It makes a great desktop image.

2002 Harley-Davidson FXD Dyna Super Glide



– 2002 Harley-Davidson FXD Dyna Super Glide

This bike exists for riders who love a sporty custom ride. Set low in a vibration-damping frame is the Twin Cam 88™ engine, filled to the brim with torque. In 2000, the FXD received a new XR-style flat track handlebar which created a more aggressive stance and performance-minded look and feel. A responsive 28-degree front-end with dual rate springs, Fat Bob tank, center console, top-mount speedometer and stepped, two-up seat are all standard on the Dyna Super Glide&rg;. The Dyna Super Glide® continues to represent the best value in the Big Twin product line, with tremendous opportunity for individual customization and performance upgrades.

Key FXD DYNA SUPER GLIDE® Characteristics

-Best Big Twin Value
-Vibration-isolated, Silver Twin Cam 88™ Engine
-Two-up seating
-Top-mounted speedometer
-Nimble handling (28-degree steering head)
-Open palette for customization
-MSRP US $11,895

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.

Specifications:

DIMENSIONS
Length 91.0 in. (2309.6 mm)
Seat Height (measure laden w/ 180 lb. rider) 26.5 in. (672.6 mm)
Seat Height TUV (measure unladen; int’l measure) (698.0 mm)
Ground Clearance 5.4 in. (136.5 mm)
Rake 28.0 degrees
Trail 4.1 in. (104.1 mm)
Wheelbase 62.5 in. (1586.3 mm)
Tires: Dunlop Harley-Davidson Series D401
Front 100/90-19 57H
Rear 150/80B16 71H
Fuel Capacity (includes 0.9 gal. reserve) 4.9 gal. (18.5 L)
Reserve Fuel Capacity 0.9 gal. (3.4 L)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 612.0 lbs. (277.8 kg)
Vehicle Weight In Running Order (int’l measure) (295.1 kg)
Gross Vehicle Weight Rating 1085.0 lbs. (492.6 kg)

ENGINE
Engine Twin Cam 88 (vibration isolation-mounted)
Valves Pushrod-operated overhead valves;with hydraulic
self-adjusting lifters; two valves per cylinder
Bore and Stroke 3.75 x 4.0 in. (95.25 x 101.6mm)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System Carburetion (40 mm constant velocity with enrichener and accelerator pump)
Air Cleaner/Filter Oval with spun aluminum insert;
high-efficiency, pleated paper filtration
Ignition Single-fire, non-wasted, map-controlled spark ignition system;
electronic breakerless with multiple advance curve matrix
Lubrication System Dry sump, internally mounted, crank driven gerotor pressure
and dual scavenge pump with spin on 10ì pressurized oil filter

DRIVETRAIN
Primary Drive Double-row chain; oil bath; mechanical tensioner;
25/36-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced Poly Chain belt;
32/70-tooth sprockets; 2.188:1
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed,constant mesh
Gear Ratio:
1st 10.110
2nd 6.978
3rd 4.953
4th 3.862
5th 3.150

CHASSIS
Frame Mild steel, rectangular section backbone with twin down-tubes
Swing Arm Mild steel, rectangular section
Front Fork 39mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over with adjustable spring preload
Wheels 13-spoke cast aluminum alloy (laced option)
Brakes:
Caliper type Four-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension travel:
Front wheel 6.1 in. (155 mm)
Rear wheel 4.3 in. (109 mm)

PERFORMANCE
Engine Torque 82.0 ft. lbs.@ 3500rpm (105.5 NM @ 3000 rpm)
Braking at 60 mph (96.6 kph):
Maximum load 165 ft. (49.5 m)
Lean Angle (per SAEJ1168):
Right 31 degrees
Left 32 degrees

ELECTRIC
Battery Sealed 12-volt, 19 amp-hour, 270cca (per Battery Council International rating)
Charging 32-amp permanent magnet alternator
(364 watts @ 3,000 rpm, 416 watts peak) with solid-state regulator
Starting 1.2 kw electric with Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w, (5w/21w)
Turn signal lights 28w self-canceling, (21w)
Running lights Integrated in front turn signals (except where prohibited by law)
Indicator lamps High beam, neutral, oil pressure, engine diagnostic
light, turn signals and security system (optional)

STYLING/CONVENIENCE
Engine Trim Silver powdercoat with polished aluminum covers
Exhaust System Staggered chrome shorty duals with low interconnect
Oil tank Under-transmission
Front Fender Sport-style with painted brace
Rear Fender Sport wrap-around with chrome supports
Handlebars Flat “XR” style, 31.5 in. wide, Stainless Steel
Windshield none
Footpegs Rubber-isolated operator and rubber covered passenger
Forward Foot Position Frame-mounting holes for highway peg installation
Seat One-piece rider and passenger accommodations
Passenger Backrest none
Saddlebags none
Instruments Electronic speedometer with odometer and resettable tripmeter; fuel gauge
Fork Lock Barrel-key on steering head, key common with ignition

COLORS
Vivid Black, Diamond Ice Pearl, Luxury Rich Red Pearl
Luxury Blue Pearl

WARRANTY
Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km); every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals –
