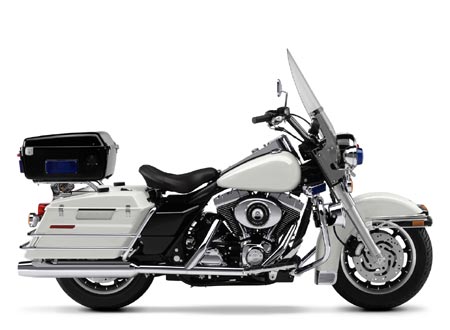

Click photo to enlarge.
It makes a great desktop image.

2003 Harley-Davidson Police FLHPI Road King Emergency
2003 Harley-Davidson Police FLHPI Road King Emergency


– 2003 Harley-Davidson Police FLHPI Road King Emergency

The low maintenance costs and superior durability of the Road King® make it the police motorcycle of choice. Unmatched riding comfort utilizing three key air adjustable features: 41 mm front forks, dual rear shock absorbers, massive solo saddle with remote reservoir and gauge. The FLHPI has a black and chrome powertrain, and the torque improvement of sequential port fuel injection.



2003 Specifications Police FLHPI Road King®

Ground Clearance 5.12 in. (130.0 mm)
Wheelbase 63.5 in. (1612.9 mm)
Overall Length 94.25 in. (2393.95 mm)
Overall Width 34.45 in. (875.03 mm)
Overall Height 55.06 in. (1398.52 mm)
Saddle Height 29.50 in. (749.30 mm)
Dry Weight 721.00 lbs. (327.04 Kg)
Gross Vehicle Weight Rating 1179 lbs.
Oil capacity 4 qts (3.8 L)

Engine Air-cooled Twin Cam 88® Vibration Isolated V-Twin;
EFI Idle Heat Management System
Bore x Stroke 3.75in. x 4.00in. (95.30 mm x 101.60 mm)
Compression Ratio 8.9:1
Exhaust Dual crossover
Powertrain deluxe chrome group Designed for low maintenance;
black wrinkle paint finish on engine;
chrome rocker boxes, timer cover, outer primary housing
and transmission covers
Fuel System2 Sequential Port Fuel Injection System (SPFI)

Primary Drive Double-row chain
Clutch Requires clutch disengaged;
for starter motor operation; Latest multiple plate clutch design
Transmission Five-speed
Gear Ratio:
1st 10.110
2nd 6.960
3rd 4.950
4th 3.860
5th 3.150

Caliper type Four piston calipers
Rotor type (diameter x width): Flat expanding rotors
Front (dual disc): 11.5 in. x 0.20 in. (29.21 cm x 5.08 mm)
Rear (single disc): 11.5 in. x 0.23 in. (29.21 cm x 7.62 mm)
Redesigned Suspension:
Retuned rear air shocks
Front forks are non – air (no longer requires adjustment)
Cartridge type left front fork
Engineered for sidecar usage

Engine Torque (ft. lbs./rpms) 86 ft/lbs @ 3500 rpm
Lean Angle (per SAEJ1168):
Right 31 degrees
Left 30 degrees
Mileage: (per E.P.A. test regulations)
City 39 mpg**
Highway 46 mpg **

Battery Sealed, maintenance-free, heavy duty, center mount battery,
12 volt, minimum rated capacity – 28 ampere hours
(per Battery Council International rating)
Charging Providing 45 amp high output alternator and voltage regulator
Starting 12 volt starter w/ solenoid operated
engagement and relay required
Ignition Non-waste spark, Alpha control
Hand Controls Water resistant switches
Horn Emits a sound level adequate to be heard above
motorcycle and traffic generated noise
Connectors Industrial grade throughout
Headlamp Quartz halogen headlight
Turn signal lights self-cancelling
Pursuit lamps Front mounted PAR-36 lamps,
one red, one blue, incandescent
Flashers (four way) Integrated into turn signal switches
Electronic siren (optional) Designed for use of a Whelen 100 watt electronic
siren system, amplifier and speaker
(if specified by purchase order – at additional cost*);
waterproof amplifier (two-tones: wail and yelp); airhorn; microphone jack
Indicator lamps, including pursuit lamp indicator

Cast wheels, impermeable to compressed air
Tubeless type tires have non-skid tread (Harley-Davidson/Dunlop):
Front and rear MT908 x 16 blackwalls (D402 tires)
Bead Retention extended mobility tires designed to remain on wheel during
sudden loss of air pressure
Sealed automotive style wheel bearings requiring no end play adjustments and
service interval of 100,000 miles

Engine Trim Black and Chrome
Fairing and Windshield Fork mounted fairing and windshield;
latest design using Lexan®, or polycarbonate
Seat Latest deluxe solo air saddle, special police type,
covered w/ breathable material, w/ rear back support
design and quick release mechanism;
single air bladder w/ reservoir and gauge
Side stand New jiffystand rubber bumper design
Footboards Adjustable, provided w/
non-skid rubber pads on upper surfaces
Engine guards Front engine guard, rear saddlebag guards
Saddlebags Factory installed, law enforcement type fiberglass saddlebags.
Bags are waterproof. Utilizes police style speed latches
Drive Final belt drive, Gates Aramid fiber reinforced Poly Chain®
Mirrors 2 long stem true image mirrors
Windshield Latest design, utilizing Lexan® or clear polycarbonate
Speedometer Certified analog speedometer,
indicates 0-120 M.P.H., or K.P.H. equivalent
Odometer Calibrated, cumulative
Tachometer Analog
Rear Shocks Air adjustable
Fuel level gauge
Low fuel indication lamp
Sight glass on brake master cylinder
One key fits all locks
Low fuel light indicates reserve fuel capacity when main supply is exhausted

Birch White, Black, Two-Tone Black/White, Police Color Palette

Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km);
every 5,000 miles (8,000 Km) thereafter.
— Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals —
