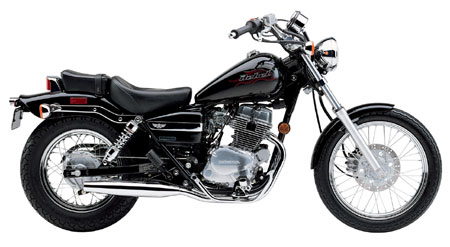

2003 Honda CMX250C Rebel

Back to 2003 Honda Motorcycle Index Page

Click on photos to enlarge.
It makes a great desktop image.

2003 Honda CMX250C Rebel
2003 Honda CMX250C Rebel



– 2003 Honda CMX250C Rebel

The Rebel may be our smallest cruiser, but just because it doesn’t weigh 350 kilograms doesn’t make it any less of a Honda.

Where many econocruisers make do with a single-cylinder powerplant, the Rebel boasts a high performance twin. Light and nimble, the Rebel is the ideal entry-level cruiser for anyone new or returning to the sport. The seat height is an extremely low 675mm, and the single front disc brake provides exemplary stopping power while the 234cc parallel twin is powerful enough to keep up with the big boys. Above all, the Rebel is affordable, dependable and built with the same legendary care as our most expensive cruisers.

The Honda Rebel. Powerful. Reliable. But most of all, affordable.



Engine

· Proven twin-cylinder 234cc SOHC four-stroke engine is smooth, quiet, economical and easy to maintain.
· Convenient and reliable electric starter.
· Screw-type valve adjusters simplify maintenance.
· Constant Velocity (CV) carburetor gives excellent throttle response.
· Easy-shifting five-speed transmission.
· Maintenance-free automatic cam-chain tensioner.
· Radically styled twin-muffler exhaust system.
· Maintenance-free solid-state CD ignition.

Chassis/Suspension
· Semi-double-cradle frame allows a long wheelbase and extremely low seat height.
· Hydraulic front fork with dual Syntallic bushings.
· Dual rear shocks feature five-position spring preload adjustment.
· Rectangular-section swingarm.
· Front disc brake with twin-piston caliper.
· Wide, 15-inch rear tire.
· Spoke-type wheels with chrome rims.
· O-ring-sealed chain for increased durability.
· Low seat height of only 675mm.
· Pullback handlebar.
· 10.0 litre teardrop fuel tank.
· Two-piece custom-styled seat.

Additional Features
· Custom-styled, chrome-plated headlight case.
· Stylish chrome-plated taillight housing.
· Simple, straightforward instrumentation.
· Chrome-plated turn-signal housings.
· Maintenance-free battery.
· Push-to-cancel turn-signal switch.
· Key-operated steering lock for added security.
· Easy-to-use helmet lock.



Specifications:
Engine
234cc air-cooled, parallel twin-cylinder

Bore and Stroke
53mm x 53mm

Compression Ratio
9.2:1

Valve Train
SOHC; two valves per cylinder

Carburetion
Single 26mm diaphragm-type CV

Transmission
Five-speed

Final Drive
O-ring-sealed chain

Front Suspension
33mm fork; 140mm travel

Rear Suspension
Dual shocks with five-position spring preload adjustability; 74mm travel

Front Brakes
Single 240mm disc with twin-piston caliper

Rear Brake
Drum

Front Tire
3.00-18

Rear Tire
130/90-15

Wheelbase
1450mm (57.1 in.)

Seat Height
675mm (26.6 in.)

Dry Weight
139kg (306 lbs.)

Fuel Capacity
10 litres (2.2 Imp. gal.)

Specifications are subject to change without notice, in accordance with national regulation and legislations.
