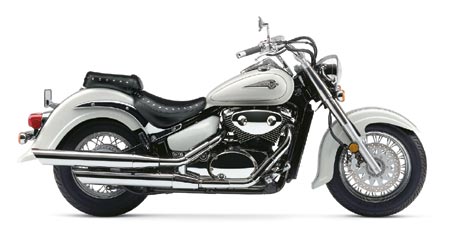

2003 Suzuki VL 800 Intruder Volusia SE



– 2003 Suzuki VL 800 Intruder Volusia SE

Cruiser INTRUDER® VOLUSIA™ Special Edition – 2003 VL800ZK3

NEW FEATURES:

New steel-constructed left-side swingarm for improved appearance.
New Fuel Tank Emblem.

KEY FEATURES:

– Beautiful pearl white color scheme with gold pin-striping

– White speedometer face with orange backlighting

– Rider and passenger seats trimmed with bright chrome studs

– Special ignition key fob and key chain

– Mid-size cruiser with a long, low look – traditional styling combined with modern engineering.

CHASSIS FEATURES:

– Fuel tank-mounted speedometer with LCD fuel gauge, clock and indicator lights. Cables and wiring are carefully routed for a detailed look.

– Cradle-type steel frame with color-matched sidecovers, steel fenders and fuel tank, plus numerous chrome-plated parts.

– Wide comfortable seat with low 27.6 inch seat height – passenger seat can be removed for a bobbed rear fender appearance.

– Wide handlebars and forward-mounted footpegs and foot controls for more comfort around town or on the highway.

– Telescopic forks with polished aluminum sliders and polished stainless steel stanchion-tube covers.

– Long 33° rake angle and 65.2 inch wheelbase provide smooth, comfortable ride.

– Link-type rear suspension connects to a truss-style swingarm and a single shock absorber with 7-way spring preload adjustment.

– Traditional spoke wheels with chrome-plated rims carry a wide 130/90-16 front tire and 170/80-15 rear tire.

– Single front disc brake with 300mm and 180mm rear drum brake.

ENGINE FEATURES:

– Narrow 805cc, eight-valve, liquid-cooled, 45 degree V-twin engine is tuned for low-rpm power with peak torque at only 2500 rpm.

– High engine torque provided by a single 34mm carburetor, short-duration cam timing and tuned dual exhaust system.

– Crankshaft with 45° offset crank pins reduces engine vibration for a more comfortable ride.

– Digital ignition system with 3-D timing maps and throttle position sensor provides optimum ignition timing.

– Five-speed transmission features a high fifth gear ratio for relaxed highway cruising.

– Low-maintenance shaft final-drive system is clean-running with low torque reaction.

– Pulsed-secondary air-injection system introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions.

SPECIFICATIONS
MSRP: $6,799.00
Engine: 805cc, four-stroke, liquid cooled, 45 degree V-twin, SOHC, 8-valves, TSCC. 50 hp (36.8 kW)/ 6,500 rpm, 62 Nm/ 4,000 rpm.
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 83.0 x 74.4mm
Compression ratio: 9.4:1
Fuel System: Mikuni BDSR34
Lubrication: Wet Sump
Ignition: Digital/transistorized
Starter: Electric
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2510mm (98.8 in.)
Overall Width: 985mm (38.8 in.)
Overall Height: 1110mm (43.3 in.)
Seat Height: 700mm (27.6 in.)
Ground Clearance: 140mm (5.5 in.)
Wheelbase: 1655mm (65.2 in.)
Dry Weight: 241kg (531 lbs.)

Suspension:
FRONT: Telescopic, coil spring, oil damped
REAR: Link-type, oil damped, 7-way adjustable spring preload
Brakes:
FRONT: Single hydraulic disc
REAR: Single drum
Tires:
FRONT: 130/90-16
REAR: 170/80-15
Fuel Tank Capacity: 17 liter (4.5 gal.)
Color: White/Silver, Green/Silver, Black

Specifications are subject to change without notice, in accordance with national regulation and legislations.
