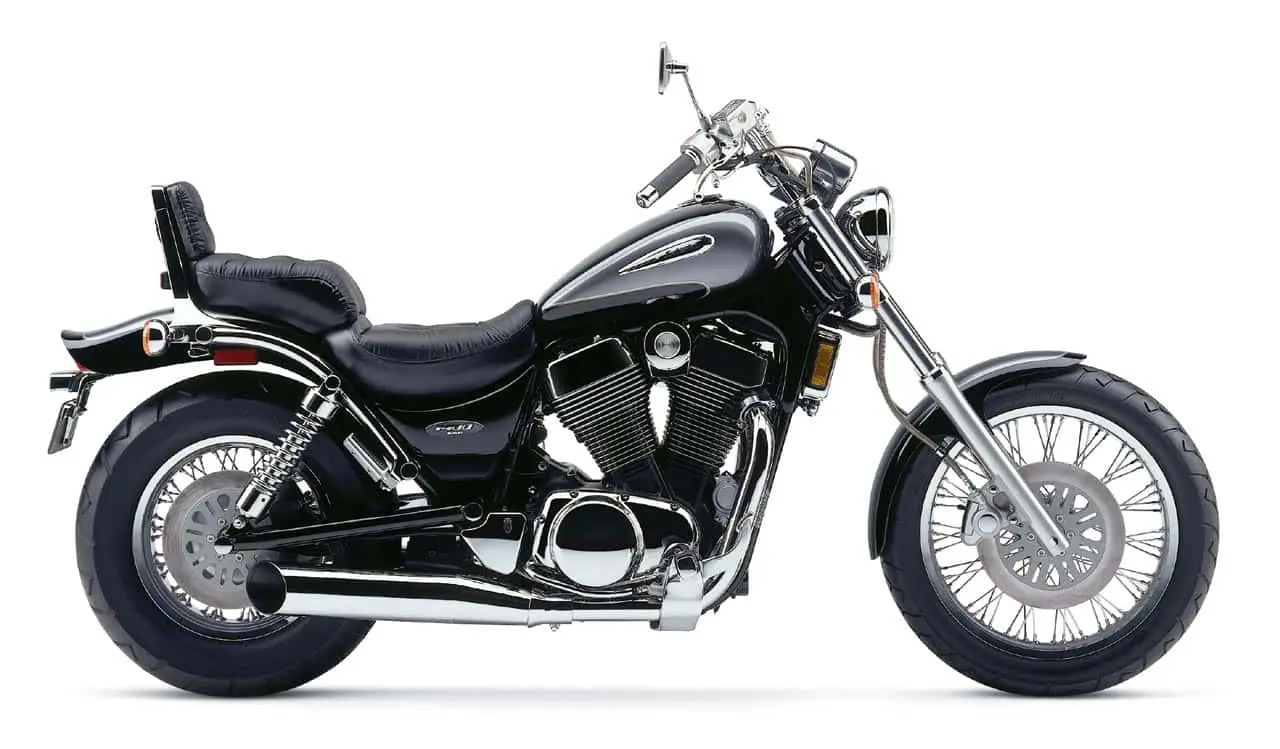

2003 Suzuki VS 1400 Intruder

Back to 2003 Suzuki Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

2003 Suzuki VS 1400 Intruder
2003 Suzuki VS 1400 Intruder

2003 Suzuki VS 1400 Intruder
2003 Suzuki VS 1400 Intruder


– 2003 Suzuki VS 1400 Intruder

Cruiser INTRUDER® 1400 – 2003 VS1400GLPK3


– Slim, narrow 45 degree V-twin 1360cc, 6-valve air/oil cooled engine produces strong low and mid-range torque.

– 45 degree phase, dual-pin crankshaft provides smooth operation.

– Each cylinder is fed by its own constant-velocity carburetor and air cleaner.

– Hydraulic valve lash adjusters require no adjustment.

– Hydraulic clutch eliminates adjustment maintenance.

– Low-maintenance, low-torque-reactive shaft drive.

– Smooth shifting 5-speed transmission.

– Silent operation cam chains with automatic tensioners never need adjustment.

– Custom-looking chrome exhaust and muffler system provides good looks and throaty exhaust sound.

– Narrow double cradle frame.

– Unique shaft drive/swingarm layout.

– Stopping is sure with disc brakes both front (11.6 in. diameter) and rear (10.8 in. diameter).

– 60-spoke wheels with chrome-plated aluminum rims are good looking and the front hub design keeps all nuts and bolts out of view.

– Wide 170/80-15 inch rear tire.

– Richly finished 3.4 gallon fuel tank.

– Compact chrome-plated headlight and clean polished aluminum instrumentation.

– Custom rear view mirrors.

– Painted steel front and rear fenders.

– Slim, painted steel frame covers.

– Wide handlebars for a comfortable ride position and classic look.

– Low seat height (only 28.9 in.), handcrafted-look seat features genuine sewn seams.

– Convenient spin-on oil filter.

– All wiring is routed inside the handlebars.

– Push-to-cancel turn signal switch for easier turn signal operation.

Fork bag
Tank divider
Saddlebag supports
Pillow & touring saddles
Rear rack
Chrome oil filler cap
Storage cover

MSRP: $8,349.00
Engine: 1360cc, four-stroke, air/oil cooled, 45 degree V-twin, SOHC, 6-valves
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 94.0 x 98.0mm
Compression ratio: 9.3:1
Fuel System: Front: Mikuni BDS36 Rear: Mikuni BS36
Lubrication: Wet Sump
Ignition: Digital/transistorized
Starter: Electric
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2335mm (91.9 in.)
Overall Width: 885mm (34.8 in.)
Overall Height: 1205mm (47.4 in.)
Seat Height: 735mm (28.9 in.)
Ground Clearance: 150mm (5.9 in.)
Wheelbase: 1620mm (63.5 in.)
Dry Weight: 243kg (535 lbs.) 244kg (537 lbs.) CA model

FRONT: Telescopic, coil spring, oil damped
REAR: Twin shock, oil damped, 5-way adjustable spring preload
FRONT: Single hydraulic disc
REAR: Single hydraulic disc
FRONT: 110/90-19 62H
REAR: 170/80-15 M/C 77H
Fuel Tank Capacity: 13 liter (3.4 gal.)
Color: Silver/Blue, Black/Gray

Specifications are subject to change without notice, in accordance with national regulation and legislations.
