2004 Triumph Speed Four

You are here: Home2004 Motorcycle Models — 2004 Triumph Motorcycle Models

2004 Triumph Speed Four
Back to 2004 Triumph Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

2004 Triumph Speed Four
2004 Triumph Speed Four

2004 Triumph Speed Four
2004 Triumph Speed Four

2004 Triumph Speed Four
2004 Triumph Speed Four

2004 Triumph Speed Four
2004 Triumph Speed Four


– 2004 Triumph Speed Four

Drawn from the same athletic gene pool as the Daytona 600, but with something more than a little special added all of its own, the stunning Speed Four proves that it is all in the mix. And this mix, with its raucous engine, surgically precise handling, jaw-dropping styling and outrageous lines, sets the Speed Four a class apart.

Completely redefining how a ‘naked’ 600cc machine should perform, the Speed Four is a highly specified motorcycle with a sophisticated 599cc, DOHC, sixteen-valve, liquid-cooled, four-cylinder engine.  Its cam profiles and EFI system are specifically designed to give a broad spread of mid-range torque and driveability. The slick six-speed gearbox allows maximum use of the engine’s output as does the Speed 4’s chassis.

The sweet-revving engine is housed in a sharp-handling aluminium frame, which blesses the Speed Four with razor-sharp and accurate steering plus plenty of ground clearance. Fully adjustable suspension front and rear provides a wide range of set-up options and up front a pair of massively powerful four-piston calipers clamp on 310mm floating discs. The rear wheel features a 220mm disc and lightweight single piston caliper.

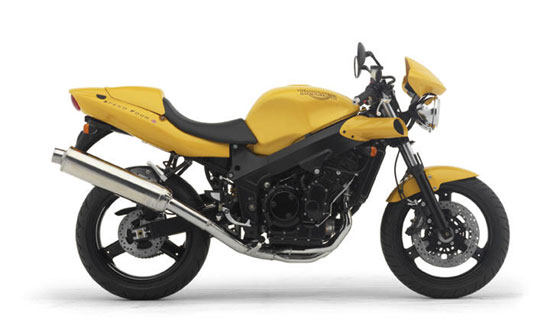

The Speed Four then, combines near supersports performance with a truly unique look and style. From its distinctive pair of chromed headlights and compact instrument cluster, nestling behind the saucy little fly screen, to the twin air scoops and tasteful satin black finish on the frame, engine and swingarm, the Speed Four stands out. A varied choice of paint options – from understated Jet Black to retina-popping Roulette Green – are joined in 2004 by gorgeous Racing Yellow.

Changes for 2004:

–  New vibrant Racing Yellow paint scheme.

Colour Options:

–  Jet Black

– Racing Yellow

– Roulette Green

2004 Triumph Speed Four Specifications:


Type Liquid-cooled, DOHC, in-line 4-cylinder
Capacity 599cc
Bore/Stroke 68 x 41.3mm
Compression Ratio 12.5:1
Fuel System Multipoint sequential electronic fuel injection with forced air induction
Ignition Digital – inductive type – via electronic engine management system

Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Gearbox 6-speed

Frame Aluminium beam perimeter
Swingarm Twin-sided, aluminium alloy
Wheels Front Alloy 3-spoke, 17 x 3.5in
Rear Alloy 3-spoke, 17 x 5.5in
Tyres Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front 43mm forks with dual rate springs and adjustable preload, compression and rebound damping
Rear Monoshock with adjustable preload, rebound and compression damping
Brakes Front Twin 310mm floating discs, 4 piston calipers
Rear Single 220mm disc, single piston caliper

Length 2060mm (81.1in)
Width (Handlebars) 690mm (27.2in)
Height 1150mm (45.3in)
Seat Height 810mm (31.9in)
Wheelbase 1395mm (54.9in)
Rake/Trail 24.6º/89.1mm
Weight (Dry) 170kg (374lb)
Fuel Tank Capacity 18 litres (4.7 gal US)

Maximum Power 98PS (97bhp) at 11,750 rpm
Maximum Torque 68Nm (50.5ft.lbf) at 10,500 rpm

Riders Association Triumph Membership Included

Specifications are subject to change without notice, in accordance with national regulation and legislations.
