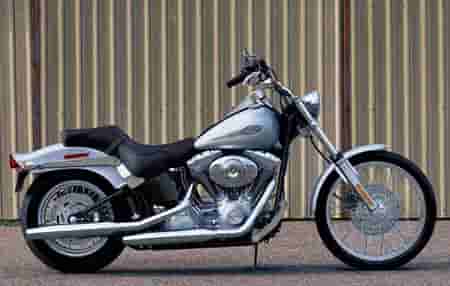

2005 Harley-Davidson Softail Standard FXST
Back to 2005 Harley-Davidson Motorcycle Index Page




– 2005 Harley-Davidson Softail Standard FXST

There’s only one place this motorcycle won’t go and that’s overboard. Keeping it simple is what this ride’s all about. And by the looks of things, simple is good. Within the clean lines of the Softail® frame lies a silver powder-coated, dual counterbalanced Twin Cam 88B™,TM in carb or EFI. The Standard also gets a raked FX fork, laced wheels, horseshoe oil tank and fat rear tire with bobtail fender. As with all members of the family, the hidden rear suspension keeps the ride as smooth as the looks. Truth be told, this is everything you need to hit the road—nothing more and nothing less. However, if you’re one who takes pleasure in adding on, taking up and chroming out, then go ahead and have at it. With Genuine Motor Parts and Accessories, you can turn your Standard into something that’s anything but.

——————————-
SPECIFICATIONS:

DIMENSIONS
Length 2413.0 mm

Seat Height

Laden(1) 662.9 mm

Unladen 718.8 mm

Ground Clearance 142.2 mm

Rake Steering Head/Trail 32.0º / 127.0 mm

Wheelbase 1699.3 mm

Fuel Capacity(2) 18.9 L

Oil Capacity 3.3 L

Weight

Dry Weight 286.0 kg

Running Order 305.0 kg

POWERTRAIN
Engine(3) Twin Cam 88B™

Displacement 1450 cm³

Bore x Stroke 95.18 mm x 101.52 mm

Engine Torque(4)(5) 115.0 nm @ 3000 rpm

Fuel System(6) Carburetor

Compression Ratio 8.9:1

Liters per 100 KM(7)

Carb. 4.7 hwy / 5.6 city

ESPFI N/A

Primary Drive Chain

Gear Ratio (overall)

1st 10.110

2nd 6.958

3rd 4.953

4th 3.862

5th 3.150

WHEELS/TIRES
Wheels(8)

Front Steel laced

Rear Steel laced

Tire Size

Front MH90-21 54H

Rear 150/80B16 71H

ELECTRICAL
Electronics Optional security system

Instruments Electronic speedometer; odometer; resettable tripmeter; diagnostic readout

Indicator Lamps Oil pressure; engine diagnostics

CHASSIS
Brakes (diameter x width)

Front 292.1 mm x 5.08 mm

Rear 292.1 mm x 5.84 mm

Lean Angle (per SAEJ1168) 34º / 31º

Exhaust System Staggered shorty duals

COLOR OPTIONS(9)
Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl


UNIQUE FEATURES
Silver powder-coated engine and covers; hardtail styling with hidden horizontal rear shocks; black horseshoe oil tank; bobtail fender; raked front fork


PRICING(10)
MSRP

Base See your dealer for pricing information.

See your dealer for pricing information.

Two-tone N/A

H-D® factory security system See your dealer for pricing information.

ESPFI N/A
