2006 Suzuki JR50
Back to 2006 Suzuki Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

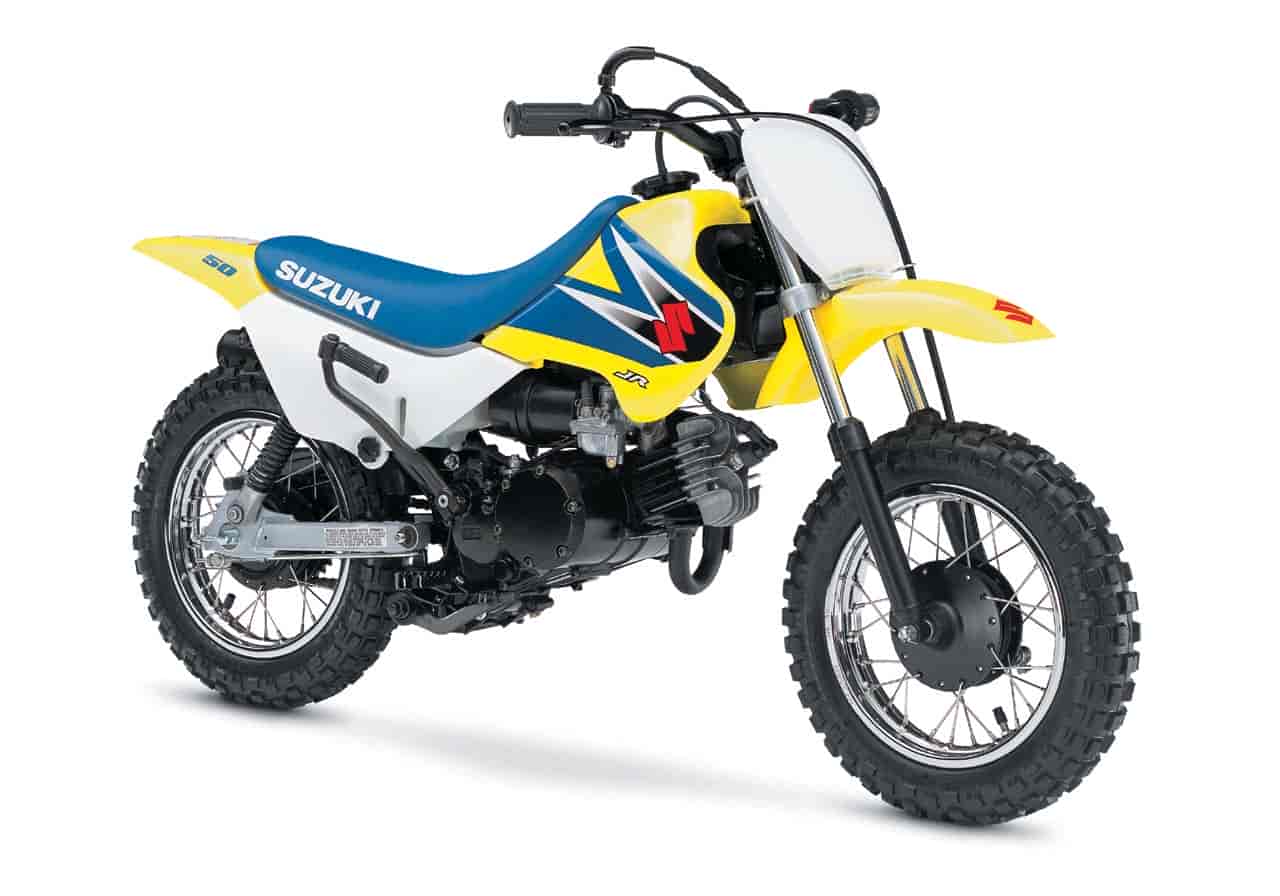

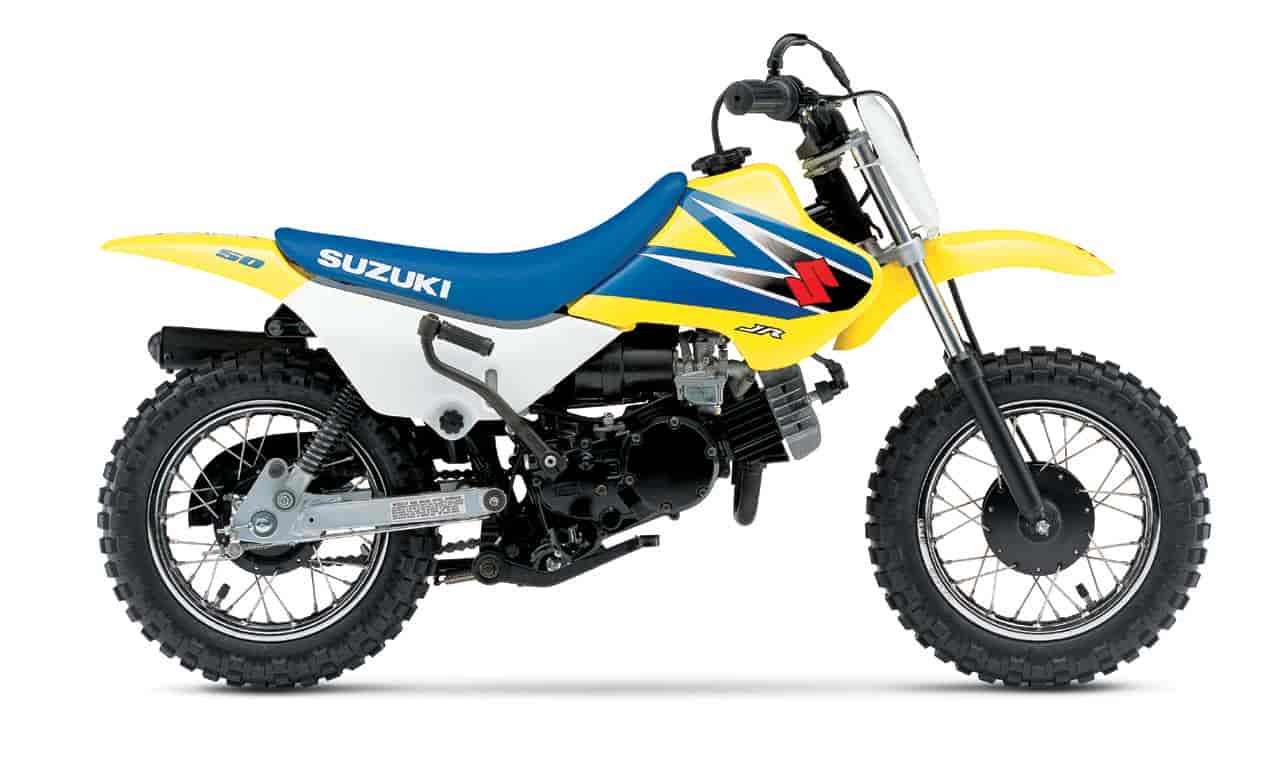

2006 Suzuki JR50

2006 Suzuki JR50



– 2006 Suzuki JR50

2006 Suzuki JR50

New Blue-colored seat similar to larger RM motocross models

KEY FEATURES:

The JR50 is designed with many features that make learning to ride a safe and fun experience
RM-inspired bodywork, seat, fuel tank and graphics – all designed to look like the larger RM models



CHASSIS FEATURES:

Telescopic front forks and twin shock rear suspension provide a comfortable ride for young riders

Full knobby tires for good off-road traction

Height adjustable suspension feature allows the seat height to be raised so the bike can grow with the rider

Motocross-style plastic fuel tank and frame covers

Motocross-style fenders and footpegs



ENGINE FEATURES:

Reliable, 49cc, two-stroke, single cylinder engine

Built-in throttle limiter system is perfect for training young riders

Automatic clutch and single speed transmission simplify operation while learning to ride

Suzuki CCI oil injection eliminates premixing of gas and oil. The system automatically injects the correct amount of 2-stroke oil

U.S. Forest Service approved spark arrester



SPECIFICATIONS

MSRP: $1,099.00

Engine: 49cc, air-cooled, two-stroke, single cylinder
Warranty: 6 month limited warranty.
Bore & Stroke: 41.0 x 37.8mm
Compression ratio: 5.6:1
Fuel System: Mikuni VM12
Lubrication: Oil injection
Ignition: CDI
Starter: Kick
Transmission: Single-speed, automatic clutch
Final Drive: #420 chain
Overall Length: 1245mm (49.0 in.)
Overall Width: 595 mm (23.4 in.)
Overall Height: 730 mm (28.7 in.)
Seat Height: 480 mm (18.9 in.)
Ground Clearance: 115 mm (4.5 in.)
Wheelbase: 860mm (33.9 in.)
Dry Weight: 38kg (84 lbs.)



Suspension:

FRONT: Telescopic, 2-way height adjustable
REAR: Twin shock, 2-way height adjustable
Brakes:
FRONT: Mechanical drum
REAR: Mechanical drum
Tires:
FRONT: 2.50-10-2pr
REAR: 2.50-10-2pr
Fuel Tank Capacity: 2.0 liter (0.53 gal.)
Color: Yellow
