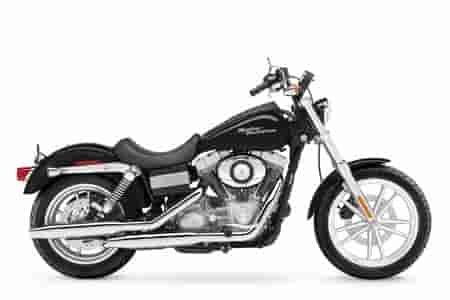

2007 Harley-Davidson FXD Dyna Super Glide

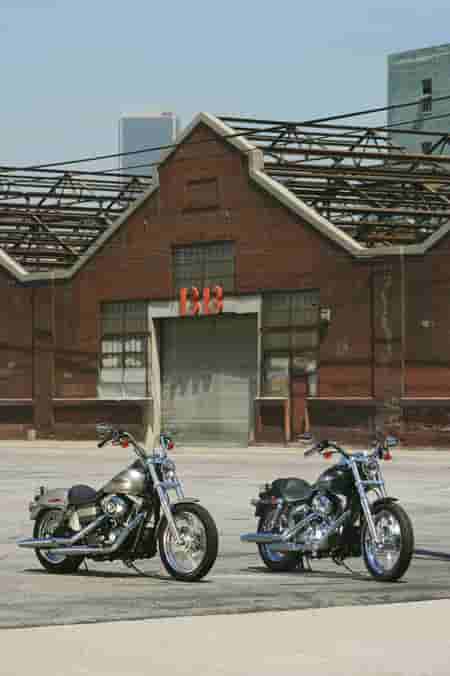

2007 Harley-Davidson Dyna Group Shot

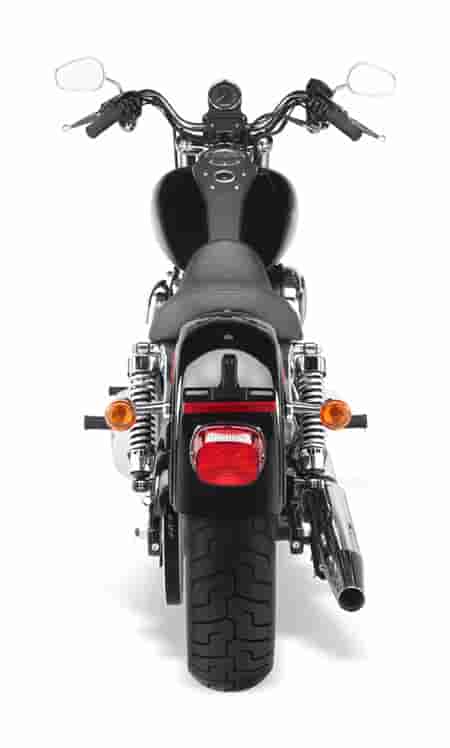

– 2007 Harley-Davidson FXD Dyna Super Glide

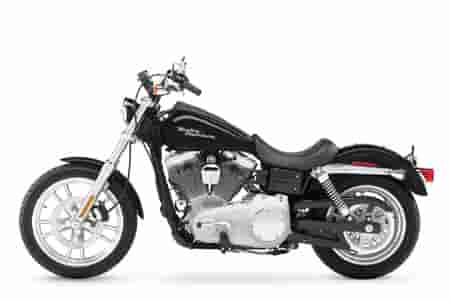

2007 Harley-Davidson FXD Dyna Super Glide

FXD Dyna™ Super Glide® Model Overview
The sporty performance of the FXD Dyna Super Glide gains ground for 2007 with the power boost of the new Twin Cam 96 powertrain added to the 6-speed Cruise Drive transmission and agile Dyna chassis design. As the most affordable Harley-Davidson Big Twin model, the Super Glide is ideal for creative customization. Key features include a wide 160mm rear tire, solo seat and Silver, 10-spoke Cast Aluminum wheels. The Super Glide is offered in four solid colors.

FXD Dyna Super Glide features:

New vibration-isolated Twin Cam 96 engine with ESPFI
Silver powder-coated engine and polished covers
Chrome, staggered shorty dual exhaust
6-speed Cruise Drive transmission
Enhanced clutch lever interlock operations
Redesigned gauges with clock, 6-speed indictor light and LED
49mm forks
29-degree fork angle/29-degree steering head angle
Wrap-around rear fender
160mm rear tire
Top-mounted speedometer
Low-rise handlebar
Silver, 10-spoke Cast Aluminum wheels
Solo seat
Fuel tank decal

SPECIFICATIONS:

Dimensions
Length 92.8 in. (2357.0 mm)
Overall Width 36.7 in. (931.0 mm)
Overall Height 46.8 in. (1189.0 mm)
Seat Height:
– Laden2
– Unladen
26.6 in. (675.6 mm)
27.6 in. (700.0 mm)
Ground Clearance 6.0 in. (153.0 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119.4 mm)
Wheelbase 64.2 in. (1630.0 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
– Front – D401F
– Rear – K591
100/90-19 57H
160/70B17 73V
Fuel Capacity 4.8 gal. (18.2 L)
(warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts. (.95 L)
Primary Chain Case
Capacity11
1.0 qts. (.95 L)
Weight:
– As Shipped
– In Running Order
– Gross Vehicle Weight
Rating
632 lbs. (287 kg)
663 lbs. (301 kg)
1085 lbs. (492 kg)

Engine
Engine Air-cooled, Twin Cam 96®
Valves Pushrod-operated, overhead valves
with hydraulic, self-adjusting lifters;
two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in.
(95.25 mm x 111.25 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive10 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-speed Cruise Drive™
Gear Ratios (overall):
– 1st
– 2nd
– 3rd
– 4th
– 5th
– 6th
U.S. HDI JPN
9.312 9.312 9.030
6.421 6.421 6.266
4.774 4.774 4.630
3.926 3.926 3.807
3.279 3.279 3.179
2.790 2.790 2.706

Chassis
Frame Mild steel, tubular frame; rectangular
section backbone; stamped, cast, and
forged junctions; forged fender supports;
MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Forks 49 mm with polished aluminum fork triple
clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Silver, 10-spoke Cast Aluminum
– Front
– Rear
19 in. x 2.5 in. (482.6 mm x 63.5 mm)
17 in. x 4.5 in. (431.8 mm x 114.3 mm)
Brakes:
– Caliper Type
– Rotor Type
(diameter x width):
– Front (floating)
– Rear
4-piston front and rear
Patented, uniform expansion rotors
11.8 in. x .20 in. (300.0 mm x 5.08 mm)
11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
– Front Wheel
– Rear Wheel
5.0 in. (127.0 mm)
4.1 in. (104.1 mm)

Performance
Engine Torque (per SAE J1349)5:
– North America 92 ft. lbs. @ 3000 rpm
(124.7 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
– Right
– Left
32°
34°
Fuel Economy9
(EPA urban/highway test)
34/53 mpg (6.92/4.4 L/100 km)

Electric
Battery (per Battery Council
International Rating)
Sealed, maintenance-free, 12V,
19-amp/hour, 270 cca
Charging Three-phase, 40-amp system
(493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement
Lights (as per country regulation):
– Headlamp
(quartz halogen)
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, directional light bar, neutral,
low oil pressure, engine diagnostics,
turn signals, security system6 (optional),
6-speed, low fuel warnings
Electric Power Outlet Standard

Styling / Convenience
Engine Trim Silver powder-coated with
polished treatment
Exhaust System Chrome, staggered shorty duals
Oil Tank Under transmission
Fenders and Supports Front: sport style with painted brace;
Rear: sport wrap-around with stainless
steel polished finish supports
Foot Supports
and Controls
Mid-mounted rider footpegs with brake
and shift levers; no passenger footpegs
Handlebars Stainless steel, low-rise
Seat Solo
Instruments Electronic speedometer (handlebar-mounted)
with odometer, time-of-day clock on
odometer, resettable tripmeter, fuel gauge
with low fuel warning light, low oil pressure
indicator light, diagnostics readout, LED
lights, 6-speed indicator light
Fork Lock Barrel key on steering head; common
with ignition key
Hazard Warning Integrated into turn signal controls
Smart Security System Optional, next-generation hands-free
security fob; operates based on proximity
to vehicle

Colors12
Vivid Black, Fire Red Pearl, Pacific Blue Pearl (new), Pewter Pearl (new)

Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter8

1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary by country
and region depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883 models).
Standard and optional fuel systems may vary by country and region.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
8 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals.
9 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending on
your personal riding habits, weather conditions, trip length, vehicle condition and vehicle
configuration, and other conditions. Break-in mileage may vary.
10 U.S. and HDI markets except Japan: Belt 32/64 ratio.
11 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
12 Availability may vary from dealer to dealer, and is subject to change without notice.
