2000 Honda VT750C3 Shadow ACE
Back to 2000 Honda Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

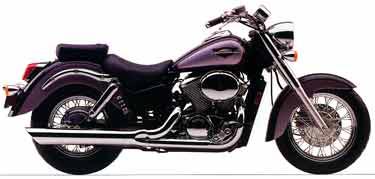

2000 Honda VT750C3 Shadow ACE
2000 Honda VT750C3 Shadow ACE

2000 Honda VT750C3 Shadow ACE
2000 Honda VT750C3 Shadow ACE



– 2000 Honda VT750C3 Shadow ACE

Honda’s 2000 Shadow ACE 750 and Shadow ACE 750 Deluxe offer incredible comfort and style in an affordable, easy-to-handle package.


Features & Benefits

New for 2000
· New two-tone Black/Pearl Silver and Black/Red join classic Black on the Shadow ACE 750 Deluxe.

Exclusive Shadow ACE 750 Deluxe Features
· Chrome front fork covers.
· Chrome sidestand.
· Buffed aluminum front brake master cylinder.
· Chrome brake and clutch lever brackets.
· Chrome rear brake pedal.
· Chrome shift lever.
· Chrome footpeg brackets.
· Chrome chain guard.
· Chrome swingarm pivot cap.
· Chrome left and right engine sidecovers.
· Chrome cylinder head cover.
· Black treatment of engine center cases and cylinders with polished treatment on cylinder fins.

Engine
· 745cc liquid-cooled V-twin engine produces impressive power over a broad rpm-range.
· Long-stroke design combines with high-mass ACG and crankshaft to give strong V-twin feel and low-rpm torque peak.
· Dual 36mm Constant Velocity (CV) carburetors offer crisp throttle response.
· Three-valve cylinder head design utilizes two spark plugs per cylinder for excellent combustion efficiency and high power output.
· Finned cylinders enhance appearance.
· Aluminum radiator maintains consistent engine temperature for optimum performance and long engine life.
· Wide-ratio five-speed transmission.
· Reliable electric starting system.
· Solid-state ignition with electronic advance offers dependability and is maintenance-free.
· Air-injection system reduces emissions by injecting air into the exhaust ports to ensure complete combustion.
· Sleek two-into-one exhaust system encloses two fully independent pipe and silencer sets in a single, long, large-diameter case.

Chassis/Suspension
· Innovative frame design features large, rectangular-section steel tube backbone reaching back from massive cast steering head to rear of the engine case for simplicity and strength.
· Frame features forged pivot-plate castings, rigid engine mounting and large, rectangular-section swingarm.
· Sturdy and responsive 41mm front fork features large-diameter chromed steel shrouds and large billet-aluminum triple-clamp for a distinctive retro look. Delivers confident, neutral handling control and plush, 5.1-inch wheel travel.
· Large, 4mm-thick fork brace mounted under fender enhances rigidity.
· Dual-shock rear suspension features five-position preload adjustability and eye-catching chrome covers, while offering 3.5 inches of wheel travel for a smooth, well-controlled ride.
· Large-section tires mounted on traditional spoked wheels with wide chromed rims. Front-end features a fat, 120/90-17 tire that provides a wide footprint and matches the substantial style of the machine.
· Single 296mm front disc brake with twin-piston caliper grips drilled rotor between sintered metal pads. Rear brake features a 180mm drum.
· Durable O-ring-sealed drive chain.

Additional Features
· Broad, low-slung solo seat with quickly detachable passenger seat.
· Large-diameter handlebar is positioned low and wide for a comfortable feel, and is mounted on rubber-cushioned risers to reduce vibration.
· Long, stretched-design 3.7-gallon fuel tank.
· Brilliant, 170mm 60/55-watt halogen headlight.
· Electronic speedometer with elegant white-face design includes indicator lights and tripmeter/odometer display.
· Large custom-styled taillight like that used on the Valkyrie, and attractive bullet-shaped turn indicators.
· Chrome air cleaner cover.
· Solid aluminum footpegs with wide rubber trim bands project a custom-made look.
· Steering-head lock for added security when parked.
· Transferable one-year unlimited-mileage limited warranty.

Available Accessories
· Cruiser windshield.
· Radiator cover.
· Backrest.
· Rear carrier.
· Cycle cover.



Specifications:

Engine
745cc liquid-cooled, 52-degree, V-twin, single pin crank

Bore and Stroke
79mm x 76mm

Compression Ratio
9.0:1

Valve Train
SOHC; three valves per cylinder

Carburetion
Two 36mm diaphragm-type CV

Transmission
Wide-ratio five-speed

Final Drive
O-ring-sealed chain

Front Suspension
41mm fork; 140mm travel

Rear Suspension
Dual shocks with five-position spring preload adjustability; 90mm travel

Front Brakes
Single 296mm disc with twin-piston caliper

Rear Brakes
Drum

Front Tires
120/90-17

Rear Tires
170/80-15

Wheelbase
1618mm (63.6 in.)

Seat Height
700mm (27.6 in.)

Dry Weight
229 kg (504.9 lbs.)

Fuel Capacity
14 litres (3.2 Imp. gal.)

Specifications are subject to change without notice, in accordance with national regulation and legislations.
