2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

You are here: Home2009 Models — 2009 Harley-Davidson Motorcycle Models

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
Back to 2009 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

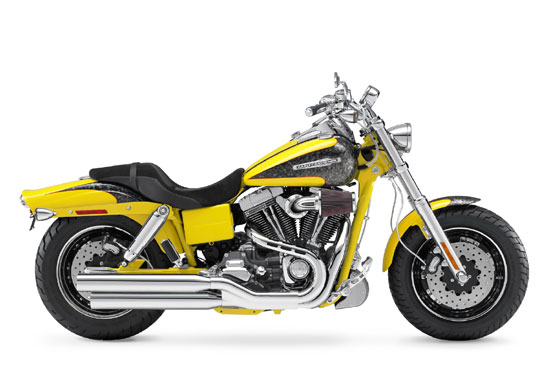

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

– 2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob

Projecting pro-street presence, the new Harley-Davidson Custom Vehicle Operations (CVO) Fat Bob rolls with a high-performance rumble and the flash of custom chrome. From its beefy front tire to its twisted Tommy Gun exhaust to the arrogant flip of its Bobtail rear fender, the 2009 CVO Fat Bob will stake its claim to a wide stretch of asphalt.

The CVO Fat Bob is a limited-production motorcycle created by the Harley-Davidson CVO group, and based on the Harley-Davidson Dyna Fat Bob. Approximately 2,450 examples of the 2009 CVO Fat Bob will be produced by a team of highly skilled technicians in a special assembly area at the Harley-Davidson Kansas City Vehicle Operations facility. The suggested U.S. retail price for the 2009 CVO Fat Bob is $25,299 ($25,499 in California).

With a chunky 130 mm front tire and dual headlamps framed in thick, 49 mm fork legs, the original Fat Bob took Dyna styling in a new direction when it first appeared in 2008. For 2009, the CVO group gives the Fat Bob the CVO treatment – bold paint, brilliant chrome and a monster motor – to create a premium custom motorcycle loaded with exclusive features.

New 16-inch Fang wheels debut on the CVO Fat Bob. These cast-aluminum wheels feature a black powdercoated slotted center that contrasts with a chrome rim flange with bolt-on “fang” inserts clawing over each slot. The brake discs and sprockets are styled to complement the wheels. The front wheel carries a 130 mm tire with a distinctive, blocky tread pattern. On the rear is a 180 mm tire. Premium suspension includes lowered front forks and chromed rear shocks that have been re-tuned for enhanced ride comfort.

Chromed from the axle covers to the triple clamps, the front end of the CVO Fat Bob is topped with a chrome pull-back riser, chrome 1.25-inch-diameter internally-wired handlebar, and chrome switch housing, hand levers, and clutch and brake master cylinders. Hand grips, forward-mounted footpegs, shifter peg and brake pedal pad are from the Ironside Collection. A new two-piece tank console is finished in chrome and then is color-matched with a special CVO medallion.

CVO debuts another new material on this motorcycle’s saddle, which features a seating surface covered in Alcantara, a high-tech engineered material that looks and feels like soft, natural suede but exceeds Harley-Davidson standards for durability and comfort. The remainder of the seat is smooth black leather, and it’s finished with a recessed chrome Harley-Davidson medallion. The seat rests over a wide Bobtail rear fender that holds a smoked LED tri-bar tail/brake light with a chrome slotted cover for a sinister look in the back.

Below the distinctive Fat Bob fuel tank that gives this model its name rests the largest engine produced by Harley-Davidson, the Screamin’ Eagle Twin Cam 110. Available only on CVO models, the Electronic Sequential Port Fuel Injection (ESPFI) Twin Cam 110 produces 114 ft. lbs. of torque at 3500 rpm and features a heavy-duty, self-adjusting clutch with hydraulic actuation and the 6-speed Cruise Drive transmission. The Heavy Breather intake with exposed high-flow conical filter features a special chrome end cap, a “110 SE” emblem and a sculpted trim ring. The CVO Fat Bob-exclusive Tommy Gun 2-1-2 exhaust snakes around the engine before exiting through chrome blunt-cut mufflers. The header pipes, which are exposed through the exhaust shield slots, are finished with a black coating. The powertrain is finished in CVO-exclusive granite powdercoat with chrome covers, and features new a “110 Cubic Inch” badge on the chrome billet derby cover.

The CVO Fat Bob is available in three color combinations: Sunrise Yellow Pearl with Platinum Quartz, Black Diamond with Fire Quartz, and Denim Granite with Electric Blue Fade, CVO’s first ever combination of matte and gloss paint finishes. In each case, the frame, swingarm, battery cover, electrical panel cover and coil cover are color-matched to the main bodywork color. A security system with smart siren, a CVO indoor cover and unique Harley-Davidson CVO gold ignition key with display keepsake box are included.



There is simply no better way to cover big miles and ride great country roads than aboard the 2009 Custom Vehicle Operations (CVO) Ultra Classic Electra Glide from Harley-Davidson.

The CVO Ultra Classic Electra Glide melds custom paint, a potent powertrain and a well-chosen array of top line Harley-Davidson Genuine Motor Accessories to the all-new 2009 Harley-Davidson Touring chassis. The result is perhaps the most exciting touring motorcycle ever to roll over the horizon.

The skeletal structure of the CVO Ultra is all new from the front wheel to the wide rear tire. This new Touring line has a modular frame for enhanced maneuverability, a new 180 mm rear tire with a higher weight rating, a new 2-into-1-into-2 exhaust system and other enhancements that set a foundation for the next generation of Harley-Davidson Touring motorcycles. The CVO Ultra is powered by the CVO-exclusive granite coated Screamin’ Eagle Twin Cam 110-cid (1800 cc) engine, the largest displacement production engine offered by Harley-Davidson, producing 113 ft. lbs. of torque at 3750 rpm, as well as the smooth shifting 6-speed Cruise Drive transmission.

As part of a most discerning and well-traveled group of motorcyclists, CVO Ultra riders will enjoy extra amenities for 2009 such as a Tour-Pak mounting rack with increased carrying capacity, mid-frame air deflectors, and lighting and electrical updates that include shorter antennas. These features complement and preserve the commanding Ultra design along with mechanical features like Electronic Sequential Port Fuel Injection (ESPFI), six-gallon fuel tank, Brembo brakes and Anti-lock Braking System (ABS).

While ABS is designed to help maintain control during emergency stopping situations, especially those that happen in less than ideal conditions, the CVO Ultra also features Brembo front and rear brakes for maximum performance, feel and look.

The 2009 CVO Ultra rides on new Roulette wheels with a 180 mm, 16-inch rear tire and 130 mm, 17-inch front tire. For that extra comfort, there is the new suspended, dual-heated seat with shark print leather inserts. Newly styled foot controls and heated hand grips are called by the name Rumble Collection, which includes windshield trim, mirrors and saddlebag latches.

Other new components on the 2009 CVO Ultra include a matching rider and passenger backrest, Tour-Pak inserts, CB pod inserts, chrome push-button fuel door with CVO logo, smooth air cleaner cover, Screamin’ Eagle 110 air cleaner cover insert, two-inch backlit gauges, braided stainless steel clutch and brake lines, custom oil cooler with chrome cover and the Air Wing Tour-Pak luggage rack.

The Harley-Davidson CVO program creates limited-production, exclusive motorcycles produced by teams of technicians in a special assembly area at the Harley-Davidson plants in York, Pa., and Kansas City. Approximately 4,200 examples of the 2009 CVO Ultra will be assembled at the York Vehicle Operations facility. The suggested U.S. retail price for the 2009 CVO Ultra is $35,499 ($35,699 in California).

Based on the Harley-Davidson Ultra Classic Electra Glide, the CVO Ultra offers premium amenities from that model such as a 160-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman-Kardon, CB and intercom, and passenger audio with controls, cruise control, plus standard XM Radio and integrated navigation system. The bike is also protected by the Harley-Davidson Smart Security System with Smart Siren.

CVO Ultra features also include a power-locked saddlebags and Tour-Pak locking system with integrated key fob activation, internally wired handlebar with Electronic Throttle Control, oil filter mount with internal thermostat and chrome voltage regulator. The CVO Ultra rides on the Touring-exclusive air-adjustable rear suspension. Instruments with spun-aluminum metal faces are mounted below a custom black-leather inner fairing pad with chrome trim.

The CVO Ultra will be offered in three exclusive color combinations: Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics and Stardust Silver and Twilight Blue with Forge-tone graphics. The vented lower fairings and inner fairing and switch panel are color-matched to the selected paint scheme. An indoor storage cover with CVO logo and a unique Harley-Davidson CVO key in a presentation box are also included.



Features of the 2009 CVO Fat Bob include:

Rubber-mounted, air-cooled, Screamin’ Eagle Twin Cam 110 engine with granite and chrome finish
Electronic Sequential Port Fuel Injection (ESPFI)
6-Speed Cruise Drive transmission
High performance clutch with hydraulic actuation
Powdercoat and chrome cast Fang wheels with bolt-in inserts
Leather seat with Alcantara accents
Two-piece fuel tank console with chrome and color-matched finish
Premium suspension tuning
Two paint options with quartz graphics:
Sunrise Yellow Pearl with Platinum Quartz
Black Diamond with Fire Quartz
One paint option with the first-ever CVO combination of denim and gloss:
Denim Granite with Electric Blue Fade
Denim granite custom chin spoiler with chrome sideplates
Chrome dual headlamp housing with chrome trim ring and headlight mount
Tri-Bar LED tail light and chrome slotted tail light cover
Color matched frame, swingarm, electrical box cover, battery cover and coil cover, fender support covers and console cover.
Chrome front and rear axle nut covers
Chrome clutch line clamp
Chrome rear shocks with adjustable preload
Chrome upper shock stud covers
Profile custom mirrors with solid stem
Black solid floating brake rotors
Slotted chrome sprocket
Chrome wheel spacers
Chrome triple clamps
Chrome lowered fork sliders and dust covers
Chrome fork nut covers
Chrome valve stem caps
Chrome voltage regulator
Chrome derby cover and timer cover
Chrome transmission side cover
Chrome dipstick
Chrome exhaust bracket
Slotted chrome belt guard
Diamondback cables and lines
Black high-torque 1.4kw starter
Black header pipes
Blunt-cut mufflers
Screamin’ Eagle SYN3 synthetic motorcycle lubricant in engine, transmission and primary case
130 mm D427F front tire with “Big Block” tread pattern
180 mm D427 rear tire with “Big Block” tread pattern
Chrome handlebar clamp with integrated tachometer mount
Chrome 1.25-inch diameter handlebar with internal wiring
Chrome one-piece riser
Chrome hand levers and switch housings
Chrome forward controls
Chrome billet style shift lever and rear brake lever
Chrome rider and passenger footpeg supports
Chrome rear brake rod
Spun-aluminum metal-faced speedometer and tachometer
Ironside Collection:
Footpegs
Shifter peg
Brake pedal pad
Hand grips
Polished stainless steel shift linkage
Bullet style front and rear turn signals with smoked lenses
Unique Harley-Davidson CVO gold ignition key with keepsake box
Indoor storage cover with embroidered CVO logo




Key CVO Features

The pride and passion that define Harley-Davidson and its riders are prominent in the Motor Company’s Custom Vehicle Operations (CVO) line of motorcycles. As the upper echelon of the motorcycle world, CVO models are hand-built with detailed craftsmanship and stand as the most desirable custom motorcycles available.

The 2009 model year marks the 10th anniversary of the Harley-Davidson CVO program. An effort that began a decade ago as a response to rider requests for factory custom motorcycles has evolved into the top class of its industry, proving that production is really the only limit when it comes to making Harley-Davidson CVO motorcycles.

“Features like bigger engines, exclusive accessories and custom paint and colors, combined with limited production quantities make the Harley-Davidson CVO motorcycles truly unique and inspirational,” said Matt Levatich, Harley-Davidson Vice President and General Manager, Parts & Accessories and CVO. “The CVO bikes were introduced to meet customer desires and they have fulfilled our riders’ ultimate dreams with miles of memories and great riding for a decade. We expect the unique CVO experience to continue for years to come.”

The Harley-Davidson CVO line for 2009 includes the following four models:

CVO Fat Bob
CVO Road Glide
CVO Softail Springer
CVO Ultra Classic Electra Glide

The Fat Bob is a first-time CVO offering, while the Road Glide, Softail Springer and Ultra Classic Electra Glide all enjoy a storied history with the program. The CVO bikes are based on Harley-Davidson factory models, but are then taken to a new level of customization with an abundance of Harley-Davidson Genuine Motor Accessories. (Please see separate press releases on each model for more detail)

Highlights of the 2009 Harley-Davidson CVO motorcycles include a Screamin’ Eagle Twin Cam 110 engine (1800 cc) finished in granite powdercoat on all models, integrated stop/turn/tail lights on the Road Glide rear section, new Fang cast wheels on the CVO Fat Bob, 240 mm wide rear tire and unique frame and oil tank on the Springer, and Roulette wheels and new 180 mm wide rear tire on the CVO Ultra Classic Electra Glide.

The launch of the CVO program began with the 1999 FXR2 and FXR3 models, and was so well-received that it was followed in 2000 by the FXR4. Also in 2000, the first edition of the FLTRSEI Road Glide was introduced, combining the latest touring design and Screamin’ Eagle performance parts. While initial annual production of CVO models was limited to about 900 units per model, output has increased to current ranges of between 2,450 and 4,200 units for each model.

What followed during the last decade was a series of some of very memorable motorcycles, including CVO variations on the Dyna Wide Glide, Road King, Softail Deuce, Fat Boy and Electra Glide. In addition, the CVO program boasted the 2005 Screamin’ Eagle V-Rod with its 60-degree, 1250 cc liquid cooled V-Twin engine and the 2006 Screamin’ Eagle Destroyer, designed specifically for drag racing with a 1300cc Screamin’ Eagle Revolution powertrain.

The Harley-Davidson CVO group consists of a select group of engineers, designers and supply management staff, who work together with Harley-Davidson Styling to create these limited-production, custom motorcycles. The CVO models are then produced by highly skilled technicians in special assembly areas at the Harley-Davidson plants in York, Pa., and Kansas City.



ALSO AVAILABLE
2009 Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide
2009 Harley-Davidson FLTRSE3 CVO Road Glide
2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley-Davidson FXSTSSE3 CVO Softail Springer



2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob – USA Specifications
* MSRP starting at $ 25,299

DIMENSIONS U.S. UNITS
Length 91.02 in.
Seat Height
Laden 1 25.20 in.
Unladen 26.90 in.
Ground Clearance 4.33 in.
Rake Steering Head/Trail 29° / 5.53 in.
Wheelbase 63.66 in.
Track Width N/A
Fuel Capacity 5.00 gal.
Oil Capacity 3.00 qt.
Weight
Dry Weight 701.00 lbs.
Running Order 728.00 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 110™
Displacement 110.00 cu. in.
Bore x Stroke 4.000 in. / 4.380 in.
Engine Torque 3 155.58 Nm / 114.00 ft lbs @ 3500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.15:1
Miles per Gallon 5
ESPFI 53.00 hwy / 36.00 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.312
2nd 6.421
3rd 4.774
4th 3.926
5th 3.279
6th 2.79

WHEELS/TIRES
Wheels 6
Front Powder Coated and Chrome Plated “Fang” Wheels
Rear Powder Coated and Chrome Plated “Fang” Wheels
Wheel Option N/A
Tire Size
Front D427F 130/90B16
Rear D427 180/70B16

ELECTRICAL
Indicator Lamps 7 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 6-speed, low fuel warnings
Reverse Function N/A

CHASSIS
Brakes 4-piston fixed front, and 2-piston floating rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 34° / 30°
Exhaust System Chrome, 2-1-2 collector exhaust w/ dual mufflers

COLOR OPTIONS
Sunrise Yellow Pearl w/ Platinum Quartz; Black Diamond w/ Fire Quartz; Denim Granite w/ Electric Blue Fade

PRICING 8
MSRP
Black $ N/A
Color $ N/A
Two-Tone $25,299
Custom Color $ N/A
Security Standard
Wheel Option $ N/A
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
California Emissions $200
Freight $375


1 Measurement reflects 180 lb./81.7 kg operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.
All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.





2009 Harley-Davidson FXDFSE CVO Dyna Fat Bob – Canada Specifications
* MSRP starting at $ 27,859

DIMENSIONS METRIC UNITS
Length 2311.91 mm
Seat Height
Laden 1 640.08 mm
Unladen 683.26 mm
Ground Clearance 109.98 mm
Rake Steering Head/Trail 29º / 140.46 mm
Wheelbase 1616.96
Track Width N/A
Fuel Capacity 18.93 L
Oil Capacity 2.84 L
Weight
Dry Weight 317.97 kg
Running Order 330.22 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 110™
Displacement 1802.58 cm³
Bore x Stroke 101.60 mm x 111.25 mm
Engine Torque 3 154.58 Nm / 114.00 ft lbs @ 3500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.15:1
Liters per 100 KM
ESPFI 4.44 L/100km (hwy) / 6.53 L/100km (city)
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.312
2nd 6.421
3rd 4.774
4th 3.926
5th 3.279
6th 2.79

WHEELS/TIRES
Wheels 5
Front Powder Coated and Chrome Plated “Fang” Wheels
Rear Powder Coated and Chrome Plated “Fang” Wheels
Wheel Option N/A
Tire Size
Front D427F 130/90B16
Rear D427 180/70B16

ELECTRICAL
Indicator Lamps 6 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 6-speed, low fuel warnings
Reverse Function N/A

CHASSIS
Brakes 4-piston fixed front, and 2-piston floating rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 34° / 30°
Exhaust System Chrome, 2-1-2 collector exhaust w/ dual mufflers

COLOR OPTIONS
Sunrise Yellow Pearl w/ Platinum Quartz; Black Diamond w/ Fire Quartz; Denim Granite w/ Electric Blue Fade, Electric Orange and Black Slate

PRICING 7
MSRP
Black $ N/A
Color $ N/A
Two-Tone $27,859
Custom Color $ N/A
Security Standard
Wheel Option $ N/A
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
Freight $ N/A


1 Measurement reflects 180 lb./81.7 kg operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Standard and optional wheels may vary by country and region.
6 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
7 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.
All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.

Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.

All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.







Media/Press Releases (2)

2009 HARLEY-DAVIDSON CVO ULTRA TOURS IT UP
New Frame Design, Wide Rear Tire and Added Accessories Stoke the CVO Touring Flame

MILWAUKEE (July 22, 2008) – There is simply no better way to cover big miles and ride great country roads than aboard the 2009 Custom Vehicle Operations (CVO) Ultra Classic Electra Glide from Harley-Davidson.

The CVO Ultra Classic Electra Glide melds custom paint, a potent powertrain and a well-chosen array of top line Harley-Davidson Genuine Motor Accessories to the all-new 2009 Harley-Davidson Touring chassis. The result is perhaps the most exciting touring motorcycle ever to roll over the horizon.

The skeletal structure of the CVO Ultra is all new from the front wheel to the wide rear tire. This new Touring line has a modular frame for enhanced maneuverability, a new 180 mm rear tire with a higher weight rating, a new 2-into-1-into-2 exhaust system and other enhancements that set a foundation for the next generation of Harley-Davidson Touring motorcycles. The CVO Ultra is powered by the CVO-exclusive granite coated Screamin’ Eagle Twin Cam 110-cid (1800 cc) engine, the largest displacement production engine offered by Harley-Davidson, producing 113 ft. lbs. of torque at 3750 rpm, as well as the smooth shifting 6-speed Cruise Drive transmission.

As part of a most discerning and well-traveled group of motorcyclists, CVO Ultra riders will enjoy extra amenities for 2009 such as a Tour-Pak mounting rack with increased carrying capacity, mid-frame air deflectors, and lighting and electrical updates that include shorter antennas. These features complement and preserve the commanding Ultra design along with mechanical features like Electronic Sequential Port Fuel Injection (ESPFI), six-gallon fuel tank, Brembo brakes and Anti-lock Braking System (ABS).

While ABS is designed to help maintain control during emergency stopping situations, especially those that happen in less than ideal conditions, the CVO Ultra also features Brembo front and rear brakes for maximum performance, feel and look.

The 2009 CVO Ultra rides on new Roulette wheels with a 180 mm, 16-inch rear tire and 130 mm, 17-inch front tire. For that extra comfort, there is the new suspended, dual-heated seat with shark print leather inserts. Newly styled foot controls and heated hand grips are called by the name Rumble Collection, which includes windshield trim, mirrors and saddlebag latches.

Other new components on the 2009 CVO Ultra include a matching rider and passenger backrest, Tour-Pak inserts, CB pod inserts, chrome push-button fuel door with CVO logo, smooth air cleaner cover, Screamin’ Eagle 110 air cleaner cover insert, two-inch backlit gauges, braided stainless steel clutch and brake lines, custom oil cooler with chrome cover and the Air Wing Tour-Pak luggage rack.

The Harley-Davidson CVO program creates limited-production, exclusive motorcycles produced by teams of technicians in a special assembly area at the Harley-Davidson plants in York, Pa., and Kansas City. Approximately 4,200 examples of the 2009 CVO Ultra will be assembled at the York Vehicle Operations facility. The suggested U.S. retail price for the 2009 CVO Ultra is $35,499 ($35,699 in California).

Based on the Harley-Davidson Ultra Classic Electra Glide, the CVO Ultra offers premium amenities from that model such as a 160-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman-Kardon, CB and intercom, and passenger audio with controls, cruise control, plus standard XM Radio and integrated navigation system. The bike is also protected by the Harley-Davidson Smart Security System with Smart Siren.

CVO Ultra features also include a power-locked saddlebags and Tour-Pak locking system with integrated key fob activation, internally wired handlebar with Electronic Throttle Control, oil filter mount with internal thermostat and chrome voltage regulator. The CVO Ultra rides on the Touring-exclusive air-adjustable rear suspension. Instruments with spun-aluminum metal faces are mounted below a custom black-leather inner fairing pad with chrome trim.

The CVO Ultra will be offered in three exclusive color combinations: Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics and Stardust Silver and Twilight Blue with Forge-tone graphics. The vented lower fairings and inner fairing and switch panel are color-matched to the selected paint scheme. An indoor storage cover with CVO logo and a unique Harley-Davidson CVO key in a presentation box are also included.

Features of the 2009 CVO Ultra Classic Electra Glide include:

Rubber-mounted, air-cooled, Screamin’ Eagle Twin Cam 110 engine with granite and chrome finish
Electronic Sequential Port Fuel Injection (ESPFI)
6-Speed Cruise Drive transmission
Deluxe Ultra King Tour-Pak with Air Wing luggage rack, increased load capacity, new inserts, map pocket, plush liners, LED interior light and color-matched wrap-around lights
Internally-wired one-inch chrome handlebar with electronic throttle control
New chrome four-inch mufflers with chrome billet end caps
New CB pod insert
New chrome push button fuel door with CVO logo
New smooth air cleaner cover with Screamin’ Eagle 110 insert
New Roulette wheels
New braided stainless steel front brake and clutch lines
New suspended dual control heated seat with passenger backrest and complementary adjustable rider backrest with shark print leather inserts
Chrome Touring exhaust shields
Standard Anti-lock Braking System
Brembo front and rear brakes
Six-gallon fuel tank
New Paint:
Ruby Red and Typhoon Maroon with Forge-tone graphics
Autumn Haze and High Octane Orange with Forge-tone graphics
Stardust Silver and Twilight Blue with Forge-tone graphics
Color-matched vented fairing lowers with plush lined storage compartments, painted inner fairing, switch panel and saddlebag filler strips, and custom leather chrome accentuated dashpad
40 watt per channel Advanced Audio System by Harman/Kardon with CD/AM/FM/XM/WB radio receiver, CB/Intercom, amplifier, navigation system and front and rear speakers
Chrome voltage regulator
Chrome billet timer cover
Chrome front axle covers
Chrome fork sliders and chrome upper fork covers
Chrome lower triple tree cover
Chrome custom passing lamp brackets with bullet-style front turn signal
Chrome clutch and brake master cylinders
Chrome switch housings and hand levers
Chrome extended-reach billet brake lever
Chrome billet heel/toe shift levers
Chrome rider footboard supports and adjustable passenger footboard supports
Chrome valve stem cover caps
Chrome front wheel bearing spacers
Tear drop front custom floating brake rotors
Screamin’ Eagle SYN3 Synthetic lubricant
Black high-torque 1.4 kW starter
High-performance clutch with hydraulic actuation
Oil cooler with chrome cover
Front brake calipers with CVO inserts
Bullet style rear turn signals mounted on chrome hooded turn signal bar
Smoked turn signal lenses with amber bulbs
Electra Glide lightly smoked low windshield
Adjustable fairing-mounted air deflectors
Spun aluminum metal-faced speedometer, tachometer and new two-inch auxiliary gauges with backlighting
Cruise control
Polished stainless steel hex shift linkage
Stealth Collection rider and passenger footboard pans
Rumble Collection:
Rider and passenger footboard inserts
Heated grips and grip end caps
Brake pedal pad
Shifter pegs
Highway pegs with chrome billet engine guard mounting
Saddlebag latch covers
Mirrors
Windshield trim
Integral garage door opener and receiver
Saddlebags and Tour-Pak power locking system with integrated key fob activation
Carryout saddlebag and Tour-Pak liners
Saddlebag plush liners
Harley-Davidson Smart Security System
Indoor storage cover with embroidered CVO logo
Unique Harley-Davidson CVO gold key with box
For additional information on Harley-Davidson Genuine Motor Parts and Genuine Motor Accessories see your local Harley-Davidson dealer or visit the Harley-Davidson Web site at www.harley-davidson.com. To find a dealer near you, call toll free 1-800-443-2153 in the U.S.A. or Canada.

Harley-Davidson Motor Company, the only major U.S.-based motorcycle manufacturer, produces heavyweight motorcycles and a complete line of motorcycle parts, accessories and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.



Media/Press Release

ROAD GLIDE, FAT BOB LEAD CUSTOM VEHICLE OPERATIONS LINE FOR 2009
Harley-Davidson Premium Custom Motorcycles Celebrate 10th Anniversary

MILWAUKEE (July 22, 2008) – The pride and passion that define Harley-Davidson and its riders are prominent in the Motor Company’s Custom Vehicle Operations (CVO) line of motorcycles. As the upper echelon of the motorcycle world, CVO models are hand-built with detailed craftsmanship and stand as the most desirable custom motorcycles available.

The 2009 model year marks the 10th anniversary of the Harley-Davidson CVO program. An effort that began a decade ago as a response to rider requests for factory custom motorcycles has evolved into the top class of its industry, proving that production is really the only limit when it comes to making Harley-Davidson CVO motorcycles.

“Features like bigger engines, exclusive accessories and custom paint and colors, combined with limited production quantities make the Harley-Davidson CVO motorcycles truly unique and inspirational,” said Matt Levatich, Harley-Davidson Vice President and General Manager, Parts & Accessories and CVO. “The CVO bikes were introduced to meet customer desires and they have fulfilled our riders’ ultimate dreams with miles of memories and great riding for a decade. We expect the unique CVO experience to continue for years to come.”

The Harley-Davidson CVO line for 2009 includes the following four models:

CVO Fat Bob
CVO Road Glide
CVO Softail Springer
CVO Ultra Classic Electra Glide
The Fat Bob is a first-time CVO offering, while the Road Glide, Softail Springer and Ultra Classic Electra Glide all enjoy a storied history with the program. The CVO bikes are based on Harley-Davidson factory models, but are then taken to a new level of customization with an abundance of Harley-Davidson Genuine Motor Accessories. (Please see separate press releases on each model for more detail)

Highlights of the 2009 Harley-Davidson CVO motorcycles include a Screamin’ Eagle Twin Cam 110 engine (1800 cc) finished in granite powdercoat on all models, integrated stop/turn/tail lights on the Road Glide rear section, new Fang cast wheels on the CVO Fat Bob, 240 mm wide rear tire and unique frame and oil tank on the Springer, and Roulette wheels and new 180 mm wide rear tire on the CVO Ultra Classic Electra Glide.

The launch of the CVO program began with the 1999 FXR2 and FXR3 models, and was so well-received that it was followed in 2000 by the FXR4. Also in 2000, the first edition of the FLTRSEI Road Glide was introduced, combining the latest touring design and Screamin’ Eagle performance parts. While initial annual production of CVO models was limited to about 900 units per model, output has increased to current ranges of between 2,450 and 4,200 units for each model.

What followed during the last decade was a series of some of very memorable motorcycles, including CVO variations on the Dyna Wide Glide, Road King, Softail Deuce, Fat Boy and Electra Glide. In addition, the CVO program boasted the 2005 Screamin’ Eagle V-Rod with its 60-degree, 1250 cc liquid cooled V-Twin engine and the 2006 Screamin’ Eagle Destroyer, designed specifically for drag racing with a 1300cc Screamin’ Eagle Revolution powertrain.

The Harley-Davidson CVO group consists of a select group of engineers, designers and supply management staff, who work together with Harley-Davidson Styling to create these limited-production, custom motorcycles. The CVO models are then produced by highly skilled technicians in special assembly areas at the Harley-Davidson plants in York, Pa., and Kansas City.

For additional information on Harley-Davidson Genuine Motor Parts and Genuine Motor Accessories see your local Harley-Davidson dealer or visit the Harley-Davidson Web site at www.harley-davidson.com. To find a dealer near you, call toll free 1-800-443-2153 in the U.S.A. or Canada.

Harley-Davidson Motor Company, the only major U.S.-based motorcycle manufacturer, produces heavyweight motorcycles and a complete line of motorcycle parts, accessories and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.

About Michael Le Pard 11023 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
