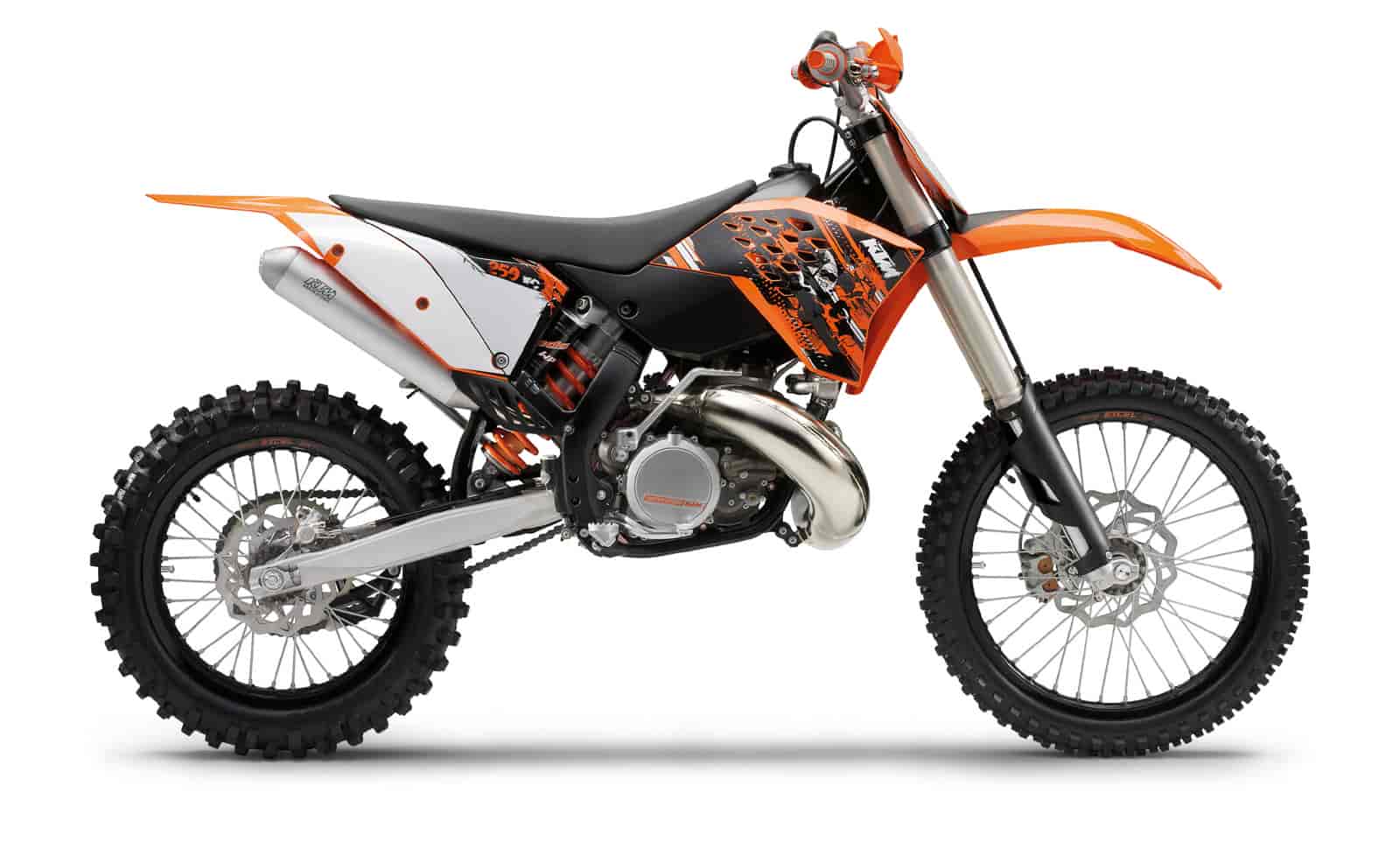

2009 KTM 250XC

– 2009 KTM 250XC

2009 KTM 250XC

If you want understandable and low-cost technology, this super-powerful and lightweight two-stroke is the perfect choice for the E2 class. The engine characteristic has been tuned for enduro use only. The choice between two ignition curves, plus a new crankshaft and modified casing delivers better power reserves in all speed ranges.

The completely new frame with new PDS geometry, the improved suspension and new bodywork overall make the speedy 250 XC a serious challenger for the four-strokes. And since the casing and ignition rotor are already prepped for it, there’s nothing standing in the way of an E-starter upgrade.

2009 KTM 250XC – Specifications

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4/72 mm (2.61/2.83″)
Starter Kickstarter (e-start add-ready)
Transmission 5 gears XC semi-close-ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital E


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium 7020
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260mm (10.24″) disc, Brembo double piston
Rear brake 220mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium 250 SX
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11 liters (2.9 gal)
Weight (no fuel) approx. 100.4 kg (221.34 lbs)
