2009 KTM 450 EXC

You are here: Home — 2009 Models — 2009 KTM Motorcycle Models

2009 KTM 450 EXC
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

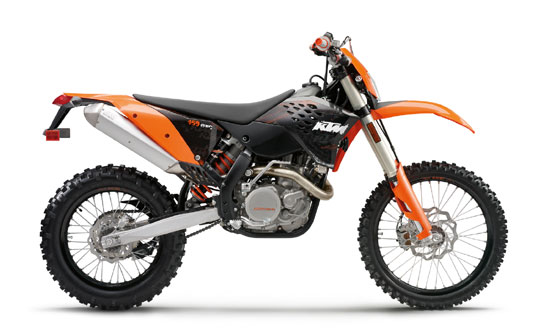

2009 KTM 450 EXC

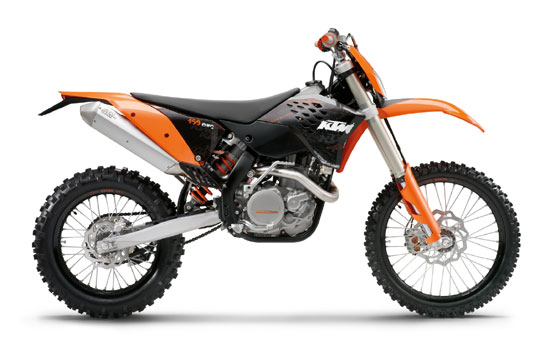

2009 KTM 450 EXC

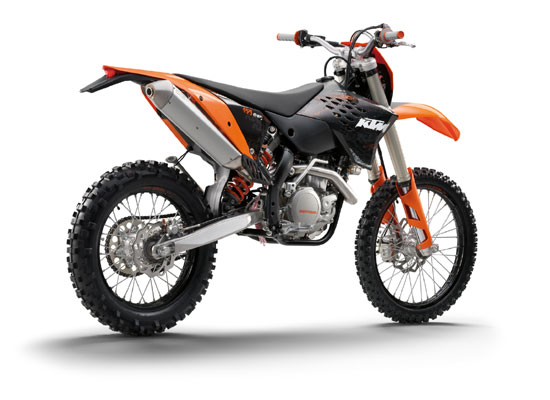

2009 KTM 450 EXC

2009 KTM 450 EXC

2009 KTM 450 EXC

– 2009 KTM 450 EXC

2009 KTM 450 EXC

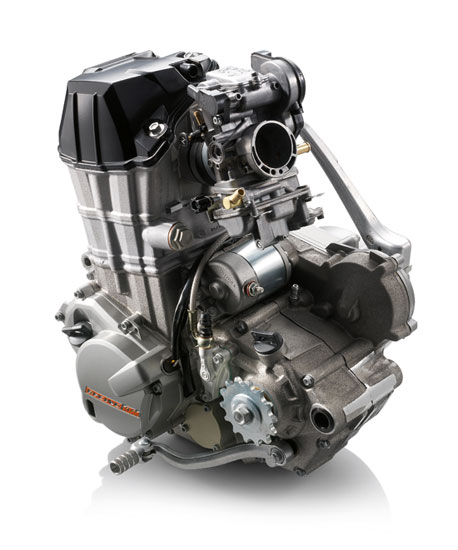

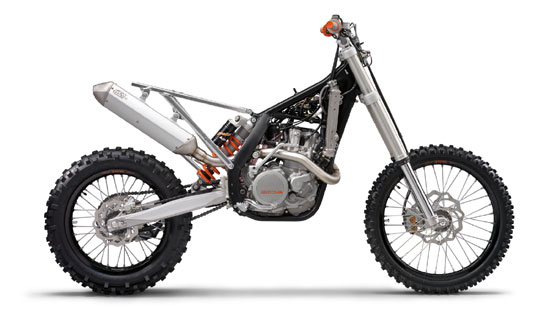

Once a champion, always a champion. If one bike in the hard-fought E2 class has until now had what it takes to be the series winner, then that bike is the 450 EXC. And so it should stay! Ultra-modern technology is used both in the chassis and also in the ultra-powerful SOHC engine, which further perfects one of the most successful of off-road bikes.

The result is an extremely light, agile and immensely powerful high-tech race bike which once again raises the bar a whole step higher for the opposition.

2009 KTM 450 EXC – Specifications

Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore x stroke 95 / 63.4 mm (3.74 / 2.5″)
Compression ratio 11.9:1
Starter/Battery Kick- and electric starter/12V 4Ah
Transmission 6 gears
Carburetor Keihin FCR-MX 39
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 3 oil pumps
Engine lubrication Motorex, SAE 15W-50
Transmission oil Motorex, SAE 15W-50
Primary drive 33:76
Final drive 15:45 (13:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium 7020
Handlebar Neken, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes Ø 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9 liters (2.38 gal)
Weight (no fuel) approx. 113.9 kg (251 lbs)
