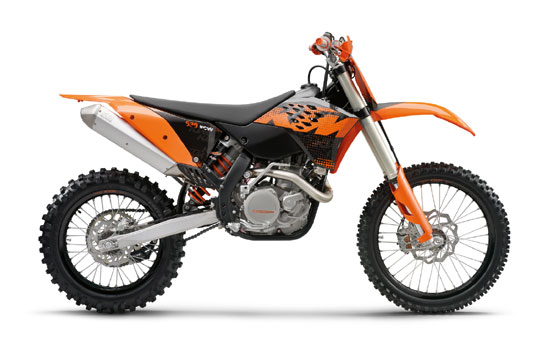

2009 KTM 530XC-W

– 2009 KTM 530XC-W

2009 KTM 530XC-W

Assault weapon and workhorse in one – no other enduro fits both of these descriptions better than the 530 XC-W (R). On the one hand, it wins you over with its enormous four-stroke power from the big, totally re-designed XC4 engine whenever the going gets tough. On the other hand, it demonstrates all of its strengths with powerful yet gentle power output, especially on difficult trails.

This bike excites on both counts with its optimally tuned enduro characteristic for every kind of offroad adventure. But the 530 XC-W (R) intimidates its opponents not only with its power. With its new, completely overhauled chassis, it represents a quantum leap when it comes to the frame, bodywork and ergonomics! The first choice for all those who simply can never get enough.

2009 KTM 530XC-W – Specifications

Engine type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 510.35 cc
Bore x stroke 95/72 mm (3.74/2.83″)
Compression ratio 11.9:1
Starter/Battery Kickstarter/E-Starter / 4 Ah
Transmission 6 gears wide-ratio
Carburetor Keihin MX FCR 39
Control 4 V / OHC with roller rocker levers
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication 10W50
Primary drive 33:76
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 4K-3B


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium7020, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260mm (10.24″) disc, Brembo double piston
Rear brake 220mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/90-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium w/USFS spark arrestor
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.2 liters (2.43 gal)
Weight (no fuel) approx. 112.2 kg (247.36 lbs)
