2009 KTM 690 SMC
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

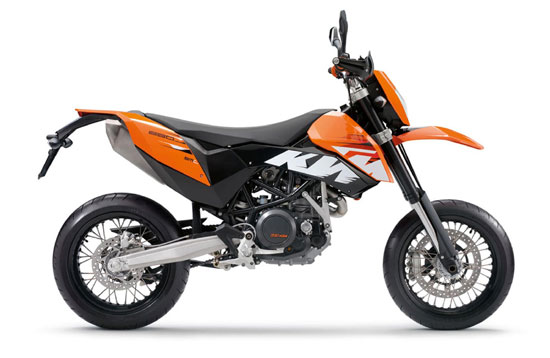

2009 KTM 690 SMC
2009 KTM 690 SMC


– 2009 KTM 690 SMC

2009 KTM 690 SMC

Razor-sharp Supermoto technology, in combination with state-of-the-art engine technology – the victorious 660 SMC has found a more than worthy successor in the 690 SMC. KTM has created an unequalled bike based on the new 690 Enduro that will live up to the toughest Supermoto demands and leave everyone else behind in more ways than one. Suitable for everyday riding, ample performance, striking appearance, 100?% “Ready to Race”!




2009 KTM 690 SMC – Specifications

Engine type Single cylinder, 4-stroke
Displacement 654 cc
Bore x stroke 102 / 80 mm (4.02 / 3.15″)
Performance (homologated) 46.3 kW / 7500 rpm
Max. torque 64 Nm / 6000 rpm
Compression ratio 11.8:1
Starter/Battery E-Starter / 12 V 8.6 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EMS with EPT (Electr. Power Throttle)
Control 4 V / OHC with roller rocker levers
Lubrication Pressure lubrication with 2 oil pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-60
Primary drive 36:79
Final drive 16:42
Cooling Liquid cooled
Clutch APTC slipper clutch, hydraulically operated
Ignition Keihin EMS


Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Self-supporting plastics tank
Handlebar Aluminium, Ø 28 / 22 mm (1.10 / 0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock with Pro Lever Linkage
Suspension travel front/rear 275 / 265 mm (10.83 / 10.43″)
Front brake Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6″)
Rear brake Brembo single piston, floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front/rear Spoked wheels with aluminium rims 3,5 x 17″; 5 x 17″
Tires, front/rear 120/70 ZR 17; 160/60 ZR 17
Chain X-ring chain 5/8 x 1/4″
Main silencer Stainless steel silencer with regulated catalytic converter
Steering head angle 63°
Trail 112 mm (4.41″)
Wheel base 1480 ± 15 mm (58.27 ± 0.59″)
Ground clearance (unloaded) 290 mm (11.42″)
Seat height 900 mm (35.43″)
Tank capacity approx. 12 liters (3.17 gal) / 2.5 Litre Reserve (0.66 gal)
Weight (no fuel) approx. 139.5 kg (305.4 lbs)
