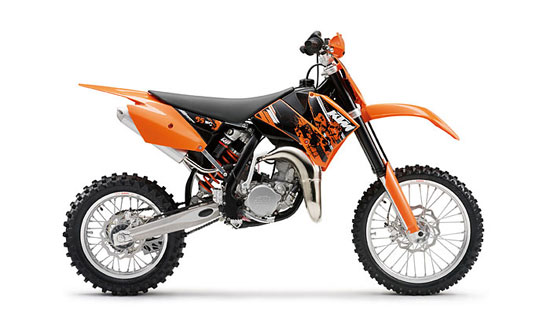

2009 KTM 85XC

Click photos to enlarge.
They make great desktop images.

2009 KTM 85XC

2009 KTM 85XC

– 2009 KTM 85XC

2009 KTM 85XC

Even under extreme loads, this full-fledged racing bike (seat height = 900 mm) wins you over with its sturdy frame, 43-mm WP upside-down forks and fully adjustable PDS system. And together with its top quality, exhaust-controlled cylinder, the even further improved engine supplies maximum power and plenty of torque.

What more could a biker’s heart desire?

2009 KTM 85XC – Specifications

Engine type Single cylinder, 2-stroke
Displacement 84.9 cc
Bore x stroke 47/48.95 mm (1.85/1.93″)
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin PWK 28
Control Power valve
Engine lubrication Mixture lubrication 1:40
Transmission oil 15W50
Primary drive 19:66
Final drive 14:46
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1


Frame Double grinded central double-cradle-type frame
Subframe Aluminium 7020
Handlebar Aluminium Ø 22 mm (0.87″)
Front suspension WP USD Ø 43 mm (1.69″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 275/300 mm (10.83/11.81″)
Brakes, front/rear Disc brake Ø 220/200 mm (8.66/7.87″)
Rims, front/rear 1.6 x 17″; 1.85 x 14″ Aluminium
Tires, front/rear 70/100-17; 90/100-14
Chain 1/2 x 5/16″ O-Ring
Main silencer Aluminium 85 SX
Steering head angle 66°
Wheel base 1290 mm ± 10 mm (50.79″±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 865 mm (35.06″)
Tank capacity approx. 5 liters (1.32 gal)
Weight (no fuel) approx. 66 kg (145.5 lbs)
