2009 KTM 990 Super Duke

You are here: Home — 2009 Models — 2009 KTM Motorcycle Models

2009 KTM 990 Super Duke
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

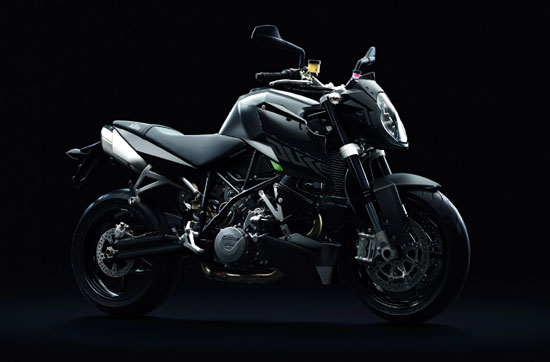

2009 KTM 990 Super Duke

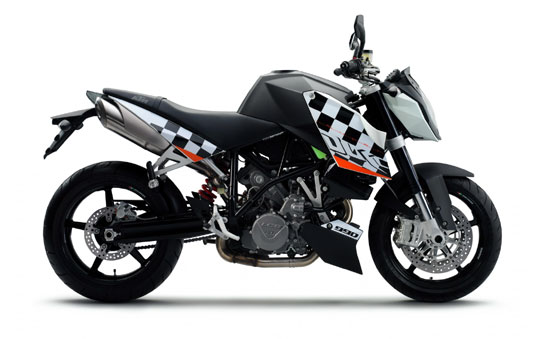

2009 KTM 990 Super Duke

– 2009 KTM 990 Super Duke

2009 KTM 990 Super Duke

…and then it’s yours?

You can barely find words to express the riding fun and the feeling that the KTM 990 Superduke gives you when it’s in motion. Just as KTM re-invented the Streetfighter, you try to invent new words for what happens beneath you curve after curve. The KTM 990 Superduke sweeps through curves – ultra-precise, radical and agile. The landscape flies past fast, faster, much too fast. You feel the road, the centrifugal force and want more.

2009 KTM 990 Super Duke – Specifications

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore x stroke 101 / 62.4 mm (3.98 / 2.46″)
Performance (homologated) 88 kW / 9000 rpm
Max. torque 100 Nm / 7000 rpm
Compression ratio 11.5:1
Starter/Battery E-Starter / 12 V 11.2 Ah
Transmission 6 gears, dog-clutch engagement
Fuel Mixture Generation Keihin electronic fuel injection
Control 4 V / DOHC
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 67:35
Final drive 17:38
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS


Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Aluminium 7020
Handlebar Aluminium, Ø 28 / 22 mm, tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock
Suspension travel front/rear 135 / 160 mm (5.31 / 6.3″)
Front brake 2 x Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6″)
Rear brake Brembo single-piston floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front/rear Cast aluminium wheels 3.5 x 17″; 4.5 x 17″
Tires, front/rear 120/70 ZR 17″; 180/55 ZR 17″
Chain X-Ring 5/8 x 5/16″
Battery 12 V / 11.2 Ah
Main silencer Stainless steel silencer with regulated catalytic converter
Steering head angle 66,1°
Trail 103 mm (4.06″)
Wheel base 1450 ± 15 mm (57.09 ± 0.59″)
Ground clearance (unloaded) 150 mm (5.91″)
Seat height 850 mm (33.46″)
Tank capacity approx. 15 liters / 2.5 liters reserve (4.89 / 0.66 gal)
Weight (no fuel) approx. 186 kg (410.05 lbs)
