2009 KTM 250XC-W Street
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

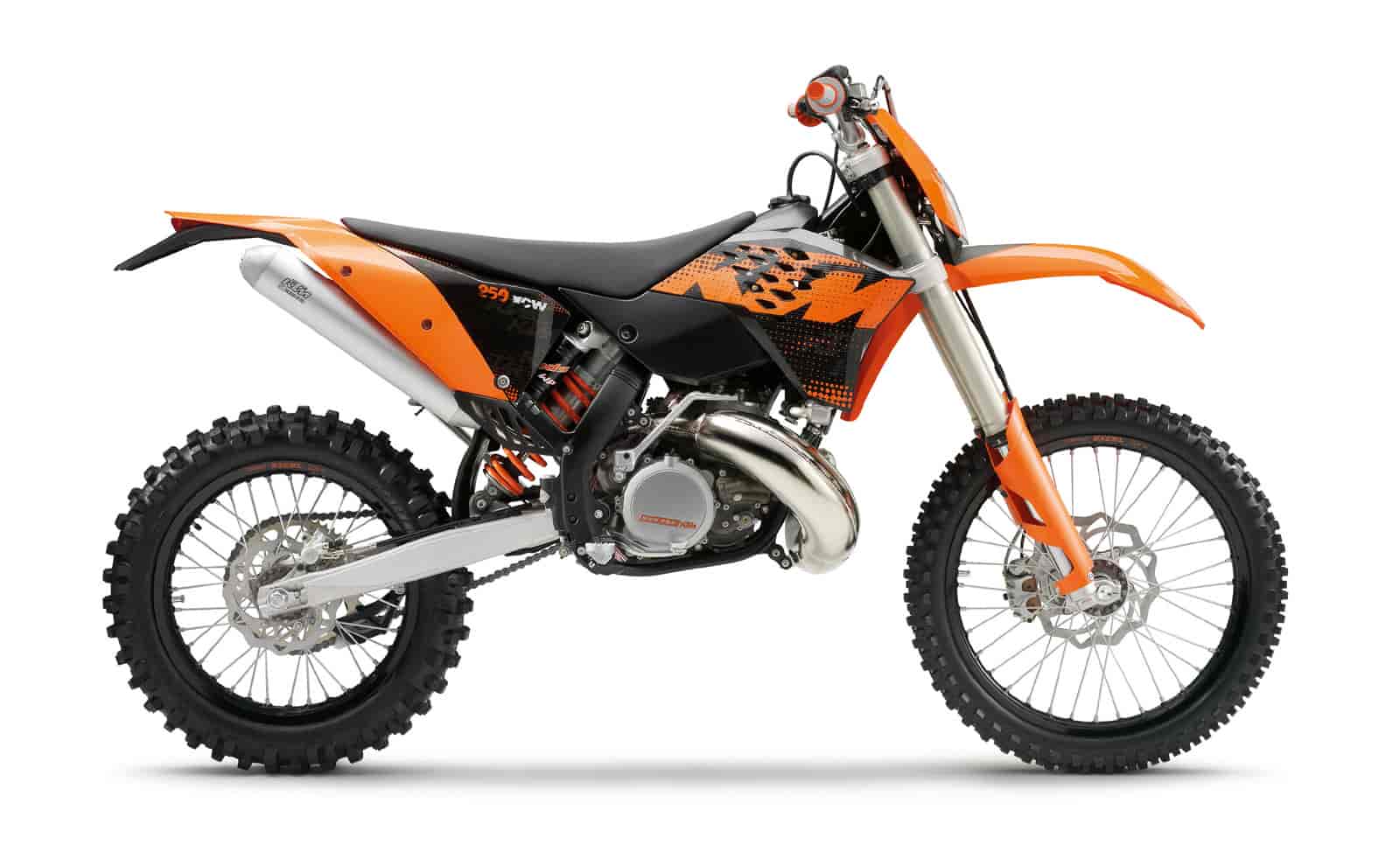

2009 KTM 250XC-W Street
2009 KTM 250XC-W Street

• 2009 KTM 250XC-W Street

2009 KTM 250XC-W Street

Guided by expert hands, the 250 XC-W can easily take on any 450 4-stroke. Its low maintenance requirements and light weight makes this motorcycle the first choice of obsessive perfectionists. Also here the new cylinder delivers even more draft and top performance.




2009 KTM 250XC-W Street – Specifications

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4/72 mm (2.61/2.83″)
Starter Kickstarter and e-start
Transmission 5 gears wide ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 13:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 2K-3


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium 7020, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260mm (10.24″) disc, Brembo double piston
Rear brake 220mm(8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium 200-300 EXC
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11 liters (2.9 gal)
Weight (no fuel) approx. 101.6 kg (223.98 lbs)
