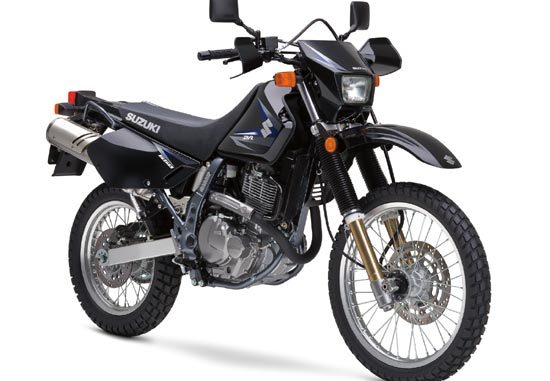

2009 Suzuki DR650SE
2009 Suzuki DR650SE

2009 Suzuki DR650SE
2009 Suzuki DR650SE

• 2009 Suzuki DR650SE

2009 Suzuki DR650SE

If you think the fun begins at the end of the road, you’ve come to the right place. The lightweight single-cylinder DR650SE is engineered for an exceptional combination of off-road agility and smooth street performance.

Off-road, the DR650SE shines. Its technologically advanced chassis and suspension systems help provide you with precise control on tight trails or open fire roads. For a real thrill, tap into the big single’s awesome torque. It lets you accelerate hard out of corners and power your way across wide-open terrain.

On the street, the DR650SE is a joy to ride. Its engine has a counterbalancer for remarkably smooth operation, and it has a comfortable seat and spacious riding position.

The Suzuki DR650SE – it’s your invitation to find your adventure.


Engine Features
Compact and lightweight SOHC 4-stroke engine tuned for strong low and midrange power and fuel efficiency with a single counterbalancer system

SCEM (Suzuki Composite Electrochemical Material) plated cylinder is durable, minimizes cylinder size and weight and improves heat dissipation

Efficient SACS air/oil cooling system with additional piston-jet cooling and engine oil cooler

Mikuni 40mm “Slingshot” carburetor enhances throttle response and overall engine performance

Wide-ratio 5-speed transmission with O-ring sealed final drive chain

Electric start with automatic decompression system

Low-maintenance, digitally controlled DC-CDI ignition system provides accurate ignition timing and more consistent spark at all engine speeds

Lightweight and compact maintenance-free battery


Chassis Features
Painted stainless-steel exhaust system is light and corrosion-resistant, and tuned specifically for strong low and midrange power

Adjustable seat height – seat height can be lowered 40mm (1.6 in) with suspension modifications performed by a dealer

Compact & lightweight frame. Use of thin-wall/large-diameter tubing reduces weight while increasing frame rigidity

Short wheelbase and low seat height provide nimble DualSport® performance

Front fork combines the best features of conventional and inverted designs: Smooth and progressive action. Large diameter, thin-walled tubes reduce unsprung weight while maintaining high rigidity – minimal below-axle extension

Link-type rear suspension with piggyback-style shock absorber and adjustable compression damping provides stable damping performance

Lightweight aluminum swingarm

Large diameter hollow-type wheel axles are lightweight and rigid. Rear axle features welded-on snail cam chain adjuster for simple axle/wheel installation

Lightweight 290mm diameter front disc brake with 2-piston caliper

Rear disc brake with lightweight drilled rotor and two piston caliper

Special design tires with on/off road tread pattern fitted to 21-inch front and 17-inch rear wheel

Full on-road lighting system with bright 55/60 watt halogen headlight

Frame-mounted luggage rack for additional carrying capacity

Handlebar-mounted brushguards


2009 Suzuki DR650SE – USA Specifications
MSRP: $5,299

Model Number DR650SEK9
Type DualSport
Warranty 12 month unlimited mileage limited warranty.

Suggested Retail $5299
SEP $484
Engine 4-stroke, air-cooled, OHC
Bore & Stroke 100 mm (3.937 in) x 82 mm (3.228 in)
Compression Ratio 9.5 : 1
Fuel System MIKUNI BST40, single
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Electric
Transmission 5-speed constant mesh
Final Drive D.I.D 525 V9, 110 links
Overall Length 2255 mm (88.8 in), Low seat 2235 mm (88.0 in)
Overall Width 865 mm (34.1 in)
Overall Height 1195 mm (47.0 in), Low seat 1155mm (45.5 in.)
Seat Height 885 mm (34.8 in), Low seat 845 mm (33.0 in.)
Ground Clearance 265 mm (10.4 in), Low seat 225 mm (8.9 in.)
Wheelbase 1490 mm (58.7 in), Low seat 1475 mm (58.1 in.)
Dry Weight 166 kg (366 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Disc brake
Tires Front 90/90-21 M/C 54S, tube type
Tires Rear 120/90-17 M/C 64S, tube type
Fuel Tank Capacity 13.0 L (3.4/2.9 US/Imp gal) – Including Reserve (CA: 12.0 L (3.2/2.6 US/Imp gal) -Including Reserve)
Color Black, White



2009 Suzuki DR650SE – Canada Specifications


*Prices and specifications subject to change without notice.
