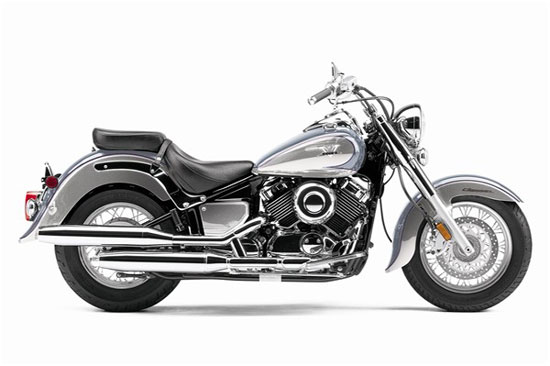

2009 Yamaha V-Star 650 Classic
Back to 2009 Yamaha Motorcycle Index Page
Click photos to enlarge.
They make great desktop images.
• 2009 Yamaha V-Star 650 Classic
2009 Yamaha V-Star 650 Classic
Nothing’s more classic than a great deal.
The value Classic packed with all Star quality and performance.
For years, 40 cubic inches was a lot of motor. Guess what. It still is, especially when a sweet, overhead-cam 40-inch V-twin powers a bike that doesn’t weigh so much. The V Star Classic is light, maneuverable and ready for you to make it your own.
Only the price tag will tell you this machine is a mid-size model.
Everything else – the long, low styling, the authentic 40 cubic-inch V-twin, the painstaking attention to detail — will just plain knock you out. Take one for a nice long ride, and you’ll see why. Big on value and good looks, the V-Star 650 Classic punches way above its weight. It’s a champion by unanimous decision.
The V-Star 650 Classic features and authentic 40 cubic-inch, air-cooled V-twin. With long, low styling and lots of chrome, a great entry level ride, the V-Star 650 features clean, quiet shaft drive and an easy to ride demeanor. This V-Star is ready to impress.
– 649cc V-twin
– Classic styling
Beautifully chromed and polished 649cc (40-cubic-inch), air-cooled, SOHC, 2 valves per cylinder, 70 degree, V-twin cranks out torquey low- and mid-range power for smooth cruising performance. Maximum torque occurs at a low 3,000 rpm.
This engine has been designed to produce strong torque and horsepower in the most usable riding range (50 to 120 km/hr).
Twin Mikuni BDS28 carbs with throttle position sensors (TPS) provide crisp throttle response.
Wide-ratio, 5-speed transmission ensures extremely usable, cruiser-friendly power delivery. 5th gear is an overdrive gear for reduced engine rpms at highway speeds for a smooth comfortable ride.
Light clutch action is perfect for novice riders.
Transistorized coil ignition means sure starts and excellent engine performance. It is a no-maintenance design.
Classic, side-mounted air cleaner not only adds to styling but also is easy to service the air filter.
Automatic cam chain tensioners reduce maintenance and mechanical engine noise.
Low-maintenance shaft drive provides quiet, clean, reliable performance with no chain adjustments or splatter.
2-into-2 chrome exhaust pipes create sleek styling while delivering strong low- and mid-range engine power. The conversion to aftermarket mufflers is fast and simple.
Heel-toe shifter reinforces that classic image.
Air Induction System (A.I.S.) reduces harmful CO and HC exhaust emissions.
Lots of chrome engine parts highlight quality and value.
Stout, large-diameter, double-cradle steel frame is designed to provide a low seat height with ample rider legroom.
Long 1,625mm (64″) wheelbase provides a stable ride and predictable handling while creating that long and low retro look.
Beefy, 41mm front fork with Road Star-inspired shrouds offers 140mm (5.5″) of wheel travel to ensure a smooth, comfortable ride.
Chromed fork shrouds, top triple clamp, and one-piece handlebar holder show attention to detail.
7-step, spring preload-adjustable, single-shock rear suspension allows the rider to tailor spring settings to match load or road conditions. Rear wheel travel is 98mm (3.9″).
Rear shock is mounted under the engine for that classic, hardtail look. By positioning the shock low in the chassis, it lowers the centre of gravity for a light, easy-to-maneuver feel.
Single 298mm front disc brake with twin piston caliper delivers strong, confidence-inspiring stopping power.
Easy-to-adjust rear drum brake with wear indicator
Plushly padded, low-profile rider and passenger seats provide exceptional rider comfort. The low 710mm (27.9″) seat height allows most riders to put feet firmly on the ground for extra confidence.
Full-size rider floorboards with floating rubber inserts reduce vibration while providing ample legroom for maximum rider comfort.
Wide retro-style handlebars evoke a classic design. Extra wide levers provide a quality look and feel.
Wide front and rear tires fitted to spoked, chrome wheels combine retro styling with solid handling and traction.
Deeply valanced steel front and rear fenders are both durable and unmistakably classic. Their steel design means they are easy to customize and paint.
Large, 16-litre fuel tank features class-leading fuel capacity for an extra long cruising range.
Beautiful, tank-mounted speedometer features an odometer and tripmeter displays.
Industry-leading, Star Family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
Chrome, 60/55-watt, halogen headlight
Low-maintenance, sealed battery ensures reliable, no-hassle starting.
Beautiful, 3D, fuel tank emblem reinforces the Star family’s quality image.
3D Yamaha emblem on side covers
Locking helmet holder
Locking storage compartment adds convenience and security.
Self-cancelling turn signals with stylish, clear signal lenses
Bungee cord tie-down points near passenger footpegs prevent unwanted scratches
2009 Yamaha V-Star 650 Classic – USA Specifications
MSRP* $6,399 (Pearl White) Available from June 2008
$6,599 (Cerulean Silver/Liquid Silver) Available from June 2008
Type 40-cubic-inch (649cc) air-cooled 70° V-twin; SOHC, 2 valves/cylinder
Bore x Stroke 81mm x 63mm
Compression Ratio 9.0:1
Carburetion (2) 28mm Mikuni® CV carburetors
Transmission 5-speed; multiplate wet clutch
Final Drive Shaft
Fuel Capacity Steel; hidden shock
Suspension/Front Telescopic fork; 5.5-in travel
Suspension/Rear Single shock; adjustable preload, 3.9-in travel
Brakes/Front Hydraulic disc, 298mm
Brakes/Rear 200mm drum
Width 36.6 in.
Height 43.5 in
Seat Height 27.9 in
Wheelbase 64 in
Ground Clearance 5.7 in
Fuel Capacity 4.2 gal
Wet Weight 544 lb / C: 548 lb
Warranty 1 Year (Limited Factory Warranty)
2009 Yamaha V-Star 650 Classic – Canada Specifications
Engine Air-cooled,SOHC, 2-valve, 70°, V-twin
Bore and Stroke 81 x 63mm
Compression Ratio 9:1
Maximum Torque 5.2kg-m (37.5 ft-lb)@ 3,000 rpm
Fuel Delivery Mikuni BDS28 x 2
Ignition Digital TCI
Drive Train Shaft
Suspension (Front) 41mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Single 298mm disc
Brakes (Rear) Drum
Tires (Front) 130/90-16
Tires (Rear) 170/80-15
Length 2,450mm (96.5″)
Width 930mm (36.6″)
Height 1,110mm (43.7″)
Wheelbase 1,625mm (64″)
Seat Height 710mm (28″)
Fuel Capacity 16 litres (3.5 imp. gallons)
Wet Weight 247kg (543.4 lb)
Colour(s) Bluish Silver
*Prices and specifications subject to change without notice.
