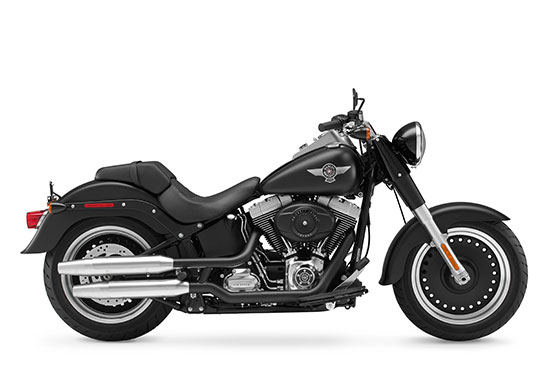

2010 Harley-Davidson Fat Boy Lo FLSTFB
2010 Harley-Davidson Fat Boy Lo FLSTFB

2010 Harley-Davidson Fat Boy Lo FLSTFB
2010 Harley-Davidson Fat Boy Lo FLSTFB

2010 Harley-Davidson Fat Boy Lo FLSTFB
2010 Harley-Davidson Fat Boy Lo FLSTFB

2010 Harley-Davidson Fat Boy Lo FLSTFB
2010 Harley-Davidson Fat Boy Lo FLSTFB

– 2010 Harley-Davidson Fat Boy Lo FLSTFB

2010 Harley-Davidson Fat Boy Lo FLSTFB

Darker and lower, the Fat Boy® Lo retains the bold presence of the Fat Boy® while offering a fresh interpretation of the motorcycle that still defines the segment. A re-shaped seat and lowered suspension combine to produce the lowest seat height of any Harley-Davidson® model, just 24.25 inches.

The Softail® rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.



Model Highlights

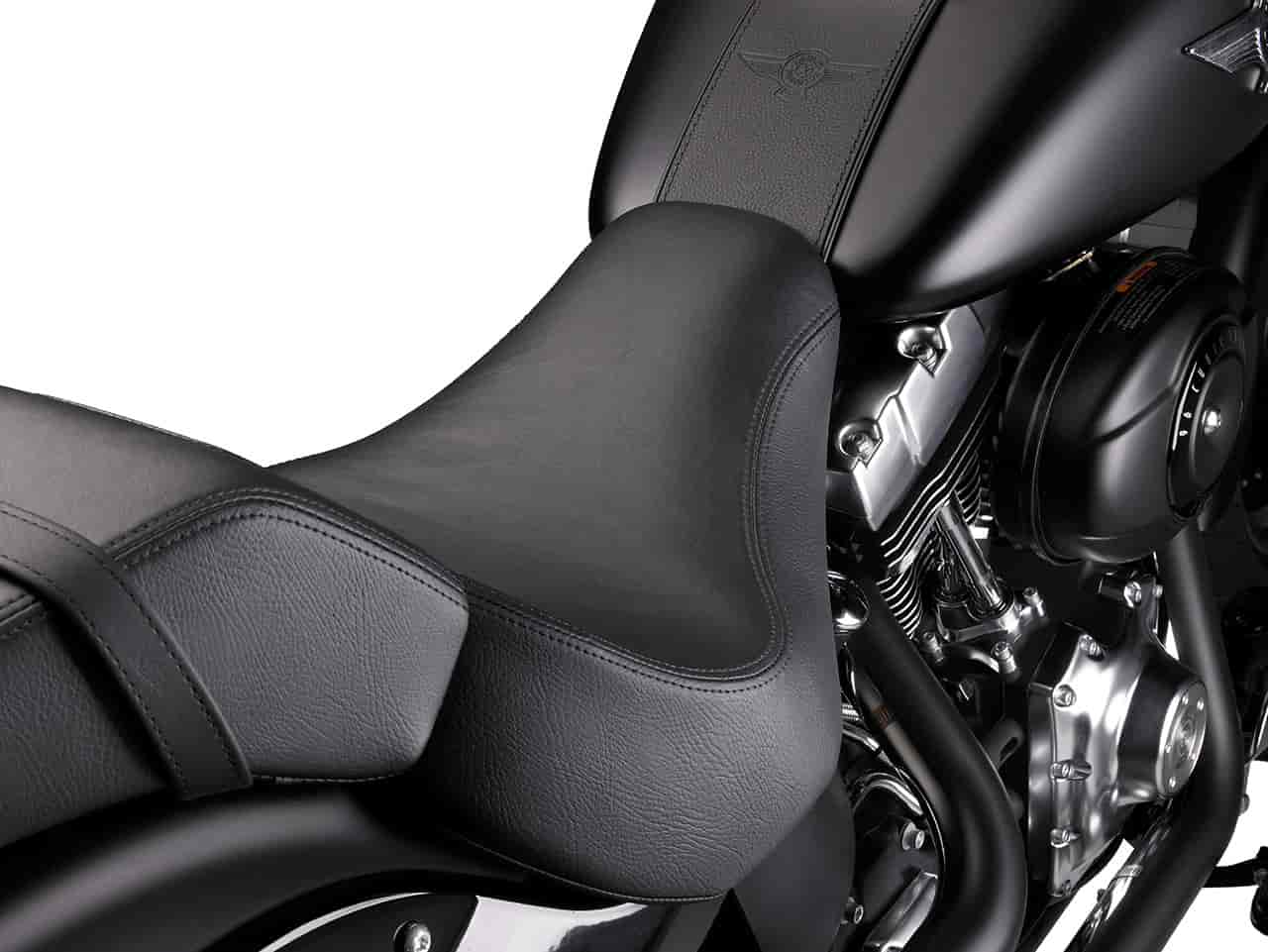

New Seat is lower and narrower for an easy reach to the ground
New Leather tank panel with Harley-Davidson® medallion
New Satin-chrome tank console and side badges
New Bullet Hole Disc Cast Aluminum wheels with black centers and machined outer rims.
New Denim Black frame, swingarm, front shock covers, derby cover, horn cover, coil cover, oil tank, and air cleaner cover
New Gloss Black triple clamp covers and nacelle, headlight bucket, air cleaner cover trim ring, rear fender supports, footboards
New Helical cut 5th gear for improved transmission sound
– Black powder-coated powertrain with satin-chrome covers
– Front and rear suspension lowered 1.15-inch
– 200 mm rear tire
– Over/under shotgun exhaust with satin-chrome mufflers and muffler shields, and flat-black header shields
– Half-moon black rider floorboards
– Stainless steel 1.25-inch, internally-wired handlebar
– Rolled edge front fender
– Full-coverage rear fender



Key Features

Darker and lower, the Fat Boy® Lo retains the bold presence of the Fat Boy® while offering a fresh interpretation of the motorcycle that still defines the segment. A re-shaped seat and lowered suspension combine to produce the lowest seat height of any Harley-Davidson® model, just 24.25 inches.

The Softail® rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.
– Rigid-mounted, counter-balanced Twin Cam 96B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
– 6-Speed Cruise Drive® Transmission
– Horseshoe oil tank
– Five-gallon fuel tank
– Optional Harley-Davidson® Smart Security System with hands-free security fob







2010 Harley-Davidson Fat Boy Lo FLSTFB – Specifications
USA MSRP: Vivid Black $16,299, Solids $16,674

Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine4 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in.
(95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive6 Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.790

Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.30 mm telescopic, “beer can” covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels7: Black, Bullet Hole Disc Cast Aluminum
o Front 17 in. x 3.50 in. (431.80 mm x 88.90 mm)
o Rear 17 in. x 6 in. (431.80 mm x 152.40 mm)
Brakes:
o Caliper Type 4-piston front and 2-piston rear
o Rotor Type (diameter x width): Patented, uniform expansion rotors
o Front 11.50 in. x .20 in. (292.10 mm x 5.08 mm)
o Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
o Front Wheel 5.10 in. (129.54 mm)
o Rear Wheel 3.60 in. (91.44 mm)

Performance
Engine Torque (per SAE J1349):
o North America 93.67 ft. lbs. @ 3000 rpm (127.0 Nm @ 3000 rpm)

Lean Angle (per SAE J1168):
o Right 25.6°
o Left 25.2°

Fuel Economy
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings

Dimensions
Length 94.30 in. (2395.22 mm)
Overall Width 39.20 in. (995.68 mm)
Overall Height 44.30 in. (1125.22 mm)
Seat Height:
o Laden2 24.25 in. (615.95 mm)
o Unladen 26.35 in. (669.29 mm)
Ground Clearance 4.80 in. (121.92 mm)
Rake (steering head) 31.6°
Fork Angle 31.6°
Trail 5.80 in. (147.32 mm)
Wheelbase 64.50 in. (1638.30 mm)
Tires (Dunlop® Harley-Davidson Series, radial blackwall front and rear):
o Front – D408F 140/75R17 67V
o Rear – D407 200/55R17 78V
Fuel Capacity 5 gal. (18.93 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 3.50 qts. (3.31 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)

Weight:
o As Shipped 700 lbs. (317.52 kg)
o In Running Order 731.25 lbs. (331.70 kg)
o Gross Vehicle Weight Rating 1160 lbs. (526.18 kg)
o Gross Axle Weight Rating:
o Front 430 lbs. (195.05 kg)
o Rear 730 lbs. (331.13 kg)

Color Options
Solids
– Vivid Black
– Black Denim

U.S. MSRP
Vivid Black $16,299
Solids $16,674

Warranty
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
