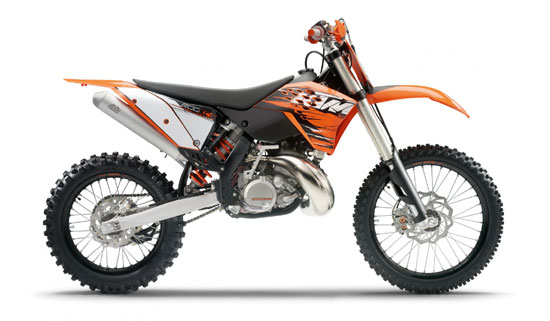

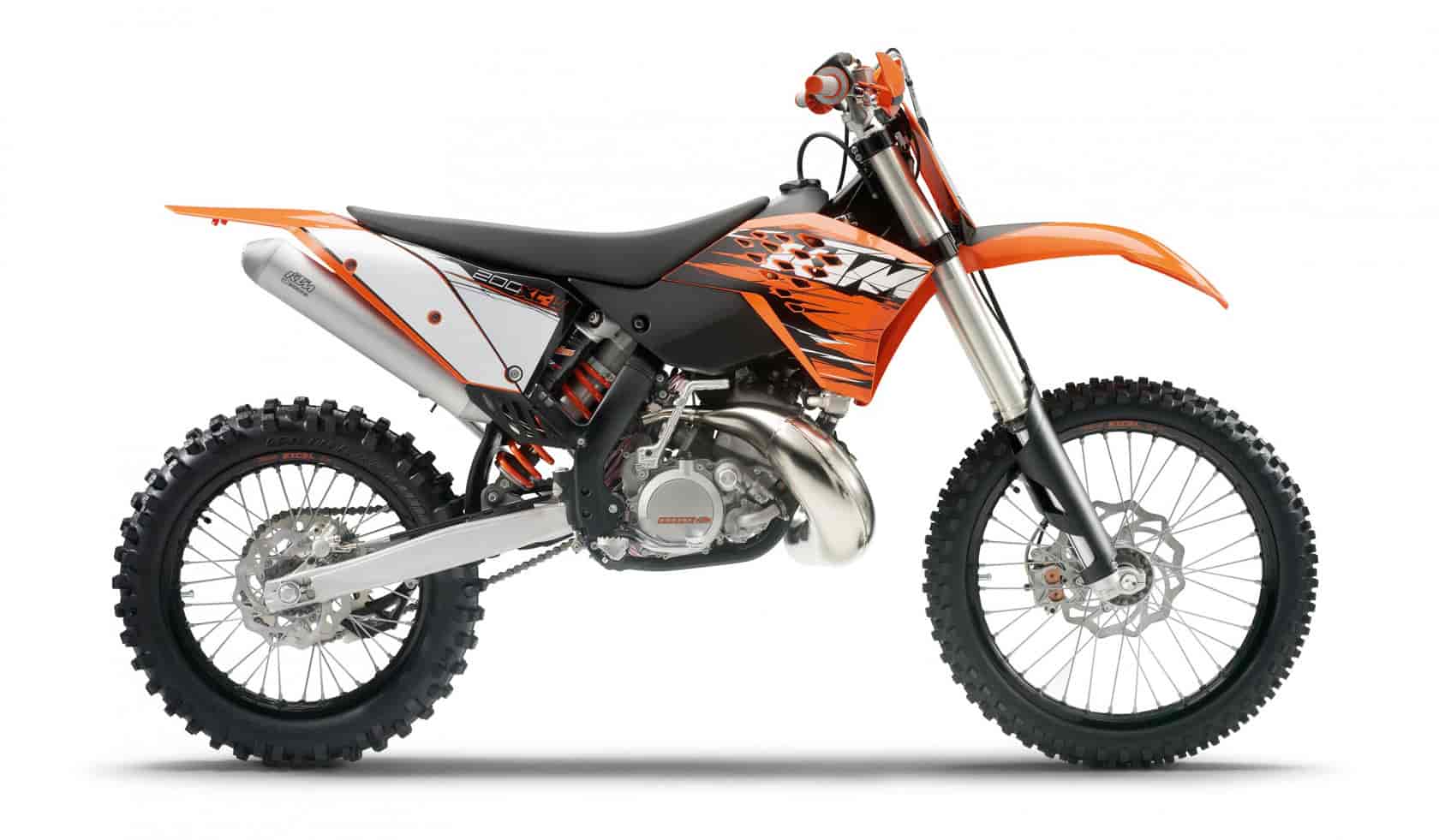

2010 KTM 200XC-W
2010 KTM 200XC-W



– 2010 KTM 200XC-W

2010 KTM 200XC-W

The 200 XC-W spoils its riders with playful handling combined with adequate power thanks to numerous improvement to the engine characteristics.









2010 KTM 200XC-W – Specifications
MSRP: See Dealer

Engine type Single cylinder, 2-stroke
Displacement 193 cc
Bore x stroke 64 x 60 mm (2.52 x 2.36″)
Starter Kickstarter
Transmission 6 gears wide ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 23:73
Final drive 14:48
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 2K-3


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1471±10 mm (58.1±0.39″)
Ground clearance (unloaded) 390 mm (15.35″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11.5 liters (3.04 gal)
Weight (no fuel) approx. 94.8 kg (208.99 lbs)
