2010 KTM 250SX

Back to 2010 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

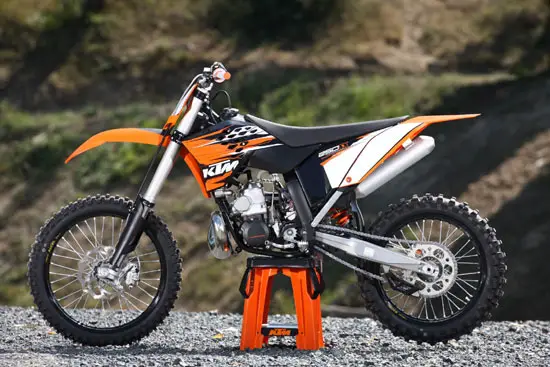

2010 KTM 250SX

2010 KTM 250SX

2010 KTM 250SX

2010 KTM 250SX

– 2010 KTM 250SX

2010 KTM 250SX

The answer to true riding pleasure and a guaranteed podium place in the MX1 class. The overall performance and agility of the traditionally powerful and lightweight 250 SX competes with that of the four-strokes. A superior two-stroke weapon in terms of serviceability and user friendliness. Extremely robust with an ultra-light frame and additionally optimised chassis, the 250 SX shows the rest how it’s done!

2010 KTM 250SX – Specifications
MSRP: See Dealer

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kickstarter
Transmission 5 gears
Carburetor Keihin PWK 36S AG
Control TVC power valve
Lubrication Mixture oil lubrication 1:60
Transmission oil Motorex, SAE 15W50
Primary drive 26:72
Final drive 13:48
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Renthal, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 19″ Excel
Tires, front/rear 80/100-21″; 110/90-19″
Chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475±10 mm (58.07 ± 0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 8 liters (2.11 gal)
