2010 Triumph Tiger Special Edition

Back to 2010 Triumph Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2010 Triumph Tiger Special Edition
2010 Triumph Tiger Special Edition

2010 Triumph Tiger Special Edition
2010 Triumph Tiger Special Edition

2010 Triumph Tiger Special Edition
2010 Triumph Tiger Special Edition

2010 Triumph Tiger Special Edition
2010 Triumph Tiger Special Edition



– 2010 Triumph Tiger Special Edition

2010 Triumph Tiger Special Edition

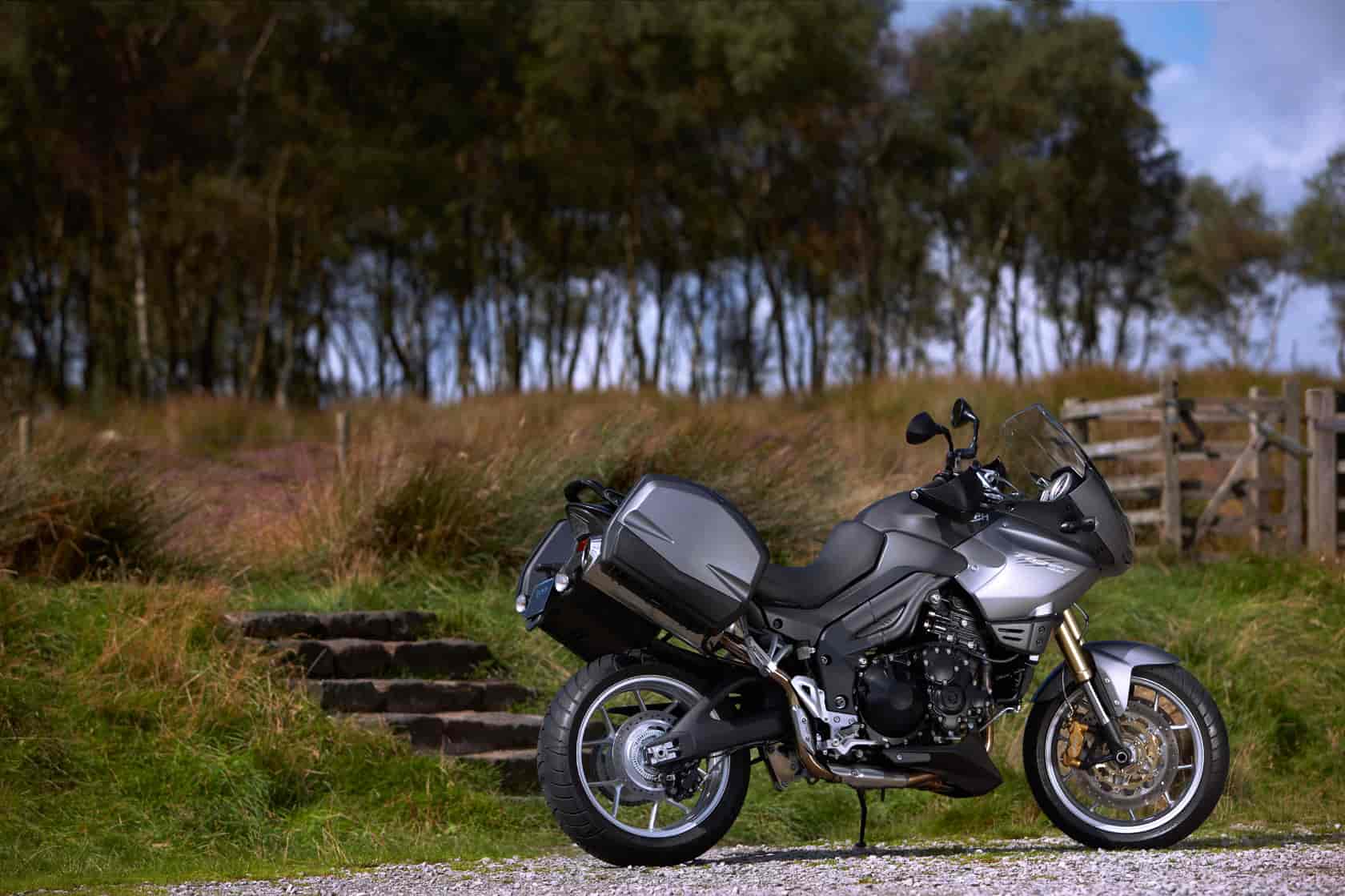

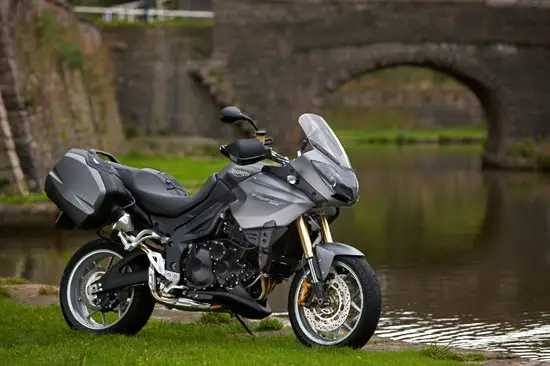

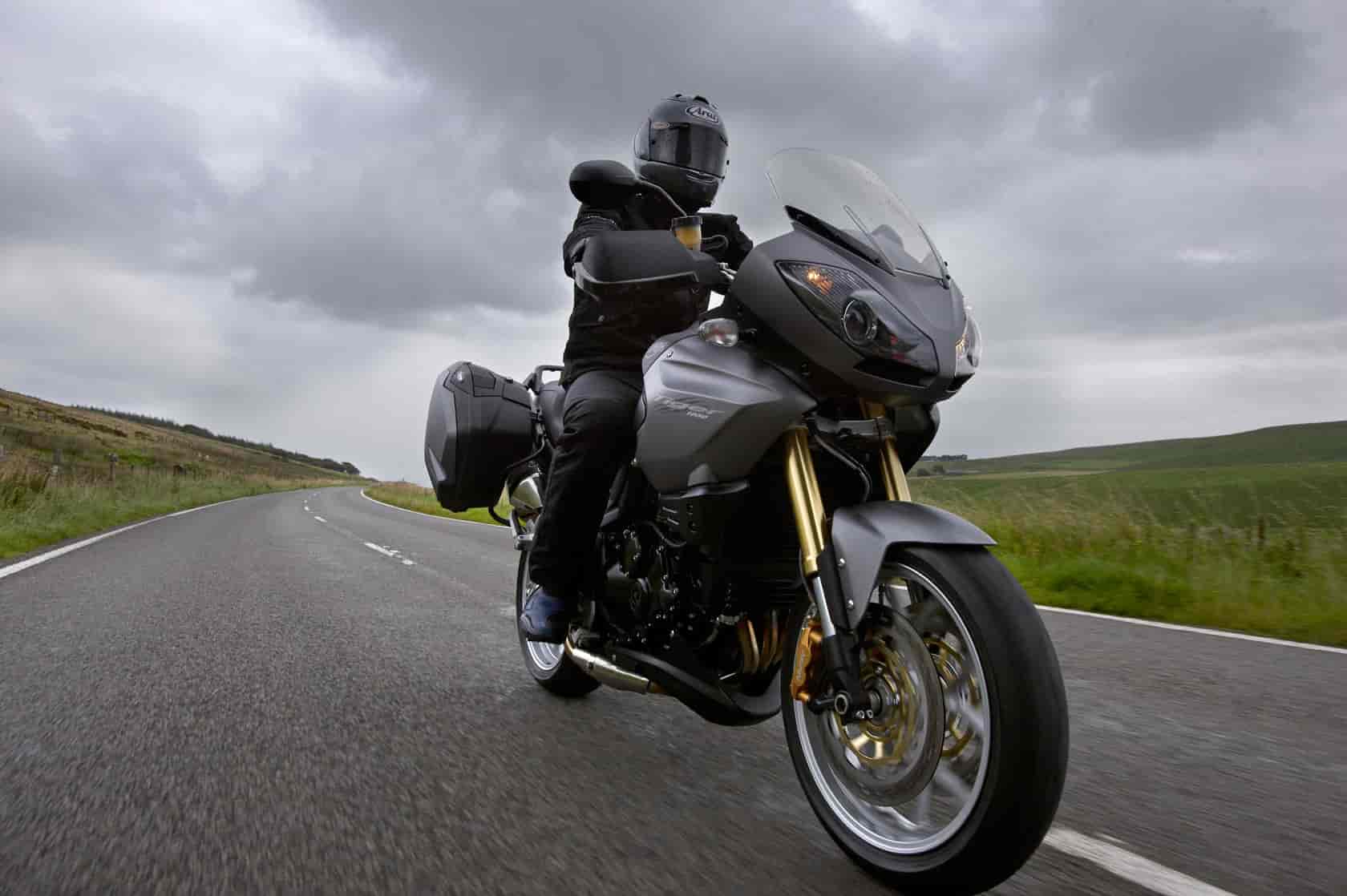

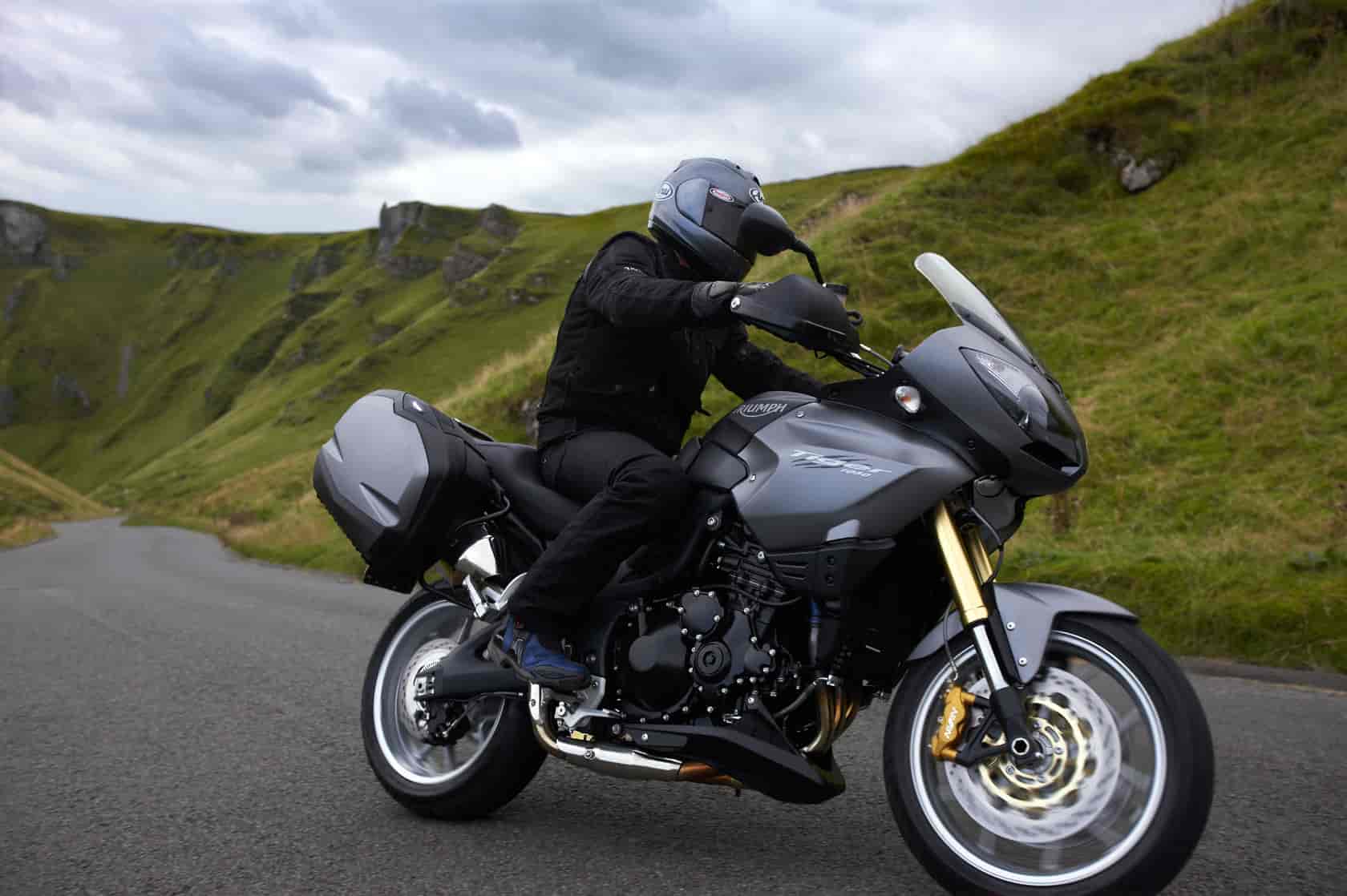

Triumph has transformed its popular Tiger adventure-sport model. Taking the ABS version of the Tiger as its base, the 2010 Tiger SE features a distinctive new Matte Graphite and Matte Black colour scheme. The new addition to the Tiger family has even more versatility thanks to the addition of color-matched hard bags and handguards as standard.



History

The Tiger namesake has stood the test of time at Triumph Motorcycles. While the Tiger’s spec sheet has changed considerably over the years, the bike itself has always been synonymous with free-spirited travel.

The 2010 Triumph Tiger SE pays tribute to the generations of riders who have created their own
adventures aboard a Tiger. The Special Edition model begins with the ABS (anti-lock braking system)
version of the Triumph Tiger and adds a distinctive new matte graphite and matte black two-tone paint
scheme with color-matched saddle bags and hand guards.

The Tiger SE’s unique color scheme was inspired by one of Triumph’s most cherished employee
benefits: the privilege of specifying a bike with custom paint. The Triumph design team was experimenting with different colors and found that the combination worked so well with the lines of the Tiger that the factory decided to make it available on the limited edition Tiger SE.

“The Tiger has received rave reviews for being one of the best all-around bikes on the market,”
said Jim Callahan, North American Marketing Manager for Triumph Motorcycles. “The new Tiger SE’s custom matte graphite and black paint really sets the bike apart from the other motorcycles in its class. It looks fantastic, so you’ll want to hurry while they’re still in stock.”

The Tiger’s current platform was first introduced in 1994 and has evolved into a well-rounded sport
touring motorcycle that is perfect for cutting through the urban jungle, devouring highway miles and
carving through challenging mountain passes.

The Tiger is powered by Triumph’s highly-acclaimed 1050cc three-cylinder engine that delivers
113hp at 9,400rpm and 74 ft. lbs. of torque at 6,250rpm. An adjustable sport suspension and 120
front/180 rear sport tires mounted on 17-inch wheels are combined with powerful Nissin brakes for
exceptional, confidence-inspiring handling.

Comfort has always been a strong point for the Tiger. Both the rider and passenger benefit from
great ergonomics, excellent wind protection and rubber mounted handle bars and foot pegs. Hard saddle bags and luggage are available as well as a tank bag, heated grips and a host of other accessories.

Triumph has transformed its popular Tiger adventure-sport model with the unveiling of a striking new special edition at the INTERMOT motorcycle show, held in Cologne, Germany.

Taking the ABS version of the Tiger as its base, the SE features a distinctive new Matt Graphite and Matt Black colour scheme. Priced in the region of £9,000 OTR this new flagship to the Tiger family has even more versatility thanks to the addition of colour-matched panniers (with a combined capacity of 44 litres) and handguards as standard.

The two-tone colour scheme enhances the standard Tiger’s looks with an air of classic British sophistication and was inspired by one of Triumph’s company employee benefits: being able to specify a bike with non-standard colours. As Simon Warburton, Triumph’s Product Manager, explains, “Some of the design team were trying out different bodywork colours and while changing panels over they noticed that the combination of Matt Black and Matt Graphite worked really well. From this we developed the unique two-tone scheme that you see, which expresses the individuality of the special edition model perfectly.”

First introduced in 1994 as a versatile dual-purpose machine, the Tiger has evolved into the complete all-rounder that can tour, commute and scratch in equal measures. The Tiger’s commanding off-road style upright riding position is perfect for cutting through the urban jungle, devouring motorway miles and carving through challenging mountain passes.

The latest incarnation of the Tiger is powered by Triumph’s highly-acclaimed 1050cc three-cylinder engine, delivering peak power of 115PS (113bhp) at 9,400rpm and 100Nm (74ft.lbf) torque at 6,250rpm. Adjustable sports suspension and 120 front/180 rear sports tyres combined with powerful radial front caliper Nissin brakes endow the Tiger with the agility, handling and braking to let you fully exploit the potent triple. The 20 litre fuel tank provides a realistic 200 mile (320km) range, adding to the Tiger’s practicality and touring ability.


Features & Benefits

Engine: Powered by Triumph’s highly-acclaimed 1050cc three-cylinder engine, delivering peak power of 113bhp at 9,400rpm and 74ft.lb torque at 6,250rpm. Adjustable sports suspension and 120 front/180 rear sports tires combined with powerful radial front caliper Nissin brakes endow the Tiger with the agility, handling and braking to let you fully exploit the potent triple.

Fuel Tank: The 5.2 gallon fuel tank provides a realistic 200 mile range, adding to the Tiger’s practicality and touring ability.

Body Work: The two-tone color scheme enhances the standard Tiger’s looks with an air of classic British sophistication.

ABS: Triumph’s Antilock Braking System has been carefully designed to boost control under hard braking, working on both wheels independently. This unobtrusive system retains all the sensations of riding, operating at 100 calculations per second to sense the precise moment the wheel is about to lock up, then preventing it from doing so. The system has been specifically tailored to the Tiger, with painstaking calibration over many months to ensure optimum braking performance.







2010 Triumph Tiger Special Edition – USA Specifications
MSRP: Standard – $11,599 / ABS Model – $12,399

Engine Type
Liquid-cooled, DOHC, in-line 3-cylinder
Capacity
1050cc
Bore/Stroke
79 x 71.4mm
Compression Ratio
12.0:1
Fuel System
Multipoint sequential electronic fuel injection
Transmission
Final Drive
X ring chain
Clutch
Wet, multi-plate

Gearbox
6-speed

Cycle Parts

Frame
Aluminum beam perimeter
Swingarm
Braced, twin-sided, aluminum alloy
Front Wheel
Cast, multi spoke, 17 x 3.5in
Rear Wheel
Cast, multi spoke, 17 x 5.5in
Front Tyre
120/70 ZR 17
Rear Tyre
180/55 ZR 17
Front Suspension
43mm upside down forks with adjustable preload, rebound and compression damping
Rear Suspension
Monoshock with adjustable preload and rebound damping
Front Brakes
Twin 320mm floating discs,4 piston radial calipers
Rear Brakes
Single 255mm disc, 2 piston caliper

Dimensions

Length
83.1in
Width (Handlebars)
33.1in
Height
52.0in
Seat Height
32.8in
Wheelbase
59.4in
Rake/Trail
23.2 degree/87.7mm

Weight (Dry)
436lbs (ABS model: 443lbs)
Fuel Tank Capacity
5.2 gal

Performance (Measured at crankshaft to DIN 70020)

Maximum Power
113bhp at 9,400 rpm
Maximum Torque
74ft.lbf at 6,250 rpm

Colours

Jet Black, Blazing Orange, Fusion White







2010 Triumph Tiger Special Edition – Canada Specifications
MSRP C$13,599 / Special Edition $15,499

Engine Type
Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity
1050cc
Bore/Stroke
79.0 x 71.4mm
Compression Ratio
Fuel System
Multipoint sequential electronic fuel injection

Transmission
Final Drive
X ring chain
Clutch
Wet, multi-plate
Gearbox
6-speed

Cycle Parts
Frame
Aluminium beam twin spar
Swingarm
Braced, twin-sided, aluminium alloy
Front Wheel
Cast aluminium alloy, multi spoke, 17 x 3.5in
Rear Wheel
Cast aluminium alloy, multi spoke, 17 x 5.5in
Front Tyre
120/70 ZR 17
Rear Tyre
180/55 ZR 17
Front Suspension
Showa 43mm upside down forks with adjustable preload, rebound and compression damping, 150mm travel
Rear Suspension
Showa Monoshock with adjustable preload and rebound damping 150mm rear wheel travel
Front Brakes
Twin 320mm floating discs, Nissin 4 piston radial calipers (ABS model availabe)
Rear Brakes
Single 255mm disc, Nissin 2 piston sliding caliper (ABS model available)


Dimensions
Length
2,110mm (83.1in)
Width (Handlebars)
840mm (33.1in)
Height
1,320mm (52.0in)
Seat Height
835mm (32.8in)
Wheelbase
1,510mm (59.4in)
Rake/Trail
23.2 degree/87.7mm
Weight (Dry)
ABS 201Kg (443lbs)
Fuel Tank Capacity
20 liters (4.4 gal)
Performance (Measured at crankshaft to DIN 70020)
Maximum Power
115PS /113bhp @ 9,400 rpm
Maximum Torque
100Nm/74ft.lb at 6,250 rpm

Colours

Jet Black, Fusion White, Blazing Orange
Price








2010 Triumph Tiger Special Edition – UK Specifications
MSRP Standard – £7,999 OTR, ABS – £8,599 OTR

Engine Type
Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity
1050cc
Bore/Stroke
79.0 x 71.4mm
Compression Ratio
Fuel System
Multipoint sequential electronic fuel injection

Transmission
Final Drive
X ring chain
Clutch
Wet, multi-plate
Gearbox
6-speed

Cycle Parts
Frame
Aluminium beam twin spar
Swingarm
Braced, twin-sided, aluminium alloy
Front Wheel
Cast aluminium alloy, multi spoke, 17 x 3.5in
Rear Wheel
Cast aluminium alloy, multi spoke, 17 x 5.5in
Front Tyre
120/70 ZR 17
Rear Tyre
180/55 ZR 17
Front Suspension
Showa 43mm upside down forks with adjustable preload, rebound and compression damping, 150mm travel
Rear Suspension
Showa Monoshock with adjustable preload and rebound damping 150mm rear wheel travel
Front Brakes
Twin 320mm floating discs, Nissin 4 piston radial calipers (ABS model availabe)
Rear Brakes
Single 255mm disc, Nissin 2 piston sliding caliper (ABS model available)


Dimensions
Length
2,110mm (83.1in)
Width (Handlebars)
840mm (33.1in)
Height
1,320mm (52.0in)
Seat Height
835mm (32.8in)
Wheelbase
1,510mm (59.4in)
Rake/Trail
23.2 degree/87.7mm
Dry Weight
198kg (436lbs) (ABS 201Kg (443lbs))
Fuel Tank Capacity
20 litres (4.4 gal)
Performance (Measured at crankshaft to DIN 70020)
Maximum Power
115PS /113bhp / 85kW @ 9,400 rpm
Maximum Torque
100Nm / 74ft.lb at 6,250 rpm
Colours

Jet Black, Fusion White, Blazing Orange
Price
