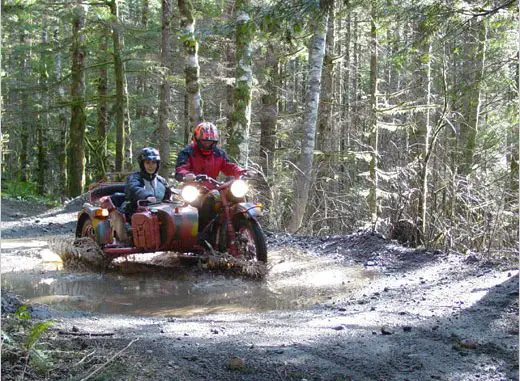

Want to stand out in a crowd and be able to disappear in the woods or desert? Try the Ural Gear-Up. Just like its cousin, the Patrol, with its on-demand sidecar drive, Gear-Up’s origins trace back to the military past of the Ural motorcycle family. The Gear-Up combination is as tough as a Russian AK-47!

Despite its clearly military upbringing, the Gear-Up is equally fit for more peaceful missions, such as fishing or hunting trips. If fishing or hunting is not your forte, you can still amaze your friends with the motorcycle’s ability to blaze through mud, sand and snow… Did we mention its irresistible camo paint schemes?

2010 Ural Gear Up – Specifications
MSRP: $13,599 USD

Model number IMZ-8.1037
Dimensions (L x W x H) 2580 x 1700 x 1100 mm / 101.6 x 66.9 x 43.3 inches
Seat height 785 mm / 30.9 inches
Road clearance 125 mm / 4.9 inches
Dry weight 335 kg / 739 lbs
Recommended max speed 95 km/h / 62 mph
Engine OHV Air-cooled, four-stroke, flat twin cylinder
Bore & Stroke 78 & 78 mm
Compression ratio 8.6:1
Displacement 749 cc
Rated HP @ 5600 RPM 40
Carburetion Twin KEIHIN L 22 AA Carburetors
Clutch Dry double disc
Rated Torque @ 4000 RPM 52 Nm / 38 ft-lbs
Alternator (14 Volt) 55 Amps / 770 Watts
Starting Electric and Kick-start
Gearbox 4 forward, 1 reverse, shaft drive
Fuel 91 Octane Unleaded
Tank Capacity 19 liters / 5.0 US gallons
Front Brakes Front – BREMBO disk brake
Rear Brakes Rear and sidecar wheel – IMZ drum brake
Ignition Electronic
Front suspension Leading link forks
Rear suspension Hydraulic spring shock absorbers
Wheels 19″, chrome steel spokes and cast aluminum hubs
Color Available in forest or desert camo paint scheme

Special features Engageable sidecar drive shaft
