2010 Yamaha Road Star Silverado S

Back to 2010 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

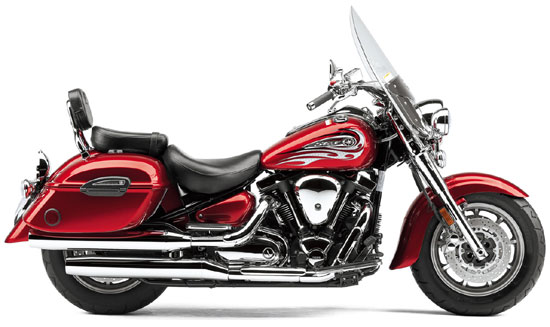

2010 Yamaha Road Star Silverado S
2010 Yamaha Road Star Silverado S

2010 Yamaha Road Star Silverado S
2010 Yamaha Road Star Silverado S

2010 Yamaha Road Star Silverado S
2010 Yamaha Road Star Silverado S

– 2010 Yamaha Road Star Silverado S

2010 Yamaha Road Star Silverado S

Ready for the open road and adorned with chrome accents.

The 2010 Yamaha Road Star Silverado S comes loaded with special features, including hard saddlebags, tons of chrome and passing lamps. It’s sure to turn heads as you rumble by.

Pack your bags.

Fill up the 4.7 gallon fuel tank, plant your feet on the floating floorboards and let that big 102-cubic inch fuel-injected V-Twin have its head. Medium size adjustable windshield. Color matched hard sidebags. Touring saddle and passenger seat with backrest. You are ready to go. The 2010 Road Star Silverado S adds chrome accents and more.

The Road Star Silverado S is bathed in high quality lacquer paint and brilliant rich chrome.

Somewhere between the gorgeous looks and the rumble of the fuel injected big V-twin powerplant, the intoxication of the Silverado S takes hold. Sit back and let the miles roll by, in relaxed casual touring comfort.





Highlights:

Fuel Consumption * 15kpl/43mpg(Imp)

Fuel injected 1,670cc V-twin

Hard saddlebags







Features and Benefits (USA):

Key Features:

” Electronic fuel injection ensures easy cold starting and flawless fuel delivery at nearly all altitudes and in nearly any conditions.

” A medium-size adjustable windshield enhances riding experience by keeping wind and weather off the rider.

” Stylish locking hard sidebags look great and provide ample storage for traveling.

” Touring rider seat and passenger seat with backrest is shaped for roominess and extended long-range comfort.

” Power is not a problem for the long-legged 102-cubic-inch V-twin, and belt final drive passes it to the rear wheel with maximum efficiency.

” The Road Star Silverado S gets chrome accents to the front end including: standard passing lamps, chrome switchgear, front brake master cylinder, front fork and levers.



Engine:

” Computer-controlled fuel injection monitors multiple engine parameters to calculate perfect mixture under nearly all conditions.

” 102-cubic-inch (1670cc) air-cooled, pushrod OHV 48-degree V-twin pumps out huge amounts of torque barely off idle for brisk acceleration and fantastic overall cruising performance.

” Hydraulic valve lifters driven by twin camshafts deliver exceptional performance and less maintenance. Ceramic composite cylinder bore plating ensures greater durability and optimal heat dissipation.

” Smooth-shifting five-speed transmission with 5th-gear overdrive delivers outstanding cruising performance with low rpm at highway speeds.

” Dry sump lubrication system uses a handy spin-on filter and creates lower center of gravity by helping keep overall engine height to a minimum.

” Electric starting system features solenoid-activated autodecompressor for easy, dependable starting.

” Two-into-two exhaust system features beefy, staggered shotgun dual pipes putting out a soulful V-twin exhaust tune.



Chassis/Suspension:

” Solid-mounted engine housed in specially designed rigid-look, double-cradle frame features a stylish 32-degree rake.

” Extra-long 66.5-inch wheelbase creates long and low retro profile, added rider comfort and well-balanced handling.

” Telescopic 43mm front forks with stainless-steel covers and 5.5 inches of travel stylishly smooth out the bumps.

” Out-of-sight link-type, preload-adjustable rear shock provides 4.3 inches of wheel travel for great handling and a plush ride.

” 16-inch cast wheels shod with tubeless tires for a classic, yet sporty look while providing confidence-inspiring handling and excellent grip.

” Dual 298mm front disc brakes feature four-piston calipers with aluminum pistons and sintered brake pads for strong, linear stopping power, backed up by a 320mm single rear disc.

” Lightweight and high-strength final drive belt provides long life and quiet operation.



Additional Features:

” Industry-leading Star family fit and finish feature rich, lustrous paint and extensive chrome accents that create a machine as stunning as it is powerful.

” Ultra-thin, tank-mounted speedometer features a stylish design and provides easy reading of odometer, dual tripmeters, clock and fuel gauge as well as low fuel, high beam, turn signal, neutral and engine diagnostic indicator lights.

” LED taillight and clear turn signal lenses with amber bulbs for a custom look, great visibility and reduced current draw.

” Full-size floating-type rider and passenger floorboards are roomy and comfortable.

” A two-piece heel/toe shifter, and braided stainless clutch and throttle cables add even more comfort and style.

” 4.74-gallon fuel tank with low-fuel warning light means exceptional cruising range.

” Seat and fork locks both integrated into main ignition switch for extra convenience.

” Handy underseat helmet holder.

” Powerful 12V 60/55-watt halogen headlight maximizes nighttime visibility and comes with beautiful chrome finish.

” 12V 12-amp-hour maintenance-free battery ensures fuss-free, dependable starting.







Features and Benefits (Canada)

Engine:

” 1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque.

” 4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output.

” Hydraulic valve lifters driven by twin crankcase-mounted camshafts deliver exceptional torquey performance and reduce maintenance needs.

” Twin crankcase-mounted camshafts activate the valves via hydraulic valve lifters and pushrods.

” Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity. Pushrod tubes are chromed, adding to the beauty of this unique high tech, yet traditional, engine.

” Large-diameter, forged pistons offer great durability and lighter weight for fast engine response.

” Large bore ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.

” Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.

” Electronic fuel injection with TPS features a single 40mm throttle body with dual injectors (one for each cylinder). The throttle position sensor is linked to the ECU and supplies info about throttle opening so the ECU can adjust ignition timing for optimum engine performance at all rpms.

” High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.

” Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.

” Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.

” Dry sump lubrication system with handy, spin-on oil filter, creates a lower centre of gravity by helping reduce overall engine height. The oil tank is located under the seat.

” Large-flywheel crankshaft delivers superior, low-rpm torque and that incredible V-twin “pulse” feel.

” 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. The 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.

” Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.

” 2-into-2 exhaust system features beefy, staggered, dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.

” Lots of high-quality chrome engine covers

” Air Induction System (A.I.S.) reduces exhaust emissions (CO + HC).


Chassis/Suspension

” Solid-mounted engine housed in a specially designed gusset-less, double-cradle frame

” Long 1,685mm (66.3″) wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.

” Spacious ergonomics provide ample legroom, which maximizes rider comfort.

” 43mm front forks provide 140mm (5.5″) of wheel travel to smooth out the ride. The large-diameter upper fork shrouds, lower fork legs, upper triple clamp and handlebar clamp are accented with a brilliant chrome finish.

” Spring preload-adjustable, single-shock, rear link suspension lowers centre of gravity for better handling and a plush ride. Rear wheel travel is 110mm (4.3″).

” Rear shock is horizontally mounted under the engine and tucked out of sight, providing that classic, hardtail look.

” 298mm front disc brakes feature ultra rigid, monoblock, 4-piston calipers with chrome “buttons” accenting the outer piston covers. The dual disc brake set-up eliminates the unsettling twisting effect of a single disc set-up found on most cruisers.

” 320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.

” “Police-style” windshield offers great wind and weather protection while proudly displaying the Silverado insignia. This windshield offers two positions of height adjustability, and for those riders who prefer a “convertible”, the windshield can be quickly removed.

” Rider seat offers great comfort and support.

” Passenger backrest provides that extra peace of mind for your special companion.

” Colour-matched, hard saddlebags with chrome accents offer 35 litres of storage space per bag. The bags are lockable and fitted with handy, one-touch latches.

” Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.

” Passenger floorboards provide roomy comfort and reduce vibration.

” Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.

” Nine-spoke, cast aluminum wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Road Star Silverado S. Tubeless, bias ply tires are standard equipment.

” 18 litre fuel tank provides an exceptional cruising range. The FI electric fuel pump is located inside the tank. Fuel tank seam is hidden for that clean, custom look.

” Wide, swept-back, 1″-diameter handlebars reduce vibration on the rider’s hands thanks to being rubber mounted. The one-piece handlebar clamp is beautifully chrome-plated.

” Beautiful braided-look steel throttle and clutch cables enhance that the Road Star’s stylish custom look and image.

” Tank-mounted speedometer features a stylish design with raised 3-D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and a fuel gauge plus a range of indicator lights.

” Eye-catching, diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.

” Stylish turn signals with custom looking clear lenses are self canceling

” Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light.

” Value added passing lamps not only enhance styling, but also provide additional illumination.



Details

” Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.

” Chromed, extra wide front brake and clutch levers provide a quality feel.

” Chrome handlebar switches, lever and master cylinder

” Stylish 3-D, fuel tank-mounted Road Star logo

” Seat and steering locks are integrated into the main ignition switch for extra convenience.

” Handy, dual under seat helmet holders

” Powerful, 12V 60/55-watt, halogen headlight

” Low-maintenance, sealed battery

” In-tank electric fuel pump

” Self-canceling turn signals with stylish clear lenses









2010 Yamaha Road Star Silverado S – USA Specifications
MSRP* $14,790 (Candy Red) Available from February 2010


Engine
Type 102-cubic-inch (1670cc) air-cooled 48° V-twin; pushrod OHV, 4 valves/cylinder

Bore x Stroke 97mm x 113mm

Compression Ratio 8.3:1

Fuel Delivery Fuel injection

Ignition TCI: Transistor Controlled Ignition

Transmission 5-speed, wide-ratio; multiplate wet clutch

Final Drive Belt


Chassis
Frame Steel; hidden shock

Suspension/Front 43mm fork; 5.5-in travel

Suspension/Rear Single shock; 4.3-in travel

Brakes/Front Dual hydraulic disc, 298mm

Dual hydraulic disc, 298mm Hydraulic disc, 320mm

Tires/Front 130/90-16

Tires/Rear 150/80-16

Wheels 9-spoke cast


Dimensions
Length 98.4 in

Width 38.6 in

Height 59.1 in

Seat Height 27.9 in

Ground Clearance 5.7 in

Wheelbase 66.5 in

Fuel Capacity 4.74 gal

Fuel Economy** 36 mpg

Wet Weight 774 lb


Other
Warranty 1 Year (Limited Factory Warranty)









2010 Yamaha Road Star Silverado S – Canada Specifications
MSRP: $19,199 CDN

Engine Air-cooled, OHV, 8-valve, 48°, V-twin
Displacement 1,670 cc
Bore and Stroke 97 x 113 mm
Compression Ratio 8.4:1
Maximum Torque 13.9kg-m (100.5ft-lbs.) @2,500rpm
Fuel Delivery 40 mm throttle body FI
Estimated Fuel Consumption* 15kpl / 43mpg (Imp.)
Ignition / Starting Digital TCI / Electric
Transmission 5-speed
Final Drive Belt


Suspension (Front) 43 mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298 mm discs
Brakes (Rear) 320 mm disc
Tires (Front) 130/90-16
Tires (Rear) 150/80-16


Length 2,500 mm (98.4″)
Width 980 mm (38.6″)
Height 1,500 mm (59.1″)
Wheelbase 1,688 mm (66.5″)
Rake / Trail 32° / 142 mm (5.6″)
Ground Clearance 145 mm (5.7″)
Seat Height 710 mm (28″)
Fuel Capacity 18 litres (3.4 imp. gal.)
Wet Weight 352kg (774.4 lb)

Colour(s) Deep Metallic Red


* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
