2011 Yamaha WR250F

Back to 2011 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

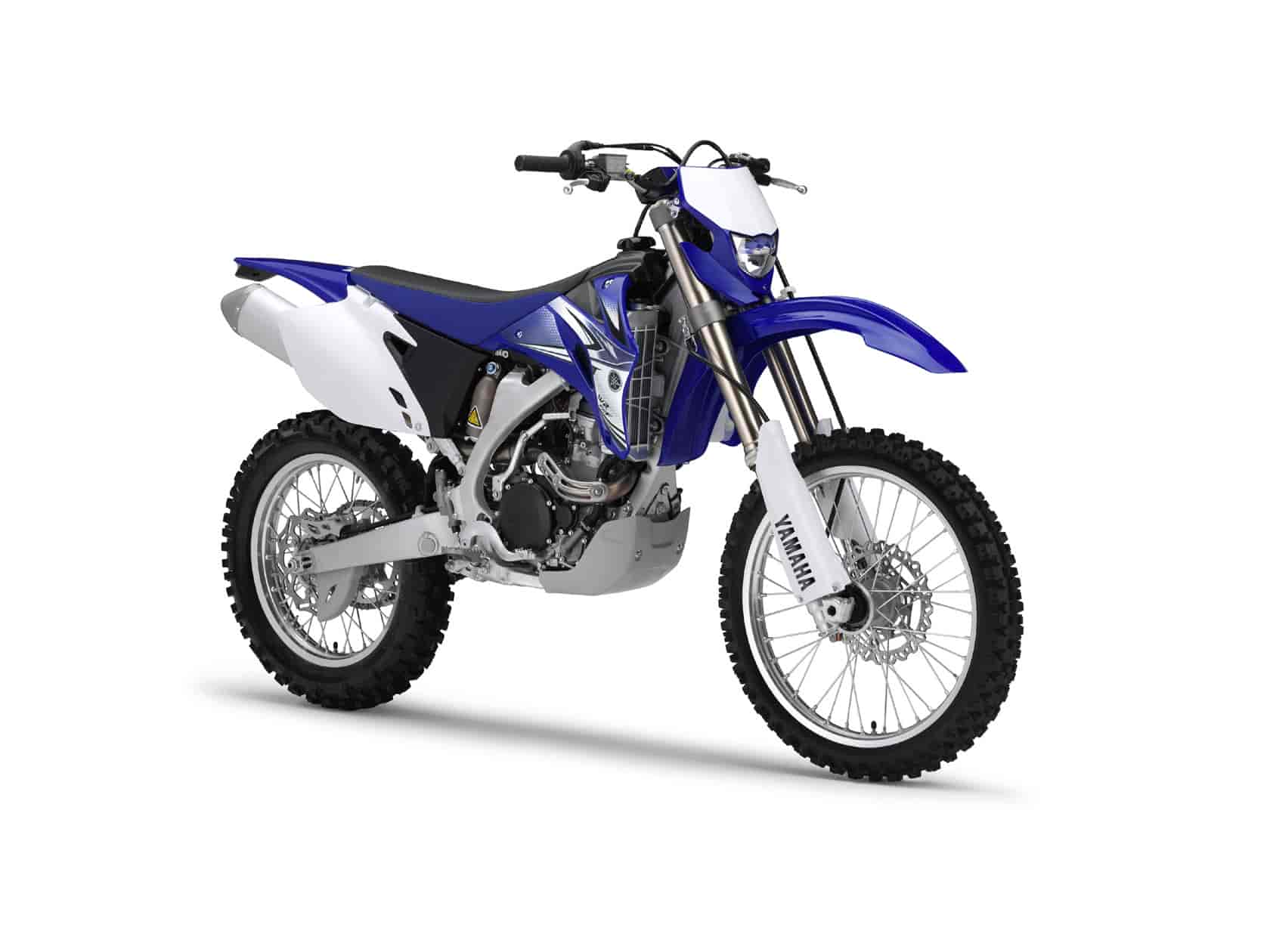

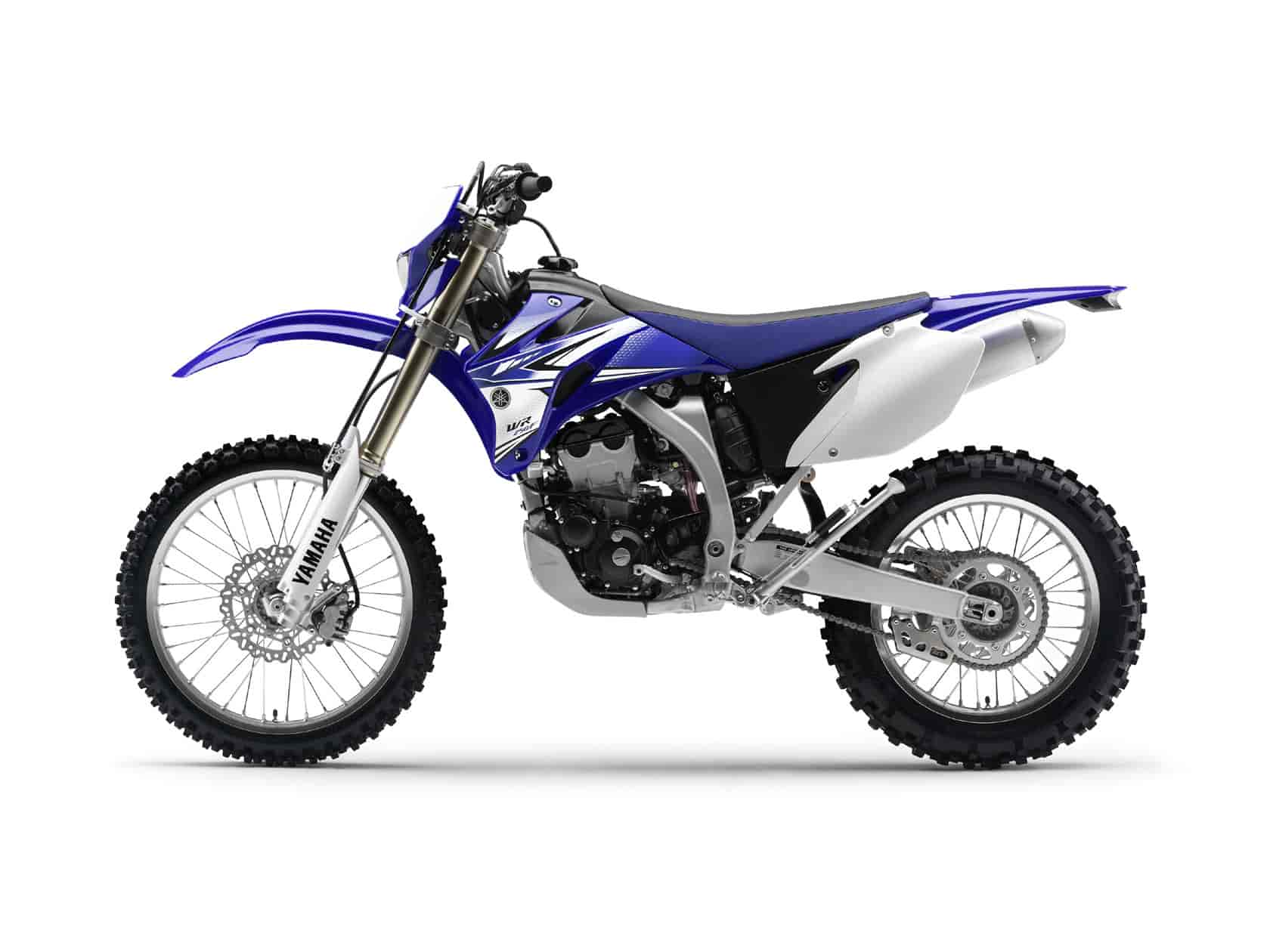

2011 Yamaha WR250F

2011 Yamaha WR250F

2011 Yamaha WR250F

– 2011 Yamaha WR250F

2011 Yamaha WR250F

A wet weight of just 260 pounds and a highly tractable 250cc titanium-valve engine make it the right tool for having fun.

Tight woods or wide open terrain, the lighweight, compact 2011 Yamaha WR250F is ready to tackle any challenge you can throw at it. The combination of a smooth, powerful engine, a lightweight aluminum chassis with Yamaha YZ based suspension and great brakes make the 2011 Yamaha WR250F an amazing off road performer.

The WR250F features a powerful and reliable highly evolved high-revving five-titanium-valve engine.

YZ-bred advanced super nimble aluminum frame, push button start, and digital enduro race computer with speedometer, clock and trip meter. Light, nimble and precise: it’s ready.



Highlights

4-Stroke, 249cc, 5-Valve DOHC Engine

Lightweight Aluminum Frame

Slim Line Bodywork



Key Features:

Engine

” Liquid-cooled, 249cc, 5-valve, DOHC, 4-stroke powerplant with super light titanium valves is based on the current YZ250F engine design. The WR250F engine features different camshafts, ECU and exhaust system than the YZ250F for improved low to mid range power which is better suited for enduro type riding.
” Super convenient electric starting means fast, sure starts. The electric starter is also backed up by a manual kick starter.
” Hassle free automatic decompression system ensures fast restarts in any gear.
” Convenient, handlebar-mounted hot start lever for easy restarts when the engine is hot.
” Magnesium cylinder head cover helps reduce weight.
” Optimized combustion chamber design provides the most efficient intake and exhaust flow for maximum engine performance
” Titanium valves and load-reduced springs decrease weight by more than 40% over a conventional valve train and reduce reciprocating mass for faster-revving, smoother-hitting power delivery across the rev range.
” Special cylinder design features cutaways that allow the air “trapped” under the piston to enter a side chamber (or cutaway) to reduce horsepower-robbing “pumping losses.”
” The crankcase also utilizes cutaways to reduce “pumping losses.” The crankcase cutaways match the cutaways in the cylinder.
” Dry sump oil tank is located in front of the engine between the frame tubes for protection. This design centralizes mass and reduces the centre of gravity for improved handing and a lighter feel.
” The crankcase features a “tri-axis” design for the crankshaft, main and drives axles. This tri-axis design keeps the crankcases more compact while also centralizing mass for better handling. All of the shafts are positioned low in the cases to maintain a low centre of gravity for great handling and maneuverability.
” Special “enduro focused” camshafts (intake & exhaust) provide outstanding low to mid range power well suited for off road use. The cam timing and event angle are different than the YZ250F.
” Balancer shaft reduces vibration for improved rider comfort and reduced rider fatigue.
” Lightweight crankshaft provides fast throttle response.
” Lightweight, short-skirt, forged piston provides great durability and its lightweight design means faster engine response.
” Oil volume in engine has been optimized to reduce weight and oil “drag” related power losses.
” Compact design automatic cam chain tensioner reduces maintenance and mechanical engine noise.
” 37mm, Keihin FCR, flat-slide carburetor with TPS (throttle position sensor) provides excellent throttle response.
” ECU features 3D ignition mapping to accommodate the engine power characteristics. The ECU provides optimal timing at all rpms for fast engine response.
” Lightweight direct ignition coil is integrated into the plug cap to reduce weight and complexity
” Wide ratio 5-speed transmission features gear ratios designed for enduro type riding and that match the engine’s power characteristics.
” Heavy-duty clutch matches engine output and offers a light, progressive clutch feel with less lever effort for smoother shifting.
” Quick-access, lightweight aluminum outer clutch cover allows fast, easy access to the clutch.
” Stylish mat black finish on left & right side crankcase covers, oil filter cover and sprocket cover for improved appearance.
” YZ based compact dual radiators provide optimum cooling and feature a re-enforcing bar to help protect the rads in the event of a tip over.
” Washable, dual-stage, foam air filter can be accessed without tools via “Dzus-type” fasteners. The air box is secured to the frame via only one bolt for fast removal.
” Lightweight exhaust system features a stainless steel header pipe with titanium heat shield, aluminum muffler and titanium rear cone. This system maximizes engine power and allows hassle-free replacement of the oil filter.
” Lightweight aluminum wrapped muffler offers an 82 dba noise level (stock settings). This muffler features a “serviceable”, screen-type spark arrestor which prevents sparks from exiting the exhaust.
” Oversize race type “barrel adjuster” for easy, on-the-fly adjustability of clutch lever/cable play.
” AIS (air induction system), located on front side of cylinder head reduces harmful emissions.



Chassis

” Lightweight, compact aluminum semi-double-cradle frame features a cast steering head while the remainder of the frame uses forged, pipe stock and extruded components. Yamaha has maintained the semi double cradle design to allow for “controlled flex” to optimize suspension action. This frame design provides a low centre of gravity for a light feel and razor sharp handling, plus less rider fatigue, and excellent stability.
” Removable, aluminum rear sub frame constructed of square-section pipe reduces weight and provides easy rear suspension access.
” Lightweight, tapered, aluminum swingarm is produced using “hydro forming”; a special forming method that uses high pressure water to form shapes.
” 48mm, adjustable inverted Kayaba cartridge fork provide excellent suspension performance. Front wheel travel is 300mm (11.8″).
” Front fork adjustments include: 20-way compression damping and 20-way rebound damping. Optional fork springs are available through Genuine Yamaha parts.
” Large plastic fork protectors wrap around the fork tubes for increased protection against dirt, mud and stone chips. These fork protectors are self-supporting to reduce friction for smoother fork operation.
” Forged aluminum upper and lower triples clamp reduce weight and provide increased strength.
” Adjustable forged handlebar mounts allow the handlebars to be moved 10mm rearward if desired.
” High tech, lightweight, Pro-Taper aluminum handlebar with reinforcing crossbar and protective foam pad.
” Monocross rear suspension system features a fully adjustable, Kayaba “piggy back” style shock with separate adjusters for high- and low-speed compression damping.
” Shock adjustments include: spring preload, 20 clicks of low-speed compression damping, 2 turns of high-speed compression damping and 20 clicks of rebound damping. Rear wheel travel is 310mm (12.2″).
” Link-type rear suspension provides a rising rate (progressive) suspension function.
” 250mm fully floating front disc brake with “wave style” rotor is squeezed by a twin piston Nissin caliper fitted with lightweight, aluminum pistons provides excellent braking performance.
” “Shorty style” adjustable front brake lever.
” 245mm rear disc utilizes a lightweight “wave style” rotor. The Nissin single piston caliper and an integrated rear master cylinder (fluid reservoir is integrated into the top of the master cylinder to reduce weight) delivers strong, progressive stopping power with excellent control and feel.
” Rugged, Excel 21″ front and 18″ rear rims provide exceptional durability and help reduce unsprung weight for optimal suspension performance.
” High tech, lightweight digital meter assembly. This compact meter features: speedometer, dual tripmeters, odometer and a clock in the basic mode. Or in the “race mode”, pace management functions such as timer, and distance compensating tripmeter.
” Rugged “slim-line” bodywork is very similar to the YZ-F counterparts. This “slim line” bodywork allows fast, easy rider movements and a lighter overall machine feel.
” Seat is based on YZ-F style but is wider with more padding for improved rider comfort during a long ride. “Gripper” seat cover.
” Stylish slim design front headlight is compact and offers 35 watts of lighting power. The headlight beam is adjustable up and down.
” Slim design compact LED taillight is tucked out of the way to prevent damage
” 8 liter black plastic fuel tank is designed to allow easy rider movements. The tank features a special “fluorination surface treatment” which reduces fuel permeation for improved environmental protection.
” Lightweight aluminum kickstand is designed to allow lots of ground clearance.
” Heavy duty one piece resin plastic engine guard. Only 3 bolts hold it in place for easy removal when washing the bike.
” Extra wide 55mm stainless steel foot pegs provide excellent grip.

Details

” 8-litre fuel tank with convenient on/off/reserve petcock for peace of mind
” Serrated rear brake lever and folding shift lever tip
” Rugged, plastic, lower rear disc and rear caliper protectors
” Sealed, low-maintenance 6 amp hour battery is gel-filled type to prevent leaks in the event of a tip-over.
” Waterproof starter button and engine kill switch are handlebar-mounted.
” Lightweight chain guide (support) helps reduce chance of chain derailment. Also helps protect rear sprocket damage too.
” Heavy duty rubber swingarm protector
” Heavy duty “O” ring chain for durability





2011 Yamaha WR250F – USA Specifications
MSRP* $6,850 (Yamaha Blue/White) Available from January 2011


Engine
Type 250cc liquid-cooled DOHC 4-stroke; 5 titanium valves

Bore x Stroke 77.0mm x 53.6mm

Compression Ratio 12.5:1

Fuel Delivery Keihin® FCR 37

Ignition CDI

Transmission Constant-mesh 5-speed; multiplate wet clutch

Final Drive Chain Drive


Chassis
Suspension / Front Inverted fork; fully adjustable, 11.8-in travel

Suspension / Rear Single shock; fully adjustable, 12.2-in travel

Brakes / Front Hydraulic single disc brake, 250mm

Brakes / Rear Hydraulic single disc brake, 245mm

Tires / Front 80/100-21-51M

Tires / Rear 100/100-18-59M


Dimensions
Length 85.2 in

Width 32.5 in

Height 51.1 in

Seat Height 38.6 in

Wheelbase 58.3 in

Ground Clearance 14.4 in

Fuel Capacity 2.1 gal

Wet Weight*** 256 lb


Other
Warranty 30 Day (Limited Factory Warranty)





2011 Yamaha WR250F – Canada Specifications
MSRP: $8,699 CDN

Engine 4-stroke, liquid-cooled, DOHC, 5-valve (titanium), single
Displacement 250 cc
Bore and Stroke 77 x 53.6 mm
Compression Ratio 12.5:1
Fuel Delivery Keihin FCR-MX37 flat-slide w/throttle position sensor)
Lubrication Dry sump
Ignition / Starting CDI / Electric & Kick
Transmission Wide-ratio, 5-speed
Final Drive “O” ring Chain

Suspension (Front) Adjustable 48 mm inverted fork / 300 mm (11.8″) travel
Suspension (Rear) Adjustable link Monocross / 310 mm (12.2″) travel
Brakes (Front) 250 mm floating disc
Brakes (Rear) 245 mm disc
Tires (Front) 80/100-21
Tires (Rear) 100/100-18

Length 2,165 mm (85.2″)
Width 825 mm (32.5″)
Height 1,300 mm (51.2″)
Wheelbase 1,480 mm (58.3″)
Ground Clearance 365 mm (14.4″)
Seat Height 980 mm (38.6″)
Fuel Capacity 8 litres (1.8 imp. gallons)
Wet Weight 116 kg (255 lb)
Colour(s) Yamaha Blue



* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
