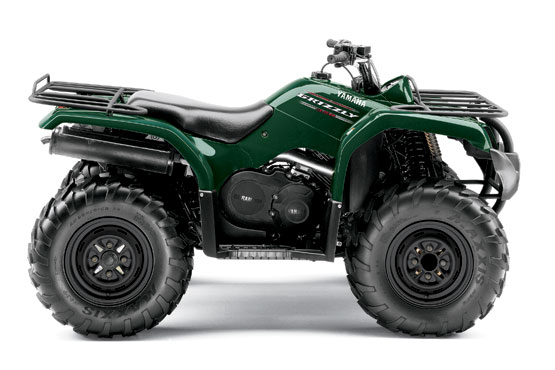

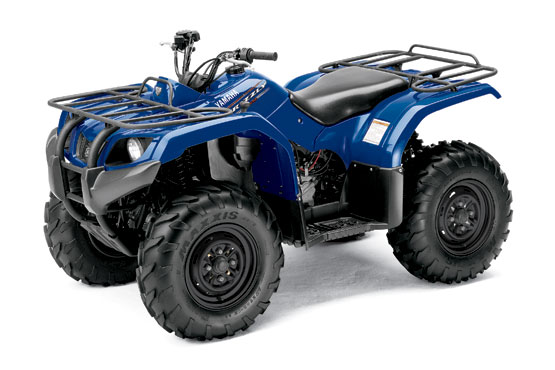

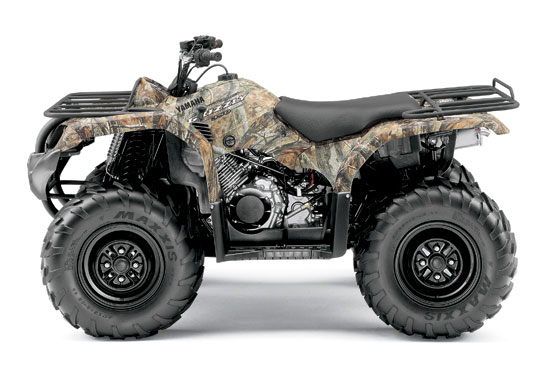

2011 Yamaha Grizzly 350 4x4 IRS
2011 Yamaha Grizzly 350 4×4 IRS

2011 Yamaha Grizzly 350 4x4 IRS
2011 Yamaha Grizzly 350 4×4 IRS

2011 Yamaha Grizzly 350 4x4 IRS
2011 Yamaha Grizzly 350 4×4 IRS

– 2011 Yamaha Grizzly 350 4×4 IRS

2011 Yamaha Grizzly 350 4×4 IRS

Full-featured boasting IRS, On Command 4WD and a rear sealed wet brake for superb terrainability and comfort.

Mid-size bear, full-size tough.

A mid-size ATV with our exclusive fully automatic Ultramatic transmission, On-Command 2WD/4WD with Diff Lock, independent rear suspension, speedometer, odometer, rear sealed wet brake and more.

Key Features:

” This power-packed, full-featured machine has independent rear suspension for excellent terrainability and all-day comfort at a great value.
” The power-packed, full-featured Grizzly 350 Automatic 4×4 IRS carries a lot of the Grizzly 700’s advanced ATV technology in an affordable package.
” Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
” Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD-all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
” Rear wet brake is a multi-disc system running in hydraulic fluid inside a sealed unit. This keeps out the elements (such as mud and water) while providing powerful, consistent stopping power and greatly reduced maintenance.
” Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling-even in 4WD.
” Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.
” Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
” Class-exclusive large-diameter ventilated hydraulic dual front disc brakes provide tremendous stopping power.
” Grizzly 450-style grab bar provides excellent durability and good looks, too.

” Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
” Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
” Pushbutton electric starting is backed up by an auxiliary recoil starter.
” Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
” Sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
” Automatic cam chain tensioner reduces engine maintenance.

” Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
” Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.
” Fully independent rear suspension provides fantastic terrainability and a smooth ride, with 7.1 inches of travel.
” Using a newly-designed multi-disc system running in gear oil, the sealed rear wet brake combines strong, consistent stopping power and greatly reduced maintenance requirements.
” On-Command® with Diff. Lock puts power to all four wheels for true 4WD.
” 9.6 inches of ground clearance and high-impact plastic skidplate provide great handling and undercarriage protection.
” Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
” Low 32.7-inch seat height for great handling.
” Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.

Additional Features:
” Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
” Wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.
” Front grab bar adds style and functionality.
” Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
” Large front and rear fenders with inner guards offer excellent mud/splash protection.
” Large-capacity underseat storage box provides added convenience.
” Plush, specially designed seat is widely contoured for incomparable rider comfort.
” Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
” Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
” Easy-access, tool-free air filter box allows for quick maintenance.
” Rear brake/taillight.
” Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
” Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
” Dual, bright, multi-reflector 30-watt Krypton bulb headlights with high and low beams.
” Easy, handlebar-mounted choke lever.
” Assembled in Newnan, GA, U.S.A.




2011 Yamaha Grizzly 350 4×4 IRS – USA Specifications
MSRP* $6,649 (Realtree AP Camo) Available from June 2010
$6,299 (Hunter Green) Available from July 2010
$6,299 (Steel Blue) Available from July 2010

Type 348cc, 4-stroke, air/oil-cooled single; SOHC

Bore x Stroke 83.0mm x 64.5mm

Compression Ratio 9.2:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC-CDI

Starting System Electric w/auxiliary pull

Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R

Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Suspension/Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel

Suspension/Rear Independent double wishbone; 5-way preload adjustment, 7.1-in travel

Brakes/Front Dual hydraulic discs

Brakes/Rear Sealed oil bathed, multi disc

Tires/Front AT25x8-12

Tires/Rear AT25x10-12

L x W x H 78.5 x 43.1 x 44.1 in

Seat Height 32.7 in

Wheelbase 48.6 in

Turning Radius 134 in

Ground Clearance 9.6 in

Fuel Capacity 3.8 gal

Wet Weight 606 lbs

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1102 lbs.

Instrumentation Speedometer, odometer

Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Grizzly 350 4×4 IRS – Canadian Specifications
Canadian MSRP* $NA

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
