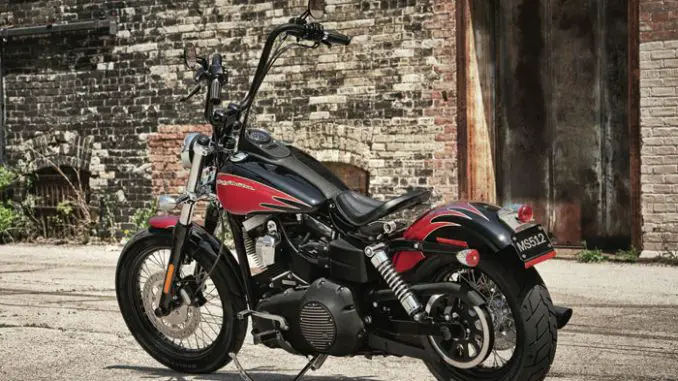

– 2012 Harley-Davidson FXDB Dyna Street Bob
2012 Harley-Davidson FXDB Dyna Street Bob Review
Big Twin power, authentic classic bobber style, stripped to pure essentials
The Street Bob® goes straight back to the minimalist roots of the bobber scene. Stripped down to the bare essentials, and as “naked” as the law allows, the key word here is “pure” with no parts that aren’t absolutely necessary. Since its introduction, this attitude-laden motorcycle has taken the custom world by storm with mini ape-hanger handlebar, Fat Bob® fuel tank, solo seat, mid-mounted foot controls and a big, black Twin Cam 96™ engine.
Completely redesigned in 2009, the Street Bob® goes straight back to the minimalist roots of the bobber scene. Stripped down to the bare essentials, and as “naked” as the law allows, the Street Bob goes right to the heart of riding with no distractions along the way.
Since its introduction, this attitude-laden motorcycle has taken the custom world by storm with mini ape-hanger handlebar, Fat Bob® fuel tank, solo seat, mid-mounted foot controls and a big, black Twin Cam 96™ engine.
BOBBER SOLO SEAT
True to the old school bobber look, a slammed solo seat drops you in nice and snug to the bike and close to the pavement beneath you. It’s the ultimate bond with the road and your machine. Get the quintessential bobber style without sacrificing the comfort of the ride.
CHOPPED REAR FENDER
Lose the support covers and a good chunk of metal and you get another important feature of the bobber from yesteryear: the chopped rear fender. Stripped down clean, this fender offers just enough surface for low-profile taillights and a license plate bracket. Give other riders more tire to look at when you blow past them.
BLACKED OUT RIMS
Raw, gritty and no-nonsense—the Street Bob® motorcycle features black laced steel wheels and stainless steel spokes with an aggressive 19′ wheel up front to lead your way out of the mundane. Blacked out like the Harley-Davidson® Twin Cam engine, these wheels make a bold statement and provide a smooth, true ride.
The devil is in the details when it comes to the essence of the period bobber—even at the tail end of the bike. The sausage taillight with attached license plate bracket was introduced back in the ’40s, and it is still going strong today to capture that slick, nostalgic look.
FUEL TANK MEDALLIONS
When it comes to motorcycles, there’s one name that people will never mistake for another: Harley-Davidson. The Street Bob® model features fuel tank medallions that ooze the iconic Harley-Davidson attitude. Consider it your badge of honor bolted on the side of the fuel tank so everyone can see exactly how you roll.
Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects in the sunglo and pearl colors. Skimping simply is not in our vocabulary
HAND FINISHED FUEL TANK
All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.
MINI ‘APE-HANGER’ HANDLEBAR
Grab hold of the stainless steel mini ape-hanger handlebar and put your fists way up in the wind—it’ll take you back to the good old days of post-war bobbers. And for that clean and minimalist, bobber look, the wires are routed inside the steel.
TWIN CAM 96™ ENGINE HERITAGE
The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 96™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward.
And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.
TWIN CAM 96™ ENGINE INNOVATION
Fire up the Twin Cam 96™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.
PURE HARLEY-DAVIDSON STYLING
Feast your eyes on the Twin Cam 96™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson® style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by polished rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power.
From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 96™ engine makes an ironclad statement to holding on to what’s right and staying true to what satisfies the rider.
SIX-SPEED CRUISE DRIVE®
You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.
ARTFULLY HIDDEN TECHNOLOGY
Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.
Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.
ANTI-LOCK BRAKES (OPTIONAL)
You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives ‘stopping power’ a double meaning. Its components are tastefully hidden within the wheel hub, so you’ll still turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike’s going to behave when you need it. Offered as a part of the ‘Security Package’ (which includes the H-D® Smart Security System).
H-D® SMART SECURITY SYSTEM (OPTIONAL)
The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique. Offered as a part of the ‘Security Package’ (which includes Anti-Lock Brakes).
Preload is easily adjusted with a spanner wrench to make your suspension suit you and your riding style. The slammed low rear suspension gives you a more laid-back riding position and style. Low-profile, kicked back for profiling down the boulevard and hugging corners.
TUNED TO BE RIDDEN
Harley-Davidson® motorcycles are different from any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.
MICHELIN® SCORCHER™ TIRES
New Michelin® Scorcher™ Tires provide the superior performance, sensational grip, impressive durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability is also enhanced by the tire’s rubber compounds, which use the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to stabilize your ride, which helps inspire confidence in handling.
Let your boots fall where they may, naturally to the mid-mounted controls and rider foot pegs on the Street Bob® model. An easy reach and tight rider triangle is confidence-inspiring for new riders eager to set off on their journey and riders whose legs run slightly shorter than others.
SEAT ENGINEERING AND DESIGN
The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.
ENGINE IDLE TEMPERATURE MANAGEMENT STRATEGY
Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. This feature can easily be turned on by your dealer.
2012 Harley-Davidson FXDB Dyna Street Bob Model Highlights
NEW Optional Security Package bundling Anti-lock Braking System (ABS) and a Smart Security System for greater value
NEW Paint color option
– Michelin® Scorcher™ tires
– All-black powertrain
– Tank medallion
– Chrome exhaust with dual straight-cut staggered shorty mufflers
– 4.7-gallon Street Bob fuel tank
– Black Steel Laced wheels
– Chopped rear fender without support covers
– Solo seat
– Stainless steel, internally-wired mini ape-hanger handlebar
– Top triple clamp with integrated riser
– Wrinkle-black low-profile tank console with electronic speedometer
– Wrinkle-black battery box and belt guard
– Retro-style LED tail light
– Street Bob air-cleaner trim ring
2012 Harley-Davidson FXDB Dyna Street Bob Features and Benefits
– Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque
– 6-speed Cruise Drive® transmission
– Exposed under-seat battery box
– Exposed rear coil-over shock absorbers
– Mid-mounted rider footpegs with brake and shift levers
– Optional Harley-Davidson® Smart Security System with hands-free security fob and Anti-lock Braking System (ABS)
2012 Harley-Davidson FXDB Dyna Street Bob – USA Specifications/Technical Details
US MSRP Price: Vivid Black $14,259, Color Option $14,679, Security Package (Security and ABS) $1,310 CDN
Length 92.8 in. (2357 mm)
Overall Width 37.5 in. (953 mm)
Overall Height 50.4 in. (1280 mm)
– Laden2 25.5 in. (648 mm)
– Unladen 26.7 in. (678 mm)
Ground Clearance 4.92 in. (125 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119 mm)
Wheelbase 64.2 in. (1631 mm)
Tires (Michelin® Scorcher® “31” front and rear):
– Front – Scorcher® “31” 100/90-19 57H
– Rear – Scorcher® “31” 160/70-17 73V
Fuel Capacity 4.7 gal. (17.8 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Case Capacity 1.0 qt. (.95 L)
– As Shipped 637 lbs. (289.0 kg)
– In Running Order 670 lbs. (304.0 kg)
– Gross Vehicle Weight Rating 1085 lbs. (492.2 kg)
– Gross Axle Weight Rating:
– Front 390 lbs. (176.9 kg)
– Rear 695 lbs. (315.3 kg)
Engine Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
– 1st 9.311
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Black Steel Laced
– Front 19 in. x 2.5 in. (483 mm x 64 mm)
– Rear 17 in. x 4.5 in. (432 mm x 114 mm)
– Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
– Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
– Front (floating) 11.8 in. x .2 in. (300 mm x 5.1 mm)
– Rear 11.5 in. x .23 in. (292 mm x 5.8 mm)
– Anti-lock Braking System: Available
– Front Wheel 5 in. (127 mm)
– Rear Wheel 3.1 in. (78.74 mm)
Engine Torque5 (per J1349):
– North America 92 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle (per J1168):
– Right 30°
– Left 31°
Fuel Economy6 (EPA urban/highway test) 43 mpg (5.5 L/100 km)
– Vivid Black
– Ember Red Sunglo
– Black Denim
Vivid Black $12,999
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Rear Turn Signal Lights 9W/43W self-canceling
– Indicator Lamps: High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system7 (optional), 6-speed, low fuel warnings
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.
2012 Harley-Davidson FXDB Dyna Street Bob – Canadian Specifications/Technical Details
Canada MSRP Price: See your local retailer for pricing information.
Length: 2,355 mm
Seat Height, Laden: 648 mm
Seat Height, Unladen: 680 mm
Ground Clearance: 120 mm
Rake (steering head) (deg): 29
Trail: 119 mm
Wheelbase: 1,630 mm
Tires, Front Specification: 100/90-19 57H
Tires, Rear Specification: 160/70-17 73V
Fuel Capacity 3: 17.8 l
Oil Capacity (w/filter): 2.8 l
Weight, As Shipped: 290 kg
Weight, In Running Order: 305 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A
Engine 1: Air-cooled, Twin Cam 96™
Bore: 95.3 mm
Stroke: 111.1 mm
Displacement: 1,585 cc
Compression Ratio: 9.2:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
Primary Drive: Chain, 34/46 ratio
Gear Ratios (overall) 1st: 9.311
Gear Ratios (overall) 2nd: 6.454
Gear Ratios (overall) 3rd: 4.793
Gear Ratios (overall) 4th: 3.882
Gear Ratios (overall) 5th: 3.307
Gear Ratios (overall) 6th: 2.79
Exhaust: Chrome, staggered, straight-cut shorty exhaust with dual mufflers
Wheels, Optional Style Type: N/A
Wheels, Front Type: Black, Laced Steel
Wheels, Rear Type: Black, Laced Steel
Brakes, Caliper Type: 4-piston fixed front, and 2-piston torque-free floating rear
Parking Brake: N/A
Engine Torque Testing Method: J1349
Engine Torque 2: 127 Nm
Engine Torque (rpm): 3,250
Lean Angle, Right (deg.): 30
Lean Angle, Left (deg.): 31
Fuel Economy: Combined City/Hwy: 5.5 l/100 km
Lights (as per country regulation), Indicator LampsHigh beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
1: Measurement reflects 180 lb. (81.7 kg) operator weight.
2: Recommended 91 octane or higher fuel (R+M)/2.
3: Values shown are nominal. Performance may vary by country and region.
4: Standard and optional fuel systems may vary by country.
5: Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6: Standard and optional wheels may vary by country and region.
7: North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8: See motorcycle owner’s manual for complete details.
2012 Harley-Davidson FXDB Dyna Street Bob – Press Release 1
MORE HARLEY-DAVIDSON MODELS WITH TWIN CAM 103™ POWER IN 2012
V-Rod® 10th Anniversary Edition and Dyna® Switchback Bagger Join the Model Line
MILWAUKEE (July 20, 2011) – Harley-Davidson offers more Big Twin performance for 2012 as its Twin Cam 103™ powertrain is standard equipment on Softail® and Touring motorcycle models and most Dyna® motorcycle models. Harley-Davidson will offer two new models for 2012. The V-Rod® 10th Anniversary Edition celebrates a decade of power-cruiser performance, while the new Dyna® Switchback is a convertible custom-touring motorcycle with detachable hard saddlebags and windshield. In addition, the Night Rod Special has significant updates for 2012 with refreshed bodywork and optimized rider ergonomics. Harley-Davidson Custom Vehicle Operations (CVO)TM rolls out the gleaming new CVO Road Glide® Custom, a limited-production, high-performance touring masterpiece.
Harley-Davidson believes every motorcycle it sells can be a custom of one. Harley-Davidson H-D1™ is a comprehensive offering of customization tools for the Harley-Davidson motorcycle owner. H-D1 tools include Harley-Davidson Genuine Motor Accessories listings in print and on-line catalogs, Fit Shop and consultation services at Harley-Davidson dealerships, and factory customization and Bike Builder tools on www.harley-davidson.com. H-D1 offers almost unlimited opportunities to optimize fit, function, style and performance and turn a Harley into a motorcycle that is truly personalized to its owner.
Harley- Davidson heads into 2012 with 32 models, each born of experience that spans generations and a passion for riding that will never diminish.
Highlights of the 2012 Harley-Davidson line include:
The Twin Cam 103™ engine powers all 2012 Dyna®, Softail® and Touring models with the exception of the Dyna Street Bob® and Dyna Super Glide® Custom. This engine produces up to 100 ft lbs. peak torque, an increase of approximately 6 percent over the Twin Cam 96 engine it replaces as standard power for many of these models. The Twin Cam 103 is equipped with automatic compression release. It features identifying badges on the derby cover, timer cover and air cleaner trim ring.
A Security Package that pairs Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob is available for all 2012 V-Rod®, Dyna®, Softail®, Touring and CVO™ models. The Security Package is standard equipment on CVO™ models and on the Road Glide® Ultra, the Electra Glide® Ultra Limited, and the Road King® Classic. The Security Package is a factory-installed option for all other models.
The Night Rod® Special is updated with new tapered tail section, lighter-weight wheels, an inverted front fork and improved ergonomics. Harley-Davidson celebrates a decade of power cruising with the V-Rod® 10th Anniversary Edition motorcycle, finished in Brilliant Silver Pearl bodywork that evokes the anodized aluminum bodywork of the original V-Rod model that introduced the liquid-cooled Revolution V-Twin engine in 2002. All V-Rod models will carry V-Rod 10th Anniversary badges.
The new Dyna Switchback combines hard saddlebags and a windshield with the eager handling and Twin Cam 103 performance of the Dyna chassis. It’s a custom-touring bike ready for a long weekend trip, until the detachable bags and windshield are removed. Then in seconds the Switchback becomes a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. This convertible concept makes the versatile Switchback two motorcycles in one.
All Harley-Davidson Softail models get the performance boost of the Twin Cam 103 engine for 2012. The Fat Boy and Fat Boy Lo have a new reduced-reach handlebar for more-comfortable ergonomics. A lower, narrower seat shape places the Fat Boy rider in a new “in the bike” position. The Softail Deluxe and Heritage Softail Classic will be available with a new optional “tubeless” Chrome Aluminum Profile Laced wheel option for ease of tire replacement and repair.
The Twin Cam 103 powertrain gives all Harley-Davidson Touring models assertive power for passing. On Touring models, the Twin Cam 103 is equipped with an oil cooler. All Touring models except the Ultra Limited will offer a new “tubeless” Chrome Aluminum Profile Laced wheel option.
The Harley-Davidson Sportster® line appeals to a broad range of riders with six 2012 models ranging from the race-inspired XR1200X™ to the accessible SuperLow® to Dark Custom roadsters like the Iron 883™, Nightster® and Forty-Eight®. The Sportster® 1200 Custom can be personalized for fit, function and style with H-D1 factory customization, a process that allows customers to use the Bike Builder tool on harley-davidson.com to build the motorcycle from a selection of options that are installed as the bike is assembled by Harley-Davidson Motor Company or are installed by a dealer after the motorcycle is delivered. New 1200 Custom color options have been added to Bike Builder for 2012.
The new CVO Road Glide Custom is one of four limited-production 2012 models from Harley-Davidson Custom Vehicle Operations (CVO)TM, each turned out with bold paint, gleaming chrome, and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles. CVO Road Glide Custom is a hot-rod bagger with a frame-mounted fairing topped with a smoked Wind Splitter windshield, a high-output, amplified Harman/Kardon® Advanced Audio system, and a color-matched, low-profile fuel tank console.
