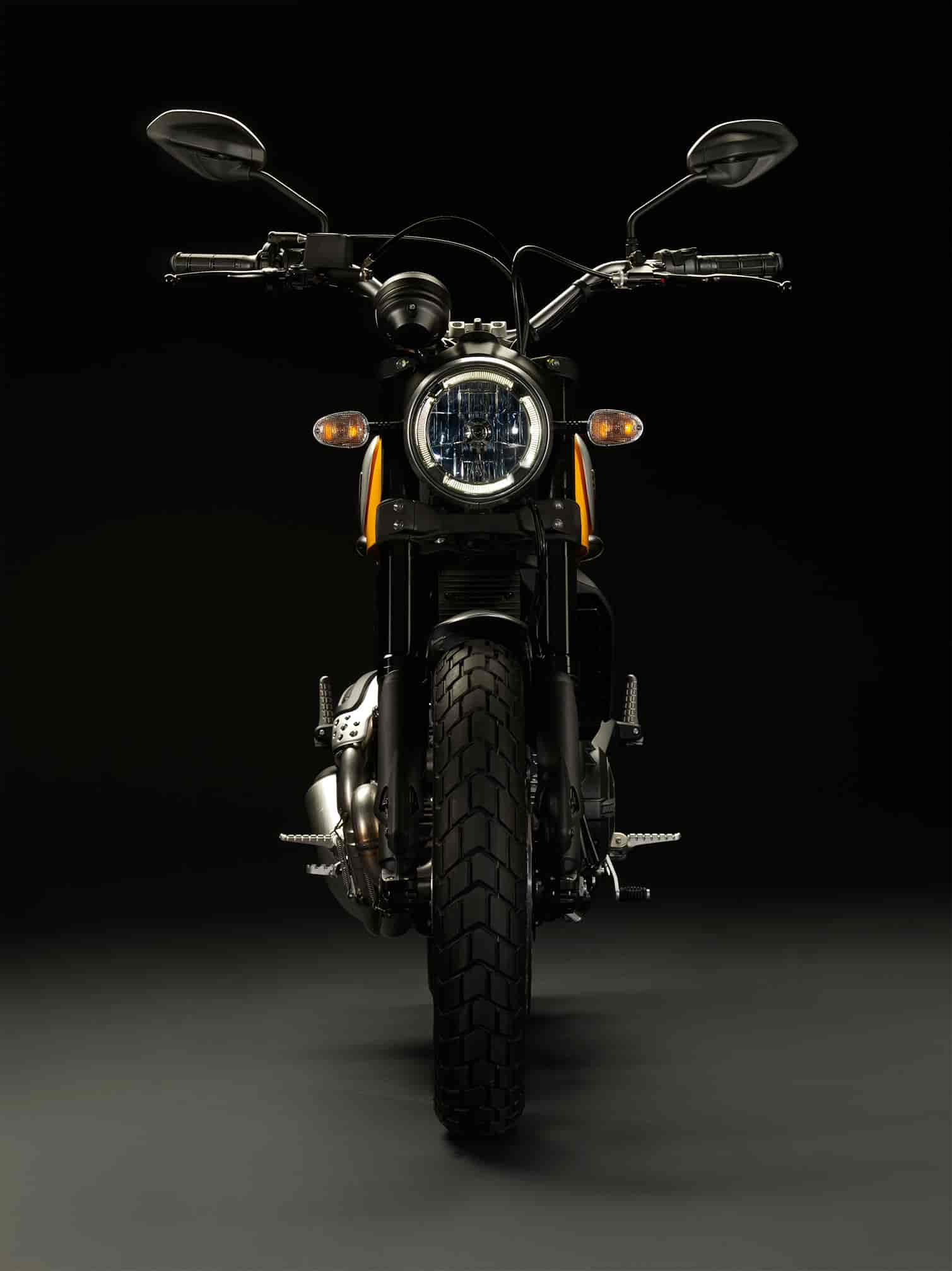

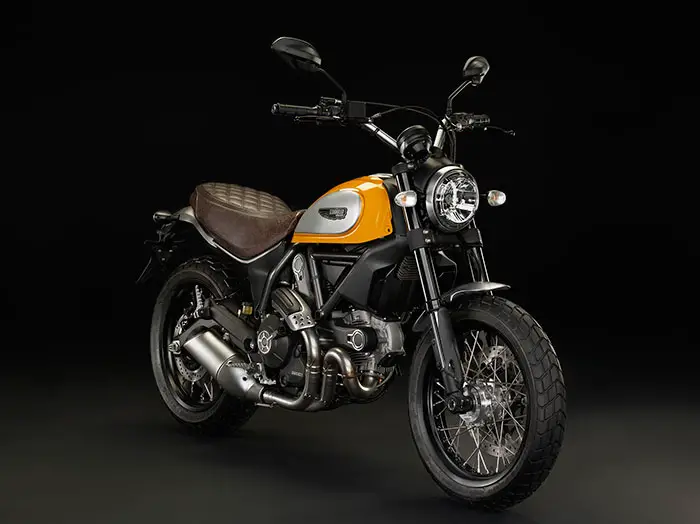

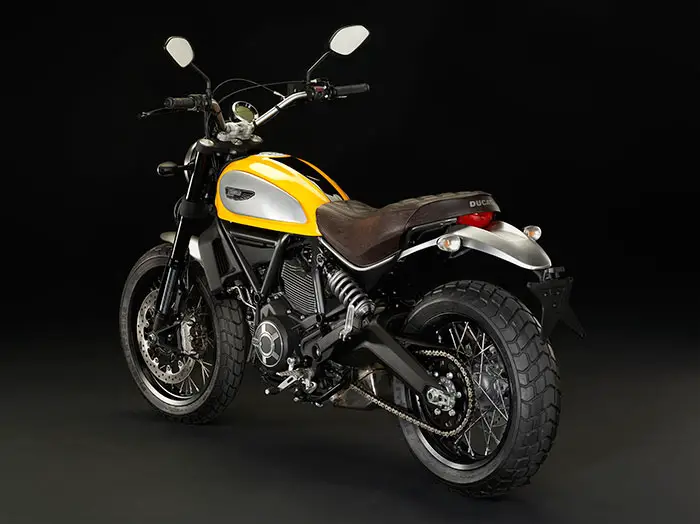

2015 Ducati Scrambler Classic

Back to 2015 Ducati Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic

2015 Ducati Scrambler Classic
2015 Ducati Scrambler Classic



2015 Ducati Scrambler Classic Review

2015 Ducati Scrambler Classic on Totalmotorcycle.com

Ducati Scrambler isn’t just a bike, it’s a world…

The Classic is for riders who want 1970s styling and details plus the pure riding pleasure and practicality of a modern bike. With its metal mudguards, traditional plate holder, and spoked wheels (the same size as the alloy ones, 3 x 18 at the front and 5.5 x 17 at the rear) this is, perhaps, the version that embodies the essence of motorcycling more than any other. The Scrambler Classic logo is the one that most resembles its 1970s counterpart, perfectly matching the “Orange Sunshine” of the tank which, just like the original
Scrambler, features a central black stripe. Lastly, the retro flavour of the Scrambler Classic is enhanced even further by the lozenge-patterned stitching on the brown seat.

The Classic version is aimed at those who appreciate attention to detail and 1970s style, but who don’t want to compromise on riding pleasure and the functionality of a modern bike. It is characterised by unique, refined details, such as the aluminium front and rear mudguards, the spoke wheels and the brown seat with diamond-shaped inserts. In Orange Sunshine.

The wait is over at last. The Ducati Scrambler is finally out of the yellow container that has so jealously guarded it over the last few months and is now – after the previews granted to employees and Ducatisti at World Ducati Week 2014 – officially ready to be revealed to all enthusiasts. This is more than just a new bike: it’s a whole new world, one that expresses itself via a range of versions that provide a starting point for satisfying the different needs and wants of individual motorcyclists.

The Ducati Scrambler is a contemporary bike that expresses the pure essence of motorcycling. Tried and tested materials such as the aluminium of the rear swingarm and engine covers and the steel of the teardrop tank and frame are combined with new-generation components such as front and rear LED lighting and LCD instruments.

Wide handlebars and a long seat provide a comfortable, relaxed riding position and, together with the low weight, low centre of gravity and slightly knobby tyres, ensure pure riding fun whatever the situation.

“Post-heritage” design gives a contemporary take on the iconic bike built by Ducati back in the 70s. This Scrambler, though, is not a retro bike: it is, rather, intended to be just how the legendary motorcycle would be today if Ducati had never stopped building it.

The Icon version, in yellow and red, is joined by three others – Urban Enduro, Full Throttle and Classic – each offering its own style and performance-related interpretation of the Scrambler spirit. The Urban Enduro, with its “Wild Green” paintjob, is for enduro style enthusiasts and ready to switch from city streets to country backroads in an instant. The Full Throttle is for riders enthralled by the flat-track racing world who have a penchant for pushing things to the limit. And the Classic is for devotees to details and a 1970s look who want the uncompromising riding pleasure and comfort of a modern-day bike.

Moreover, thanks to a vast range of apparel and bike accessories, to be presented in November, the Scrambler offers a virtually unlimited range of exclusive personalisation and lifestyle options.

The Scrambler name has much in common with the verb to scramble – mixing up, blending, letting the imagination run free, sharing with others. Ducati Scrambler, the two-wheeled alter ego of those who ride it, is a cultural movement in and of itself. It’s free-spirited, positive and anti-conformist, open to encounters with other philosophies and styles.



Self expression

Ducati Scrambler is self expression and the Urban Enduro, Full Throttle and Classic versions offer some great ways of expressing yourself even better. They represent a starting point, providing examples of what the Ducati Scrambler is all about.



A new world

Ducati Scrambler offers groundbreaking style and substance. Anti-conformist, accessible and essential, the Ducati Scrambler is a perfect mix of tradition and modernity, a stride towards the pure essence of motorcycling: two wheels, wide handlebars, a straightforward engine and endless fun. The Scrambler world – the latest addition to the Ducati universe – is one of authentic creativity and free expression; the lead-up to its official arrival has generated an unprecedented buzz, as has a captivating launch campaign of outstanding originality.

First, Ducati wanted to share the arrival of the Scrambler with the employees who constitute the very heart of the company. On 9 June they got an exclusive preview when the factory entranceway was transformed into a beach with music, longboards, street food and a huge yellow container: a surprise event that Ducati had set aside for the inner community of production line/office workers and managers at the Borgo Panigale plant to get them thoroughly involved in the new project and treat them to a very private look at the prototype.

From 18 to 20 July, fans flocking to World Ducati Week 2014 were able to enjoy a similar peek at the new Scrambler. An island-like “Land of Joy” area was set up in the Marco Simoncelli Misano World Circuit paddock area, perfectly showcasing just what the Scrambler is all about. Needless to say, the centrepiece was the famous yellow container.

Snippets of info on the look and content of the Scrambler were also released on the internet in a 3-episode web series made using stop-motion animation (the leading characters were handmade plasticine models painstakingly made by three talented 19-year-olds from Bologna). The series tells the imaginative story of how the Ducati Scrambler ended up in the present day; the main characters were, in addition to the Scrambler itself, Franco and Elvira, the former Ducati employees who headed the original Scrambler advertising campaign in the ’70s: at the time he was working at Ducati as a test rider and she – easily as beautiful as any professional model – was working in administration.

The Ducati Scrambler campaign has also launched the internet-based Scrambler You Are competition, open to all video makers eager to show off their style and skill. Their challenge is to come up with a short video illustrating the thrills and experiences typical of the Scrambler world. The competition closes on 20 October, when a jury of experts will reveal the winners and assign the €8000 prize money. Scrambler You Are highlights, more than ever, just how much the Scrambler is a free-spirited, creative bike that belongs to everyone… because there’s an avid Scrambler fan inside every motorcyclist.



Post-heritage design

When the Ducati Design Center started working on the Scrambler the goal immediately became a very clear one: to revive a legend while, simultaneously, building a truly modern bike. A new bike inspired by the iconic ’70s model but with all the technical specifications of a present-day one. That’s why, for example, the bike features an upside down stanchion fork, alloy rims, a rear monoshock, and front radial-mount calipers.

Everything on the Ducati Scrambler has been designed to be as “Ducati” as possible while remaining faithful to the style of its inspiring predecessor. Firstly, there’s the tank, sculptural and lovingly shaped yet loyal to the original teardrop design of the ’70s model, including the ‘upward sloping’ look. Additional character is provided by the tank side covers: made of brushed aluminium, they’re interchangeable to allow plenty of scope for personalisation and feature version-specific logos.

Seat and tank have been formed carefully to give the Ducati Scrambler eye-pleasing proportions. A compact bike, the Scrambler instils confidence from the moment you set eyes on it. It’s been sized to make it accessible to all motorcyclists while its long seat maximises comfort and can accommodate a passenger comfortably, because the Ducati Scrambler is all about sharing too.

A great deal of thought has gone into every detail on the Scrambler, including the ultra-modern rear swingarm and the exhaust pipe routing, a layout that echoes the look seen on the latest Ducati nakeds. The short silencer and the rear mudguard tip have been designed to make the bike more compact, as have the passenger grab handles, hidden by the openings on the upper part of the seat.

Redesigned for the present day, the round headlamp is a key part of the Scrambler look. Ultra-modern LED light guide technology (used for the side lights) underlines the outstanding level of technical expertise. The filler cap, which sports the inscription “born in 1962”, reflects the closure system in vogue in the ’70s; similarly, the key, once inserted in the switchgear on the headlamp unit, recalls the design of the original light switch. Under-seat moulding provides another ’70s design throwback.



A bit of history

The Scrambler was designed following a request from the Berliner brothers, the US importers of Ducati bikes in the 1960s. They wanted a bike that would suit the tastes of American bikers. Initial contact was established by Giorgio Monetti – famous for his round-the-world ride together with Leopoldo Tartarini – who was then Sales Manager at Ducati. It was agreed that the bike would have to be extremely practical and the design work was entrusted to Renzo Neri, who, even though he was Technical Department Manager at the time, was known to have a skilled hand: the designs for the tank, seat and mudguards are, in fact, his. The first Scrambler went into production in 1962 and was modified uninterruptedly until 1968, when the real “long engine cover” Scramblers appeared, followed by the 250 and 350 versions and, in 1969, the 450.

The first Scrambler series included some bikes with desmodromic cylinder heads and was the subject of continuous technical adjustments until production was discontinued in 1975. For a variety of reasons, the Scrambler was an enormous success. First of all, it embodied the rebellious, unconventional spirit of the time. It also had an exceptional frame, good enough to even be used on the racetrack. Also, it had a purpose-built engine, and great overall performance with a perfect central riding position made it one of the most enjoyable bikes of the period. Last but not least, it was cool: rounded lines with a hint of both classic and modern blended seamlessly with the bright colouring, which stood out against the black chassis setup and chrome tank.

The first Scrambler model is universally acknowledged as the meeting point between the American and European schools of motorcycling. A bike that defined an era, it became a Ducati milestone in much the same way that the 916 and Monster later would.




2015 Ducati Scrambler Classic Totalmotorcycle.com Key Features

Colour
1. “Orange sunshine” with black frame and brown seat

Features
o Spoked aluminium wheels
o Front and rear metal mudguards
o Dedicated seat with lozenge-type stitching pattern
o Fuel tank with black central stripe, just like the ’70s Scrambler
o Dedicated logo




2015 Ducati Scrambler Classic Totalmotorcycle.com Features and Benefits

Innovative front headlamp

Together with the fuel tank, the front headlamp is one of the most characteristic features of the Ducati Scrambler. Round, classically designed yet contemporary – that is, post-heritage – it has a glass front with a modern, LED-powered light guide around the rim (this acts as a side light). When on, it recalls the popular ’70s stratagem of applying protective adhesive tape to off-road bike headlights.

The high-beam function isperformed by a single bulb hidden behind a Ducati-logoed screen. Moreover, the contrast between the cold white side light and warm yellow headlamp gives the Ducati Scrambler yet another personality boost.

At the rear, instead, lies a full-LED unit. This gives off a suffused light and features a technology unprecedented on motorcycles; this ‘soft’ effect is, in fact, achieved by combining an opaque light-diffusing lens with a 12-LED electrical card (18 LEDs when the brake is applied).

The bulb-powered indicators – positioned to the sides of the headlamp and on the rear mudguard – match the Scrambler style to perfection. Ducati Scrambler riders are also provided with a hazard light function, activated simply by holding down the left indicator button for three seconds.



Instruments

The Scrambler instrument panel consists of a single, round unit positioned above and slightly to the right of the headlamp. Fully digital, it has an engine rpm scale resonant of those seen on ’70s motorcycle speedometers (i.e. in the lower part of the instrument body). As engine revs increase the digits light up clockwise (right to left). Ducati Scrambler instrumentation also features two trip odometers and one totalmileage odometer, a trip fuel indicator, an air temperature display, maintenance reminders, a clock, and fuel
reserve and ABS warning lights. Riders can also count on an engine oil pressure warning light, high beam indicator, neutral indicator, turn signal indicators, immobilizer and over-rev warning light.



Controls

Post-heritage styling is also evident on Ducati Scrambler controls. The wide handlebars house a classic wire-connected twist-grip throttle together with an axial-pump front brake lever with 4 different position settings. Minimalist Scrambler design continues with the cable-actuating clutch lever. The switchgear is characterised by the now-standard yet exclusive “trigger catch” that slides down to cover the starter button when the kill switch is activated. It’s the same one used on all Ducati bikes, its high tech design underscoring the post-heritage style of the Scrambler.

The black painted die cast aluminium footrest plates support the gear change lever and the off-road type rear brake lever.



Engine

An oil cooled L-twin two-valve 803 cc engine powers the Ducati Scrambler. Derived from the Monster 796 engine, it has an 88 mm bore, a 66 mm stroke and has been redesigned to give smooth acceleration throughout the rev range. The Desmodue engine on the Scrambler has light machine-finished aluminium covers, including those on the clutch and alternator. The two belt covers are also made of aluminium and have, likewise, been machine-finished to enhance aesthetics.

To ensure smooth integration with the compact steel teardrop tank, the Desmodue engine on the Scrambler features a single Ø 50 mm throttle body with two sub-butterfly injectors: this solution ensures fluid power delivery and accurate control of the fuel being aspirated into the cylinders.

Pistons and crankshaft are the same as those on the Monster 796 and Hypermotard 796 power units, while the camshafts have been designed to ensure linear power delivery thanks to the adoption of an 11° valve overlap angle. The 2-in-1 exhaust with aluminium silencer has been specially designed for the Scrambler. It features an aluminium heat plate for improved rider protection and is EURO 3 compliant.

The gearbox is a 6-speed unit while the multiplate APTC oil bath clutch with cable actuation, while emphasising the minimalist nature of the Scrambler, provides a light-touch brake lever with outstanding ‘feel’, a real plus point when it comes to the continuous stop-and-go of inner city traffic. Moreover, it features a torque-linked anti-hopping system that prevents rear wheel chatter when downshifting.

The twin-cylinder Desmodue engine on the Scrambler has been designed to favour smooth running and fluid acceleration throughout the rev range, putting out 75 hp (55.2 kW) @ 8,250 rpm and 50.2 lb-ft (6.9 kgm) of torque @ 5,750 rpm. Just like the Scrambler itself, it is designed to be simple and accessible and also features generous 12,000 kilometres maintenance intervals.



Desmo delight

The Scrambler is iconic, as is the celebrated Ducati Desmo, the engine valve closure system that has made Ducati famous all over the world. This system opens and closes the intake and exhaust valves positively and precisely, using a system of cams and levers. The term desmodromic stems from the Greek words desmos (link) and dromos (stroke); mechanically speaking, the term refers to mechanisms with a control to operate them in one direction (e.g. opening) and another which acts in the opposite direction (closure or return).

However, the desmodromic concept is not a recent one and has been used in the motorcycle and car industries for some time. It first appeared, in a variety of forms, way back at the start of the twentieth century. In 1956 renowned engineer Fabio Taglioni set Ducati off along the desmodromic path: the first bike to feature the solution was the Grand Prix 125, which had three overhead camshafts, driven by a vertical shaft and a bevel gear.

From that point on desmodromic history became a Ducati exclusive and in 1968 the company started producing this timing system as standard with the Mark 3 Desmo 350. This milestone of a motorcycle essentially had the same timing system as current 2-valve twin cylinder engines like the one on the Scrambler, clear evidence of the concept’s soundness. Used on all Ducati models, the system is also employed on Ducati Corse’s Superbikes and Desmosedici MotoGP bikes.



The frame

The Ducati Scrambler features a twin upper spar steel Trellis frame. Essential and elegant, the Scrambler frame embraces the engine and extends beneath the seat, providing the stiffness one expects from a real Ducati. Thanks to a steering head angle of 24° and a 112 mm offset on the fork yokes, manoeuvrability is outstanding both in city traffic and on Alpine hairpins. Thanks to the wide handlebars, weaving your way through the urban obstacle course on a Scrambler is child’s play, while the 1445 mm wheelbase maximises stability at high speeds. The steel fuel tank, with that unmistakeable teardrop contour, has a capacity of 13.5 l (3.6 US gal). With an excellent frame and outstanding chassis geometry, the Scrambler makes for relaxed riding that is easy yet fun. User-friendly and agile, the Ducati Scrambler is a source of endless satisfaction on both city streets and the open road.



Suspension

The Kayaba suspension system on the Ducati Scrambler makes use of a 41 mm upside down stanchion fork and a monoshock with adjustable spring preload. Both provide 150 mm of wheel travel, ensuring the tyres hug the ground whatever the terrain, from city streets to undemanding off-road routes. It is this mix of comfort and performance that makes the Ducati Scrambler unique, letting riders express themselves to the maximum everywhere and anywhere.



Wheels and tyres

All new aluminium 10-spoke wheels – of evident flat-track origin – come as standard on the Ducati Scrambler. The design is a throwback to the days of thin, criss-crossed spokes inserted in the hub. The 3” x 18” front rim and the rear 5.5 x 17 one have been designed to be light and mount the new enduro-type Pirelli MT60 RS 110/80 ZR18 tyre at the front and the 180/55 ZR17 at the rear; featuring a chunky tread pattern, these tyres are produced exclusively for the Scrambler. The result is outstanding performance on surfaces of any kind.



Brembo braking system with 2-channel ABS

The Ducati Scrambler features Brembo braking using the Bosch 9.1 MP AMS system with an internal pressure sensor. To combine maximum stopping performance with minimalist styling the front wheel has a single Ø 330 mm disc, no less than 5 mm thick, with a 4-piston Brembo M 4.32B monobloc radial-mount caliper. This heavy duty single-disc front brake solution was chosen to leave a clear view of the wheel design on the right. At the back, instead, a Ø 245 mm disc is gripped by a caliper with a Ø 32 mm piston.









2015 Ducati Scrambler Classic – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: See Dealer for Pricing in USD


Engine
Type L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement 803 cc
Bore x Stroke 88 x 66 mm
Compression Ratio 11:1
Power 75 hp (55 kW) 8250 rpm
Torque 50 lb-ft (68 Nm) @ 5750 rpm
Fuel injection Electronic fuel injection, 50 mm throttle body
Exhaust Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes
Emissions Euro 3

Transmission
Gearbox 6 speed
Ratio 1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive Straight cut gears, Ratio 1.85:1
Final drive Chain, front spocket 15, rear sprocket 46
Clutch APTC wet multiplate with mechanical control

Chassis
Frame Tubular steel Trellis frame
Wheelbase 1445 mm (56.9 in)
Rake 24°
Trail 112 mm (4.4 in)
Total steering lock 35°
Front suspension Upside down Kayaba 41 mm fork
Front wheel travel 150 mm (5.9 in)
Front wheel 10-spoke in light alloy 3.00″ x 18″
Front tyre 110/80 R18 Pirelli MT 60 RS
Rear suspension Kayaba rear shock, pre-load adjustable
Rear wheel travel 150 mm (5.9 in)
Rear wheel 10-spoke light alloy 5.50″ x 17″
Rear tyre 180/55 R17 Pirelli MT 60 RS
Front brake Single 330 mm disc, radial 4-piston calliper with ABS as standard equipment
Rear brake 245 mm disc, 1-piston floating calliper with ABS as standard equipment
Fuel tank capacity 13.5 l – 3.57 gallon (US)
Dry weight 170 kg (375 lb)
*Wet weight 186 kg (410 lb)
Seat height 790 mm (31.1 in) – low seat 770 mm (30.3 in) available as accessory
Max height 1150 mm (45.3 in) (brake reservoir)
Max width 845 mm (33.3 in) (mirrors)
Max length 2100 – 2165 mm (82.7 – 85.2 in)
Instrumentation LCD
Ducati electronics dual-channel ABS
Warranty 2 years unlimited mileage
Versions Dual seat

All versions equipment
Steel tank with interchangeable aluminium side panels, headlight with glass lens, LED light-guide and interchangeable aluminium cover, LED rear light with diffusive lens, LCD instruments with interchangeable aluminium cover, machine-finished aluminium belt covers, 18’’ front, 17’’ rear wheels, underseat storage compartment with USB socket

Urban Enduro equipment Spoked aluminium wheels, aluminium engine sump guard, high front mudguard, headlight grill, aluminium handlebar crossbrace, front stem protectors, seat with dedicated design, dedicated logo

Full Throttle equipment
Termignoni slip-on silencer, low aluminium handlebars, flat-track style seat, sport tail piece with dedicated turn indicator support, sport style front mudguard, black fuel tank side covers, dedicated logo

Classic equipment Spoked aluminium wheels, front and rear aluminium mudguards, seat with dedicated design, fuel tank with black stripe, dedicated logo, high plate support

*Wet weight Wet weight includes all fluids and fueled to at least 90% of useable tank capacity. (93/93/CE)








2015 Ducati Scrambler Classic – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: See Dealer for Pricing in CDN

Engine
Type L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement 803 cc
Bore x Stroke 88 x 66 mm
Compression Ratio 11:1
Power 75 hp (55 kW) 8250 rpm
Torque 50 lb-ft (68 Nm) @ 5750 rpm
Fuel injection Electronic fuel injection, 50 mm throttle body
Exhaust Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes
Emissions Euro 3

Transmission
Gearbox 6 speed
Ratio 1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive Straight cut gears, Ratio 1.85:1
Final drive Chain, front spocket 15, rear sprocket 46
Clutch APTC wet multiplate with mechanical control

Chassis
Frame Tubular steel Trellis frame
Wheelbase 1445 mm (56.9 in)
Rake 24°
Trail 112 mm (4.4 in)
Total steering lock 35°
Front suspension Upside down Kayaba 41 mm fork
Front wheel travel 150 mm (5.9 in)
Front wheel 10-spoke in light alloy 3.00″ x 18″
Front tyre 110/80 R18 Pirelli MT 60 RS
Rear suspension Kayaba rear shock, pre-load adjustable
Rear wheel travel 150 mm (5.9 in)
Rear wheel 10-spoke light alloy 5.50″ x 17″
Rear tyre 180/55 R17 Pirelli MT 60 RS
Front brake Single 330 mm disc, radial 4-piston calliper with ABS as standard equipment
Rear brake 245 mm disc, 1-piston floating calliper with ABS as standard equipment
Fuel tank capacity 13.5 l – 3.57 gallon (US)
Dry weight 170 kg (375 lb)
*Wet weight 186 kg (410 lb)
Seat height 790 mm (31.1 in) – low seat 770 mm (30.3 in) available as accessory
Max height 1150 mm (45.3 in) (brake reservoir)
Max width 845 mm (33.3 in) (mirrors)
Max length 2100 – 2165 mm (82.7 – 85.2 in)
Instrumentation LCD
Ducati electronics dual-channel ABS
Warranty 2 years unlimited mileage
Versions Dual seat

All versions equipment
Steel tank with interchangeable aluminium side panels, headlight with glass lens, LED light-guide and interchangeable aluminium cover, LED rear light with diffusive lens, LCD instruments with interchangeable aluminium cover, machine-finished aluminium belt covers, 18’’ front, 17’’ rear wheels, underseat storage compartment with USB socket

Urban Enduro equipment Spoked aluminium wheels, aluminium engine sump guard, high front mudguard, headlight grill, aluminium handlebar crossbrace, front stem protectors, seat with dedicated design, dedicated logo

Full Throttle equipment
Termignoni slip-on silencer, low aluminium handlebars, flat-track style seat, sport tail piece with dedicated turn indicator support, sport style front mudguard, black fuel tank side covers, dedicated logo

Classic equipment Spoked aluminium wheels, front and rear aluminium mudguards, seat with dedicated design, fuel tank with black stripe, dedicated logo, high plate support

*Wet weight Wet weight includes all fluids and fueled to at least 90% of useable tank capacity. (93/93/CE)









2015 Ducati Scrambler Classic – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: See Dealer for Pricing in GBP (On The Road) (including 20% VAT)

Engine
Type L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement 803 cc
Bore x Stroke 88 x 66 mm
Compression Ratio 11:1
Power 75 hp (55 kW) 8250 rpm
Torque 50 lb-ft (68 Nm) @ 5750 rpm
Fuel injection Electronic fuel injection, 50 mm throttle body
Exhaust Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes
Emissions Euro 3

Transmission
Gearbox 6 speed
Ratio 1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive Straight cut gears, Ratio 1.85:1
Final drive Chain, front spocket 15, rear sprocket 46
Clutch APTC wet multiplate with mechanical control

Chassis
Frame Tubular steel Trellis frame
Wheelbase 1445 mm (56.9 in)
Rake 24°
Trail 112 mm (4.4 in)
Total steering lock 35°
Front suspension Upside down Kayaba 41 mm fork
Front wheel travel 150 mm (5.9 in)
Front wheel 10-spoke in light alloy 3.00″ x 18″
Front tyre 110/80 R18 Pirelli MT 60 RS
Rear suspension Kayaba rear shock, pre-load adjustable
Rear wheel travel 150 mm (5.9 in)
Rear wheel 10-spoke light alloy 5.50″ x 17″
Rear tyre 180/55 R17 Pirelli MT 60 RS
Front brake Single 330 mm disc, radial 4-piston calliper with ABS as standard equipment
Rear brake 245 mm disc, 1-piston floating calliper with ABS as standard equipment
Fuel tank capacity 13.5 l – 3.57 gallon (US)
Dry weight 170 kg (375 lb)
*Wet weight 186 kg (410 lb)
Seat height 790 mm (31.1 in) – low seat 770 mm (30.3 in) available as accessory
Max height 1150 mm (45.3 in) (brake reservoir)
Max width 845 mm (33.3 in) (mirrors)
Max length 2100 – 2165 mm (82.7 – 85.2 in)
Instrumentation LCD
Ducati electronics dual-channel ABS
Warranty 2 years unlimited mileage
Versions Dual seat

All versions equipment
Steel tank with interchangeable aluminium side panels, headlight with glass lens, LED light-guide and interchangeable aluminium cover, LED rear light with diffusive lens, LCD instruments with interchangeable aluminium cover, machine-finished aluminium belt covers, 18’’ front, 17’’ rear wheels, underseat storage compartment with USB socket

Urban Enduro equipment Spoked aluminium wheels, aluminium engine sump guard, high front mudguard, headlight grill, aluminium handlebar crossbrace, front stem protectors, seat with dedicated design, dedicated logo

Full Throttle equipment
Termignoni slip-on silencer, low aluminium handlebars, flat-track style seat, sport tail piece with dedicated turn indicator support, sport style front mudguard, black fuel tank side covers, dedicated logo

Classic equipment Spoked aluminium wheels, front and rear aluminium mudguards, seat with dedicated design, fuel tank with black stripe, dedicated logo, high plate support

*Wet weight Wet weight includes all fluids and fueled to at least 90% of useable tank capacity. (93/93/CE)




Specifications and appearance are subject to change without prior notice.
