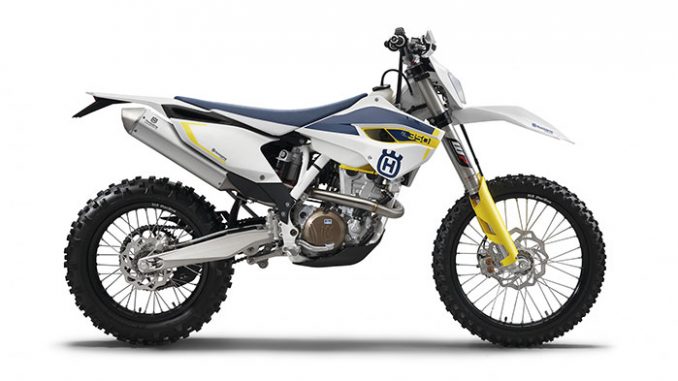

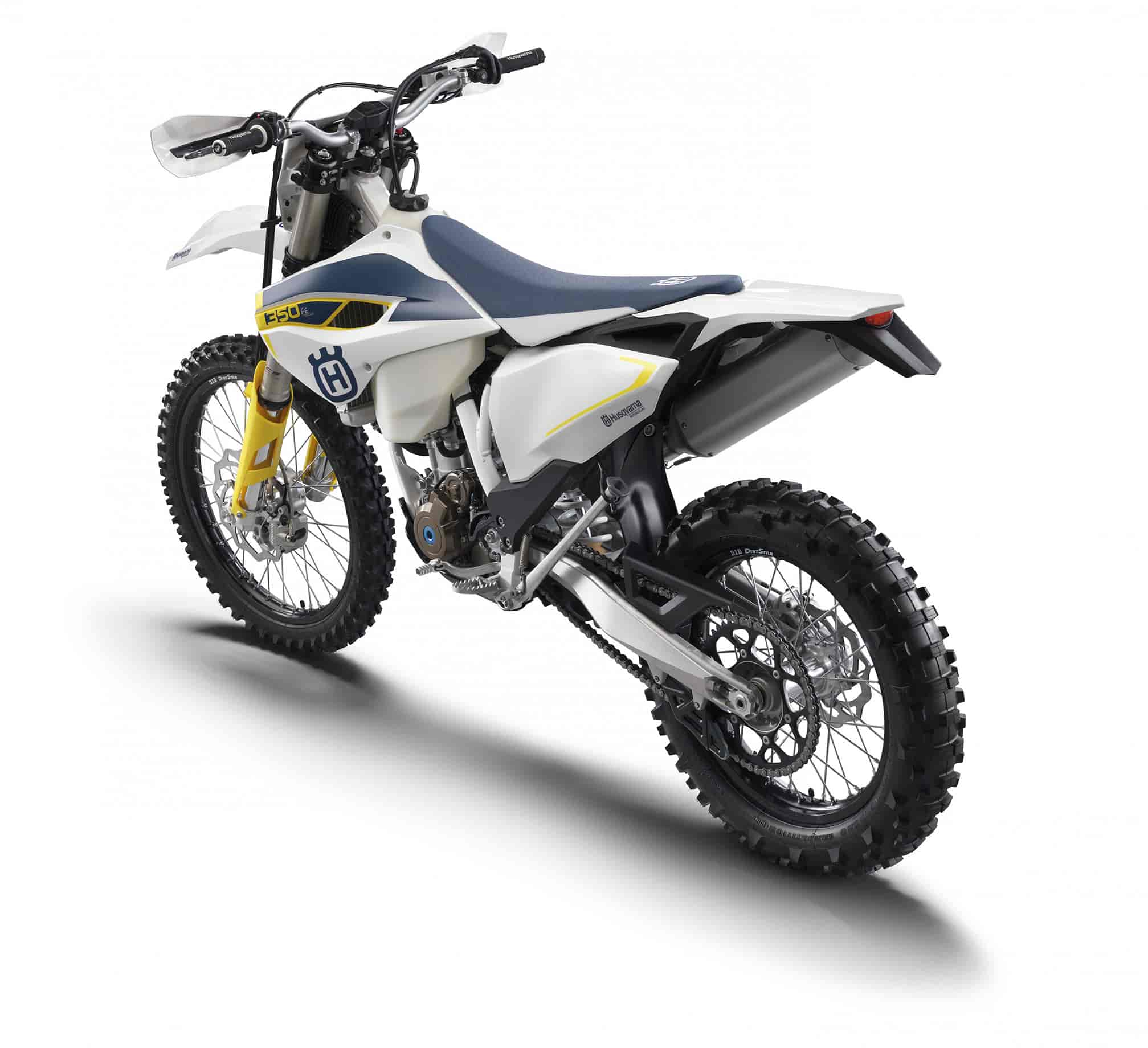

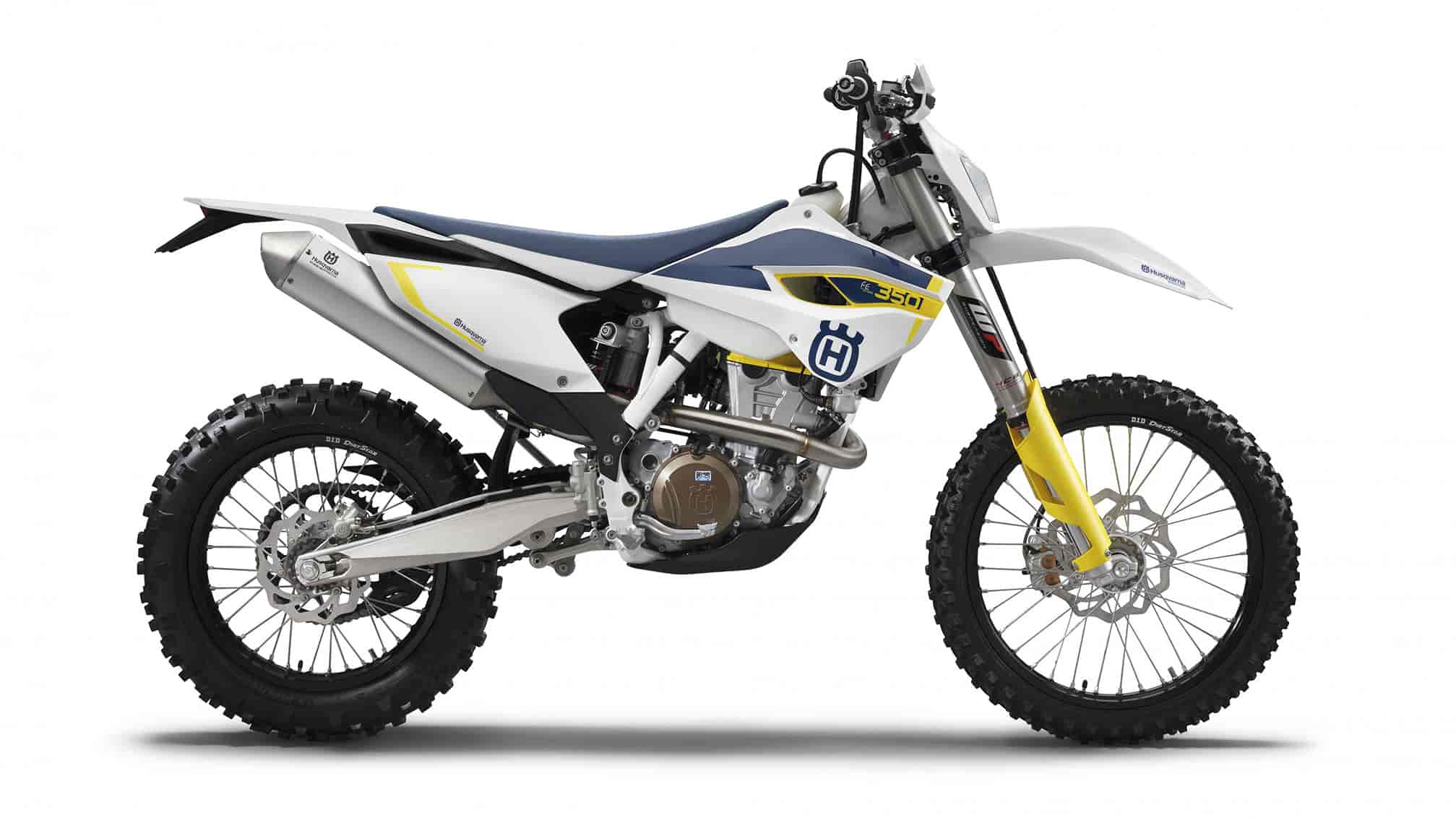

2015 Husqvarna FE350

2015 Husqvarna FE350

2015 Husqvarna FE350 Review

2015 Husqvarna FE350 on Totalmotorcycle.com

Mind blowing pace at half the effort…

With the power to rival the 450 competition and the lightweight agility of a 250, the FE 350 is in the enviable position of having the best of both worlds. The ideal combination of maximum performance and light and agile handling allows riders to tackle the most difficult terrain with increased confidence and less effort. Thanks to the compact yet powerful engine, a stable and confidence inspiring chassis, a reliable and efficient electric starting system, top-of-the line standard equipment and cutting-edge technology, the FE 350 conquers hearts, minds and podium finishes.



2015 Husqvarna FE350 Totalmotorcycle.com Features and Benefits

ENGINE

The FE 350’s engine weighs only 28.5 kg and is similar in size to the FE 250’s, but has a maximum power output in excess of 45 hp that easily puts it on the same level as the bigger 450cc competition. The smooth and easy to handle power delivery is strong from low-down all the way through to the 12,000 rpm limit. The 57.5 mm stroke and 88mm bore allow for large diameter valves. The 36.3mm titanium intake and 29.1mm exhaust valves weigh only 22.4g and 22.7g each respectively, and are operated by DLC coated finger followers. The cam timing and overall performance are tuned for Enduro style riding. A Vertex forged bridged-box-type piston, weighing only 275g, a large 88mm bore and a short stroke enhance revving and house large valves for better fuel flow. The compression ratio is 12.3:1.

CRANK SHAFT

The performance demands of highly tuned engines require the most advanced crankshaft technology to maintain high performance characteristics throughout the life of the engines. The crankshaft and con rod on the 4-stroke Enduro engines are produced by industry leader Pankl to ensure durability and long service intervals (135 hours before changing con rod, con rod bearing and crank pin). The plain big end bearing and the force-fitted bearing shells ensure that high performance and durability can be combined in a single engine.

ENGINE MANAGEMENT SYSTEM (EMS)

The 4-stroke engines feature a Keihin electronic fuel injection and 42mm throttle body for accurate throttle response and smooth engine performance that is ideal for Enduro-style riding. Optional Husky Power accessories allow riders to select maps via an optional switch and download engine data with a laptop via a Setting Tool.

STARTER

The entire 4-stroke Enduro range features a reliable electric starter and offer the possibility to retro-fit a kick-starter. Easy starting in any situation.

FRAME

Enduro riding requires maximum feedback from the bike in rough terrain, on rocks and in slippery conditions. Precisely engineered flex in the frame can greatly improve rider confidence, allowing for increased speed and improved times. To achieve these goals, the engineers designed the lightweight chromium molybdenum frame with precise longitudinal flex that helps absorb impacts from the rear wheel, working together with the suspension and giving the rider greater feedback. The torsional rigidity has been calibrated to maximise sharp handling, with lightning fast turn-in and exceptional stability even on the roughest special tests.

SUBFRAME

The lightweight, three-piece polyamide rear subframe has been reinforced with an additional screw on the airbox side that improves the fitment between the left subframe arm and the airbox. The improved seal guarantees better performance and durability. The polyamide subframe is more flexible than a traditional aluminium rear subframe. Combined with the longitudinal flex of the frame and the rear linkage system, this gives riders a more comfortable and confidence-inspiring feeling on the bike, allowing them to push the limits in every condition and on any terrain. The inherent characteristics of the composite subframe allow the engineers to have unlimited opportunities of integrating features such as the airbox, electronics and rear grab handle.

SWINGARM

The one-piece construction of the swingarm guarantees consistent performance by eliminating welding points. The engineers designed specific flex characteristics that optimise traction while feeding precise information to the rider, instilling confidence and improving overall performance. Strong but light, the beautifully styled aluminium cast swingarm provides perfect stability and safety.

WHEELS AND BRAKES

Black DID rims and CNC machined hubs mated to silver anodised nipples add an aggressive and modern look to the newly designed Husqvarna Enduro range. World Championship level performance is guaranteed by Michelin Enduro Competition tyres. The wheels are kept firmly under control thanks to maximum feeling in extreme situations combined with amazing stopping power of the latest generation of Brembo brakes. Ergonomically perfect controls allow the rider to accurately gauge braking power to the 260mm and 220mm wave discs at the front and rear respectively.

FRONT SUSPENSION

The WP 4CS closed cartridge 48mm front fork represents the pinnacle of suspension technology. The 4 chamber system unites the performance of a closed cartridge fork with the simplicity of an open cartridge fork and also has the benefit of additional weight reduction of the overall system. It provides a decisive advantage in terms of responsiveness constant damping precision and handling, while maintaining plushness and rider comfort. Matched with CNC machined black triple clamps, the 4CS forks ensure exceptional handling and feel of the front end. Riders of all performance levels can adapt the setup of the fork for different terrain and conditions by changing clicker settings with a simple twist of a dial, obtaining the best performance in terms of rebound and compression damping settings.

REAR SUSPENSION

WP designed the high performance DCC (Dual Compression Control) rear shock with the aim of guaranteeing excellent damping characteristics to ensure maximum feedback as well as rider comfort. The shock is completely adjustable for rebound and high/low speed compression damping, allowing riders to tailor the behaviour according to conditions and preference.

REAR LINK

A rear linkage system was specially developed for the Husqvarna Enduro line-up. It has excellent characteristics in fast and flowing sections, and excels on steep downhills thanks to the lower rear end feel. It offers great rider comfort in all situations and has great progressiveness in extremely rocky and bumpy sections. The linkage system also offers vast possibilities to tailor the behaviour of the rear end by changing the length of the linkage arms.

CNC MACHINED TRIPLE CLAMPS

The black anodised CNC machined triple clamps have been revised for MY15. The bottom clamp has been redesigned in order to mount the same front fender as the Motocross models, providing improved stability and mounting of the front fender. The stylish triple clamps combine looks with function and deliver maximum feedback to the rider under braking, in rough terrain and on jumps, relaying accurate information on the behaviour of the front end in every situation, increasing rider confidence. The R&D department’s efforts were focused on ensuring uniform clamping of the fork legs in order to distribute the forces evenly, maintaining the leg shape, and thus proper damping along the entire stroke.

BODYWORK

A new front mask on the MY15 Enduro bikes evolves the Husqvarna look and houses a new front headlamp. The front fender is also new and is the same as the Motocross fender, for easier mounting. The slim and stylish lines of the side panels and radiator shrouds allow for optimal movement while riding, resulting in superior control, and faster and safer riding.

EQUIPMENT

The standard equipment levels on the FE 350 are astonishing. Only top-of-the-line products will do, such as the Neken handlebar, handguards and electric starter. For the die hard enthusiasts, riding pleasure is further enhanced by a complete range of Husky Power accessories.

SEAT

The harder and more durable seat cover improves grip and also gives the seat a firmer feel, improving comfort and feeling.

HANDGUARDS

The handguards now feature a new improved compound of the two-component mould for better impact resistance.



---



2015 Husqvarna FE350 – www.Totalmotorcycle.com International Specifications/Technical Details
MSRP Price: See dealer for pricing.

ENGINE
Design
Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled

Displacement
349.7 cm³

Bore
88 mm

Stroke
57.5 mm

Starting aid
Electric starter

Transmission
6-speed, claw shifted

Engine lubrication
Forced oil lubrication with 2 Eaton pumps

Primary ratio
24:73

Secondary gear ratio
14:52 (13:52)

Cooling system
Liquid cooling system, continuous circulation of cooling liquid with water pump

Clutch
Wet multi-disc clutch DDS / Brembo hydraulics

Ignition system
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment

CHASSIS
Frame
Central tube frame made of chrome molybdenum steel tubing

Forks
WP Suspension Up Side Down 4CS

Shock absorber
WP Monoshock with linkage

Suspension travel Front
300 mm

Suspension travel Rear
330 mm

Brake system Front
Disc brake with two-pot brake caliper

Brake system Rear
Disc brake with one-pot brake caliper, floating brake discs

Brake discs – diameter Front
260 mm

Brake discs – diameter Rear
220 mm

Chain
520 X-Ring

Steering head angle
63.5°

Wheel base
1,482±10 mm

Ground clearance (unloaded)
345 mm

Seat height (unloaded)
970 mm

Total fuel tank capacity approx.
9.5 l Unleaded premium fuel (95 RON)

Weight without fuel approx.
109.2 kg

Specifications and appearance are subject to change without prior notice.
