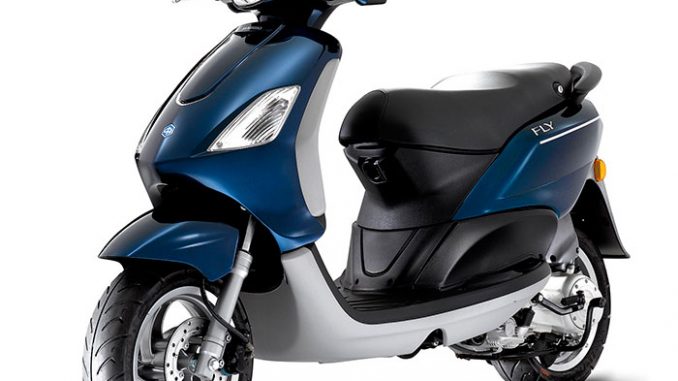

2015 Piaggio Fly 50 4V

Back to 2015 Piaggio Scooter Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2015 Piaggio Fly 50 4V
2015 Piaggio Fly 50 4V

2015 Piaggio Fly 50 4V
2015 Piaggio Fly 50 4V

2015 Piaggio Fly 50 4V
2015 Piaggio Fly 50 4V

2015 Piaggio Fly 50 4V
2015 Piaggio Fly 50 4V



2015 Piaggio Fly 50 4V Review

2015 Piaggio Fly 50 4V on www.Totalmotorcycle.com

The Piaggio Fly 50 is both agile and stable – great in the city as well as on rougher roads…

The Piaggio Fly 50 is the perfect way to get onto two wheels. Light and easy to handle, the sleek and stylish Piaggio Fly 50 comes with a 4 stroke Hi Per 4 50cc engine for maximum efficiency and impressive economy. Safety features for the Piaggio Fly 50 include a protective shield and rigid steel tube frame whilst the reliable front disc brake and large tubeless tires provide extra riding stability.







2015 Piaggio Fly 50 4V www.Totalmotorcycle.com Key Features

Ideal For Short trips and running errands
• Single cylinder, four-stroke Piaggio Leader engine
• Aerodynamic and protective front shield
• 12” alloy wheels for agility and stability—far superior to steel
• Front disc brake
• Underseat storage for helmet








2015 Piaggio Fly 50 4V www.Totalmotorcycle.com Features and Benefits






2015 Piaggio Fly 50 4V – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2999 USD

ENGINE TYPE
Single-cylinder, four-stroke Piaggio LEADER
CYLINDER CAPACITY
155 cc
BORE X STROKE
2.28″ x 2.3″
MAX POWER AT SHAFT
9 kW at 7,000 rpm
MAX TORQUE
13 Nm at 6,000 rpm
MAX SPEED
61 mph
FUEL TANK CAPACITY
1.8
GAS MILEAGE
104 mpg
DISTRIBUTION
Single overhead camshaft SOHC with three valves
COOLING SYSTEM
Forced air
LUBRICATION
Wet sump
IGNITION
Electronic
GEARS
CVT automatic ratio variator (‘Twist ‘n go’)
CLUTCH
Dry automatic centrifugal type
CHASSIS
Tube type
FRONT SUSPENSION
Telescopic hydraulic forks, 32 mm
REAR SUSPENSION
Hydraulic single shock absorber, 73 mm
FRONT BRAKE
Disc 220 mm with dual-piston floating calliper
REAR BRAKE
Drum 140 mm
FRONT TIRE
120/70, 12″
REAR TIRE
120/70, 12″
LENGTH
72.8″
WIDTH
27.7″
WHEELBASE
52.2″
SEAT HEIGHT
29.9″
DRY WEIGHT
247
TYPE APPROVAL
EPA and CARB
COLORS
Pearl White, Graphite Black








2015 Piaggio Fly 50 4V – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3195 CDN

ENGINE TYPE
Single-cylinder, four stroke, air cooled, 3 valve
CYLINDER CAPACITY
155 cc
BORE X STROKE
2.28″ x 2.3″
MAX POWER AT SHAFT
9 kW at 7,000 rpm
MAX TORQUE
13 Nm at 6,000 rpm
MAX SPEED
98 km/h
FUEL TANK CAPACITY
7 L
KILOMETERS PER LITER
44 kilometers per liter
DISTRIBUTION
Single overhead camshaft SOHC with three valves
COOLING SYSTEM
Air
LUBRICATION
Wet sump
IGNITION
Electric
GEARS
CVT automatic ratio variator (‘Twist ‘n go’)
CLUTCH
Dry automatic centrifugal type
CHASSIS
Single cradle structure in tubular steel with pressed reinforcements
FRONT SUSPENSION
Hydraulic telescopic fork with 32 mm diam
REAR SUSPENSION
Hydraulic single shock absorber, travel 73 mm
FRONT BRAKE
220 mm disc with dual-piston floating calliper
REAR BRAKE
140 mm drum brake
FRONT TIRE
Light Alloy, Tubeless 120/70
REAR TIRE
Light Alloy, Tubeless 120/70
LENGTH
1.850 mm
WIDTH
705 mm
WHEELBASE
1325
SEAT HEIGHT
760 mm
DRY WEIGHT
112 kg
TYPE APPROVAL
Transport Canada and Environment Canada
COLORS
Shiny Black









2015 Piaggio Fly 50 4V – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £NA GBP (On The Road inc 20% Vat)





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
