2019 KTM 125 SX Guide

2019 KTM 125 SX

2019 KTM 125 SX 2019 KTM 125 SX 2019 KTM 125 SX 2019 KTM 125 SX

KICKSTART YOUR RACING CAREER.

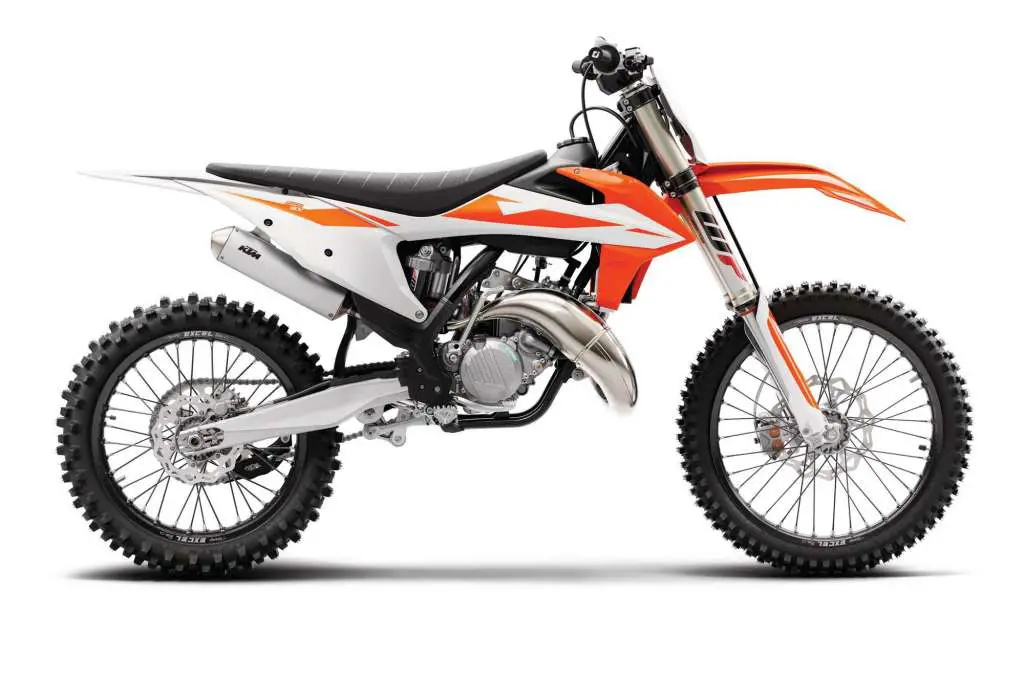

2019 KTM 125 SX

The new KTM 125 SX is the most compact and lightweight of the full-size bikes and delivers a confidence-inspiring ride like no other. A new lightweight chassis teams up with the most competitive 125cc 2-stroke engine to date, delivering superior agility and power to fulfil the demands of any young adrenalin seeker. This 2-stroke screamer is the ultimate entry point into the pro ranks and a sure-fire way to add to the trophy collection.





2019 KTM 125 SX Totalmotorcycle.com Key Features

A NEW GENERATION OF KTM SX IS HERE!

KTM is dominating the battle. In the championships around the world over the last 10 years the Austrian brand has been the consistent performer in the fight for competition supremacy. Tony Cairoli’s ninth FIM Motocross World Championship title last season, as well as the first for the star of the show, the KTM 450 SX-F, was a true highlight. Pauls Jonass’ MX2 World Championship continued the orange brand’s dominance in the class with nine victories in 10 seasons for the KTM 250 SX-F, while the 2017 AMA 450 Supercross title was won in the hands of Ryan Dungey prior to his retirement. KTM has also enjoyed race wins in both the 250 SX and 450 SX classes this season.

To continue adding to these incredible achievements requires a strong motivation, a commitment to development for racing and investment in KTM’s talent development programs. This creates the best platform for the KTM SX range, as these world-winning technologies are tested in the heat of the battle prior to being available on serial production machinery. The KTM 50 SX, KTM 65 SX and KTM 85 SX sportminicycles provide a strong basis for juniors to step up to the adult ranks where the KTM 125 SX, KTM 150 SX and KTM 250 SX 2-strokes, along with the KTM 250 SX-F, KTM 350 SX-F and KTM 450 SX-F 4-stroke machines provide the sharpest weapon in each class.

Chassis
For model year 2019 all adult models receive a generation changing update with KTM engineers targeting a further weight reduction that once again sets a clear benchmark in each class. In fact, in the higher capacity 450cc segment the KTM 450 SX-F is a lot lighter than its rivals. All SX models feature a re-worked frame for improved stiffness, handling and straight-line stability, a longer subframe, a revised rear axle slot and all-new bodywork for enhanced ergonomics with more freedom of movement. A brand-new appearance with new graphics compliment a newly shaped seat and new fuel tank. A new air filter box offers improved protection of the air filter and better air flow for both the 2-strokes and 4-strokes that contributes to a more efficient power delivery and improved performance.

New radiators offer efficient cooling with improved positioning for mass centralization, while a stronger lithium ion battery for the E-starter is harmonious with the reworked wiring harness for a compact electrical system. An updated triple clamp for improved handling compliments new suspension settings, while a newly developed, dual purpose, plug-in stand is yet another feature of the new range. All models continue to enjoy impressive serial components such as Brembo brakes, WP suspension, NEKEN handlebar, Dunlop tires, plus a map select switch with integrated traction control, launch control and map selection on the 4-stroke machines. This is no refinement model year, it’s an evolution; around 60% of each bike’s components are new.

Engine
All models in the KTM SX range have received major engine revisions over previous models. The KTM 250 SX-F and KTM 350 SX-F models enjoy a newly designed DS clutch, while all 4-strokes boast revised transmissions and a state-of-the-art Keihin engine management system with a reworked throttle body and improved electronics package. The KTM 125 SX, KTM 150 SX and KTM 250 SX all offer revised carburetor settings, with a new transmission and new clutch in each amongst other improvements. In addition to engine refinements on all models, the highlight KTM 450 SX-F model enjoys a newly developed SOHC cylinder head for reduced weight and improved mass centralization, a new camshaft with a shorter valve timing and improved surface along with a low-friction chain guide with a DLC coating.





2019 KTM 125 SX Totalmotorcycle.com Features and Benefits

• NEW reworked frames – improved stiffness, handling and straight line stability.
• NEW bodywork – better ergonomics, more freedom of movement and improved handling.
• NEWLY shaped seat – better ergonomics and comfort.
• NEW air box and air boot – maximum protection of the air filter against soiling, better airflow for optimal performance.
• NEW fuel tanks – improved ergonomics.
• NEW cylinder with optimized exhaust port – improved and more constant performance.
• Optimized seat of kick start intermediate gear – improved reliability.
• NEW clutch cover – reduced engine width.
• NEWLY designed DS clutch – very compact and reliable clutch system, reduced engine width.
• NEW 6 speed transmission made by PANKL- highest quality and reliability.
• REWORKED carburetor setting adapted to the new air box and exhaust system – improved throttle response and engine behavior.
• NEW exhaust pipe and muffler – improved power delivery and performance.
• NEW muffler bracket of the muffler – reduced weight.
• Throttle assembly with easy free play adjustment similar to the 4-strokes.
• Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
• KTM’s “No Dirt” foot peg design keeps the pegs pivot from becoming clogged, ensuring the foot peg is always in the correct position.
• ODI grips that feature a lock-on design for the left grip and a vulcanized grip on the throttle side.
• Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires.
• Airbox and filter design provides maximum performance with fast “no tools” air filter changes.
• “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.





2019 KTM 125 SX – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing in USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Engine Type: Single Cylinder, 2-Stroke
Displacement: 124.8 cc
Bore / Stroke: 54.0 / 54.5 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Mikuni TMX 38
Lubrication: Premix 40:1
Primary Ratio: 23:73
Final Drive: 13:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DS Clutch, Brembo Hydraulics
Ignition: Kokusan
Frame: Central Double-Cradle Type 25CrMo4 Steel
Sub Frame: Aluminum
Handle bar: Neken, Aluminum Ø 28/22 mm
Front Suspension: WP Suspension AER 48 USD Ø 48 mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21” / 2.15 x 19” Excel
Front/Rear Tires: 80/100-21” / 100/909100-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 375 mm / 14.8 in
Seat Height: 950 mm / 37.4 in
Tank Capacity, Approx: 7.5 L / 1.98 gal
Weight (without fuel), Approx: 87.5 kg / 192.92 lbs.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
