2020 Yamaha VMAX Guide

2020 Yamaha VMAX

2020 Yamaha VMAX 2020 Yamaha VMAX 2020 Yamaha VMAX 2020 Yamaha VMAX 2020 Yamaha VMAX 2020 Yamaha VMAX 2020 Yamaha VMAX

BORN WITH MUSCLES.

2020 Yamaha VMAX:

BORN WITH MUSCLES

An iconic machine that carries clout with its powerful 1679cc V4 engine delivering drag racing style and performance.

Unlike any other motorcycle available today, the VMAX is truly in a class of its own. The awesome acceleration and muscular beauty combines with sporty handling and Yamaha’s electronic engine management technologies to offer an incredibly exhilarating riding experience.



///Power

The VMAX’s liquid-cooled, 1,679 cc, DOHC, 16-valve, 65°, V-4 engine has no equal in its class. The compact engine design has allowed the engineers to place the engine in the sweet spot of the frame to optimize handling.

///Performance

DOHC 4-valve “pent roof” cylinder head design provides optimum breathing efficiency for incredible engine performance. Valve actuation is via under bucket shims. Compression ratio is 11.3:1







2020 Yamaha VMAX Totalmotorcycle.com Key Features

1 . Power Unrelenting
The ultimate power cruiser delivers unmatched performance from its 65-degree, four-valves-per-cylinder, 1679cc V-four—producing eye opening amounts of perfectly controllable acceleration, flowing from a compact engine that looks as powerful as it is.

2 . Advanced Ride- by- Wire Throttle
Downdraft four-bore fuel injection with YCC-I® intake technology and YCC-T® fly-by-wire throttle provide awesome acceleration throughout
the broad powerband.

3 . High- Tech Aluminum Chassis
Lightweight aluminum chassis puts the engine low and forward for mass centralization, resulting in a machine designed to handle curves as well as straightaways.

4 . Performance Technology
Borrowing liberally from advanced sportbike technology, VMAX® features a slipper clutch, wave-style brake discs, ABS, and complete suspension adjustability front and rear.

5 . Unmatched Fit and Finish
Functionality and forward-thinking style uniquely combine with features like oxidized-titanium-coated 52mm front fork tubes, magnesium engine side covers, fluorinated polyethylene fuel tank and the organic electroluminescence multifunction display.





Yamaha Announces 2020 Sport Heritage Motorcycles

Iconic Designs meet Modern Technology for Exciting Performance with Character

MARIETTA, Ga. – September 4, 2019 –  Yamaha Motor Corporation, USA, today announced several 2020 model-year Sport Heritage motorcycles. The powerful VMAX cruiser, Bolt and Bolt R-Spec urban performance bobbers, and the entry-level V Star 250 return to the lineup as key models that continue to deliver iconic design with advanced engine and chassis technology.

The Faster Sons Design Philosophy
Yamaha’s Sport Heritage motorcycle models draw inspiration from in-depth experience spanning seven decades of design and manufacture of famous and iconic motorcycles. During this time, the world of motorcycling has continually evolved, yet the unique emotions and intense excitement experienced when riding on two wheels have always stayed the same. The Faster Sons design philosophy fuses iconic style with modern technology to create enjoyable and exciting motorcycles that recall the past while featuring the performance of today.

2020 VMAX
The 2020 VMAX is the ultimate power cruiser, designed to deliver eye-opening performance from its thunderous 65-degree, 1679cc V-four engine. Astonishing-yet-controllable acceleration is achieved throughout a broad range of power, thanks to Yamaha’s Chip-Controlled Intake (YCC-I) and Chip-Controlled Throttle (YCC-T) fly-by-wire technology. The four-into-one-into-two-into-four exhaust system adds to the iconic VMAX look and delivers legendary sound.

A lightweight aluminum chassis places the engine low and forward for mass centralization, while huge cartridge-damper-type front forks and a link-type Monocross rear suspension with a fully adjustable remote-reservoir shock combine to make the VMAX handle curves and straightaways with ease.

The 2020 VMAX will be available from authorized Yamaha dealers in Matte Raven Black beginning in October for an MSRP of $17,999.

2020 Bolt and Bolt R-Spec
The 2020 Bolt and Bolt R-Spec are designed to offer the ultimate in urban riding fun and feature a 942cc air-cooled 60-degree V-twin engine for excellent power and low-end torque. Their stripped-down design epitomizes the “Urban Performance Bobber” look while a compact, stable chassis delivers light maneuverability with an upright riding position and low seat height.

The Bolt R-Spec takes performance and style to the next level, with twin piggyback rear shocks tuned for great comfort and handling, and 12-spoke cast alloy wheels for added strength and toughness.

The 2020 Bolt will be available in Raven for an MSRP of $7,999, and the 2020 Bolt R-Spec will be available in  Matte Silver for an MSRP of $8,399. Both models will begin arriving at authorized Yamaha dealers in September (October delivery for California dealers).

2020 V Star 250
The light and nimble 2020 V Star 250 delivers smooth power and easy handling in a stylish, entry-level V-twin package. Powered by the only V-Twin in its class, the unique 249cc air-cooled 60-degree engine delivers plenty of bottom-end torque and smooth roll-on power. Lightweight and compact with a low 27-inch seat height, the V Star 250 offers easy handling and maneuverability for first-time riders. With its 2.5-gallon fuel capacity and estimated 78 mpg, there is plenty of time for riding fun between fill-ups.

The 2020 V Star 250 will available in Metallic Silver and begin arriving at authorized Yamaha dealers in September (October delivery for California dealers) for an MSRP of $4,349.





2020 Yamaha VMAX Totalmotorcycle.com Features and Benefits

ENGINE

  • Liquid-cooled, 1,679 cc, DOHC, 16-valves, 65°, V-4 engine has no equal in its class. The compact engine design has allowed the engineers to place the engine in the “sweet spot” of the frame to optimize handling.
  • DOHC, 4-valve “pent roof” cylinder head design.
    • compact pent roof combustion chambers with 11.3:1 compression ratio
    • 4-valve design optimizes breathing efficiency & overall engine performance
    • 34 mm intake & 30 mm steel exhaust valves
    • 42,000 valve adjustment interval
  • “Combination” chain & gear camshaft drive system.
    • intake cams are driven by a chain
    • exhaust cams are driven by a gear drive off the intake cams
    • design allows for more compact cylinder heads since the distance or “pitch” between the camshafts is reduced.
  • High-performance camshafts.
    • provide incredible engine performance
  • Automatic hydraulic cam chain tensioners.
    • reduced engine mechanical noise
    • reduced maintenance.
  • Lightweight, forged, aluminum short skirt pistons.
    • design aids in fast engine response
    • reduced mechanical vibration
    • excellent durability
  • Fracture split con rods are carburized and use a “nut less” design.
    • lower end “cap” of the rod is made from the same piece of material as the upper portion; the 2 pieces are “split” apart using a special process known as fracture splitting & then machined
    • fracture splitting ensures true big end roundness & greater precision in con rod dimensions for excellent durability despite high horsepower loads
  • 180-degree crankshaft design.
  • Direct ceramic composite plated “liner less” cylinders.
    • ceramic coating sprayed directly on the cylinder blocks, eliminating the liner & reducing weight
    • excellent heat dissipation for consistent power delivery
    • coating enhances the thin film of oil between the cylinder & piston, reducing friction & increasing power
  • Crankcase incorporates the cylinders into the upper half of the cases to reduce weight.
  • Super light magnesium alloy crankcase covers.
  • Gear-driven engine counter balancer shaft.
    • reduces vibration for excellent rider comfort
    • balance ratio is 50% to allow some pulse feel / character
  • Twin radiator design.
    • curved upper rad… curved rad offer more surface area & improved cooling versus a flat rad
    • lower flat rad
    • each rad has its own cooling fan
  • Oil-to-coolant heat exchanger type oil cooler
    • maintains stable lubricant temperatures for extended engine life
  • Wet sump oil lubrication system
    • design reduces weight & offers excellent lubrication
    • easy access drain plug & spin-on type oil filter.
  • “Closed loop” 48 mm quad design throttle body fuel injection system.
    • four 48mm throttle bodies fitted with T.P.S. (Throttle Position Sensor)& other sensors
    • Denso 12-hole injectors for optimum fuel atomization for maximum power & response
    • “closed loop FI system” uses an oxygen sensor to “sniff” spent exhaust gases & automatically adjusts the fuel / air ratio for reduced emissions
    • fuel injection benefits include instant throttle response, choke-free starting, steady idle during warm up & reduced emissions
  • VMAX utilizes a lightweight main Electronic Control Unit (ECU).
    • main ECU actually consists of 3 – ECUs in total
    • main 32-bit ECU controls the ignition & fuel injection process, 2nd & 3rd integral ECU controls the YCC-T & YCC-I. This “combined” ECU design reduces weight.
  • Yamaha Chip Control Throttle (YCC-T) system.
    • YCC-T electronically controls throttle valves for outstanding throttle response & controllability
    • system features Throttle Position Sensor (TPS) and D.C. motor driven throttle valves
    • YCC-T system provides precise control of intake air volume for a smoother torque curve
    • ECU that controls YCC-T is capable of responding to changes at a speed of 1000th of a second
    • rider can “mechanically close” the throttles by simply closing the throttle twist grip
  • Yamaha Chip Controlled Intake (YCC-I) system.
    • intake funnels / stacks vary in length between 2 pre-set positions depending on engine rpm
    • servo motor varies funnel length from 150mm (low to mid rpms) to the short setting of 54mm for high rpm
    • transition rpm is approximately 6,650 rpms
    • electronic servo motor varies the funnels. The revolutionary YCC-I provides the best of both worlds… solid low rpm torque & power combined with an amazing high rpm rush. It takes only 0.3 of a second for the funnels to move from the tall to the short position.
  • Large capacity air box uses a viscous-type paper air filter.
  • Functional, hand finished aluminum intake covers highlight Yamaha’s quality & attention to detail.
  • 4-into-1-into-2 into-4 exhaust system.
    • design make a serious styling statement & also provides excellent performance
    • 3-way honeycomb catalytic converter in the under engine “muffler box” reduces emissions
    • design maximizes power, centralizes mass & lowers the centre of gravity for light, agile handling
  • Yamaha’s EXUP System (Exhaust Ultimate Power Valve).
    • part of the mid ship exhaust system
    • utilizes a titanium body & butterfly valves that prevent the “blow back” phenomenon caused by “valve overlap”
    • design reduces weight & maximizes cornering clearance
    • EXUP system eliminates “flat spots” in the power band & reduces emissions
  • Hydraulically activated, ramp-type slipper clutch.
    • consistent clutch performance with light lever pull & minimal maintenance
    • slipper or back limiter clutch assembly reduces rear wheel hop when making hard downshifts or under hard braking
    • Nissin 14 mm master cylinder
    • clutch lever offers 4 positions of adjustability
  • 5-speed transmission
    • optimized gear ratios for maximum acceleration & performance
    • 5th gear is an overdrive gear to reduce engine rpm at highway speeds
  • Shaft drive system.
    • clean, quiet system… no chain lube splatter
    • low-maintenance… no adjustments, just some basic maintenance & oil changes
    • compact shaft drive rear gear case reduces unsprung weight
  • 4-into-1-into-2 into-4 exhaust system.
    • design make a serious styling statement & also provides excellent performance
    • 3-way honeycomb catalytic converter in the under engine “muffler box” reduces emissions
    • design maximizes power, reduces weight, centralizes mass & lowers the centre of gravity for good handling
  • Yamaha’s EXUP System (Exhaust Ultimate Power Valve).
    • system helps prevent the “blow back” phenomenon caused by “valve overlap”
    • EXUP system eliminates “flat spots” in the power band & reduces emissions
  • ACM magneto produces 420 watts of power at 5,000 rpms.
  • Maintenance-free transistor controlled ignition (TCI).
    • produces a strong spark for fast starts
    • provides precise ignition timing / mapping for optimum engine performance at all rpms
  • Direct ignition coils.
    • ignition coils integrated into plug caps, significantly reducing weight & complexity
    • high-performance, long-life Iridium spark plugs
  • Air Injection System (AIS… not ram air) injects fresh air into exhaust ports to fully burn any unburnt fuel, reducing emissions.

CHASSIS/SUSPENSION

  • Lightweight cast aluminum frame
    • provides an optimized rigidity balance to maximize handling performance
    • frame is very rigid or stiff at the head pipe, engine mounts & swingarm pivot point. In other areas, material is less rigid to allow for “tuned flex”
    • benefits include reduced weight, excellent high-speed stability & good cornering characteristics
  • Extra-long, lightweight cast aluminum swingarm
    • great torsional rigidity for excellent handling & manoeuvrability
    • distance between the swingarm pivot & rear axle has been optimized (662.5mm) for great rear wheel traction & control
    • threaded holes for accessory racing type rear stand
  • Detachable C.F. die cast aluminum rear sub frame
    • easier maintenance access for rear shock
    • less costly repair if the unit is “looped out”
  • Fully adjustable, conventional 52mm front fork with 120mm (4.7″) of wheel travel.
    • adjustments include; 5-way spring preload, 20-way compression & 17-way rebound damping
    • inner tubes feature a oxide titanium coating to reduce friction & wear
    • adjustable design allows the rider to tailor suspension settings to match rider’s weight, load & road conditions
  • Lightweight, aluminum triple clamps.
  • Fully adjustable link Monocross rear suspension with 110 mm (4.3″) of wheel travel
    • remote reservoir rear shock to keep shock oil cool.
    • adjustments include; 11-way spring preload (via easy access remote adjuster), 12-way compression damping & 18-way rebound damping
  • 15-litre fluorinated polyethylene fuel tank.
    • mounted below the rider’s seat to centralize mass & maintain a low centre of gravity for good maneuverability & handling
    • in tank electric fuel pump
    • 9 litre reserve capacity (low fuel light illuminates)
  • ABS equipped, dual floating 320mm wave-style front rotors squeezed by radial mount, monoblock 6-piston calipers.
    • excellent braking performance with good control & lever feedback
    • wave disc design reduces weight & improves cooling (increased surface area)
    • radial mount design helps to reduce caliper distortion for improved braking performance
    • Brembo radial pump master cylinder with a 16mm piston
    • brake lever is adjustable for various hand sizes
  • ABS equipped, 298mm wave-style rear disc is squeezed by a single-piston slide-type caliper
    • caliper is mounted below the swingarm for a handling enhancing lower centre of gravity
    • sintered metal brake pads
    • 14mm Brembo master cylinder
  • Anti-lock braking system features Yamaha’s latest ABS system, very similar to that found on the FJR1300. The linear controlled 3-position ABS system features an ECU with an integrated compact hydraulic unit built into the ECU. System also uses active type wheel sensors.
    • ABS system helps to prevents wheel lock-up
    • main benefit of ABS is excellent control under hard braking or braking on wet or slippery surfaces
    • benefits include; reduced weight & mass centralization for lighter handling
  • Lightweight cast aluminum 5-spoke mag wheels front & rear.
    • both wheels utilize hollow “spokes” to reduce unsprung weight for superior handling & suspension performance
    • front rim is 3.50 x 18 , rear is 6.00 x 18… both use radial tires
  • Conventional tapered 118” diameter low rise handlebar.
    • Conventional design makes it easier to change handlebar bend

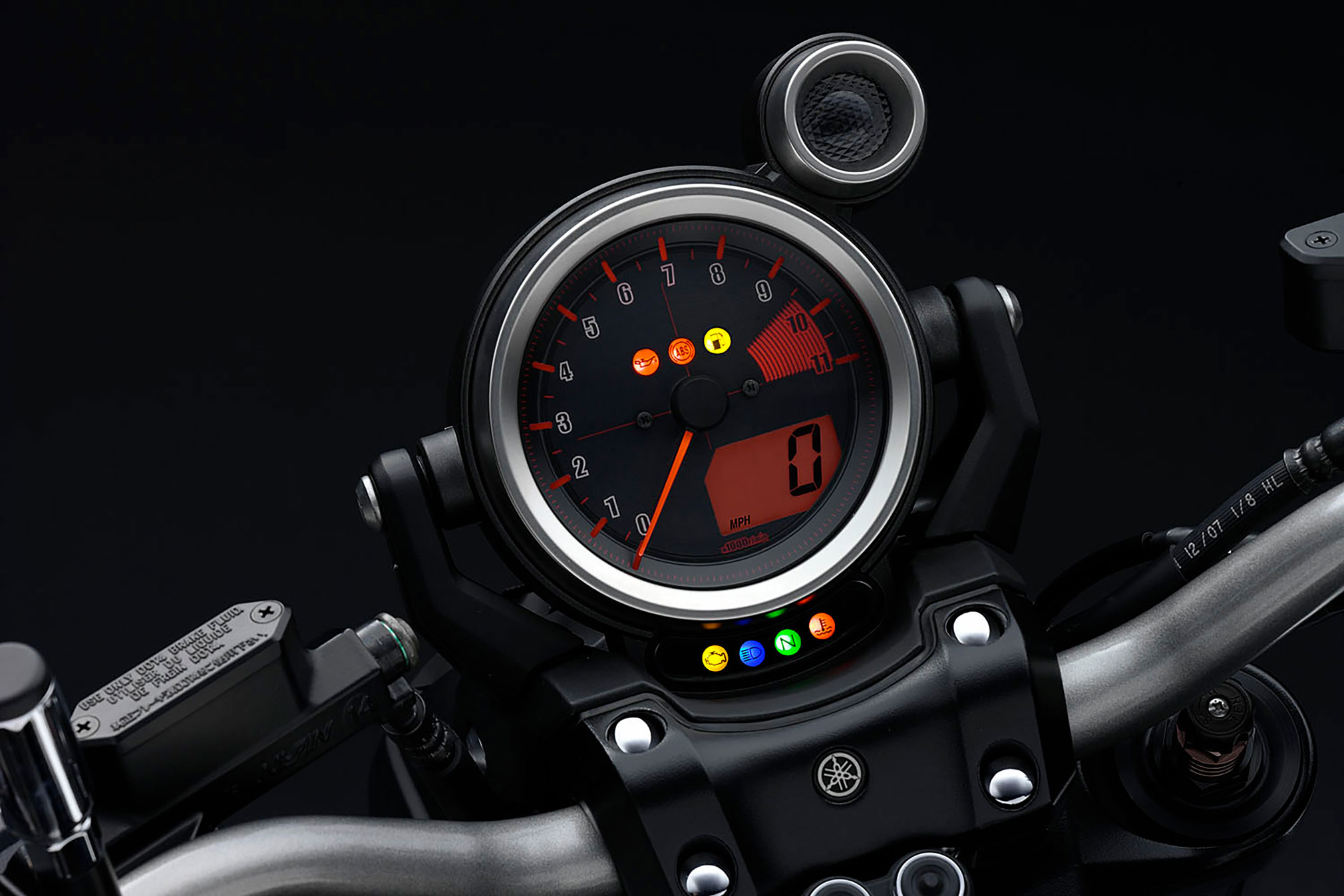

  • Multi-function handlebar mounted meter / instrument
    • functions include; analog tachometer & digital speedo
    • adjustable shift indicator light
  • Multi-function fuel tank mounted meter / instrument
    • second dual mode, multi-function display is located on top of the “fuel tank” and uses a highly visible 256 x 64 dot matrix “Organic Electro Luminescence display”
    • read outs include; odometer, dual trip meters, fuel gauge, fuel reserve trip meter (counts kms since low fuel light illuminated), clock, coolant temp, gear indicator, throttle valve opening, intake air temp, stop watch, countdown clock & maintenance counters.
    • adjustable background illumination
  • Bright, H4 60/55-watt, halogen headlight
  • Eye-catching LED tail light
  • Immobilizer ignition system is designed to reduce the possibility of “ride away” theft.
    • system must recognize the “coded ignition key” in order for the unit to start
    • if the immobilizer ignition does not recognize the key, the ignition system & starter will not function, even if the ignition is forced into the on position

DETAILS

  • Lightweight forged aluminum shift lever & rear brake pedal
  • Stylish key with special key case holder
  • Lean angle engine kill switch prevents unit from running if it is on its side to avoid engine damage

Steering lock is integrated into the main ignition switch for extra convenience

  • Helmet holder
  • Bungee cord fastening points
  • Oil level sight glass window
  • Low-maintenance, sealed battery (battery should be charged during winter storage)

IMPORTANT NOTE: The VMAX offers a significant level of power & performance. It is not intended for novice or inexperienced riders.









2020 Yamaha VMAX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17,999 USD
Canada MSRP Price: $25,999 CDN
Europe/UK MSRP Price: £See dealer for pricing in GBP (On The Road inc 20% Vat)

Engine Type 102-cubic-inch (1679cc) liquid-cooled 65° V-four,

DOHC; 16 valves

Bore x Stroke 90.0mm x 66.0mm

Compression Ratio 11.3:1

Fuel Delivery Fuel Injection with YCC-T and YCC-I

Ignition TCI: Transistor Controlled Ignition

Transmission 5-speed, multiplate slipper clutch

Final Drive Shaft

Suspension / Front 52mm telescopic cartridge fork w/oxidized

titanium coating. Fully adjustable preload,

compression and rebound; 4.7 in travel

Suspension / Rear Single shock w/remote reservoir and remote

adjustable for preload, compression and rebound;

4.3 in travel

Brakes / Front Dual 320mm wave-type discs; radial mount 6-

piston calipers, Brembo® radial pump master

cylinder

Brakes / Rear 298mm wave-type disc, single-piston caliper and

Brembo® master cylinder

Tires / Front 120/70R18

Tires / Rear 200/50R18

L x W x H 94.3 in x 32.3 in x 46.9 in

Seat Height 30.5 in

Wheelbase 66.9 in

Rake (Caster Angle) n/a

Trail n/a

Maximum Ground

Clearance

n/a

Fuel Capacity 4.0 gal

Fuel Economy** 27 mpg

Wet Weight*** 683 lb / CA model 686 lb

Warranty 1 Year (Limited Factory Warranty)

Color Matte Raven Black

*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.





2020 Yamaha VMAX – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
Engine
Liquid-cooled, DOHC, 16-valves (4-valves/cyl), 65 degree V-4
Displacement
1679cc
Bore and Stroke
90 x 66 mm
Compression Ratio
11.3:1
Maximum Torque
17 kg-m (123 ft-lb) @ 6,500 rpm
Engine Management
YCC-T, YCC-I
Fuel Delivery
Mikuni 48 mm fuel injection
Estimated Fuel Consumption±
11.4 kpl / 32 mpg (Imp.)
Lubrication
Wet sump
Ignition / Starting
TCI / Electric Start
Transmission
5-speed (with slipper clutch)
Final Drive
Shaft
Chassis
Suspension (Front)
Fully adjustable 52 mm cartridge fork / 120 mm (4.7″) wheel travel
Suspension (Rear)
Fully adjustable Link Monocross / 110 mm (4.3″) wheel travel
Brakes (Front)
Dual 320 mm discs with ABS / radial mount 6-piston calipers
Brakes (Rear)
298 mm disc with ABS / single piston caliper
Tires (Front)
120/70R18
Tires (Rear)
200/50R18
Critical Data
Length
2,395 mm (94.3″)
Width
820 mm (32.3″)
Height
1,190 mm (46.9″)
Wheelbase
1,700 mm (66.9″)
Rake / Trail
31° / 148 mm (5.8″)
Ground Clearance
140 mm (5.5″)
Seat Height
775 mm (30.5″)
Fuel Capacity
15 litres
Wet Weight
310 kg (683 lb)
Colour(s)
Matte Dark Gray







2020 Yamaha VMAX – Totalmotorcycle.com European Specifications/Technical Details

NA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 4940 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 21 great years. Total Motorcycle is my pride and joy and being able to reach out 330 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
